Private Network Access

SWR supports two ways of private network access.

• Default way
• Access through VPC Endpoint

Access Through the Default Way

If your container engine client is installed on a CCE node or an ECS that is in the same region as the image repository, you can push or pull images over a private network.

Private network access does not need any configurations.

If you access OBS through fixed VPC endpoints, you need to configure policies to allow access to OBS bucket clusters that store SWR container images. Otherwise, the images may fail to be pulled. You can submit a service ticket to obtain information about SWR's OBS bucket clusters in different regions.

Procedure

1. Log in to the management console.
2. Click in the upper left corner and select the desired region and project.
3. In the Service List in the upper left corner, choose Networking > VPC Endpoint.

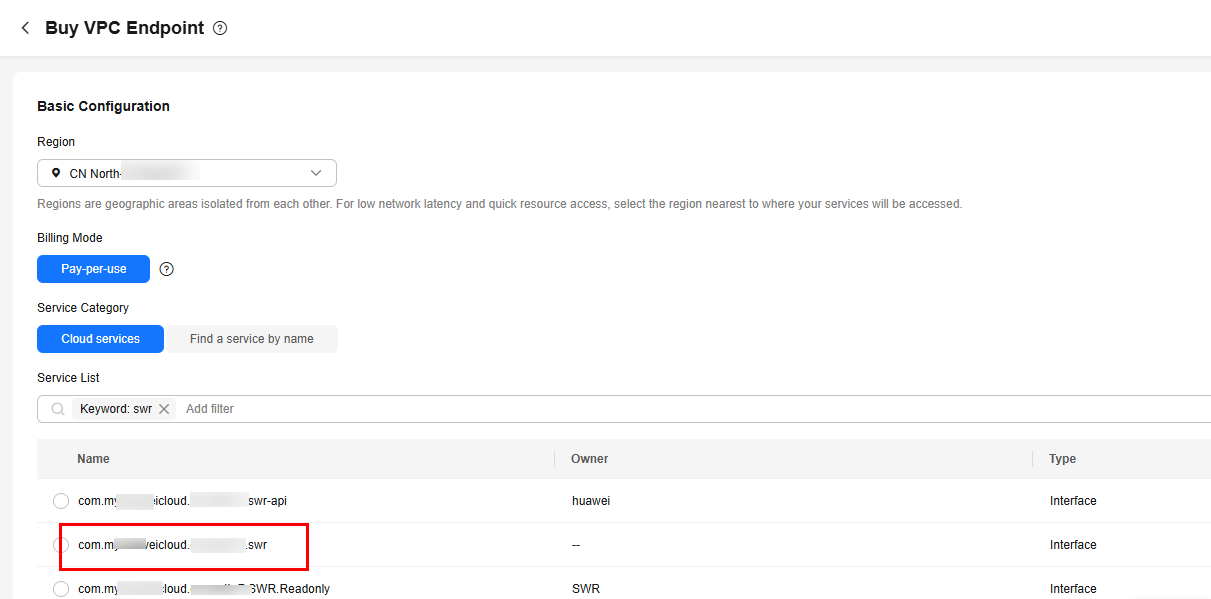

4. On the VPC Endpoints page, click Buy VPC Endpoint. In the Select List, select the VPC endpoint service below and then configure other parameters as needed:

   com.myhuaweicloud.{region_id}.swr





   In some regions, the VPC endpoint service for SWR is not displayed in the Service List. You can search for it by name.

   Table 1 VPC endpoint services for SWR in each region

   Region Name	VPC Endpoint Service for SWR
   CN Southwest-Guiyang1	com.myhuaweicloud.cn-southwest-2.swr
   CN East2	com.myhuaweicloud.cn-east-4.swr
   CN South-Guangzhou	com.myhuaweicloud.cn-south-1.swr
   ME-Riyadh	com.myhuaweicloud.me-east-1.swr
   AF-Johannesburg	com.myhuaweicloud.af-south-1.swr
   LA-Mexico City2	com.myhuaweicloud.la-north-2.swr
   AP-Singapore	com.myhuaweicloud.ap-southeast-3.swr
   CN East-Shanghai1	com.myhuaweicloud.cn-east-3.swr
   CN North-Beijing4	com.myhuaweicloud.cn-north-4.swr
   CN North-Ulanqab1	com.myhuaweicloud.cn-north-9.swr
   CN North-Guangzhou-InvitationOnly	com.myhuaweicloud.cn-south-4.swr
   CN North3	com.myhuaweicloud.cn-north-12.swr
   LA-Sao Paulo1	com.myhuaweicloud.sa-brazil-1.swr
   Automotive II	com.myhuaweicloud.cn-southwest-3.swr
   Qingdao	com.myhuaweicloud.cn-east-5.swr
   CN-Hong Kong	com.myhuaweicloud.ap-southeast-1.swr
   AP-Bangkok	com.myhuaweicloud.ap-southeast-2.swr
   AP-Manila	com.myhuaweicloud.ap-southeast-5.swr
   AF-Cairo	com.myhuaweicloud.af-north-1.swr
   TR-Istanbul	com.myhuaweicloud.tr-west-1.swr
   AP-Jakarta	com.myhuaweicloud.ap-southeast-4.swr
   LA-Santiago	com.myhuaweicloud.la-south-2.swr

5. Click Next.
6. Confirm the order details and click Submit.
