Obtaining a Long-Term Valid Login Command

Scenario

This section describes how to obtain a login command that is permanently valid.

• For security purposes, it is advised to obtain the login command in the development environment.

• Before logging in to the IAM console, ensure that you have the permission for accessing IAM service. For details about the authorization mode, see Creating a User Group and Assigning Permissions.

Process

You can obtain a long-term valid login command as the following process:

Figure 1 Process

Procedure

1. Obtain the programmatic access permission. (If the current user has the permission, skip this step.)
   1. Log in to the management console as an administrator.
   2. Click in the upper left corner and select a region and a project.
   3. Click in the navigation pane on the left and choose Management & Governance > Identity and Access Management.
   4. Enter the name of the user to whom you want to grant the programmatic access permission in the search box on the Users page.
      Figure 2 User list

   5. Click the user to go to its details page.
   6. Click next to Access Type.

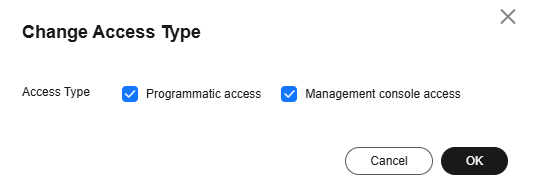

      Figure 3 Changing access type

   7. Select Programmatic access. (You can select only programmatic access or both access types.)
      Figure 4 Changing the access type


2. Obtain the regional project name and image repository address.
   1. Log in to the IAM console.
   2. Hover the cursor over the username in the upper right corner.
   3. Choose My Credentials from the drop-down list.
   4. In the project list, find the region and project to which your VM belongs.

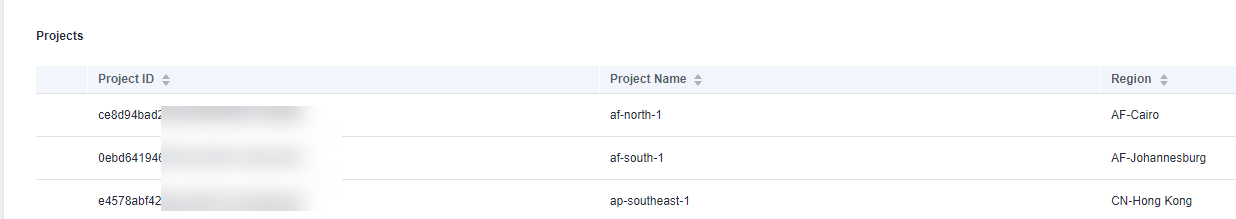

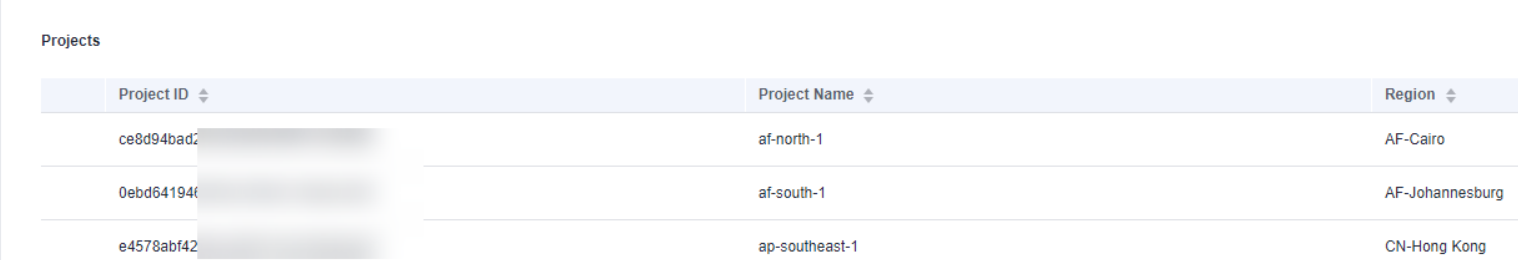

      Figure 5 Region and project


3. Obtain an AK/SK.


   The access key ID (AK) and secret access key (SK) are a pair of access keys used together to authenticate users who wish to make API requests. The AK/SK pair provides functions similar to a password. If you already have an AK/SK, skip this step.

   1. Log in to the IAM console, hover over your username, and click My Credentials.
   2. In the navigation pane on the left, choose Access Keys and click Create Access Key.
   3. Enter a description, and click OK.
   4. In the displayed dialog box, click Download.

      After the certificate is downloaded, obtain the AK and SK information from the credentials file.

      Table 1 credentials file

      User Name	Access Key Id	Secret Access Key
      a*****	RVHVMX******	H3nPwzgZ******



      Keep the AK/SK file confidential to prevent information leakage.

4. Log in to a Linux PC and run the following command to obtain the login key:

   printf "AK" | openssl dgst -binary -sha256 -hmac "SK" | od -An -vtx1 | sed 's/[ \n]//g' | sed 'N;s/\n//'

   Replace AK with the Access Key Id and SK with Secret Access Key in the credentials file in Step 3.

   Examples:

   printf "RVHVMX******" | openssl dgst -binary -sha256 -hmac "H3nPwzgZ******" | od -An -vtx1 | sed 's/[ \n]//g' | sed 'N;s/\n//'

   After the command is executed, the following login key is obtained:

   cab4ceab4a1545***************



   The preceding key is only an example.

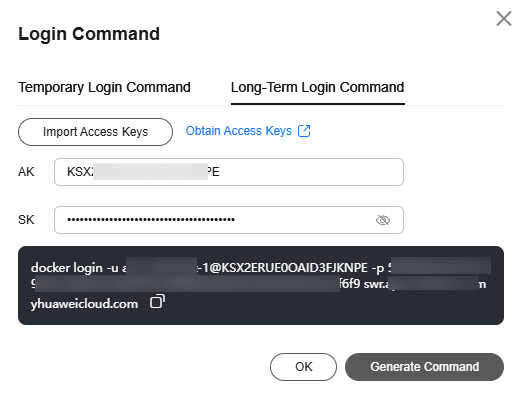

5. Use the information you obtained to generate a long-term valid login command in the following format:

   docker login -u [Regional project name]@[AK] -p [Login key] [Image repository address]

   In the command, the regional project name and image repository address are obtained in 2, the AK in 3, and the login key in 4.

   Examples:

   docker login -u ap-southeast-3@RVHVMX****** -p cab4ceab4a1545*************** swr.ap-southeast-3.myhuaweicloud.com

   If the Login Succeeded message is displayed, it indicates that the login is successful.



   • The login key is encrypted and cannot be decrypted. Therefore, other users cannot obtain the SK from -p.
   • The login command can be used on other devices.

6. (Optional) When you log out the repository, run the following commands to delete your authentication information.

   cd /root/.docker/
   rm -f config.json

7. Run the history -c command to clear the operation records.
