Quick Experience

Overview

ServiceStage is an application management and O&M platform that lets you deploy, roll out, monitor, and maintain applications all in one place. It supports technology stacks such as Java, PHP, Python, Node.js, Docker, and Tomcat, and supports microservice applications such as Apache ServiceComb Java Chassis (Java chassis) and Spring Cloud, making it easier to migrate enterprise applications to the cloud.

ServiceStage provides the environment management function to manage compute resources, such as Cloud Container Engine (CCE), Elastic Cloud Server (ECS), network resources, such as Elastic Load Balance (ELB) and Elastic IP (EIP), and middleware, such as Distributed Cache Service (DCS), Relational Database Service (RDS), and Cloud Service Engine (CSE) in the same VPC. In this case, when you select an environment during application deployment, the contained resources are automatically loaded.

An application is a service system with functions and consists of one or more components. A component implements a service feature of an application. It is in the form of code or software packages and can be deployed independently.

You can perform O&M operations, such as starting, stopping, upgrading, rolling back, and scaling application components, viewing logs, viewing events, setting access modes, and setting threshold alarms.

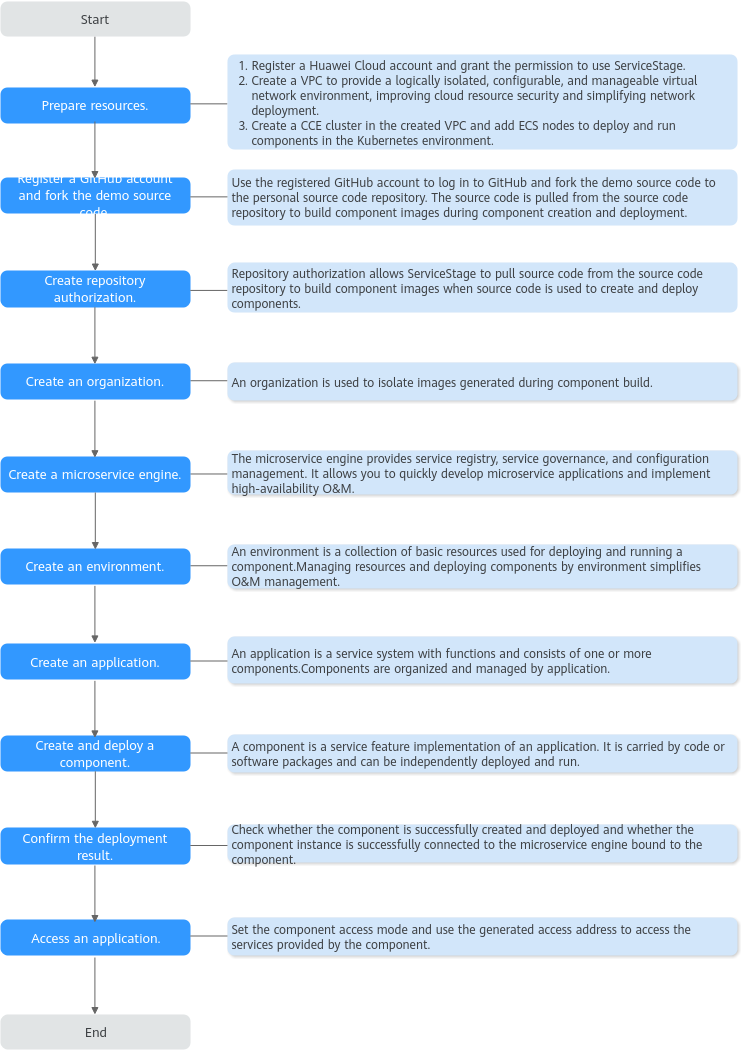

This example describes how to quickly create a microservice application based on the ServiceComb (SpringMVC) framework to experience the ServiceStage functions.

ServiceStage provides demos in different languages based on GitHub. Experience the source code deployment function of the demo in a specific language on ServiceStage. For details, see How Do I Use the ServiceStage Source Code Deployment Function?

Prerequisites

1. You have registered a Huawei account and enabled Huawei Cloud services.
2. The login account has the permission to use ServiceStage. For details, see Creating a User and Granting Permissions.

3. You have obtained AK/SK. For details, see Access Keys.


   ServiceStage provides professional microservice engines. If you use such an engine, configure an AK/SK for your application. In this example, the professional microservice engine is used.

   If the exclusive microservice engine is used, you do not need to configure the AK/SK. You need to create an exclusive microservice engine with security authentication disabled. For details, see Creating a Microservice Engine.

   • AK: access key ID. Unique identifier associated with the SK. The AK and SK are used together to obtain an encrypted signature for a request.
   • SK: secret access key, used together with AK. A secret access key works as a cryptographic signature to identify the sender of a request and prevent the request from being tampered with.
4. Create a VPC. For details, see Creating a VPC.
5. You have created a CCE cluster that contains at least one ECS node. (To facilitate subsequent operations, the node should have 4 vCPUs and 8 GB memory.) You have also bound an EIP to the cluster. For details, see Buying a CCE Cluster.
   • The VPC to which the CCE cluster belongs is the VPC created in 4.
   • The CCE cluster cannot be bound to other environments.
   • If a CCE cluster 1.23 or later is created, Container Engine of the ECS node in the cluster supports only Docker.
   • The CCE cluster and its VPC must be in the same enterprise project if you have enabled the enterprise project function.
6. In this example, the GitHub source code repository is bound to ServiceStage to implement source code building, archiving, and application creation. Ensure that you have registered an account on GitHub.
7. You have created a repository authorization on ServiceStage to authorize access to your GitHub repository. For details, see Authorizing a Repository.

Forking the Source Code

Log in to your GitHub account and fork the demo source code.

Demo source code address: https://github.com/servicestage-template/ServiceComb-SpringMVC.

Creating an Organization

1. Log in to ServiceStage.
2. Choose Deployment Source Management > Organization Management.
3. Click Create Organization. On the displayed page, specify Organization Name. For example, org-test.
4. Click OK.
   Figure 1 Creating an Organization


Creating an Environment

1. Choose Environment Management > Create Environment and set the environment information by referring to the following table.

   Parameter	Description
   Environment	Enter an environment name, for example, env-test.
   Enterprise Project	Specify Enterprise Project. Enterprise projects let you manage cloud resources and users by project. It is available after you enable the enterprise project function. The environment and its VPC must be in the same enterprise project.
   VPC	Select the VPC prepared in Prerequisites. NOTE: The VPC cannot be modified after the environment is created.
   Environment Type	Select Kubernetes.

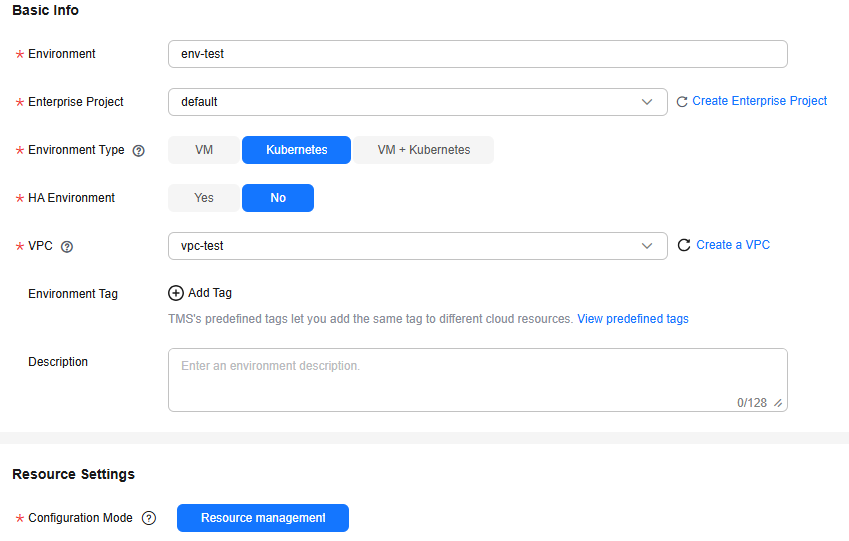

   Figure 2 Configuring an environment


2. Click Create Now.
3. In the Resource Settings area, choose Cloud Container Engine from Compute and click Create Now.
4. In the dialog box that is displayed, select the CCE cluster created in Prerequisites and click OK.
5. In the Resource Settings area, choose Cloud Service Engine from Middleware and click Manage Resource.

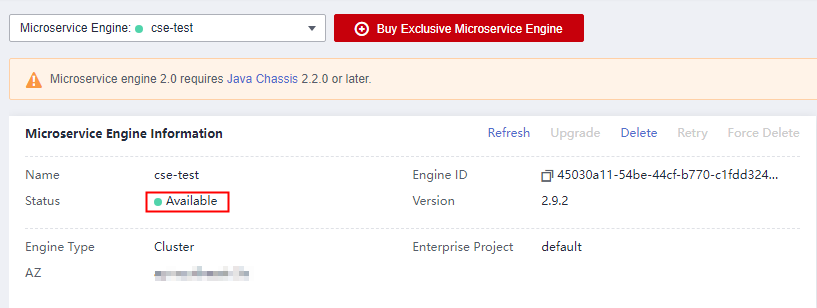

6. In the displayed dialog box, select a professional microservice engine and click OK.

Creating an Application

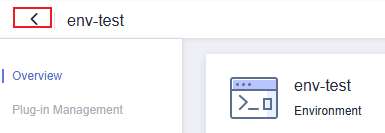

1. Click in the upper left corner to return to the Environment Management page.
2. Choose Application Management > Create Application and set basic application information.
   1. Name: Enter an application name, for example, servicecomb.
   2. Enterprise Project: Enterprise projects let you manage cloud resources and users by project.

      It is available after you enable the enterprise project function. The application and the created environment must be in the same enterprise project.

3. Click OK.

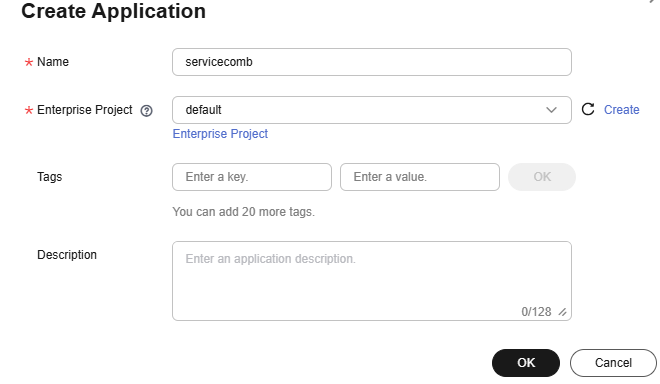

   Figure 3 Creating an application


Creating and Deploying a Component

1. Select the application (for example, servicecomb) created in Creating an Application and click Create Component in the Operation column.
2. In the Basic Information area, set the following mandatory parameters. Retain the default values for other parameters.

   Parameter	Description
   Component Name	Enter a component name, for example, java-test.
   Component Version	Enter 1.0.0.
   Environment	Select the environment created in Creating an Environment, for example, env-test.
   Application	Select the application created in Creating an Application, for example, servicecomb.

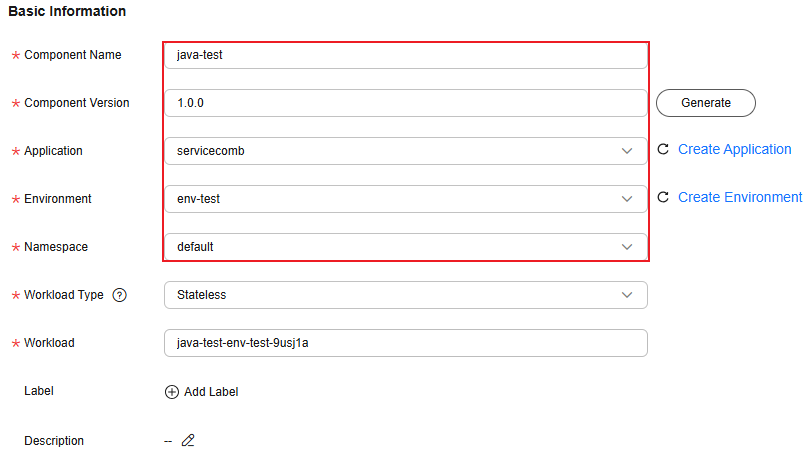

   Figure 4 Setting the basic component information


3. In the Component Package area, set the following mandatory parameters. Retain the default values for other parameters.

   Parameter	Description
   Stack	Select Java.
   Source Code/Software Package	Select Source code repository. Select GitHub, set Authorization and Username/Organization, and select ServiceComb-SpringMVC for Repository and master for Branch.

4. In the Build Job area, set the following mandatory parameters. Retain the default values for other parameters.

   Parameter	Description
   Organization	Select the organization created in Creating an Organization. An organization is used to manage images generated during component build.
   Environment	Select Use current environment to use the CCE cluster in the deployment environment to which the component belongs to build an image. In the current environment, masters and nodes in the CCE cluster must have the same CPU architecture. Otherwise, the component build fails.

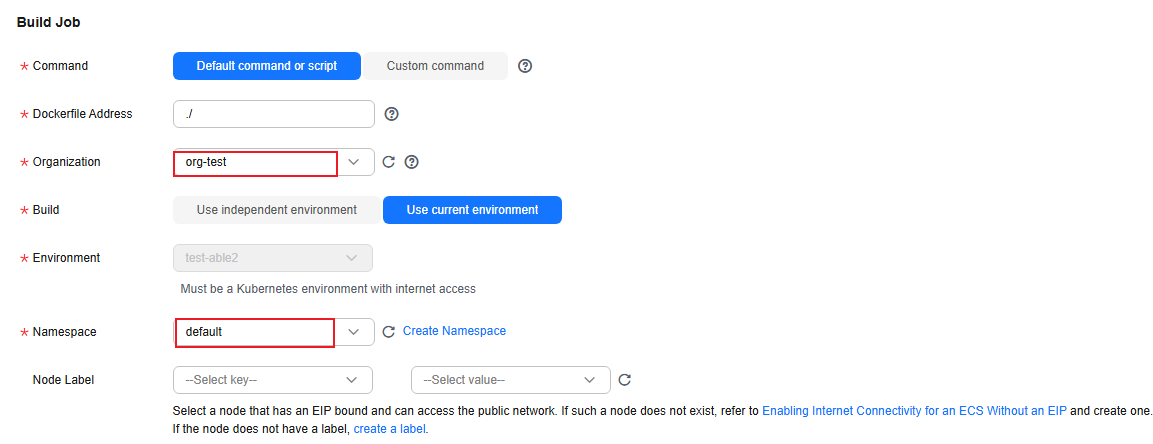

   Figure 5 Configuring build parameters


5. Click Next.

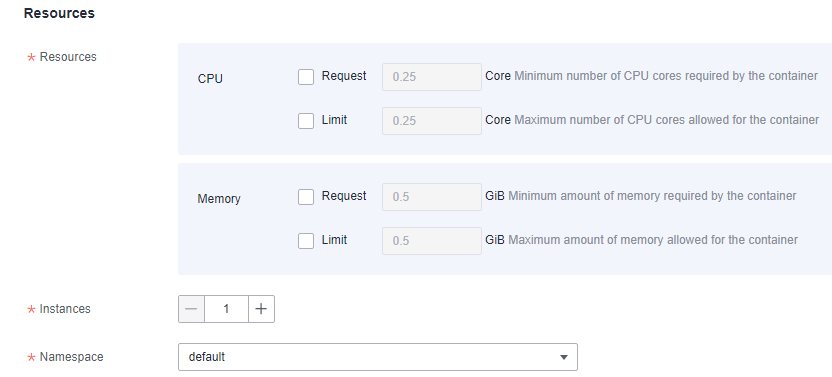

6. In the Resources area, set Instances to 2 and retain the default values for other parameters.
7. In the Access Mode area, retain the default settings.
8. In the Local Time area, retain the default settings.
9. Bind a microservice engine.
   1. In the Advanced Settings area, expand Microservice Engine.
   2. Click Bind Microservice Engine.
   3. Select the managed microservice engine in the current environment.
   4. Click OK.

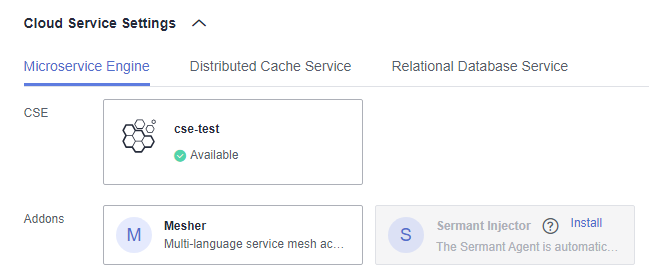

   Figure 6 Binding a microservice engine


10. (Optional) Configure the AK/SK.
    If you use the professional microservice engine, you need to configure the AK/SK. If you use the exclusive microservice engine, skip this step.

    1. In the Advanced Settings area, expand Component Configuration.
    2. Click Add Environment Variable and configure AK/SK by referring to the following table.

       Type	Name	Variable/Variable Reference
       Add manually	servicecomb_credentials_accessKey	AK obtained in Prerequisites
       	servicecomb_credentials_secretKey	SK obtained in Prerequisites

       Figure 7 Configuring the AK/SK

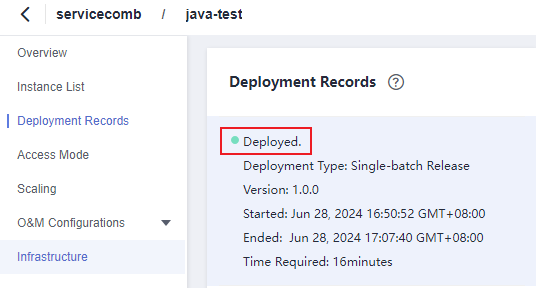

11. Click Create and Deploy and wait until the component is deployed.

Confirming the Deployment Result

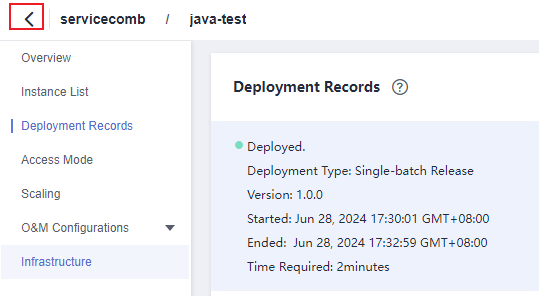

1. Click in the upper left corner to return to the Application Management page.
2. Choose Cloud Service Engine > Microservice Catalog.
3. Select Cloud Service Engine from the Microservice Engine drop-down list.
4. Select springmvc from All applications.

   If the microservice servicecombspringmvc is displayed and the number of microservice instances is 2, the deployment is successful.

   Figure 8 Confirming the deployment result


Accessing an Application

1. Choose Application Management. The application list is displayed.
2. Click the application created in Creating an Application (for example, servicecomb). The Overview page is displayed.
3. On the Component List tab, click the component created in Creating and Deploying a Component (for example, java-test). The Overview page is displayed.
4. Click Access Mode.
5. Click Add Service in the TCP/UDP Route Configuration area and set parameters by referring to the following table.

   Parameter	Description
   Service Name	Retain the default setting.
   Access Mode	Select Public network access.
   Access Type	Select Elastic IP address.
   Service Affinity	Retain the default value.
   Port Mapping	Protocol: Select TCP. Container Port: Enter 8080. Access Port: Select Automatically generated.

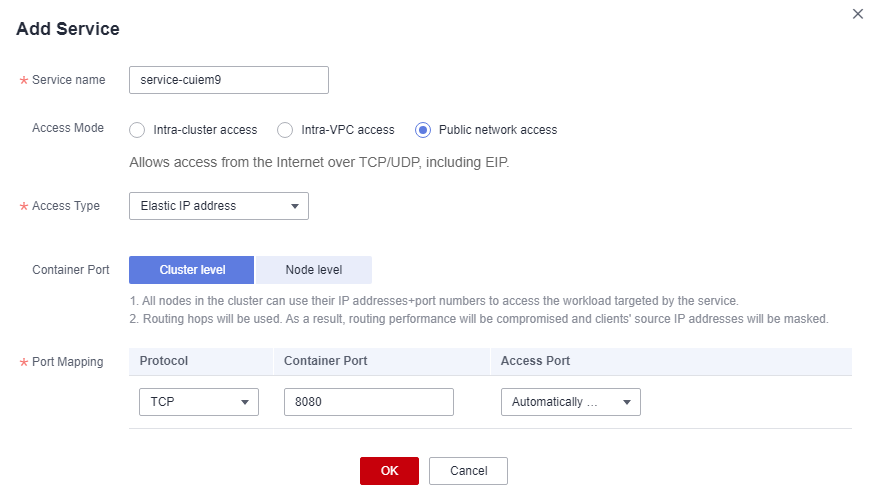

   Figure 9 Setting the access mode


6. Click OK.

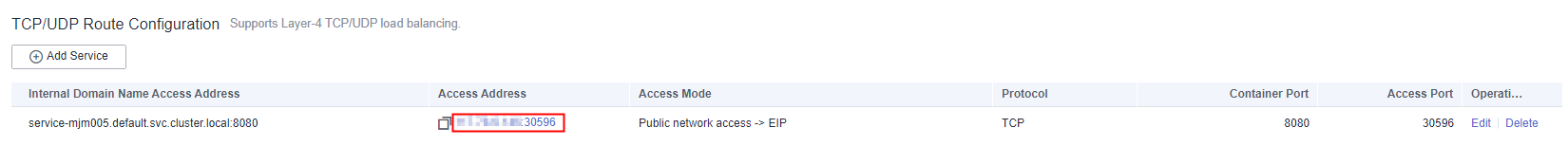

   Figure 10 Access address


7. Click the access address in the Access Address column to access the application, as shown in Figure 10.
   The following information is displayed:

   {"message":"Not Found"}

8. Enter http://Access address generated in 6/rest/helloworld?name=ServiceStage in the address box of the browser to access the application again.

   The following information is displayed:

   "ServiceStage"

Application O&M

1. Go to ServiceStage console.
2. Click Application Management.
3. Click the application created in Creating an Application (for example, servicecomb). The Overview page is displayed.
4. On the Component List tab, click the component created in Creating and Deploying a Component (for example, java-test). The Overview page is displayed.

   For details, see Component O&M.
