Buying a Kafka Instance

Kafka instances are tenant-exclusive, and physically isolated in deployment. You can customize the computing capabilities and storage space of a Kafka instance as required.

Preparing Instance Dependencies

Before creating a Kafka instance, prepare the resources listed in Table 1.

**Table 1** Kafka resources
Resource	Requirement	Operations
VPC and subnet	You need to configure a VPC and subnet for the Kafka instance as required. You can use the current account's existing VPC and subnet or shared ones, or create new ones. VPC owners can share the subnets in a VPC with one or multiple accounts through Resource Access Manager (RAM). Through VPC sharing, you can easily configure, operate, and manage multiple accounts' resources at low costs. For more information about VPC and subnet sharing, see VPC Sharing. Note when creating a VPC and a subnet: The VPC must be created in the same region as the Kafka instance. The Kafka instance supports IPv6 after it is enabled for the subnet. The Kafka instance with IPv6 enabled can be accessed on a client using IPv6 addresses.	For details on how to create a VPC and a subnet, see Creating a VPC. If you need to create and use a new subnet in an existing VPC, see Creating a Subnet for the VPC.
Security group	Different Kafka instances can use the same or different security groups. Before accessing a Kafka instance, configure security groups based on the access mode. For details, see Table 2.	For details on how to create a security group, see Creating a Security Group. For details on how to add rules to a security group, see Adding a Security Group Rule.
EIP	To access a Kafka instance on a client over a public network, create EIPs in advance. Note the following when creating EIPs: The EIPs must be created in the same region as the Kafka instance. The number of EIPs must be the same as the number of Kafka instance brokers. The Kafka console cannot identify IPv6 EIPs.	For details about how to create an EIP, see Assigning an EIP.

Quick Config of a Kafka Instance

Go to the Buy Instance page.

Set basic instance configurations on the Quick Config page.

**Table 2** Basic instance configuration parameters
Parameter	Description
Billing Mode	Yearly/Monthly is a prepaid mode. You need to pay first, and will be billed for your subscription period. Pay-per-use is a postpaid mode. You can pay after using the service, and will be billed for your usage duration. The fees are calculated in seconds and settled by hour.
Region	DMS for Kafka instances in different regions cannot communicate with each other over an intranet. Select a nearest location for low latency and fast access.
AZ	An AZ is a physical region where resources use independent power supply and networks. AZs are physically isolated but interconnected through an internal network. Select one AZ or at least three AZs. The AZ setting is fixed once the instance is created.

Select the bundle.
- Recommended: Select a preset DMS for Kafka bundle as required. Specify the disk type and capacity as required. The disk type cannot be changed once the Kafka instance is created.
  The storage space is consumed by message replicas, logs, and metadata. Specify the storage space based on the expected service message size, the number of replicas, and the reserved disk space. Each Kafka broker reserves 33 GB disk space for storing logs and metadata.

  Disks are formatted when an instance is created. As a result, the actual available disk space is 93% to 95% of the total disk space.

  Figure 1 Recommended
- Custom: The system calculates Brokers and Storage Space per Broker, and provides Recommended Specifications based on your specified parameters: Peak Creation Traffic, Retrieval Traffic, Replicas per Topic, Total Partitions, and Messages Created During Retention Period. This function is not supported in v3.x.

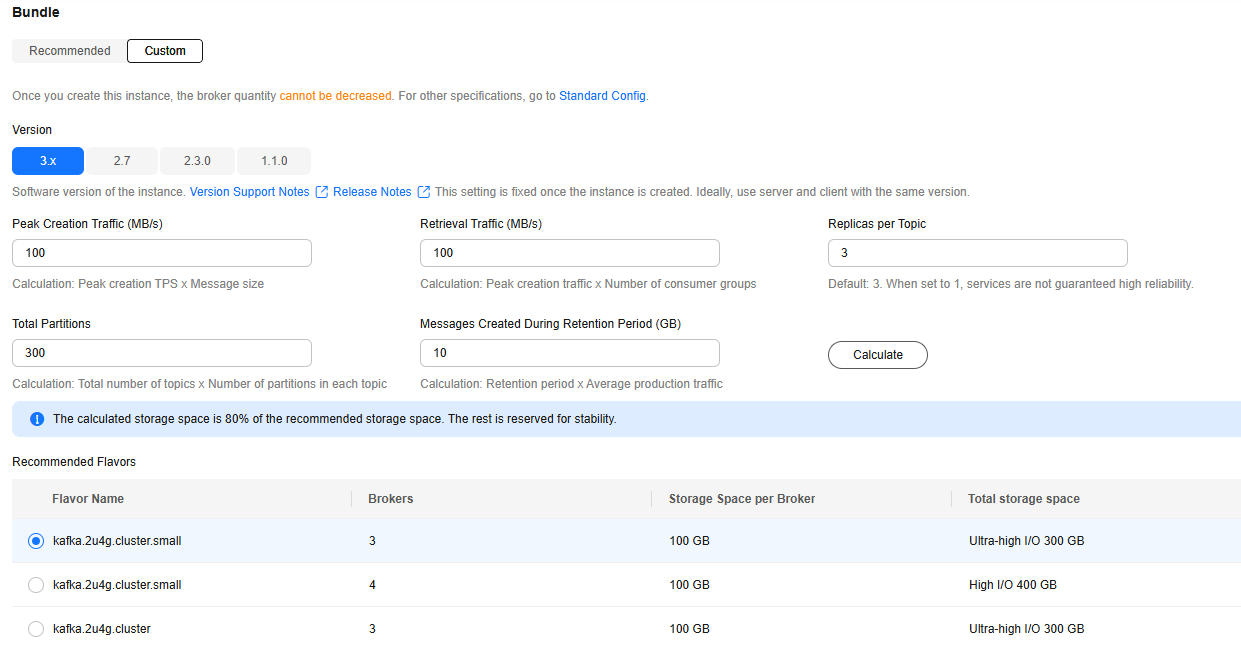

  Figure 2 Specification calculation

Set the network information.

**Table 3** Instance network parameters
Parameter	Description
VPC	Select a created or shared VPC. A VPC provides an isolated virtual network for your Kafka instances. You can configure and manage the network as required. You can click Create VPC on the right to go to the VPC console, and view or create VPCs. After the Kafka instance is created, its VPC cannot be changed.
Subnet	Select a created or shared subnet. After the Kafka instance is created, its subnet cannot be changed. The Kafka instance supports IPv6 after it is enabled for the subnet.
IPv6	This parameter is displayed after IPv6 is enabled for the subnet. The instance with IPv6 enabled can be accessed on a client using IPv6 addresses. SASL_SSL cannot be manually configured for instances with IPv6 enabled. The IPv6 setting is fixed once the instance is created. NOTE: This function is available only in the CN East2 region.
Security Group	Select a created security group. A security group is a set of rules for accessing a Kafka instance. You can click Manage Security Group to view or create security groups on the network console. Before accessing a Kafka instance on the client, configure security group rules based on the access mode. For details about security group rules, see Table 2.

Configure the instance access mode.

**Table 4** Instance access mode parameters
Parameter	Sub-Parameter	Description
Private Network Access	Access Method	There are two methods: Plaintext access: Clients connect to the Kafka instance without SASL authentication. Ciphertext access: Clients connect to the Kafka instance with SASL authentication. To disable ciphertext access, contact customer service. Enabling Ciphertext Access requires the Kafka security protocol, SSL username, password, and SASL PLAIN. Once enabled, private network access cannot be disabled. Enable plaintext or ciphertext access, or both.
	Cross-VPC Access Protocol	When Plaintext Access is enabled and Ciphertext Access is disabled, PLAINTEXT is used for Cross-VPC Access Protocol. When Ciphertext Access is enabled and Security Protocol is SASL_SSL, SASL_SSL is used for Cross-VPC Access Protocol. When Ciphertext Access is enabled and Security Protocol is SASL_PLAINTEXT, SASL_PLAINTEXT is used for Cross-VPC Access Protocol. Fixed once the instance is created.
	Private IP Addresses	Select Auto or Manual. Auto: The system automatically assigns an IP address from the subnet. Manual: Select IP addresses from the drop-down list. If the number of selected IP addresses is less than the number of brokers, the remaining IP addresses will be automatically assigned.
Public Network Access	Access Method	There are two methods: Plaintext access: Clients connect to the Kafka instance without SASL authentication. Ciphertext access: Clients connect to the Kafka instance with SASL authentication. Enabling Ciphertext Access requires the Kafka security protocol, SSL username, password, and SASL PLAIN. After public access is enabled, enable plaintext or ciphertext access, or both.
Public Network Access	Public IP Addresses	Select the number of public IP addresses as required. If EIPs are insufficient, click Create Elastic IP to create EIPs. Then, return to the Kafka console and click next to Public IP Address to refresh the public IP address list. Kafka instances only support IPv4 EIPs.

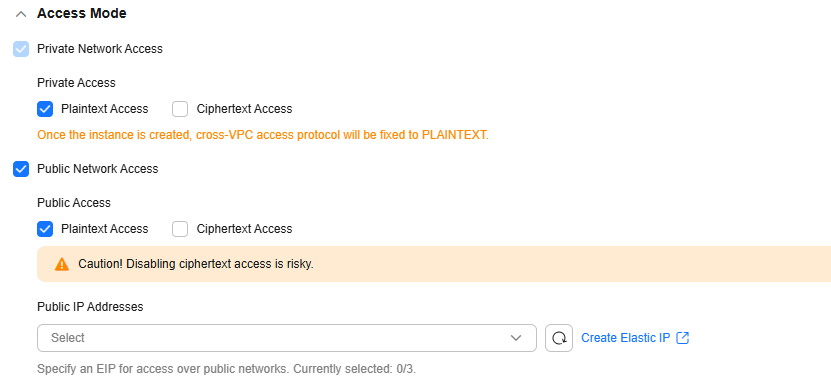

Figure 3 Instance access mode

The Kafka security protocol, SSL username, password, and SASL/PLAIN mechanism are described as follows.

**Table 5** Ciphertext access parameters
Parameter	Value	Description
Security Protocol	SASL_SSL	SASL is used for authentication. Data is encrypted with SSL certificates for high-security transmission.
Security Protocol	SASL_PLAINTEXT	SASL is used for authentication. Data is transmitted in plaintext for high performance. SCRAM-SHA-512 authentication is recommended for plaintext transmission.
SSL Username	-	Username for a client to connect to a Kafka instance. A username should contain 4 to 64 characters, start with a letter, and contain only letters, digits, hyphens (-), and underscores (_). The username cannot be changed once ciphertext access is enabled.
Password	-	Password for a client to connect to a Kafka instance. A password must meet the following requirements: Contains 8 to 32 characters. Cannot start with a hyphen (-) and must contain at least three of the following character types: uppercase letters, lowercase letters, digits, spaces, and special characters `~! @#$ %^&*()-_=+\\|[{}];:'",<.>? Cannot be the username spelled forward or backward.
SASL/PLAIN	-	If SASL/PLAIN is disabled, the SCRAM-SHA-512 mechanism is used for username and password authentication. If SASL/PLAIN is enabled, both the SCRAM-SHA-512 and PLAIN mechanisms are supported. You can select either of them as required. The SASL/PLAIN setting cannot be changed once ciphertext access is enabled. What are SCRAM-SHA-512 and PLAIN mechanisms? SCRAM-SHA-512: uses the hash algorithm to generate credentials for usernames and passwords to verify identities. SCRAM-SHA-512 is more secure than PLAIN. PLAIN: a simple username and password verification mechanism.

Configure advanced settings.

**Table 6** Advanced configuration parameters
Parameter	Description
Instance Name	You can customize a name that complies with the rules: 4–64 characters; starts with a letter; can contain only letters, digits, hyphens (-), and underscores (_).
Enterprise Project	This parameter is for enterprise users. Enterprise projects facilitate project-level management and grouping of cloud resources and users. The default project is default.
Capacity Threshold Policy	Specify how messages are processed when the disk usage threshold (95%) is reached. Automatically delete: Messages can be created and retrieved, but 10% of the earliest messages will be deleted to ensure sufficient disk space. This policy is suitable for scenarios where no service interruption can be tolerated. Data may be lost. Stop production: New messages cannot be created, but existing messages can still be retrieved. This policy is suitable for scenarios where no data loss can be tolerated.
Smart Connect	Configure Smart Connect. Smart Connect is used for data synchronization between heterogeneous systems. You can configure Smart Connect tasks to synchronize data between Kafka and another cloud service or between two Kafka instances. Enabling Smart Connect creates two brokers.
Automatic Topic Creation	Enable automatic Kafka topic creation if needed. If this option is enabled, a topic will be automatically created when a message is produced in or consumed from a topic that does not exist. The default topic parameters are listed in Table 7. After you change the value of the log.retention.hours (retention period), default.replication.factor (replica quantity), or num.partitions (partition quantity) parameter, the value will be used in later topics that are automatically created. For example, assume that num.partitions is changed to 5, an automatically created topic has parameters listed in Table 7.
Tags	Tags are used to identify cloud resources. When you have multiple cloud resources of the same type, you can use tags to classify them based on usage, owner, or environment. If your organization has configured tag policies for DMS for Kafka, add tags to Kafka instances based on the policies. If a tag does not comply with the policies, Kafka instance creation may fail. Contact your organization administrator to learn more about tag policies. If you have predefined tags, select a predefined pair of tag key and value. You can click View predefined tags to go to the Tag Management Service (TMS) console and view or create tags. You can also create new tags by specifying Tag key and Tag value. Up to 20 tags can be added to each Kafka instance. For details about the requirements on tags, see Configuring Kafka Instance Tags.
Description	Enter a Description of the instance for 0–1024 characters.

**Table 7** Topic parameters
Parameter	Default Value	Modified Value
Partitions	3	5
Replicas	3	3
Aging Time (h)	72	72
Synchronous Replication	Disabled	Disabled
Synchronous Flushing	Disabled	Disabled
Message Timestamp	CreateTime	CreateTime
Max. Message Size (bytes)	10,485,760	10,485,760

Specify the required duration.

This parameter is displayed only if the billing mode is yearly/monthly. If Auto-renew is selected, the instance will be renewed automatically.
- Monthly subscriptions auto-renew for 1 month every time.
- Yearly subscriptions auto-renew for 1 year every time.
Click Confirm.
Confirm the instance information, and read and agree to the HUAWEI CLOUD Customer Agreement. If you have selected the yearly/monthly billing mode, click Pay Now and make the payment as prompted. If you have selected the pay-per-use mode, click Submit.
Return to the instance list and check whether the Kafka instance has been created.

It takes 3 to 15 minutes to create an instance. During this period, the instance status is Creating.
- If the instance is created successfully, its status changes to Running.
- If the instance is in the Failed state, delete it by referring to Deleting Kafka Instances and try creating another one. If the instance creation fails again, contact customer service.

  Instances that fail to be created do not occupy other resources.

Standard Config of a Kafka Instance

Go to the Buy Instance page.

Set basic instance configurations on the Standard Config page.

**Table 8** Basic instance configuration parameters
Parameter	Description
Billing Mode	Yearly/Monthly is a prepaid mode. You need to pay first, and will be billed for your subscription period. Pay-per-use is a postpaid mode. You can pay after using the service, and will be billed for your usage duration. The fees are calculated in seconds and settled by hour.
Region	DMS for Kafka instances in different regions cannot communicate with each other over an intranet. Select a nearest location for low latency and fast access.
AZ	An AZ is a physical region where resources use independent power supply and networks. AZs are physically isolated but interconnected through an internal network. Select one AZ or at least three AZs. The AZ setting is fixed once the instance is created.

Configure the following instance specifications:

**Table 9** Instance specifications parameters
Parameter	Description
Version	Kafka version, which can be 1.1.0, 2.7, or 3.x. The version is fixed once the instance is created.
Architecture	Select Single-node or Cluster as required. Single-node instances are available only in v2.7. Single-node instances are unavailable in some regions. For details about single-node instances, see Comparing Single-node and Cluster Kafka Instances.
Broker Flavor	Select a broker flavor as required. Maximum number of partitions per broker x Number of brokers = Maximum number of partitions of an instance. If the total number of partitions of all topics exceeds the upper limit of partitions, topic creation fails.
Brokers	Specify the broker quantity.
Storage space per broker	Select the disk type and specify the disk size. The disk type is fixed once the Kafka instance is created. The storage space is consumed by message replicas, logs, and metadata. Specify the storage space based on the expected service message size, the number of replicas, and the reserved disk space. Each Kafka broker reserves 33 GB disk space for storing logs and metadata. Disks are formatted when an instance is created. As a result, the actual available disk space is 93% to 95% of the total disk space. The disk supports high I/O, ultra-high I/O, Extreme SSD, and General Purpose SSD types. For more information, see Disk Types and Performance.

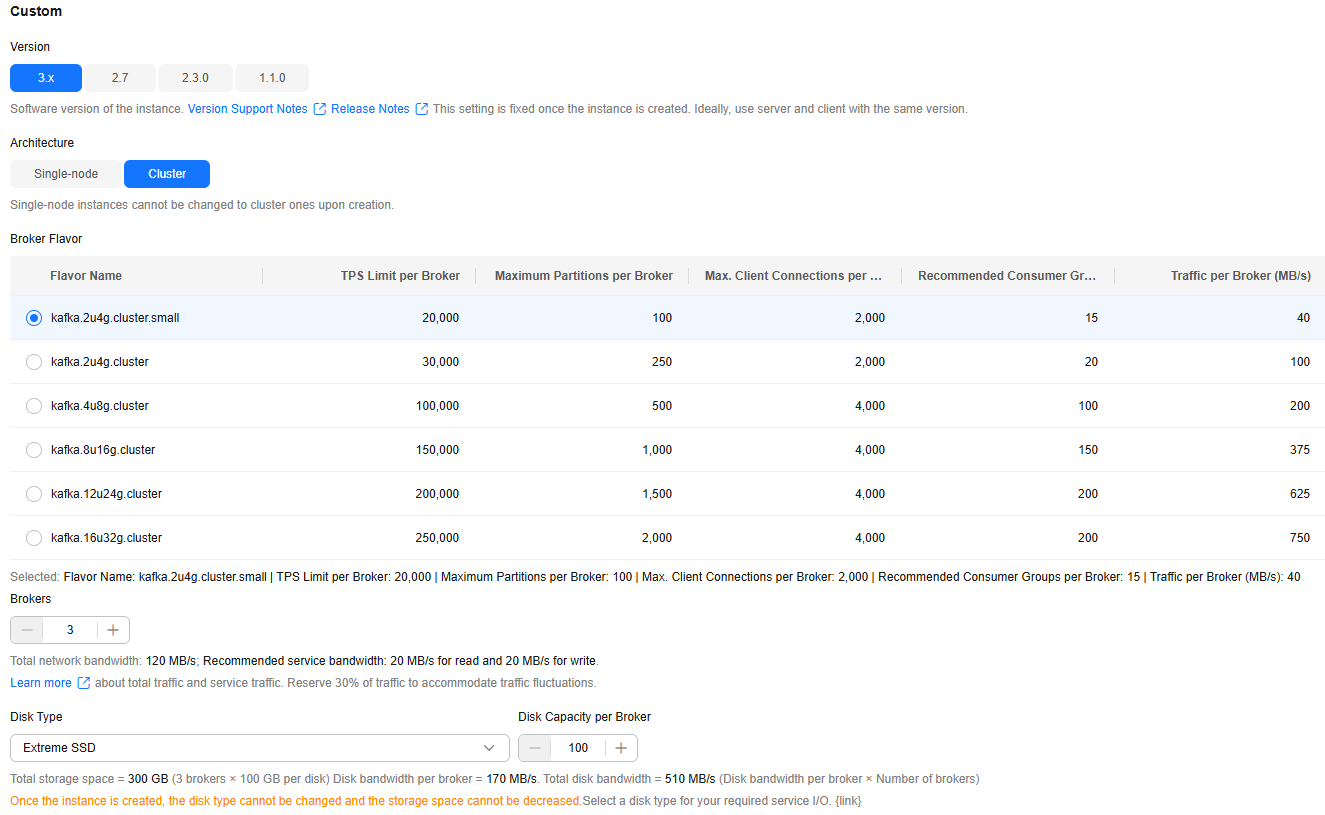

Figure 4 Instance flavor

Set the network information.

**Table 10** Instance network parameters
Parameter	Description
VPC	Select a created or shared VPC. A VPC provides an isolated virtual network for your Kafka instances. You can configure and manage the network as required. You can click Create VPC on the right to go to the VPC console, and view or create VPCs. After the Kafka instance is created, its VPC cannot be changed.
Subnet	Select a created or shared subnet. After the Kafka instance is created, its subnet cannot be changed. The Kafka instance supports IPv6 after it is enabled for the subnet.
IPv6	This parameter is displayed after IPv6 is enabled for the subnet. The instance with IPv6 enabled can be accessed on a client using IPv6 addresses. SASL_SSL cannot be manually configured for instances with IPv6 enabled. The IPv6 setting is fixed once the instance is created. NOTE: This function is available only in the CN East2 region.
Security Group	Select a created security group. A security group is a set of rules for accessing a Kafka instance. You can click Manage Security Group to view or create security groups on the network console. Before accessing a Kafka instance on the client, configure security group rules based on the access mode. For details about security group rules, see Table 2.

Configure the instance access mode.

**Table 11** Instance access mode parameters
Parameter	Sub-Parameter	Description
Private Network Access	Access Method	There are two methods: Plaintext access: Clients connect to the Kafka instance without SASL authentication. Ciphertext access: Clients connect to the Kafka instance with SASL authentication. To disable ciphertext access, contact customer service. Enabling Ciphertext Access requires the Kafka security protocol, SSL username, password, and SASL PLAIN. Once enabled, private network access cannot be disabled. Enable plaintext or ciphertext access, or both. NOTE: Ciphertext access is unavailable for single-node instances.
	Cross-VPC Access Protocol	When Plaintext Access is enabled and Ciphertext Access is disabled, PLAINTEXT is used for Cross-VPC Access Protocol. When Ciphertext Access is enabled and Security Protocol is SASL_SSL, SASL_SSL is used for Cross-VPC Access Protocol. When Ciphertext Access is enabled and Security Protocol is SASL_PLAINTEXT, SASL_PLAINTEXT is used for Cross-VPC Access Protocol. Fixed once the instance is created.
	Private IP Addresses	Select Auto or Manual. Auto: The system automatically assigns an IP address from the subnet. Manual: Select IP addresses from the drop-down list. If the number of selected IP addresses is less than the number of brokers, the remaining IP addresses will be automatically assigned.
Public Network Access	Access Method	There are two methods: Plaintext access: Clients connect to the Kafka instance without SASL authentication. Ciphertext access: Clients connect to the Kafka instance with SASL authentication. Enabling Ciphertext Access requires the Kafka security protocol, SSL username, password, and SASL PLAIN. After public access is enabled, enable plaintext or ciphertext access, or both. NOTE: Ciphertext access is unavailable for single-node instances.
Public Network Access	Public IP Addresses	Select the number of public IP addresses as required. If EIPs are insufficient, click Create Elastic IP to create EIPs. Then, return to the Kafka console and click next to Public IP Address to refresh the public IP address list. Kafka instances only support IPv4 EIPs.

Figure 5 Instance access mode

The Kafka security protocol, SSL username, password, and SASL/PLAIN mechanism are described as follows.

**Table 12** Ciphertext access parameters
Parameter	Value	Description
Security Protocol	SASL_SSL	SASL is used for authentication. Data is encrypted with SSL certificates for high-security transmission.
Security Protocol	SASL_PLAINTEXT	SASL is used for authentication. Data is transmitted in plaintext for high performance. SCRAM-SHA-512 authentication is recommended for plaintext transmission.
SSL Username	-	Username for a client to connect to a Kafka instance. A username should contain 4 to 64 characters, start with a letter, and contain only letters, digits, hyphens (-), and underscores (_). The username cannot be changed once ciphertext access is enabled.
Password	-	Password for a client to connect to a Kafka instance. A password must meet the following requirements: Contains 8 to 32 characters. Cannot start with a hyphen (-) and must contain at least three of the following character types: uppercase letters, lowercase letters, digits, spaces, and special characters `~! @#$ %^&*()-_=+\\|[{}];:'",<.>? Cannot be the username spelled forward or backward.
SASL/PLAIN	-	If SASL/PLAIN is disabled, the SCRAM-SHA-512 mechanism is used for username and password authentication. If SASL/PLAIN is enabled, both the SCRAM-SHA-512 and PLAIN mechanisms are supported. You can select either of them as required. The SASL/PLAIN setting cannot be changed once ciphertext access is enabled. What are SCRAM-SHA-512 and PLAIN mechanisms? SCRAM-SHA-512: uses the hash algorithm to generate credentials for usernames and passwords to verify identities. SCRAM-SHA-512 is more secure than PLAIN. PLAIN: a simple username and password verification mechanism.

Configure advanced settings.

**Table 13** Advanced configuration parameters
Parameter	Description
Instance Name	You can customize a name that complies with the rules: 4–64 characters; starts with a letter; can contain only letters, digits, hyphens (-), and underscores (_).
Enterprise Project	This parameter is for enterprise users. Enterprise projects facilitate project-level management and grouping of cloud resources and users. The default project is default.
Capacity Threshold Policy	Specify how messages are processed when the disk usage threshold (95%) is reached. Automatically delete: Messages can be created and retrieved, but 10% of the earliest messages will be deleted to ensure sufficient disk space. This policy is suitable for scenarios where no service interruption can be tolerated. Data may be lost. Stop production: New messages cannot be created, but existing messages can still be retrieved. This policy is suitable for scenarios where no data loss can be tolerated.
Smart Connect	Configure Smart Connect. Smart Connect is used for data synchronization between heterogeneous systems. You can configure Smart Connect tasks to synchronize data between Kafka and another cloud service or between two Kafka instances. Enabling Smart Connect creates two brokers. NOTE: Single-node instances do not have this parameter.
Automatic Topic Creation	Enable automatic Kafka topic creation if needed. If this option is enabled, a topic will be automatically created when a message is produced in or consumed from a topic that does not exist. The default topic parameters are listed in Table 14. After you change the value of the log.retention.hours (retention period), default.replication.factor (replica quantity), or num.partitions (partition quantity) parameter, the value will be used in later topics that are automatically created. For example, assume that num.partitions is changed to 5, an automatically created topic has parameters listed in Table 14.
Tags	Tags are used to identify cloud resources. When you have multiple cloud resources of the same type, you can use tags to classify them based on usage, owner, or environment. If your organization has configured tag policies for DMS for Kafka, add tags to Kafka instances based on the policies. If a tag does not comply with the policies, Kafka instance creation may fail. Contact your organization administrator to learn more about tag policies. If you have predefined tags, select a predefined pair of tag key and value. You can click View predefined tags to go to the Tag Management Service (TMS) console and view or create tags. You can also create new tags by specifying Tag key and Tag value. Up to 20 tags can be added to each Kafka instance. For details about the requirements on tags, see Configuring Kafka Instance Tags.
Description	Enter a Description of the instance for 0–1024 characters.

**Table 14** Topic parameters
Parameter	Default Value	Modified Value
Partitions	3	5
Replicas	3	3
Aging Time (h)	72	72
Synchronous Replication	Disabled	Disabled
Synchronous Flushing	Disabled	Disabled
Message Timestamp	CreateTime	CreateTime
Max. Message Size (bytes)	10,485,760	10,485,760

Specify the required duration.

This parameter is displayed only if the billing mode is yearly/monthly. If Auto-renew is selected, the instance will be renewed automatically.
- Monthly subscriptions auto-renew for 1 month every time.
- Yearly subscriptions auto-renew for 1 year every time.
In Summary on the right, view the selected instance configuration.
Click Confirm.
Confirm the instance information, and read and agree to the HUAWEI CLOUD Customer Agreement. If you have selected the yearly/monthly billing mode, click Pay Now and make the payment as prompted. If you have selected the pay-per-use mode, click Submit.
Return to the instance list and check whether the Kafka instance has been created.

It takes 3 to 15 minutes to create an instance. During this period, the instance status is Creating.
- If the instance is created successfully, its status changes to Running.
- If the instance is in the Failed state, delete it by referring to Deleting Kafka Instances and try creating another one. If the instance creation fails again, contact customer service.

  Instances that fail to be created do not occupy other resources.
