Creating an HTTP Function

To use a popular web application framework to compile function code and build an AI project, you can create an HTTP function and configure the function code, network, and triggers based on service requirements. This section describes how to create an HTTP function and provides an example of how to use it.

For details about the comparison between event functions and HTTP functions, see Table 1.

**Table 1** Comparison between event functions and HTTP functions
Item	Event Function	HTTP Function
Usage	It is used to process files and data flows, which can be triggered by events of various cloud products. It is also used to process asynchronous requests and track and save the status of each asynchronous invocation.	It supports popular web application frameworks and AI projects. You can access the functions using a browser or by calling a URL.
Scenario	Cloud product integration: OBS real-time file processing and LTS log processing. ETL data processing: database data cleaning and message queue processing. Regular tasks: scheduled, periodic, and script tasks. Multimedia processing: audio/video transcoding, live recording, and image processing.	Application building based on popular web frameworks such as Express and Flask. AI model inference service building based on Stable Diffusion, ComfyUI, and DeepSeek. Migration of existing applications, such as HTML5 websites, REST APIs, mobile apps, applets, and game settlement.

HTTP Function Overview

HTTP functions focus on optimizing web service scenarios. You can directly send HTTP requests to URLs to trigger function execution and use your own web services. HTTP/1.1 is supported.

HTTP functions have the following advantages:

Support for multiple frameworks
You can use common web frameworks, such as Node.js Express and Koa, to write HTTP functions, and migrate your local web framework services to the cloud with least modifications.
Fewer request processing steps
Functions can directly receive and process HTTP requests, eliminating the need for API Gateway to convert the JSON format. This accelerates request processing and improves web service performance.
Premium writing experience
Writing HTTP functions is similar to writing native web services. You can also use native Node.js APIs to enjoy local development-like experience.

Common Request Headers of HTTP Functions

HTTP request headers are an important part of the HTTP protocol for passing metadata. When a function is invoked, specific metadata or configuration information can be passed. Table 2 describes the common request headers carried by functions by default.

**Table 2** Default request header fields
Field	Description
X-CFF-Request-Id	ID of the current request.
X-CFF-Memory	Memory allocated to the function.
X-CFF-Timeout	Function timeout.
X-CFF-Func-Version	Function version.
X-CFF-Func-Name	Function name.
X-CFF-Project-Id	Project ID of the function.
X-CFF-Package	App to which the function belongs.
X-CFF-Region	Region where the function is located.

Notes and Constraints

**Table 3** Constraints on creating HTTP functions
Item	Description
Function quantity	By default, an account can create a maximum of 400 functions. To increase the quota, submit a service ticket.
HTTP function	HTTP functions do not distinguish between programming languages. The handler must be set in the bootstrap file. You can directly write the startup command, and allow access over port 8000. The bound IP address is 127.0.0.1. The HTTP response body cannot exceed 6 MB. A valid HTTP function response must contain body(String), statusCode(int), headers(Map), and isBase64Encoded(boolean). By default, the response is encoded using Base64. The default value of isBase64Encoded is true. The same applies to other frameworks. Only APIG and APIC triggers can be created for HTTP functions. For details, see Using an APIG Trigger. HTTP functions cannot be executed for a long time, invoked asynchronously, or retried.
Other	The bootstrap file is the startup file of the HTTP function. The HTTP function can only read bootstrap as the startup file name. If the file name is not bootstrap, the service cannot be started. For more information, see the bootstrap file example. If you run the JAR package, you are advised to add the JVM parameter -Dfile.encoding=utf-8 to bootstrap. Otherwise, garbled Chinese characters may be displayed. When a function initiates an HTTP request, the request IP address is dynamic for private network access and fixed for public network access. For details about the request IP address, submit a service ticket to contact technical support.

Prerequisites

To perform the operations described in this section, ensure that you have the FunctionGraph Administrator permissions, that is, the full permissions for FunctionGraph. For more information, see Permissions Management.
To access other cloud services such as Log Tank Service (LTS) and Virtual Private Cloud (VPC), create an agency by referring to Creating a Function Agency. If FunctionGraph does not need to access other cloud services, you do not need to create or select an agency.
To enable FunctionGraph to access resources in a VPC, create a VPC and subnet by referring to Creating a VPC and a Subnet.

Creating an HTTP Function

Log in to the FunctionGraph console. In the navigation pane, choose Functions > Function List.
On the Function List page, click Create Function in the upper right corner.

Select Create from scratch and configure basic information by referring to Table 4 and advanced settings by referring to Table 3 as shown in Figure 1.

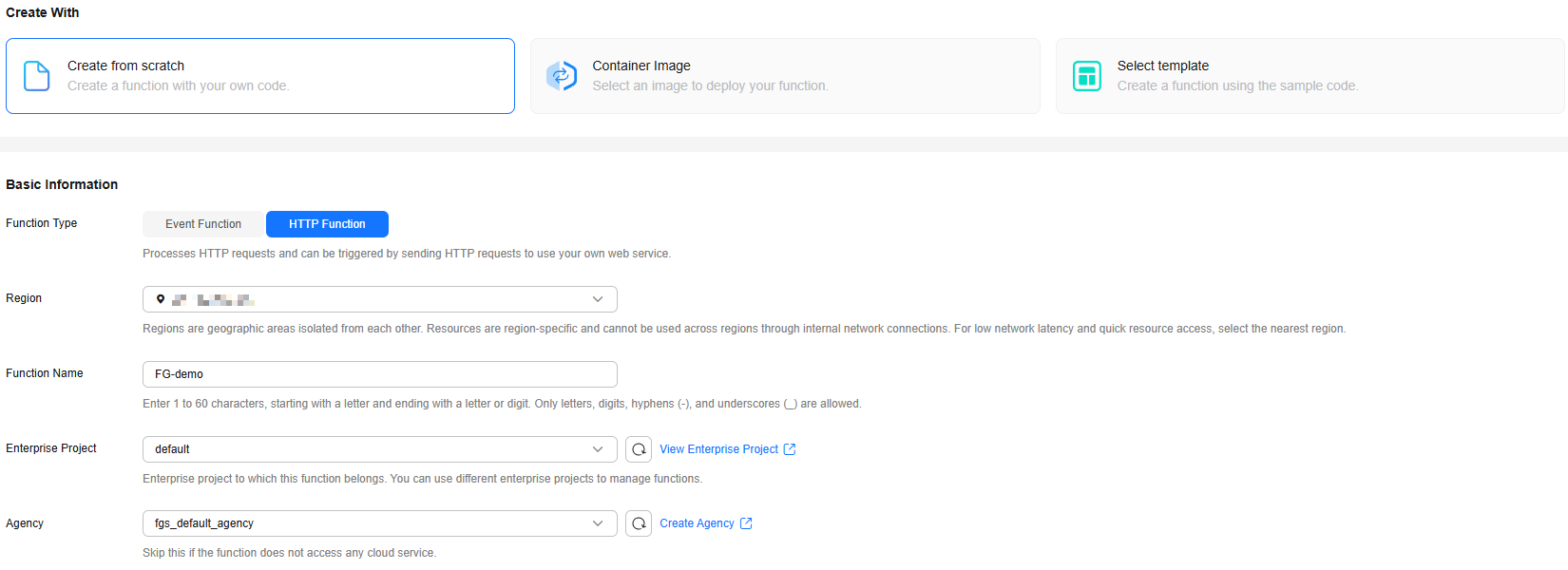

Figure 1 Basic information for creating an HTTP function
Click to enlarge

**Table 4** Basic function information
Parameter	Description	Example Value
Function Type	Select HTTP Function. The HTTP functions process HTTP requests. You can send an HTTP request to a URL to trigger the function and use your web services.	HTTP Function
Region	Select the region where the function is located. Regions are geographic areas isolated from each other. Resources are region-specific and cannot be used across regions through internal network connections. Select a region near you to ensure the lowest latency possible.	CN East-Shanghai1
Function Name	Enter a function name. The naming rules are as follows: Consists of 1 to 60 characters, and can contain letters, digits, hyphens (-), and underscores (_). Starts with a letter and ends with a letter or digit.	FG-demo
Enterprise Project	Select the enterprise project to which the function belongs. Enterprise projects let you manage cloud resources and users by project. The default value is default. You can select the created enterprise project. If the Enterprise Management service is not enabled, this parameter is unavailable. For details, see Enabling the Enterprise Project Function.	default
Agency	Select an agency for the function. An agency is used to authorize FunctionGraph to access other cloud services. If FunctionGraph does not access any cloud service, you do not need to select an agency. By default, Use no agency is used. You can select an existing agency. If no default agency is available, FunctionGraph allows you to quickly create a default agency named fgs_default_agency. For details, see Default Agency.	fgs_default_agency
Permission Policies	This parameter is displayed only when an agency is selected. After an agency is selected, the permission policies associated with the agency are displayed. For details about how to adjust them, see Modifying a Function Agency.	DIS User; SWR Admin; fgs_default_region_role; fgs_default_global_role

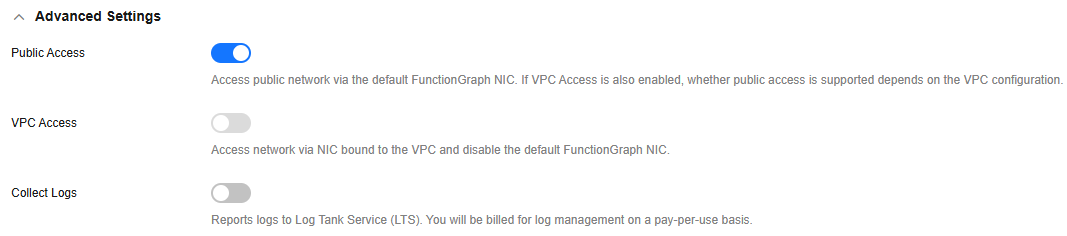

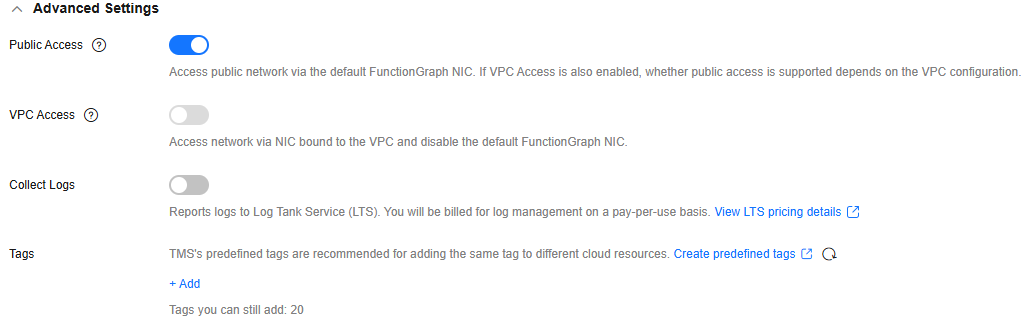

Figure 2 Advanced setting parameters
Click to enlarge

**Table 5** Advanced setting parameters
Parameter	Description	Example Value
Public Access	If this feature is enabled, functions can access services on the public network through the default NIC. The public network access bandwidth is shared among users and applies only to test scenarios.	Enabled
VPC Access	To enable this feature, you need to configure an agency with VPC management permissions. If you select Use no agency in the Basic Information area, this feature cannot be enabled. If this feature is enabled, functions will use the NIC bound to the configured VPC for network access, and the default NIC of FunctionGraph will be disabled. That is, the Public Access parameter does not take effect. After this feature is enabled, you can select the VPC and subnet that the function needs to access.	Disabled
Collect Logs	After it is enabled, logs generated during function execution will be reported to LTS. CAUTION: LTS will be billed on a pay-per-use basis. For details, see LTS Pricing Details. Configure the following parameters: Log Configuration Auto: Use the default log group and log stream. Custom: Select the log group and log stream you created. Log Tag You can filter function logs on the LTS console by tag. For details, see Log Management. A tag key or value can contain a maximum of 64 characters, including only digits, letters, underscores (_), and hyphens (-). A maximum of 10 tags can be added.	Disabled
Static Encryption with KMS	This parameter can be configured only in the LA-Sao Paulo1 region. Determine whether to use KMS-based static encryption for function code. CAUTION: DEW is billed by the pay-per-use mode. For details, see DEW Billing. You can select the following encryption types: functiongraph/default (default): The function automatically creates a default key in DEW under your account. If you use the default key for encryption and decryption for the first time, ensure that the function agency has the following permissions: kms:dek:decrypt, kms:dek:create, kms:cmk:create, kms:cmk:get, and kms:cmk:list. Customer master key (CMK): You can select a created key to encrypt the function code. For details about how to create a customer master key, see Creating a Custom Key. To use customer master key, ensure that the function agency has the following permissions: kms:dek:decrypt, kms:dek:create, kms:cmk:get and kms:cmk:list. CAUTION: If you select Customer master key (CMK), do not delete the CMK used for function encryption in DEW. Otherwise, the function execution will fail because encrypted data cannot be decrypted. Configure the agency permission policy on the IAM console by referring to Creating a Custom Policy in JSON View.	functiongraph/default (default)

After the configuration is complete, click Create Function. The function details page is displayed, and a message is displayed in the upper part of the page, indicating that the function is created.
After the function is created, configure it based on service requirements by referring to Configuring Functions.

HTTP Function Usage Example

The following uses an example to describe how to create and configure an HTTP function.

Before calling an API, ensure that the network of your service system can communicate with the API access domain name or address.

If the service system and the HTTP functions are in the same VPC, the API can be directly accessed.
If the service system and the HTTP functions are in different VPCs of a region, connect them using a peering connection. For details, see .
If the service system and the HTTP functions are in different VPCs of different regions, create a cloud connection and load the two VPCs to connect them. For details, see .
If the service system and the HTTP functions are connected over the public network, ensure that the HTTP function has been bound with an EIP.

Step 1: Creating a Code Package

Prepare a Node.js script file named index.js. The following is a code example:

const http = require('http'); // Import Node.js core module

var server = http.createServer(function (req, res) {   //create web server
    res.writeHead(200, { 'Content-Type': 'text/html' });
    res.write('<html><body><h2>This is http function.</h2></body></html>');
    res.end();
});

server.listen(8000, '127.0.0.1'); //6 - listen for any incoming requests

console.log('Node.js web server at port 8000 is running..')

To parse the body of an event, refer to the following code example:

const http = require('http');
const server = http.createServer((req, res) => {
    //Process only POST requests (PUT, PATCH, DELETE, and other methods with request bodies can also be processed).
    if (req.url.startsWith("/apig-event-template")) {
        let body = '';
        // 1. Listen to the 'data' event to collect data blocks.
        req.on('data', (chunk) => {
            body += chunk; // Convert the binary data block to a string.
            // (Optional) Set the request body size limit (to prevent memory overflow).
            if (body.length > 1e6) { // 1 MB
                req.destroy(); // Terminate the connection.
            }
        });
        // 2. Listen to the 'end' event to process the complete request body.
        req.on('end', () => {
            try {
                // Process different formats based on contentType.
                const contentType = req.headers['content-type'] || '';
                // Process the JSON format.
                if (contentType.includes('application/json')) {
                    const data = JSON.parse(body);
                    console.log('Received JSON:', data);
                    //Process the form format (URL encoding).
                } else if (contentType.includes('application/x-www-form-urlencoded')) {
                    const params = new URLSearchParams(body);
                    const data = Object.fromEntries(params);
                    console.log('Received form data:', data);
                    //Process common text.
                } else {
                    console.log('Received raw text:', body);
                }
                //Respond to the client.
                res.writeHead(200, { 'Content-Type': 'text/plain' });
                res.end('Body received');
            } catch (error) {
                //Process errors (for example, JSON parsing failure).
                console.error('Error processing body:', error);
                res.writeHead(400, { 'Content-Type': 'text/plain' });
                res.end('Invalid body format');
            }
        });
        //3. Process request errors.
        req.on('error', (error) => {
            console.error('Request error:', error);
            res.writeHead(500, { 'Content-Type': 'text/plain' });
            res.end('Internal server error');
        });
    } else {
        // Process the method without request body.
        res.writeHead(200, { 'Content-Type': 'text/plain' });
        res.end('No body needed');
    }
});
// Start the server.
const PORT = 8000;
server.listen(PORT, () => {
    console.log(`Server running at http://localhost:${PORT}`);
});

You have prepared a bootstrap file as the startup file of the HTTP function.
The content of the bootstrap file is as follows:
```
/opt/function/runtime/nodejs12.13/rtsp/nodejs/bin/node $RUNTIME_CODE_ROOT/index.js
```

Compress the preceding two files into a ZIP package.

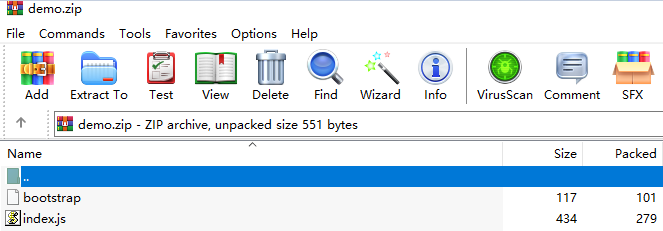

Figure 3 Compressing files into a ZIP package
Click to enlarge

For HTTP functions in Python, add the -u parameter in the bootstrap file to ensure that logs can be flushed to the disk. For example:

/opt/function/runtime/python3.6/rtsp/python/bin/python3 -u $RUNTIME_CODE_ROOT/index.py

To use another runtime, change the runtime path by referring to Table 6. The code package path does not need to be changed.

**Table 6** Paths for different runtimes
Runtime	Path
Java 21	/opt/function/runtime/java21/rtsp/jre/bin/java
Python 3.12	/opt/function/runtime/python3.12/rtsp/python/bin/python3
PHP 8.3	/opt/function/runtime/php8.3/rtsp/php/bin/php
C# (.NET Core 8.0)	/opt/function/runtime/dotnet8.0/rtsp/dotnet/dotnet

Step 2: Deploying the Code Package

Create an HTTP function by referring to Creating an HTTP Function.
On the Code page of the HTTP function, click Upload > Local ZIP, and upload the ZIP file created in Step 1: Creating a Code Package.
Create a trigger.
1. Choose Configuration > Triggers and click Create Trigger.
2. Configure the trigger information, as shown in Figure 4. The following uses API Gateway (Dedicated) as an example. For details about the parameters, see API Gateway (Dedicated) Trigger.

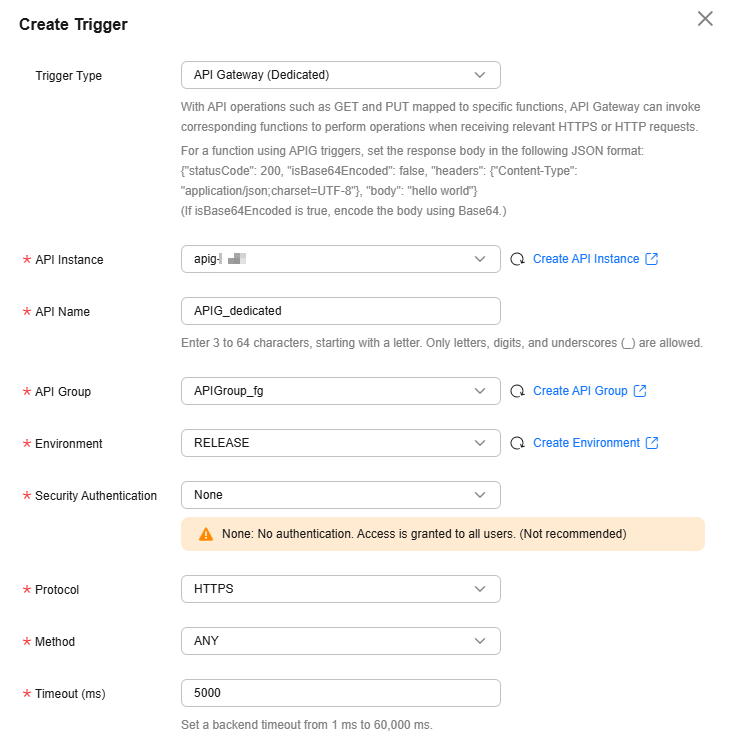

  Figure 4 Create a trigger.

  In this example, Security Authentication is set to None. You are advised to enable App or IAM authentication in the production environment.
3. Click OK.
Publish the API.
1. On the Triggers tab page, click an API name to go to the API overview page.

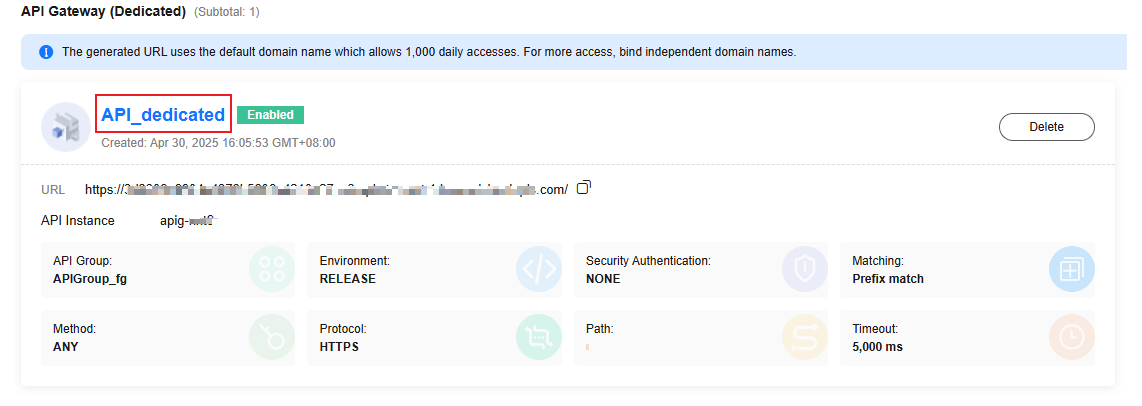

  Figure 5 API trigger
2. Click Edit in the upper right corner. The Basic Information page is displayed.
  Figure 6 Editing an API
3. Change the value of Path to /user/get and click Finish.

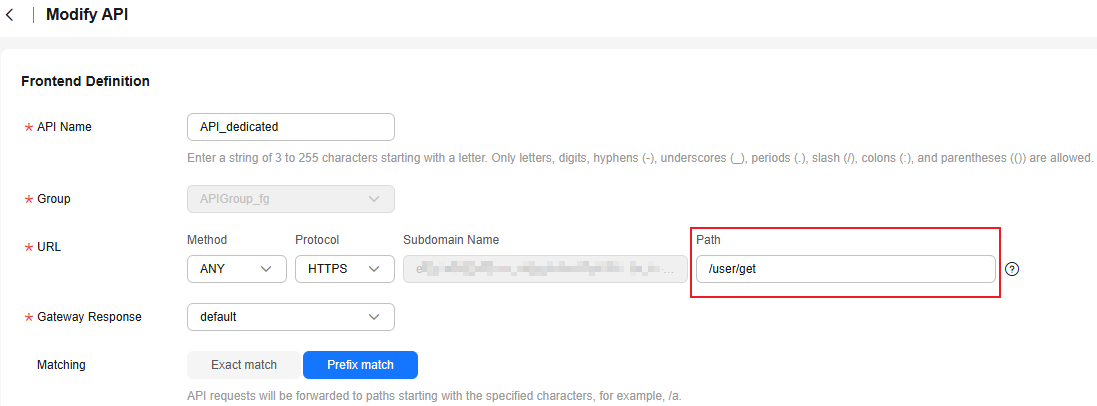

  Figure 7 Defining an API request
4. On the API details page, click Publish Latest Version in the upper right corner. On the displayed page, click OK.

Step 3: Triggering Function Execution

Go to the FunctionGraph console, choose Functions > Function List in the navigation pane, and click the created HTTP function to go to its details page.
Choose Configuration > Triggers, copy the URL as shown in Figure 8, and access it using a browser.

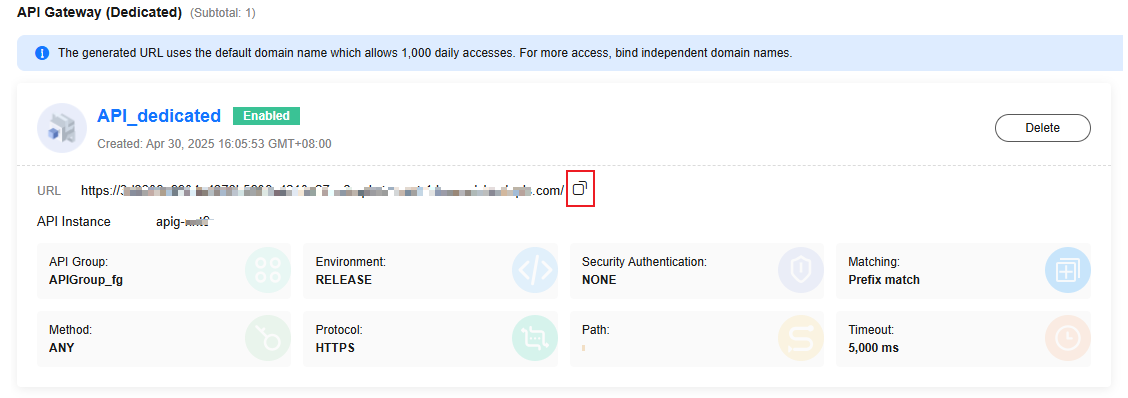

Figure 8 Copying the URL
View the request result.
Figure 9 Viewing the request result

Helpful Links

For details about how to build a FunctionGraph HTTP function using Go, see Building a FunctionGraph HTTP Function Using Go.
For details about how to build an HTTP function using an existing Spring Boot project, see .
For details about how to build an HTTP function using a Next.js project, see .
FunctionGraph allows you to create event and HTTP functions by compiling code online, uploading code files, or using container images. And it supports GPU computing resources. For details about how to select a function type, see Function Selection.
You can create functions using APIs. For details, see Creating a Function.
For FAQs about function creation, see Function Creation FAQs.
