Ingesting Self-built K8s Application Logs to LTS

Prerequisites

• Ensure that the Helm v3 installation command has been executed in the Kubernetes cluster.
• Ensure that kubectl has been configured for the Kubernetes cluster.

Procedure for Creating a Single Ingestion Configuration

Perform the following operations to configure self-built K8s application log ingestion:

1. Log in to the LTS console.
2. In the left navigation pane, choose Log Ingestion. Click Self-built K8s - Application Logs on the Access Wizard tab page. Or, click Ingest Log on the Ingestion Rule tab page and then choose Self-built K8s - Application Logs.
3. Alternatively, choose Log Management in the left navigation pane. Click the name of the target log stream to go to the log details page. Click in the upper right corner. On the displayed page, click the Collection Configuration tab and click Create. In the displayed dialog box, click CCE (Cloud Container Engine).
4. Select a log stream.

   Choose between Fixed log stream and Custom log stream to suite your requirements. You are recommended to use Fixed log stream.

   Fixed log stream

   Logs will be collected to a fixed log stream. The default log streams of CCE clusters: stdout-{ClusterID} for standard output/errors, hostfile-{ClusterID} for node files, event-{ClusterID} for Kubernetes events, and containerfile-{ClusterID} for container files. Log streams are automatically named with a cluster ID. For example, if the cluster ID is Cluster01, the standard output/error log stream is stdout-Cluster01.

   Log streams that can be created for a CCE cluster are stdout-{ClusterID} for standard output/errors, hostfile-{ClusterID} for node files, event-{ClusterID} for Kubernetes events, and containerfile-{ClusterID} for container files. If one of them has been created in a log group, the log stream will no longer be created in the same log group or other log groups.

   1. Select Fixed log stream for Collect.
   2. Enter the cluster name and ID.
   3. Select a log group.


      If there is no such group, the system displays the following message: This log group does not exist and will be automatically created to start collecting logs.

   4. Click Next: Check Dependencies.

   Custom log stream

   1. Select Custom log stream.
   2. Enter the cluster name and ID.
   3. Select a log group from the Log Group drop-down list. If there are no desired log groups, click Create Log Group to create one.
   4. Select a log stream from the Log Stream drop-down list. If there are no desired log streams, click Create Log Stream to create one.
   5. Click Next: Check Dependencies.

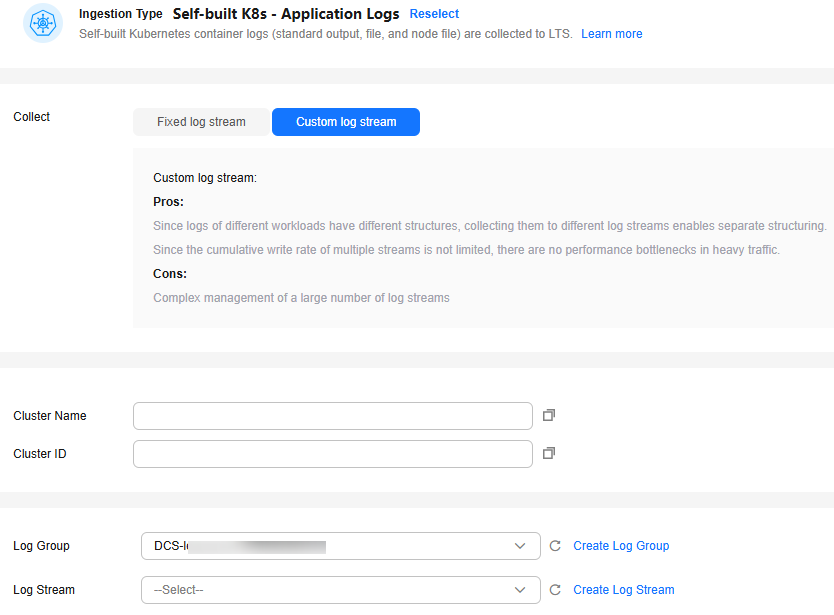

      Figure 1 Custom log stream


5. Check dependencies.
   1. The system automatically checks whether the following are met:
      • There is a host group with the custom identifier k8s-log-ClusterID.
      • There is a log group named k8s-log-ClusterID. The log retention period and description of a log group can be modified.
      • The recommended log stream exists. The log retention period and description of a log stream can be modified. If Fixed log stream is selected, this item is checked.
      You need to meet all the requirements before moving on. If not, click Auto Correct.



      • Auto Correct: a one-click option to finish the previous settings.
      • Check Again: Recheck dependencies.
      • If Custom log stream is selected, the check item There is a log group named k8s-log-ClusterID is optional. Use the switch to turn on or off the check item.
   2. Click Next: Install ICAgent.

6. Install the log collection component.
   In the Kubernetes cluster, perform the following steps on any host:

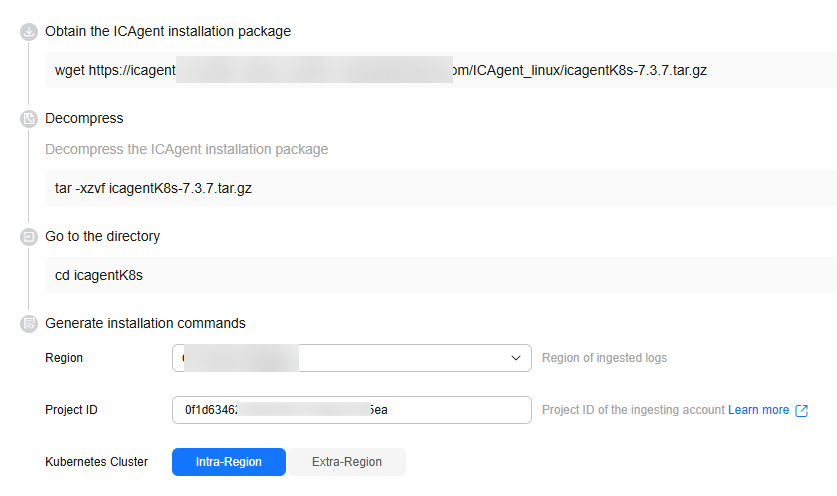

   1. Obtain the ICAgent installation package.
      • Obtain the ICAgent installation package (based on your actual information).

        wget https://icagent-{regionId}.{obsDomainName}/ICAgent_linux/icagentK8s-5.5.1.2.tar.gz

      • Decompress the ICAgent installation package.

        tar -xzvf icagentK8s-5.5.1.2.tar.gz

      • Go to the directory

        cd icagentK8s

      • Generate installation commands

        Select the region of ingested logs.

        Select the project ID of the ingesting account.

        For Kubernetes Cluster, select Intra-Region.

   2. Install ICAgent.
      1. Copy the ICAgent installation command.

         To prevent your AK/SK from being disclosed, select Turn off command history to prevent the AK/SK from being stored to disable historical record collection.

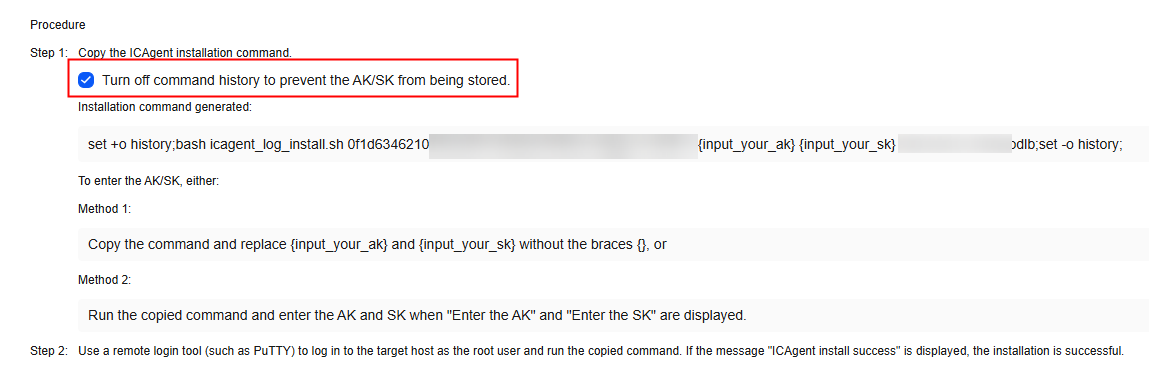

         Figure 2 Installing ICAgent


         The generated installation command is as follows (replace x.x.x.x with the actual IP address displayed on the page):

         set +o history; bash icagent_log_install.sh 2a473356cca5487f8373be891bffc1cf test-xx123456 region0_id {input_your_ak} {input_your_sk} x.x.x.x podlb

         To enter the AK/SK, either:

         1. Copy the command and replace {input_your_ak} and {input_your_sk} without the braces {}, or

         2. Run the copied command and enter the AK and SK when "Enter the AK" and "Enter the SK" are displayed.

      2. Use a remote login tool (such as PuTTY) to log in to the target host as the root user and run the copied command.

         If the message "ICAgent install success" is displayed, the installation is successful. Then choose Host Management in the navigation pane to check the ICAgent status.

   3. Click ICAgent Already Installed.

7. (Optional) Select a host group.
   1. Select one or more host groups from which you want to collect logs. If there are no desired host groups, click Create above the host group list to create one. For details, see Creating a Host Group (Custom Identifier).


      • The host group to which the cluster belongs is selected by default. You can also select host groups as required.
      • You can skip this step and configure host groups after the ingestion configuration is complete. There are two options to do this:
        • On the LTS console, choose Host Management > Host Groups and associate host groups with ingestion configurations.
        • On the LTS console, choose Log Ingestion in the navigation pane on the left and click an ingestion configuration. On the displayed page, add one or more host groups for association.
   2. Click Next: Configurations.

8. Configure the collection.
   1. Specify collection rules. For details, see Configuring the Collection.
   2. Click Next: Log Structuring.

9. (Optional) Configure log structuring.
   1. Click Skip or perform structuring configurations. For details, see Cloud Structuring Parsing.


      If the selected log stream has been structured, exercise caution when deleting it.

      • If you have enabled ICAgent structuring parsing configuration, you do not need to configure cloud structuring parsing. For details, see Configuring ICAgent Collection.
      • ICAgent structuring parsing configuration is available only to whitelisted users. To use this function, submit a service ticket.
   2. Click Next: Index Settings.

10. (Optional) Configure indexes.

    Click Skip and Submit or configure the index. For details, see Index Settings.

11. Click Submit. The configured ingestion rule will be displayed on the Ingestion Rule tab page.
    • Click the name of the ingestion rule to view its details.
    • Click Edit in the Operation column to modify the ingestion rule.
    • Click Configure Tag in the Operation column to add a tag.
    • Click Copy in the Operation column to copy the ingestion rule.
    • Click Delete in the Operation column to delete the ingestion rule.

Configuring the Collection

When you configure log ingestion for self-built Kubernetes clusters, the collection configuration details are as follows.

Figure 3 Configuring the collection

1. Basic Settings: Enter a name containing 1 to 64 characters. Only letters, digits, hyphens (-), underscores (_), and periods (.) are allowed. The name cannot start with a period or underscore, or end with a period.
2. Data Source: Select a data source type and configure it.
   • Container standard output: Collects stderr and stdout logs of a specified container in the cluster.


     • The standard output of the matched container is collected to the specified log stream. Standard output to AOM stops.
     • The container standard output must be unique to a host.
   • Container file: Collects file logs of a specified container in the cluster.
   • Node file: Collects files of a specified node in the cluster.


     You cannot add the same host path to more than one log stream.

   • Kubernetes event: Collects event logs in the Kubernetes cluster.


     Kubernetes events of a Kubernetes cluster can be ingested to only one log stream.

   Table 1 Collection configuration parameters

   Type	Description
   Container standard output	Collects stderr and stdout logs of a specified container in the cluster. Either Container Standard Output (stdout) or Container Standard Error (stderr) must be enabled.
   Container file	Collection Paths: LTS collects logs from the specified paths. NOTE: If a container mount path has been configured for the CCE cluster workload, the paths added for this field are invalid. The collection paths take effect only after the mount path is deleted. You cannot add the same host path to more than one log stream. Add Custom Wrapping Rule: ICAgent determines whether a file is wrapped based on the file name rule. If your wrapping rule does not comply with the built-in rules, you can add a custom wrap rule to prevent log loss during repeated collection and wrapping. The built-in rules are {basename}{connector}{wrapping identifier}.{suffix} and {basename}.{suffix}{connector}{wrapping identifier}. The connector is -._, the wrapping identifier is a non-letter symbol, and the suffix is a letter. A custom wrapping rule consists of {basename} and the feature regular expression of the wrapped file. Example: If your log file name is /opt/test.out.log, and the wrapped file names are test.2024-01-01.0.out.log and test.2024-01-01.1.out.log, the collection path is /opt/*.log and the wrapping rule is {basename}\.[-0-9\.].out.log. Set Collection Filters: Blacklisted directories or files will not be collected. If you specify a directory, all files in the directory are filtered out.
   Node file	Collection Paths: LTS collects logs from the specified paths. NOTE: You cannot add the same host path to more than one log stream. Add Custom Wrapping Rule: ICAgent determines whether a file is wrapped based on the file name rule. If your wrapping rule does not comply with the built-in rules, you can add a custom wrap rule to prevent log loss during repeated collection and wrapping. The built-in rules are {basename}{connector}{wrapping identifier}.{suffix} and {basename}.{suffix}{connector}{wrapping identifier}. The connector is -._, the wrapping identifier is a non-letter symbol, and the suffix is a letter. A custom wrapping rule consists of {basename} and the feature regular expression of the wrapped file. Example: If your log file name is /opt/test.out.log, and the wrapped file names are test.2024-01-01.0.out.log and test.2024-01-01.1.out.log, the collection path is /opt/*.log and the wrapping rule is {basename}\.[-0-9\.].out.log. Set Collection Filters: Blacklisted directories or files will not be collected. If you specify a directory, all files in the directory are filtered out.
   Kubernetes event	You do not need to configure this parameter. Only ICAgent 5.12.130 or later is supported.

3. Kubernetes Matching Rules: Set these parameters only when the data source type is set to Container standard output or Container file.


   After entering a regular expression matching rule, click the button of verification to verify the regular expression.

   Table 2 Kubernetes matching rules

   Parameter	Description
   Namespace Name Regular Expression	Specifies the container whose logs are to be collected based on the namespace name. Regular expression matching is supported. NOTE: LTS will collect logs of the namespaces with names matching this expression. To collect logs of all namespaces, leave this field empty.
   Pod Name Regular Expression	Specifies the container whose logs are to be collected based on the pod name. Regular expression matching is supported. NOTE: LTS will collect logs of the pods with names matching this expression. To collect logs of all pods, leave this field empty.
   Container Name Regular Expression	Specifies the container whose logs are to be collected based on the container name (the Kubernetes container name is defined in spec.containers). Regular expression matching is supported. NOTE: LTS will collect logs of the containers with names matching this expression. To collect logs of all containers, leave this field empty.
   Container Label Whitelist	Specifies the containers whose logs are to be collected. If you want to set a container label whitelist, Label Key is mandatory and Label Value is optional. NOTE: LTS will match all containers with a container label containing a specified Label Key with an empty corresponding Label Value. If Label Value is not empty, only containers with a container label containing a specified Label Key that is equal to its Label Value are matched with LTS. Label Key requires full matching while Label Value supports regular matching. The relationship between multiple whitelists is based on an OR operation, meaning that a container label can be matched as long as it meets any of the whitelists.
   Container Label Blacklist	Specifies the containers whose logs are not to be collected. If you want to set a container label blacklist, Label Key is mandatory and Label Value is optional. NOTE: LTS will exclude all containers with a container label containing a specified Label Key with an empty corresponding Label Value. If Label Value is not empty, only containers with a container label containing a specified Label Key that is equal to its Label Value will be excluded. Label Key requires full matching while Label Value supports regular matching. The relationship between multiple blacklists is based on an OR operation, meaning that a container label can be excluded as long as it meets any of the blacklists.
   Container Label	After the Container Label is set, LTS adds related fields to logs. NOTE: LTS adds the specified fields to the log when each Label Key has a corresponding Label Value. For example, if you enter app as the key and app_alias as the value, when the container label contains app=lts, {app_alias: lts} will be added to the log.
   Environment Variable Whitelist	Specifies the containers whose logs are to be collected. If you want to set an environment variable whitelist, Label Key is mandatory and Label Value is optional. NOTE: LTS will match all containers with environment variables containing either an Environment Variable Key with an empty corresponding Environment Variable Value, or an Environment Variable Key with its corresponding Environment Variable Value. Label Key requires full matching while Label Value supports regular matching. The relationship between multiple whitelists is based on an OR operation, meaning that a container environment variable can be matched as long as it meets any of key-value pairs.
   Environment Variable Blacklist	Specifies the containers whose logs are not to be collected. If you want to set an environment variable blacklist, Label Key is mandatory and Label Value is optional. NOTE: LTS will exclude all containers with environment variables containing either an Environment Variable Key with an empty corresponding Environment Variable Value, or an Environment Variable Key with its corresponding Environment Variable Value. Label Key requires full matching while Label Value supports regular matching. The relationship between multiple blacklists is based on an OR operation, meaning that a container environment variable can be excluded as long as it meets any of key-value pairs.
   Environment Variable Label	After the environment variable label is set, the log service adds related fields to the log. NOTE: LTS adds the specified fields to the log when each Environment Variable Key has a corresponding Environment Variable Value. For example, if you enter "app" as the key and "app_alias" as the value, when the Kubernetes environment variable contains "app=lts", "{app_alias: lts}" will be added to the log.

4. Perform other configurations.

   Table 3 Other configurations

   Parameter	Description
   Max Directory Depth	The maximum directory depth is 5 levels. ICAgent does not collect log files with directory levels beyond this value. Set this parameter to the appropriate level for a target collection path with fuzzy matching strings to avoid wasted ICAgent resources.
   Split Logs	LTS supports log splitting. If this option is enabled, a single-line log larger than 500 KB will be split into multiple lines for collection. For example, a line of 600 KB log will be split into two lines for collection, the first line 500 KB and the second line 100 KB. If this option is disabled, a log larger than 500 KB will be truncated.
   Collect Binary Files	LTS supports binary file collection. Run the file -i File_name command to view the file type. charset=binary indicates that a log file is a binary file. If this option is enabled, binary log files will be collected, but only UTF-8 strings are supported. Other strings will be garbled on the LTS console. If this option is disabled, binary log files will not be collected.
   Log File Code	The encoding format of log files is UTF-8.
   Collection Policy	Select Incremental or All. Incremental: When collecting a new file, ICAgent reads the file from the end of the file. Full: When collecting a new file, ICAgent reads the file from the beginning of the file.

5. Configure the log format and log time.

   Table 4 Log collection settings

   Parameter	Description
   Log Format	Single-line: Each log line is displayed as a single log event. Multi-line: Multiple lines of exception log events can be displayed as a single log event. This is helpful when you check logs to locate problems.
   Log Time	System time: log collection time by default. It is displayed at the beginning of each log event. NOTE: Log collection time is the time when logs are collected and sent by ICAgent to LTS. Log printing time is the time when logs are printed. ICAgent collects and sends logs to LTS with an interval of 1 second. Restriction on log collection time: Logs are collected within 24 hours before and after the system time.
   	Time wildcard: You can set a time wildcard so that ICAgent will look for the log printing time as the beginning of a log event. If the time format in a log event is 2019-01-01 23:59:59.011, the time wildcard should be set to YYYY-MM-DD hh:mm:ss.SSS. If the time format in a log event is 19-1-1 23:59:59.011, the time wildcard should be set to YY-M-D hh:mm:ss.SSS. NOTE: If a log event does not contain year information, ICAgent regards it as printed in the current year. Example: YY - year (19) YYYY - year (2019) M - month (1) MM - month (01) D - day (1) DD - day (01) hh - hours (23) mm - minutes (59) ss - seconds (59) SSS - millisecond (999) hpm - hours (03PM) h:mmpm - hours:minutes (03:04PM) h:mm:sspm - hours:minutes:seconds (03:04:05PM) hh:mm:ss ZZZZ (16:05:06 +0100) hh:mm:ss ZZZ (16:05:06 CET) hh:mm:ss ZZ (16:05:06 +01:00)
   Log Segmentation	This parameter needs to be specified if the Log Format is set to Multi-line. By generation time indicates that a time wildcard is used to detect log boundaries, whereas By regular expression indicates that a regular expression is used.
   Regular Expression	You can set a regular expression to look for a specific pattern to indicate the beginning of a log event. This parameter needs to be specified when you select Multi-line for Log Format and By regular expression for Log Segmentation.



   The time wildcard and regular expression will look for the specified pattern right from the beginning of each log line. If no match is found, the system time, which may be different from the time in the log event, is used. In general cases, you are advised to select Single-line for Log Format and System time for Log Time.

Creating Multiple Ingestion Configurations

You can create ingestion tasks in batches on the Ingestion Rule tab page.

1. Click Batch Ingestion to go to the configuration details page. For details, see Table 5.


   Structuring parsing configuration is available only to whitelisted users. For details, see Configuring ICAgent Collection. To use this function, submit a service ticket.

   Table 5 Adding configurations in batches

   Type	Operation	Description
   Basic Settings	Ingestion Type	Select Self-built K8s - Application Logs.
   	Configurations to Add	Enter the number of ingestion configurations in the text box and click Add. A maximum of 100 ingestion configurations can be added at a time, including the one already exists under Ingestion Settings by default.
   Ingestion Settings	Configuration List	The ingestion configurations are displayed on the left. You can add up to 99 more configurations. The ingestion configuration details are displayed on the right. For details, see Procedure for Creating a Single Ingestion Configuration. After an ingestion configuration is complete, you can click Apply to Other Configurations to copy the configuration to other configurations.

2. Click Check Parameters. After the check is successful, click Submit.
3. The added ingestion configurations will be displayed in the lower part of the Ingestion Rule tab page after the batch creation is successful.
4. (Optional) Perform the following operations on an ingestion configuration:
   • Select multiple existing ingestion configurations and click Modify. On the displayed page, select an ingestion type to modify the corresponding ingestion configurations.
   • Select multiple existing ingestion configurations and click Open or Close. If you toggle off the switch in the Status column of an ingestion configuration, logs will not be collected for this configuration.
   • Select multiple existing ingestion configurations and click Delete.
