Configuring ICAgent Collection

You can use ICAgent to collect logs to LTS. When creating a log ingestion task, you can customize collection policies, such as parsing, whitelist, and blacklist rules, and settings of uploading raw logs. ICAgent collection configurations define how to collect logs of the same type on a server, parse the logs, and send them to a specified log stream.

ICAgent structuring parsing is in the closed beta test and is available only to whitelisted users. To use this function, For details, see Submitting a Service Ticket.

Advantages

  • Collecting logs in non-intrusive mode based on log files: You do not need to modify the application code, and log collection does not affect the running of your application.
  • Handling various exceptions during log collection: Security measures such as proactive retry and local cache are taken when a network or server exception occurs.
  • Centralized management: After installing ICAgent, you only need to configure information such as host groups and ICAgent collection configurations on LTS.
  • Comprehensive self-protection mechanisms: To ensure that ICAgent does not significantly affect the performance of other services on the same server, ICAgent has strict restrictions and protection mechanisms in terms of CPU, memory, and network usage.

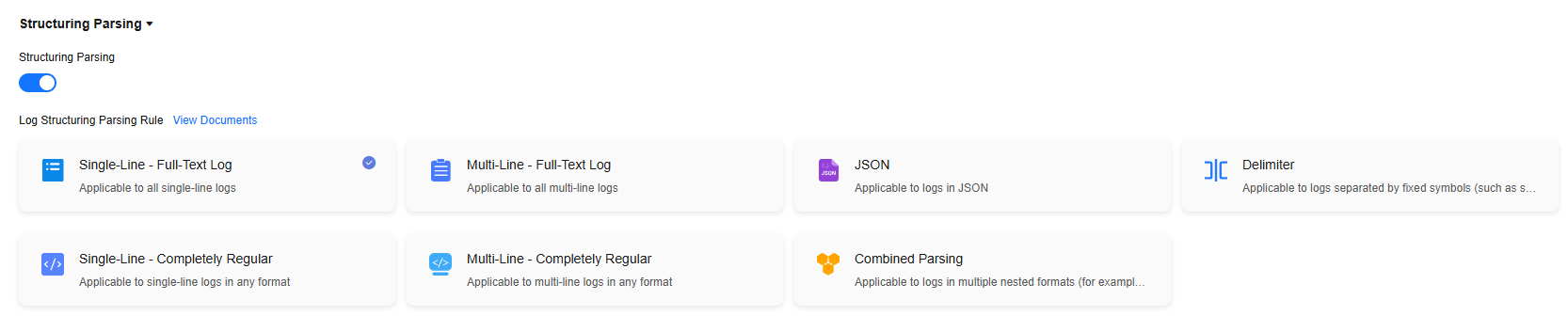

Before configuring log ingestion, get to know the structuring parsing rules of ICAgent collection to facilitate your operations. ICAgent 5.12.147 or later is required. Advantages of this function include lower costs and combined parsing. Different structuring parsing rules can be configured for each collection configuration of a log stream.

ICAgent collection supports the following log structuring parsing rules:

  • Single-Line - Full-Text Log: Each log line is displayed as a single log event.
  • Multi-Line - Full-Text Log: Multiple lines of exception log events can be displayed as a single log event. This is helpful when you check logs to locate problems.
  • JSON: applicable to JSON logs and splits them into key-value pairs.
  • Delimiter: Fields are extracted using delimiters (such as commas or spaces).
  • Single-Line - Completely Regular: applicable to single-line logs in any format and uses a regular expression to extract fields. After entering a regular expression, click Verify to verify it.
  • Multi-Line - Completely Regular: applicable to multi-line logs in any format and uses a regular expression to extract fields. The regular expression of the first line can be automatically generated or manually entered. After entering a regular expression, click Verify to verify it.
  • Combined Parsing: applicable to logs in multiple nested formats, for example, delimiter+JSON.

There are three types of time range: relative time from now, relative time from last, and specified time. Select a time range as required.
  • From now: queries log data generated in a time range that ends with the current time, such as the previous 1, 5, or 15 minutes. For example, if the current time is 19:20:31 and 1 hour is selected as the relative time from now, the charts on the dashboard display the log data that is generated from 18:20:31 to 19:20:31.
  • From last: queries log data generated in a time range that ends with the current time, such as the previous 1 or 15 minutes. For example, if the current time is 19:20:31 and 1 hour is selected as the relative time from last, the charts on the dashboard display the log data that is generated from 18:00:00 to 19:00:00.
  • Specified: queries log data that is generated in a specified time range.

Single-Line - Full-Text Log

If you want to display each line of log data as a single log on the LTS page, select Single-Line.

  1. Select Single-Line - Full-Text Log.
  2. Enable Log Filtering (disabled by default) as required and add a maximum of 20 whitelist or blacklist rules.
  3. Add a whitelist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a matching rule. That is, only logs that match the regular expression will be collected and reported. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, to collect logs whose source files contain hello, set the collection rule to .*hello.*.

  4. Add a blacklist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a discarding rule. That is, only logs that match the regular expression will be discarded. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, in order to not collect logs whose source files contain hello, set the collection rule to .*hello.*.

Multi-Line - Full-Text Log

Multiple lines of exception log events can be displayed as a single log event. This is helpful when you check logs to locate problems.

  1. Select Multi-Line - Full-Text Log.
  2. Select a log example from existing logs or paste it from the clipboard, and enter or let the system generate a regular expression for the first line.
    • Click Select from Existing Logs, select a log event, and click OK. You can select different time ranges to filter logs.
    • Click Paste from Clipboard to copy the cut log content to the Log Example box.

  3. Enable Log Filtering (disabled by default) as required and add a maximum of 20 whitelist or blacklist rules.
  4. Add a whitelist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a matching rule. That is, only logs that match the regular expression will be collected and reported. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, to collect logs whose source files contain hello, set the collection rule to .*hello.*.

  5. Add a blacklist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a discarding rule. That is, only logs that match the regular expression will be discarded. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, in order to not collect logs whose source files contain hello, set the collection rule to .*hello.*.

JSON

This option is applicable to JSON logs and splits them into key-value pairs.

  1. Choose JSON.
  2. Enable Log Filtering (disabled by default) as required and add a maximum of 20 whitelist or blacklist rules.
  3. Add a whitelist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a matching rule. That is, only logs that match the regular expression will be collected and reported. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, to collect logs whose source files contain hello, set the collection rule to .*hello.*.

  4. Add a blacklist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a discarding rule. That is, only logs that match the regular expression will be discarded. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, in order to not collect logs whose source files contain hello, set the collection rule to .*hello.*.

  5. Raw Log Upload:

    After this function is enabled, raw logs are uploaded to LTS as the value of the content field.

  6. Upload Parsing Failure Log:

    After this function is enabled, raw logs are uploaded to LTS as the value of the _content_parse_fail_ field.

  7. Custom Time:

    Enabling this lets you specify a field as the log time. Otherwise, the log time is the time set during ingestion configuration.

  8. JSON Parsing Layers: Add 1 to 4 JSON parsing layers. The value must be an integer and is 1 by default.

    This function expands the fields of a JSON log. For example, for raw log {"key1":{"key2":"value"}}, if you choose to parse it into 1 layer, the log become {"key1":{"key2":"value"}}; if you choose to parse it into 2 layers, the log become {"key1.key2":"value"}.

Delimiter

Logs can be parsed by delimiters, such as commas (,), spaces, or other special characters.

  1. Select a delimiter.
  2. Select or customize a delimiter.
  3. Select a log example from existing logs or paste it from the clipboard, click Verify, and view the results under Extraction Results.
    • Click Select from Existing Logs, select a log event, and click OK. You can select different time ranges to filter logs.
    • Click Paste from Clipboard to copy the cut log content to the Log Example box.

  4. Enable Log Filtering (disabled by default) as required and add a maximum of 20 whitelist or blacklist rules.
  5. Add a whitelist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a matching rule. That is, only logs that match the regular expression will be collected and reported. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, to collect logs whose source files contain hello, set the collection rule to .*hello.*.

  6. Add a blacklist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a discarding rule. That is, only logs that match the regular expression will be discarded. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, in order to not collect logs whose source files contain hello, set the collection rule to .*hello.*.

  7. Raw Log Upload:

    After this function is enabled, raw logs are uploaded to LTS as the value of the content field.

  8. Upload Parsing Failure Log:

    After this function is enabled, raw logs are uploaded to LTS as the value of the _content_parse_fail_ field.

  9. Custom Time:

    Enabling this lets you specify a field as the log time. Otherwise, the log time is the time set during ingestion configuration.

Single-Line - Completely Regular

This option is applicable to single-line logs in any format and uses a regular expression to extract fields.

  1. Select Single-Line - Completely Regular.
  2. Select a log example from existing logs or paste it from the clipboard, enter a regular expression in the Extraction Regular Expression box, click Verify, and view the results under Extraction Results.
    • Click Select from Existing Logs, select a log event, and click OK. You can select different time ranges to filter logs.
    • Click Paste from Clipboard to copy the cut log content to the Log Example box.

  3. Enable Log Filtering (disabled by default) as required and add a maximum of 20 whitelist or blacklist rules.
  4. Add a whitelist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a matching rule. That is, only logs that match the regular expression will be collected and reported. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, to collect logs whose source files contain hello, set the collection rule to .*hello.*.

  5. Add a blacklist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a discarding rule. That is, only logs that match the regular expression will be discarded. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, in order to not collect logs whose source files contain hello, set the collection rule to .*hello.*.

  6. Raw Log Upload:

    After this function is enabled, raw logs are uploaded to LTS as the value of the content field.

  7. Upload Parsing Failure Log:

    After this function is enabled, raw logs are uploaded to LTS as the value of the _content_parse_fail_ field.

  8. Custom Time:

    Enabling this lets you specify a field as the log time. Otherwise, the log time is the time set during ingestion configuration.

Multi-Line - Completely Regular

This option is applicable to multi-line logs in any format and uses a regular expression to extract fields.

  1. Select Multi-Line - Completely Regular.
  2. Select a log example from existing logs or paste it from the clipboard, enter or let the system generate a regular expression for the first line, enter a regular expression in the Extraction Regular Expression box, click Verify, and view the results under Extraction Results.
    • Click Select from Existing Logs, select a log event, and click OK. You can select different time ranges to filter logs.
    • Click Paste from Clipboard to copy the cut log content to the Log Example box.

  3. Enable Log Filtering (disabled by default) as required and add a maximum of 20 whitelist or blacklist rules.
  4. Add a whitelist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a matching rule. That is, only logs that match the regular expression will be collected and reported. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, to collect logs whose source files contain hello, set the collection rule to .*hello.*.

  5. Add a blacklist rule (available only when Log Filtering is enabled).

    You can add a filtering rule to filter out valuable log data. The filtering rule is a regular expression and is applied to the value of a specified key. The created filtering rule is a discarding rule. That is, only logs that match the regular expression will be discarded. In the single-line or multi-line full text mode, content is used as the key name of the full text by default. The relationship between multiple filtering rules is OR. For example, in order to not collect logs whose source files contain hello, set the collection rule to .*hello.*.

  6. Raw Log Upload:

    After this function is enabled, raw logs are uploaded to LTS as the value of the content field.

  7. Upload Parsing Failure Log:

    After this function is enabled, raw logs are uploaded to LTS as the value of the _content_parse_fail_ field.

  8. Custom Time:

    Enabling this lets you specify a field as the log time. Otherwise, the log time is the time set during ingestion configuration.

Combined Parsing

This option is applicable to logs in multiple nested formats, for example, delimiter+JSON. You can customize parsing rules based on the syntax.

  1. Select Combined Parsing.
  2. Select a log example from existing logs or paste it from the clipboard and enter the configuration content under Plug-in Settings.
  3. Customize the settings based on the log content by referring to the following plug-in syntaxes.
    • processor_regex
      Table 1 Regular expression extraction

      Parameter

      Type

      Description

      source_key

      string

      Original field name.

      regex

      string

      () in a regular expression indicates the field to be extracted.

      keys

      string

      Field name for the extracted content.

      keep_source

      boolean

      Whether to retain the original field.

      keep_source_if_parse

      boolean

      Whether to retain the original field when a parsing error occurs.
    • processor_split_string
      Table 2 Delimiter parsing

      Parameter

      Type

      Description

      source_key

      string

      Original field name.

      split_sep

      string

      Delimiter string.

      keys

      string

      Field name for the extracted content.

      keep_source

      boolean

      Whether to retain the original field in the parsed log.

      split_type

      char/special_char/string

      Delimiter type. The options are char (single character), special_char (invisible character), and string.

      keep_source_if_parse_error

      boolean

      Whether to retain the original field when a parsing error occurs.
    • processor_split_key_value
      Table 3 Key-value pair segmentation

      Parameter

      Type

      Description

      source_key

      string

      Original field name.

      delimiter

      string

      Delimiter between key-value pairs. The default value is the tab character (\t).

      separator

      string

      Delimiter between the key and value in a key-value pair. The default value is a colon (:).

      keep_source

      boolean

      Whether to retain the original field in the parsed log.
    • processor_add_fields
      Table 4 Adding a field

      Parameter

      Type

      Description

      fields

      json/object

      Name and value of the field to be added. The value is in key-value pair format. Multiple key-value pairs can be added.
    • processor_drop
      Table 5 Discarded field

      Parameter

      Type

      Description

      drop_keys

      string

      List of discarded fields.
    • processor_rename
      Table 6 Renaming a field

      Parameter

      Type

      Description

      source_keys

      string

      Field to be renamed.

      destkeys

      string

      Field with the new name.
    • processor_json
      Table 7 JSON expansion and extraction

      Parameter

      Type

      Description

      source_key

      string

      Original field name.

      keep_source

      string

      Whether to retain the original field in the parsed log.

      expand_depth

      int

      JSON expansion depth. The default value 0 indicates that the depth is not limited. Other numbers, such as 1, indicate the current level.

      expand_connector

      string

      Connector for expanding JSON. The default value is an underscore (_).

      prefix

      string

      Prefix added to a field name when JSON is expanded.

      keep_source_if_parse_error

      boolean

      Whether to retain the original field when a parsing error occurs.
    • processor_filter_regex
      Table 8 Filters

      Parameter

      Type

      Description

      include

      json/object

      The key indicates the log field, and the value indicates the regular expression to be matched.

      exclude

      json/object

      The key indicates the log field, and the value indicates the regular expression to be matched.
    • processor_gotime
      Table 9 Extraction time

      Parameter

      Type

      Description

      source_key

      string

      Original field name.

      source_format

      string

      Original time format.

      source_location

      int

      Original time zone. If the value is empty, it indicates the time zone of the host or container where the logtail is located.

      dest_key

      string

      Target field after parsing.

      dest_format

      string

      Time format after parsing.

      dest_location

      int

      Time zone after parsing. If this parameter is left blank, the time zone of the local host is used.

      set_time

      boolean

      Whether to set the parsed time as the log time.

      keep_source

      boolean

      Whether to retain the original field in the parsed log.
  4. Example:
    [
        {
            "type": "processor_regex",
            "detail": {
                "source_key": "content",
                "regex": "*",
                "keys": [
                    "key1",
                    "key2"
                ],
                "multi_line_regex": "*",
                "keep_source": true,
                "keep_source_if_parse_error": true
            }
        },
        {
            "type": "processor_split_string",
            "detail": {
                "split_sep": ".",
                "split_type": ".",
                "split_keys": [
                    "key1",
                    "key2"
                ],
                "source_key": "context",
                "keep_source": true,
                "keep_source_if_parse_error": true
            }
        },
        {
            "type": "processor_add_fields",
            "detail": {
                "fields": [
                    {
                        "key1": "value1"
                    },
                    {
                        "key2": "value2"
                    }
                ]
            }
        },
        {
            "type": "processor_drop",
            "detail": {
                "drop_keys": [
                    "key1",
                    "key2"
                ]
            }
        },
        {
            "type": "processor_rename",
            "detail": {
                "source_key": [
                    "skey1",
                    "skey2"
                ],
                "dest_keys": [
                    "dkey1",
                    "dkey2"
                ]
            }
        },
        {
            "type": "processor_json",
            "detail": {
                "source_key": "context",
                "expand_depth": 4,
                "expand_connector": "_",
                "prefix": "prefix",
                "keep_source": true,
                "keep_source_if_parse_error": true
            }
        },
        {
            "type": "processor_gotime",
            "detail": {
                "source_key": "skey",
                "source_format": "ydm",
                "source_location": 8,
                "dest_key": "dkey",
                "dest_format": "ydm",
                "dest_ocation": 8,
                "set_time": true,
                "keep_source": true,
                "keep_source_if_parse_error": true
            }
        },
        {
            "type": "processor_filter_regex",
            "detail": {
                "include": {
                    "ikey1": "*",
                    "ikey2": "*"
                },
                "exclude": {
                    "ekey1": "*",
                    "ekey1": "*"
                }
            }
        }
    ]

Custom Time

Enable Custom Time and set parameters by referring to Table 10.

  • If the time format is incorrect or the specified field does not exist, the log time is the time set during ingestion configuration.
  • The time field needs to be verified again when operations such as field name modification, field deletion, and field type modification are performed on structuring parsing.
Table 10 Parameter configuration

Parameter

Description

Example

Key Name of the Time Field

Name of an extracted field. You can select an extracted field from the drop-down list. The field is of the string or long type.

test

Field Value

Value of an extracted field. After a Key is selected, the Value is automatically filled in.

NOTE:

The value of the field must be within 24 hours earlier or later than the current time.

2023-07-19 12:12:00

Time Format

For details, see Common Log Time Formats.

yyyy-MM-dd HH:mm:ss

Operation

Click the verification icon (). If message The time format is successfully matched with the time field value. is displayed, the verification is successful.

-

Common Log Time Formats

The following table lists the available common log time formats.

By default, log timestamps in LTS are accurate to seconds. You do not need to configure information such as milliseconds and microseconds.

Table 11 Time formats

Format

Description

Example

EEE

Abbreviation for Week.

Fri

EEEE

Full name for Week.

Friday

MMM

Abbreviation for Month.

Jan

MMMM

Full name for Month.

January

dd

Number of the day in a month, ranging from 01 to 31 (decimal).

07, 31

HH

Hour, in 24-hour format.

22

hh

Hour, in 12-hour format.

11

MM

Number of the month, ranging from 01 to 12 (decimal).

08

mm

Number of the minute, ranging from 00 to 59 (decimal).

59

a

AM or PM

AM, PM

hh:mm:ss a

Time in the 12-hour format.

11:59:59 AM

HH:mm

Hour and minute format.

23:59

ss

Number of the second, ranging from 00 to 59 (decimal).

59

yy

Year without century, ranging from 00 to 99 (decimal).

04, 98

yyyy

Year (decimal).

2004, 1998

d

Number of the day in a month, decimal, ranging from 1 to 31.

If the value is a single-digit number, add a space before the value.

7, 31

DDD

Number of the day in a year, ranging from 001 to 366 (decimal).

365

u

Number of the day in a week, ranging from 1 to 7 (decimal). The value 1 indicates Monday.

2

w

Number of the week in a year. Sunday is the start of a week. The value ranges from 00 to 53.

23

w

Number of the week in a year. Monday is the start of a week. The value ranges from 01 to 53.

A week is the first week of a month if it has at least four days in that month; otherwise, the following week is the first week.

24

U

Number of the day in a week, ranging from 0 to 6 (decimal). The value 0 indicates Sunday.

5

EEE MMM dd HH:mm:ss yyyy

Standard date and time.

Tue Nov 20 14:12:58 2020

EEE MMM dd yyyy

Standard date without time.

Tue Nov 20 2020

HH:mm:ss

Standard time without date.

11:59:59

%s

UNIX Timestamp.

147618725
