Protecting a CCE Cluster Against Overload

As the CCE cluster version evolves, new overload protection features and optimizations are regularly introduced. It is recommended that you promptly upgrade your clusters to the latest version. For details, see Cluster Upgrade Overview.

After overload control is enabled, concurrent LIST requests outside the system will be dynamically controlled based on the resource demands received by master nodes to ensure the stable running of the master nodes and the cluster.

For details, see Enabling Overload Control for a Cluster.

If the resource usage on the master nodes in a cluster remains high for a long time, for example, the memory usage is greater than 85%, it is recommended that you promptly increase the cluster management scale. This will prevent the cluster from becoming overloaded during sudden traffic surges. For details, see Changing a Cluster Scale.

• The larger the cluster management scale, the higher the specifications and performance of the master nodes.
• The CCE cluster management scale is the maximum number of nodes that a cluster can manage. It is used as a reference during service deployment planning, and the actual quantity of nodes in use may not reach the limit. The actual scale depends on various factors, including the type, quantity, and size of resource objects in the cluster, as well as the amount of external access to the cluster control plane.

The stability and performance of Kubernetes clusters heavily rely on the management capabilities of control plane components, particularly kube-apiserver and etcd, for resource objects such as pods and Deployments. The total data volume of these resource objects and the size of individual objects impact the scalability and reliability of the clusters.

If the total amount of data stored in etcd becomes too large, it can lead to issues like increased system resource usage and performance bottlenecks, including delays in data read and write operations and leader election processes. Additionally, if the data volume for each resource type is excessively large, accessing all these resources can consume a great number of system resources. In severe cases, this can prevent the kube-apiserver from initialization.

To ensure optimal performance, stability, and availability in large clusters, it is advised to manage and control both the total data volume in etcd and the data volume of individual resource types. The guidelines for this are outlined in the table below.

When the etcd database storage space is full, etcd generates a "No Space" alarm. In response, CCE triggers memory defragmentation to release fragmented storage space and restore the cluster operation. If an error occurs during the defragmentation, a "Defrag" failure event is generated in the Kubernetes cluster.

The size of a single resource object (such as a large ConfigMap, secret, or CRD) also has a significant impact on cluster performance.

• etcd storage limit: By default, etcd limits the size of a single key-value pair to 1.5 MiB. While the size of most Kubernetes objects is way below this threshold, embedding large files (such as certificates, configuration files, and scripts) directly into ConfigMaps or secrets can cause the size of a single object to approach or exceed this limit. This can increase I/O pressure and network transmission overhead for etcd.
• Increased API request latency: Large objects require more CPUs and bandwidth for serialization, deserialization, network transmission, and memory copying. Consequently, the latency for the kube-apiserver to process a single request can increase greatly.
• Informer cache bloat: When informers are used, large objects are fully cached in the client's memory. If there are many large objects, the memory usage of the client (such as operators or custom controllers) can become excessive, potentially leading to out-of-memory errors or client crashes.
• gRPC transmission restrictions and cluster startup risks: During initialization or large-scale List operations, kube-apiserver retrieves data from etcd in paginated mode. etcd has a default limit on the size of its gRPC messages (2 GiB in history): If the total data volume of a single type of resource objects (such as all pods) exceeds the gRPC limit, kube-apiserver may fail to start properly. This can result in an abnormal cluster that cannot be automatically restored. To avoid this issue, kube-apiserver sets the maximum number of objects that can be obtained on each page to 10,000. This ensures that the average object size of a single type of resource does not exceed the gRPC limit divided by 10,000.
  • For clusters of earlier versions (for example, earlier than v1.25.16-r10): The gRPC message size limit is 2 GiB. So, the average object size should not exceed 200 KB.
  • For clusters of later versions (v1.25.16-r10, v1.27.16-r10, v1.28.15-r0, v1.29.10-r0, v1.30.6-r0, v1.31.1-r0, and later): The hard-coded memory limit of the dependent gRPC-Go library is 4 GiB, allowing the average object size to be up to 400 KB.

You can run the command below to export a kind of Kubernetes object as a JSON file and determine the object size based on the file size:

kubectl get <resource> <resource-name> -n <namespace> -o json --show-managed-fields > resource.json
ls -l resource.json

The Kubernetes architecture has a performance bottleneck, meaning that the scale of a single cluster cannot be expanded indefinitely. If your cluster has 2,000 worker nodes, it is necessary to split the services and deploy them across multiple clusters. If you encounter any issues with splitting a cluster, submit a service ticket for technical support.

Observability is crucial for maintaining the reliability and stability of clusters. By using monitoring, alarms, and logs, administrators can gain a better understanding of the clusters' performance, promptly identify any issues, and take corrective action in a timely manner.

Monitoring configurations

• You can check the monitoring information about master nodes on the Overview page of the CCE cluster console.
  Figure 2 Viewing master node monitoring information

• You can use Prometheus to monitor the metrics of master node components, especially the memory usage, resource quantity, QPS, and request latency of kube-apiserver. For details, see Monitoring Master Node Components Using Prometheus.

Alarm configurations

Alarms are an additional feature of monitoring. Alarms are generated to administrators in a timely manner when a cluster experiences malfunctions, allowing for prompt resolution of any issues. You can configure alarms for metrics such as memory usage, resource quantity, QPS, and request latency of kube-apiserver as needed. For details, see Configuring Custom Alarms on CCE.

Monitoring metrics such as resource quantity, QPS, and request latency do not have a fixed boundary between normal and abnormal metrics due to variations in service scenarios. As a result, these metrics are considered normal as long as they do not impact service stability. Typical alarm thresholds cannot be defined. To address this, you can observe metric data when services are running stably and configure appropriate alarm thresholds based on the normal fluctuation range of resource usage. Alternatively, you can use the changes of metric data in a unit of time as the alarm detection object.

Logging configurations

Kubernetes logs allow you to locate and rectify faults. The kube-apiserver component logs contain details about client requests, such as the request source, processing time, and reasons for any exceptions. These logs are useful for tracing the source of issues and analyzing problems related to overload. For details, see Collecting Control Plane Component Logs.

To prevent a large number of pending pods from consuming extra resources on the control plane, it is recommended that you promptly clear up Kubernetes resources that are no longer in use, such as ConfigMaps, Secrets, and PVCs.

• To avoid frequent LIST queries, it is best to use the client cache mechanism when retrieving cluster resource data multiple times. It is recommended that you communicate with clusters using informers and listers. For details, see the Go documentation.

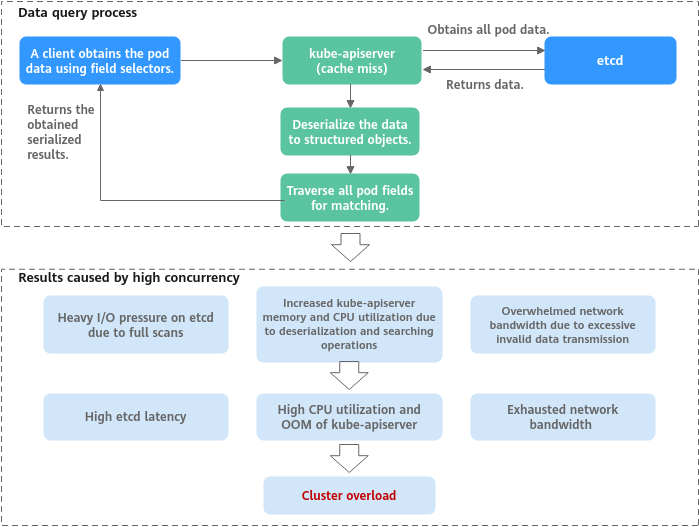

  If a LIST query must be used, you can:

  • Obtain needed data from the kube-apiserver cache first and avoid making additional queries on etcd data. For clusters earlier than v1.23.8-r0 or v1.25.3-r0, you can set resourceVersion to 0. In clusters of v1.23.8-r0, v1.25.3-r0, and later versions, CCE has improved data retrieval and ensured that the cached data is up to date. By default, you can access the required data from the cache.
  • Accurately define the query scope to avoid retrieving irrelevant data and using unnecessary resources. For example:

    # client-go Code example for obtaining pods in a specified namespace
    k8sClient.CoreV1().Pods("<your-namespace>").List(metav1.ListOptions{})
    # kubectl Command example for obtaining pods in a specified namespace
    kubectl get pods -n <your-namespace>

• Use the more efficient Protobuf format instead of the JSON format. By default, Kubernetes returns objects serialized to JSON with content type application/json. This is the default serialization format for the API. However, clients may request the more efficient Protobuf representation of these objects for better performance. For details, see Alternate representations of resources.

For Kubernetes clusters with a version later than v1.31, it is advised to enable ConsistentListFromCache. For details, see Kubernetes v1.31: Accelerating Cluster Performance with Consistent Reads from Cache. After this feature is enabled, kube-apiserver preferentially attempts to read data from its internal cache when processing List requests, rather than always querying the etcd backend. This significantly reduces the network interaction and serialization and deserialization overhead between kube-apiserver and etcd, thereby improving the response speed of List requests and reducing the pressure on the backend storage.

To effectively reduce the impact of List requests on the Kubernetes control plane and ensure cluster stability and high performance, it is advised to follow these policies:

• QPS reduction: Avoid calling the List API cyclically or frequently in service logic. Reconstruct all unnecessary List operations to use the informer-based event-driven mode.
• Pagination: For List requests that will return a large number of objects, use the limit and continue parameters to perform pagination. This prevents a single request from consuming too much memory.
