Creating and Managing Drill Plans

Scenarios

You can schedule failure modes using drill plans. When creating a drill plan, you can specify the executor and planned drill time. The executor creates a drill task when receiving a service ticket and associate the drill task with a failure mode and a region.

Precautions

You do not need to specify the enterprise project to which a drill plan belongs. The enterprise project must be the same as that associated with the failure mode.

Creating a Drill Plan

1. Log in to COC.
2. In the navigation tree on the left, choose Resilience Center > Chaos Drills.
3. Click the Drill Plans tab.
4. Click Create Drill Plan.
5. Set parameters for creating a drill plan.

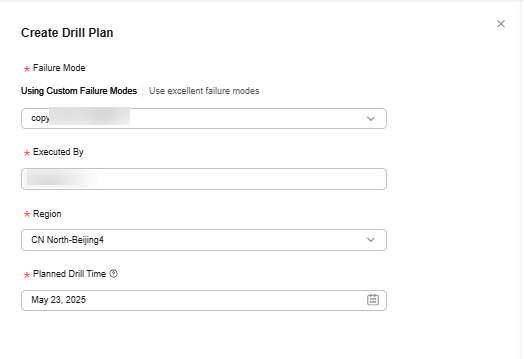

   Figure 1 Creating a drill plan


   Table 1 Parameters for creating a drill plan

   Parameter	Description
   Failure Mode	The options are Use custom failure mode and Use preset failure mode. Select a failure mode from the drop-down list box.
   Executor	Select the user who performs the drill from the drop-down list.
   Region	Select a region from the drop-down list.
   Planned Drill Time	Set the end date of the drill. The executor must complete the drill before the planned drill time.
   Enterprise Project	This parameter is mandatory when Failure Mode Name is set to Use preset failure mode. Select the enterprise project to which the drill belongs from the drop-down list.

6. Click OK.

   The drill plan is created.

Cancelling a Drill Plan

Only tickets in the pending state can be canceled. Only the creator can perform this operation.

1. Log in to COC.
2. In the navigation tree on the left, choose Resilience Center > Chaos Drills.
3. Click the Drill Plans tab.
4. Locate the drill plan you want to cancel, click More and choose Cancel in the Operation column.
5. Click Cancel.

   The drill plan is canceled.

Accepting a Drill Plan Ticket

1. Log in to COC.
2. In the navigation tree on the left, choose Resilience Center > Chaos Drills.
3. Click the Drill Plans tab.
4. Locate the drill plan you want to accept and click Accept in the Operation column.

   The Create Drill Task page is displayed. For details, see Creating a Drill Task.
