Configuring COC by Scenario in the Quick Configuration Center Module

In routine cloud service management, O&M personnel often face complex multi-region and -account environments. Manual configuration is time-consuming and labor-intensive, and is prone to errors caused by manual operations. Quick Configuration Center of COC provides a centralized configuration entry for all Huawei Cloud services, catering to various O&M scenarios. It enables automated operations across multiple regions and accounts, utilizing simplified configurations derived from best practices. This reduces the complexity of subsequent O&M tasks and enhances the management efficiency and accuracy.

You can complete the following configurations in the Quick Configuration Center area:
  • Early configurations: encompass five features: resource and application management, automated O&M, fault management, change ticket management, and chaos drills. You can complete configurations by service scenario as required.
  • Service configurations:
    • It provides a patch management entry. You can configure scheduled tasks and patch baselines required for patch management on the page. For details, see Patch Management.
    • You can enable COC for member users in batches, greatly shortening the service provisioning period and facilitating quick service implementation. For details, see Enabling COC in Batches for Member Accounts.

Early Configurations

  1. Log in to COC.

    On the Overview page of COC, check the information in the Quick Configuration Center area.

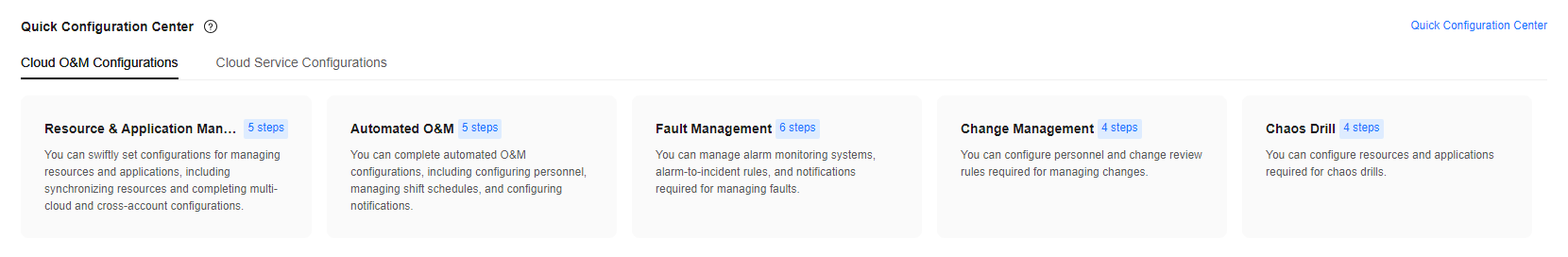

    Figure 1 Quick Configuration Center

    If Quick Configuration Center is not displayed on the Overview page, perform the following operations:

    1. Click Custom Settings in the upper right corner.
    2. On the displayed page, toggle on Quick Configuration Center.
    3. Click OK.

  2. Choose Cloud O&M Configurations > Early configuration.
  3. Click the name of the target configuration item.
  4. Select a scenario and click Execute.

    Figure 2 Selecting a scenario for configuration

Quickly Configuring Patches on COC

It provides a patch management entry. You can configure scheduled tasks and patch baselines required for patch management on the Patch Management page.

  1. Log in to COC.

    On the Overview page of COC, check the information in the Quick Configuration Center area.
    Figure 3 Quick Configuration Center

    If Quick Configuration Center is not displayed on the Overview page, perform the following operations:

    1. Click Custom Settings in the upper right corner.
    2. On the displayed page, toggle on Quick Configuration Center.
    3. Click OK.

  2. Access the Cloud O&M Configurations > Business configuration tab page, and click Patch Management. The Automated O&M > Patch Management page is displayed.

    Figure 4 Quick entry to patch management

  3. On the Patch Management page, you can create a patch baseline and scan and repair OS patches. For details, see Patch Management.

Viewing the Execution Records of a Patch Service Ticket

After patch scan tasks required for patch management are configured on the Overview > Quick Configuration Center > Business configuration tab page, the system automatically generates a patch ticket for quick configurations, clearly displaying the new configuration result. To follow up on the configured target object and view the configuration result, you can use the ticket query function of the Quick Configuration Center module to obtain related details.

  1. Log in to COC.
  2. In the navigation pane, choose Task Management > Execution Records.
  3. Click Patch Tickets.
  4. Click the patch service ticket ID to go to the service ticket details page.
  5. Perform the following operations based on the service ticket status.

    Table 1 Operation description

    Service Ticket Status

    Operation

    Executing

    Click Pause in the upper right corner. After the current batch is complete, the next batch is suspended.

    Click Forcibly End in the upper right corner to end the resource operation service ticket.

    Paused

    Click Continue in the upper right corner to continue the resource operation service ticket.

    Click Forcibly End in the upper right corner to end the resource operation service ticket.

    Abnormal

    Locate an abnormal batch and click Retry in the Operation column.

    Locate an abnormal batch and click Batch Retry above the instance to re-execute all abnormal tasks in this batch.

    Locate an abnormal batch and click Cancel in the Operation column.

    Locate an abnormal batch and click Batch Cancel above the instance to cancel all abnormal tasks in this batch.

Parent Topic: Panoramic Monitoring Overview of COC
