Help Center/ FunctionGraph/ Getting Started/ Creating a Function Using a Template and Executing the Function

Creating a Function Using a Template and Executing the Function

Updated on 2024-10-23 GMT+08:00

FunctionGraph provides multiple templates to automatically complete code and running environment configurations when you create a function, helping you quickly build applications. This section uses context-class-introduction as an example.

Prerequisites

  1. Register with Huawei Cloud and complete real-name authentication.

    For details, see Signing up for a HUAWEI ID and Enabling Huawei Cloud Services and Real-Name Authentication.

    If you already have a Huawei account and have completed real-name authentication, skip this step.

  2. View free quota.

    FunctionGraph offers a free tier every month, which you can share with your IAM users. For details, see Free Tier

    If you continue to use FunctionGraph after the free quota is used up, your account goes into arrears if the balance is less than the bill to be settled. To continue using your resources, top up your account in time. For details, see Topping Up an Account.

  3. Grant the FunctionGraph operation permissions to the user.

    To perform the operations described in this section, ensure that you have the FunctionGraph Administrator permissions, that is, the full permissions for FunctionGraph. For more information, see Permissions Management.

Step 1: Create a Function

  1. Log in to the FunctionGraph console. In the navigation pane, choose Functions > Function List.
  2. Click Create Function in the upper right corner and choose Select template.
  3. Select the template shown in Figure 1 and click Configure.

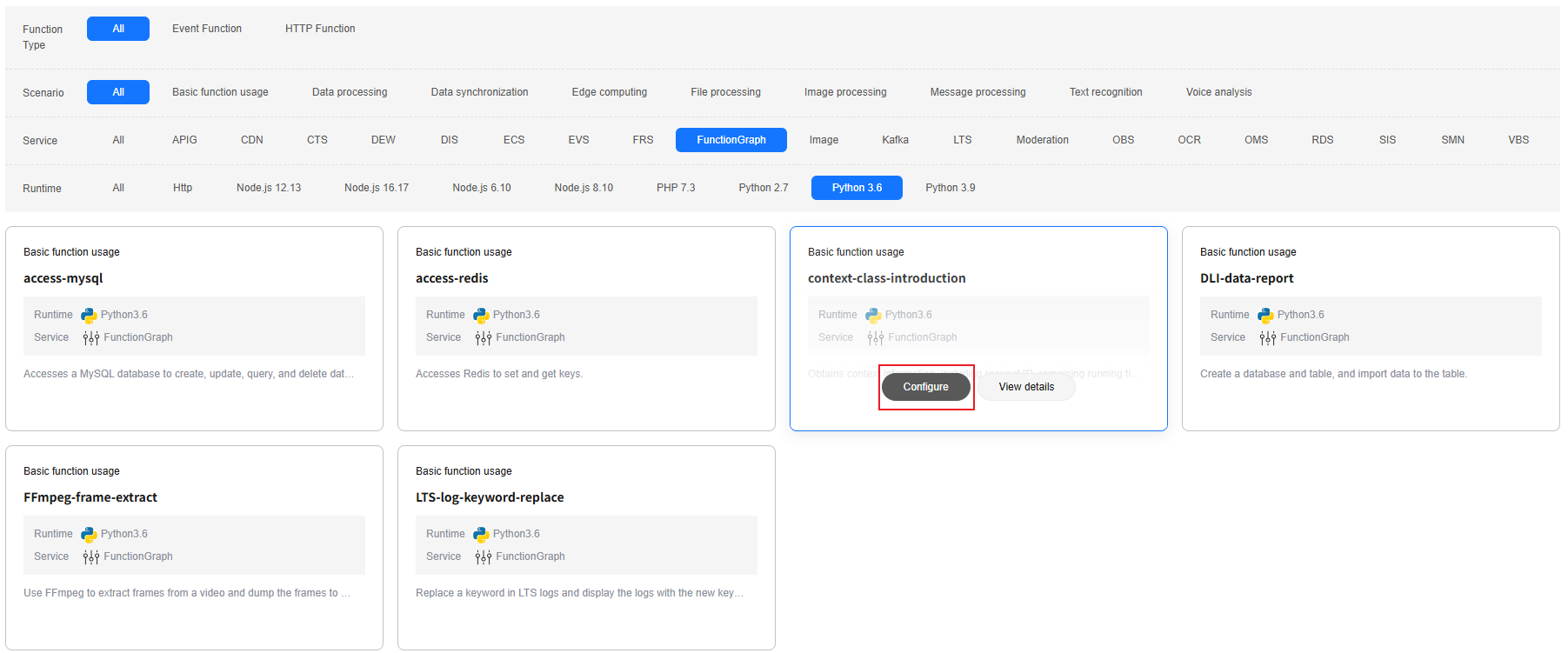

    Figure 1 Selecting a template
  1. Set Function Name to context, select any agency from the Agency drop-down list, retain default values for other parameters, and click Create Function.
    • Templates: name of the selected template. To change the template, click Reselect on the right.
    • Region: The default value is used. You can select other regions.
      NOTE:

      Regions are geographic areas isolated from each other. Resources are region-specific and cannot be used across regions through internal network connections. For low network latency and quick resource access, select the nearest region.

    • Project: The default value is the same as the selected region.
    • Function Name: enter context.
    • Enterprise Project: The default value is default. You can select the created enterprise project.
      NOTE:

      Enterprise projects let you manage cloud resources and users by project.

    • Agency: By default, no agency is used. You can select an existing agency.
      NOTE:

      Specify an agency if you want to delegate FunctionGraph to access other cloud services, such as LTS and VPC.

    • Runtime: Select a runtime to compile the function. Default: Python 2.7. You can select another runtime.
    NOTE:
    • If no agency is configured, the following message will be displayed when the function is triggered:
      Failed to access other services because no temporary AK, SK, or token has been obtained. Please set an agency.
    • Huawei Cloud provides function templates for periodically starting and stopping RDS DB instances, helping you efficiently manage resources and reduce maintenance costs.
      Figure 2 Templates for periodically starting and stopping Huawei Cloud RDS DB instances

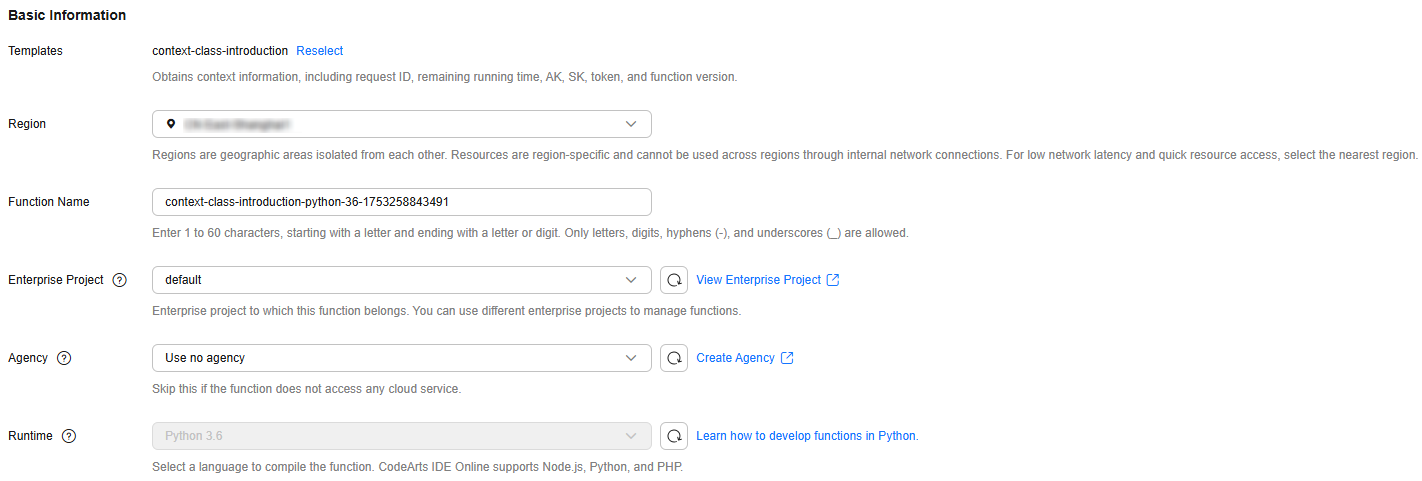

    Figure 3 Setting basic information

Step 2: Test the Function

  1. On the function details page, click Test. In the displayed dialog box, create a test event.
  2. Select blank-template, set Event Name to test, and click Create.
    Figure 4 Configuring a test event

Step 3: View the Execution Result

Click Test and view the execution result on the right.

  • Function Output: displays the return result of the function.
  • Log Output: displays the execution logs of the function.
  • Summary: displays key information of the logs.
NOTE:

A maximum of 2 KB logs can be displayed. For more log information, see Querying Function Logs.
