Preparations

Preparing Required Resources

To facilitate subsequent operations, ensure that:

1. You have created a VPC. For details, see Creating a VPC.
2. You have created a Cloud Container Engine (CCE) cluster. In a trial scenario, set Management Scale to 50 nodes and HA to No.

   The cluster contains at least one ECS node with 8 vCPUs and 16 GB memory or two ECS nodes with 4 vCPUs and 8 GB memory, and is bound to an EIP. For details, see Buying a Cluster.

   • The VPC to which the CCE cluster belongs is the one created in 1.
   • If you have enabled the enterprise project function, the CCE cluster and its VPC must be in the same enterprise project.
   • The CCE cluster cannot be bound to other environments.
   • If a CCE cluster 1.23 or later is created, Container Engine of the ECS node in the cluster supports only Docker.
3. You have registered and obtained a public domain name from the domain name provider. For details, see Creating a Public Zone.
4. In this example, the GitHub source code repository is bound to ServiceStage to implement source code building, archiving, and application creation. Ensure that you have registered an account on GitHub.

Forking the Source Code

Use your account to log in to GitHub and fork the official Spring Boot source code of the baseline version and dark launch version to your GitHub repository.

1. Address for source code of the baseline version: https://github.com/spring-guides/gs-spring-boot/tree/boot-2.7
2. Source code address of the dark launch version: https://github.com/herocc19/gs-spring-boot-kubernetes

Setting GitHub Repository Authorization

You can set GitHub repository authorization so that build projects and application components can use the authorization information to access the GitHub source code repository.

1. Log in to ServiceStage.
2. Choose Continuous Delivery > Repository Authorization > Create Authorization and configure authorization information by referring to the following table. Parameters marked with an asterisk (*) are mandatory.

   Table 1 Authorization information

   Parameter	Description
   *Name	Use the default authorization name. This name cannot be changed after being created.
   *Repository Type	Select GitHub. Select an authorization method. OAuth: Click Use OAuth Authorization and complete the authorization creation as prompted. Personal token: Enter the obtained private token and click Create.

3. Click Create.

Creating an Organization

1. Choose Deployment Source Management > Organization Management.
2. Click Create Organization. On the displayed page, specify Organization Name. For example, org-test.
3. Click OK.
   Figure 1 Creating an organization


Creating an Environment

1. Choose Environment Management > Create Environment and set the environment information by referring to the following table.

   Parameter	Description
   Environment	Enter an environment name, for example, env-test.
   Enterprise Project	Specify Enterprise Project. Enterprise projects let you manage cloud resources and users by project. It is available after you enable the enterprise project function. The environment and its VPC must be in the same enterprise project.
   Description	Retain the default value.
   VPC	Select the VPC prepared in Preparing Required Resources. NOTE: The VPC cannot be modified after the environment is created.
   Environment Type	Select Kubernetes.

   Figure 2 Configuring an environment


2. Click Create Now.
3. In the Resource Settings area, choose Cloud Container Engine from Compute and click Bind now.
4. In the dialog box that is displayed, select the CCE cluster created in Preparing Required Resources and click OK.

Creating an Application

1. Click in the upper left corner to return to the Environment Management page.
2. Choose Application Management > Create Application and set basic application information.
   1. Name: Enter an application name, for example, springGuides.
   2. Enterprise Project: Enterprise projects let you manage cloud resources and users by project.

      It is available after you enable the enterprise project function. The application and its environment must be in the same enterprise project.

3. Click OK.

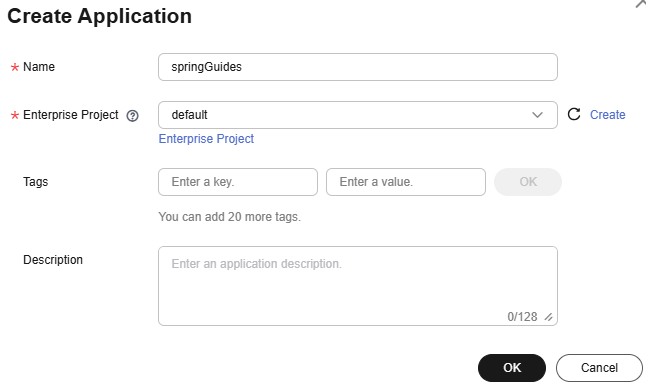

   Figure 3 Creating an application
