Deploying a Static Web Application Using CCI
This section describes how you can use CCI to deploy a static web game application named 2048.
The following table shows the procedure.
Procedure
Step |
Description |
---|---|
|
|
Step 1: Build an Image and Push It to the SWR Image Repository |
Build an image for the application and push the image to the image repository so that the image can be pulled when you create a workload on CCI. |
Create a namespace on CCI for project management. |
|
Purchase VPC endpoints to access cloud services that use the network segment starting with 100 over the VPC. |
|
Configure basic information and access information. |
|
Use an EIP to access the workload. |
|
Delete the resources promptly if you no longer need them to avoid additional expenditures. |
Preparations
- Before you start, sign up for a HUAWEI ID. For details, see Signing Up for a HUAWEI ID and Enabling Huawei Cloud Services.
- You can deploy the static web applications using the console or ccictl. If you use ccictl, download and configure it. For details, see ccictl Configuration Guide.
Step 1: Build an Image and Push It to the SWR Image Repository
To deploy an application on CCI, you first need to build an image for the application and push the image to the image repository. Then the image can be pulled when you create a workload on CCI.
Installing the Container Engine
Before pushing an image, you need to install a container engine. Ensure that the container engine version is 1.11.2 or later.
- Create a Linux ECS with an EIP bound. For details, see Purchasing an ECS.
In this example, select 1 vCPUs | 2 GiB for ECS specifications, 1 Mbit/s for the bandwidth, and CentOS 8.2 for the OS.
You can also install the container engine on other machines.
- Go to the ECS list and click Remote Login to log in to the ECS.
- Install the container engine.
curl -fsSL get.docker.com -o get-docker.sh sh get-docker.sh sudo systemctl daemon-reload sudo systemctl restart docker
Building an Image
The following describes how to use a Dockerfile and the nginx image to build the 2048 image. Before building the image, you need to create a Dockerfile.
- Pull the nginx image from the image repository as the base image.
docker pull nginx
- Download the 2048 static web application.
git clone https://gitee.com/jorgensen/2048.git
- Build a Dockerfile.
- Run the following command:
vi Dockerfile
- Edit the Dockerfile.
FROM nginx MAINTAINER Allen.Li@gmail.com COPY 2048 /usr/share/nginx/html EXPOSE 80 CMD ["nginx", "-g", "daemon off;"]
- nginx indicates the base image. You can select the base image based on the application type. For example, select a Java image as the base image to create a Java application.
- /usr/share/nginx/html indicates the directory for storing the static web.
- 80 indicates the container port.
- Run the following command:
- Build the 2048 image.
- Run the following command:
docker build -t='2048' .
The following information will be displayed after the image build is successful.
Figure 1 Successful image build
- Query the image.
docker images
If the following information is displayed, the image has been built.
Figure 2 Querying the image
- Run the following command:
Pushing the Image
- Access SWR.
- Log in to the management console. In the service list, click Containers > SoftWare Repository for Container.
- In the navigation pane, choose My Images. Then click Upload Through Client. In the dialog box displayed, click Temporary Login Command and click
to copy the temporary login command.
The temporary login command is valid for 24 hours. To obtain a long-term valid login command, see Obtaining a Long-Term Valid Login Command.
- Run the login command on the server where the container engine is installed.
The message "login succeeded" will be displayed after a successful login.
- Push the image.
- Label the 2048 image on the server where the container engine is installed.
docker tag [image-name:image-tag] [image-repository-address]/[organization-name]/[image-name:image-tag]
The following is an example:
docker tag 2048:latest {Image repository address}/cloud-develop/2048:latest
In the command:
- {Image repository address} indicates the SWR image repository address.
- cloud-develop indicates the organization name of the image.
- 2048:latest indicates the image name and tag.
- Push the image to the image repository.
docker push [image-repository-address]/[organization-name]/[image-name:tag]
The following is an example command:
docker push {Image repository address}/cloud-develop/2048:latest
If the following information is displayed, the image is pushed to the image repository:
6d6b9812c8ae: Pushed 695da0025de6: Pushed fe4c16cbf7a4: Pushed v1: digest: sha256:eb7e3bbd8e3040efa71d9c2cacfa12a8e39c6b2ccd15eac12bdc49e0b66cee63 size: 948
To view the pushed image, go to the SWR console and refresh the My Images page.
- Label the 2048 image on the server where the container engine is installed.
Step 2: Create a Namespace
- Create the webapp namespace on the console.
- Log in to the CCI 2.0 console.
- In the navigation pane, choose Namespaces.
- On the Namespaces page, click Create Namespace in the upper right corner.
- Configure basic information.
Parameter
Description
Namespace Name
You can create different namespaces for environment isolation.
- The name of each namespace must be unique.
- Enter 1 to 63 characters starting and ending with a lowercase letter or digit. Only lowercase letters, digits, and hyphens (-) are allowed.
Enterprise Project
Select or create an enterprise project. This parameter is available only for enterprise users who have enabled an enterprise project. After an enterprise project is selected, the security group for the namespace will be created in that project. You can manage namespaces and other resources through the Enterprise Project Management Service (EPS). For more details, see Enterprise Management.
- (Optional) Specify monitoring settings.
Parameter
Description
AOM (Optional)
If this option is enabled, you need to select an AOM instance.
- Configure the network plane.
Table 1 Network plane settings Parameter
Description
IPv6
If this option is enabled, IPv4/IPv6 dual stack is supported.
VPC
Select the VPC where the workloads are running. If no VPC is available, create one first. The VPC cannot be changed once selected.
Recommended CIDR blocks: 10.0.0.0/8-22, 172.16.0.0/12-22, and 192.168.0.0/16-22
NOTICE:- You cannot set the VPC CIDR block and subnet CIDR block to 10.247.0.0/16, because this CIDR block is reserved for workloads. If you select this CIDR block, there may be IP address conflicts, which may result in workload creation failure or service unavailability. If you do not need to access pods through workloads, you can select this CIDR block.
- After the namespace is created, you can choose Namespaces in the navigation pane and view the VPC and subnet in the Subnet column.
Subnet
Select the subnet where the workloads are running. If no subnet is available, create one first. The subnet cannot be changed once selected.
- A certain number of IP addresses (10 by default) in the subnet will be warmed up for the namespace.
- You can set the number of IP addresses to be warmed up in Advanced Settings.
- If warming up IP addresses for the namespace is enabled, the VPC and subnet can only be deleted after the namespace is deleted.
NOTE:Ensure that there are sufficient available IP addresses in the subnet. If IP addresses are insufficient, workload creation will fail.
Security Group
Select a security group. If no security group is available, create one first. The security group cannot be changed once selected.
- (Optional) Specify advanced settings.
Each namespace provides an IP pool. You can specify the pool size to reduce the duration for assigning IP addresses and speed up the workload creation.
For example, 200 pods are running routinely, and 200 IP addresses are required in the IP pool. During peak hours, the IP pool instantly scales out to provide 65,535 IP addresses. After a specified interval (for example, 23 hours), the IP addresses that exceed the pool size (65535 – 200 = 65335) will be recycled.
Table 2 (Optional) Advanced namespace settings Parameter
Description
IP Pool Warm-up for Namespace
- An IP pool is provided for each namespace, with the number of IP addresses you specify here. IP addresses will be assigned in advance to accelerate workload creation.
- An IP pool can contain a maximum of 65,535 IP addresses.
- When using general-computing pods, you are advised to configure an appropriate size for the IP pool based on service requirements to accelerate workload startup.
- Configure the number of IP addresses to be assigned properly. If the number of IP addresses exceeds the number of available IP addresses in the subnet, other services will be affected.
IP Address Recycling Interval (h)
Pre-assigned IP addresses that become idle can be recycled within the duration you specify here.
NOTE:Recycling mechanism:
- Recycling time: The yangtse.io/warm-pool-recycle-interval field configured on the network determines when the IP addresses can be recycled. If yangtse.io/warm-pool-recycle-interval is set to 24, the IP addresses can only be recycled 24 hours later.
- Recycling rate: A maximum of 50 IP addresses can be recycled at a time. This prevents IP addresses from being repeatedly assigned or released due to fast or frequent recycling.
- Click OK.
You can view the VPC and subnet on the namespace details page.
By default, CCI creates an agency for users to access peripheral services in the namespace. This agency is encrypted and stored in aksk-secret. The encryption and decryption material is stored in system-preset-aeskey. The two resources are used by CCI and have been hidden on the console. You can call APIs to view them, and you are advised not to configure them.
- Use ccictl to create the webapp namespace and the corresponding network. After ccictl is configured, take the following steps:
- Create a namespace.
ccictl create namespace webapp
- Create a network for the namespace. The following is an example YAML file:
apiVersion: yangtse/v2 kind: Network metadata: annotations: yangtse.io/domain-id: <domain_id> # Account ID yangtse.io/project-id: <project_id> # Project ID name: cci-network namespace: webapp spec: networkType: underlay_neutron securityGroups: - <security_group_id> # Security group ID subnets: - subnetID: <subnet_id> # Subnet ID
Step 3: Buy VPC Endpoints
- To pull images from a repository of SWR Enterprise Edition, you need a VPC endpoint for accessing OBS.
- To pull images from an SWR public image repository, you need a VPC endpoint for accessing SWR and a VPC endpoint for accessing OBS in the VPC where the workload is deployed.
- Go to the VPC endpoint list page.
- Buy a VPC endpoint for accessing SWR.
- On the VPC Endpoints page, click Buy VPC Endpoint.
The Buy VPC Endpoint page is displayed.
- Configure the parameters.
- Select the region configured in Step 2: Create a Namespace.
- Set Service Category to Cloud service, search for swr, and select the VPC endpoint service for accessing SWR.
- VPC: Select the VPC configured in Step 2: Create a Namespace.
- Subnet: Select the subnet configured in Step 2: Create a Namespace.
Specify other parameters as needed.Figure 3 Buying a VPC endpoint for accessing SWRTable 3 VPC endpoint parameters Parameter
Example
Description
Region
CN-Hong Kong
Specifies the region where the VPC endpoint will be used to connect a VPC endpoint service.
Resources in different regions cannot communicate with each other over a private network. For lower latency and quicker access, select the region nearest to your on-premises data center.
Billing Mode
Pay-per-use
Specifies the billing mode of the VPC endpoint. VPC endpoints can be used or deleted at any time.
VPC endpoints support only pay-per-use billing based on the usage duration.
Service Category
Cloud services
Select Cloud services when you buy a VPC endpoint for accessing SWR.
Service List
-
This parameter is available only when you select Cloud services for Service Category.
VPC endpoint services have been created. You only need to select the desired one.
VPC
-
Select the VPC configured in Step 2: Create a Namespace.
Subnet
-
Specifies the subnet where the VPC endpoint is to be deployed.
Route Table
-
This parameter is available only when you create a VPC endpoint for connecting to a gateway VPC endpoint service.
NOTE:This parameter is available only in the regions where the route table function is enabled.
You are advised to select all route tables. Otherwise, access to the VPC endpoint service of the gateway type may fail.
Select the route tables required for the VPC where the VPC endpoint is to be deployed.
For details about how to add a route, see Adding Routes to a Route Table in the Virtual Private Cloud User Guide.
Policy
-
Specifies the VPC endpoint policy.
VPC endpoint policies are a type of resource-based policies. You can configure a policy to control which principals can use the VPC endpoint to access VPC endpoint services.
Tag
example_key1
example_value1
Specifies the tag that is used to classify and identify the VPC endpoint.
The tag settings can be modified after the VPC endpoint is purchased
Description
-
Provides supplementary information about the VPC endpoint.
Table 4 Tag requirements for VPC endpoints Parameter
Requirement
Tag key
- Cannot be left blank.
- Must be unique for each resource.
- Can contain a maximum of 128 characters.
- Cannot start or end with a space or contain special characters =*<>\,|/
- A tag key can contain letters, digits, spaces, and any of the following characters: _.:=+-@. It cannot start or end with a space, or start with _sys_.
Tag value
- Can be left blank.
- Can contain a maximum of 255 characters.
- Cannot start or end with a space or contain special characters =*<>\,|/
- A tag value can contain letters, digits, spaces, and characters _.:/=+-@. It cannot start or end with a space.
- Confirm the settings and click Next.
- If the configuration is correct, click Submit.
- If any parameter is incorrect, click Previous to modify it as needed and then click Submit.
- On the VPC Endpoints page, click Buy VPC Endpoint.
- Buy a VPC endpoint for accessing OBS.
- On the VPC Endpoints page, click Buy VPC Endpoint.
The Buy VPC Endpoint page is displayed.
- Configure the parameters.
- Select the region configured in Step 2: Create a Namespace.
- Set Service Category to Find a service by name. You can obtain the name of the VPC endpoint service for OBS by submitting a service ticket. Enter the service name and click Verify to confirm that the service name is correct.
- VPC: Select the VPC configured in Step 2: Create a Namespace. When you create a VPC endpoint for a VPC endpoint service of the gateway type, Route Table is displayed. You are advised to select all route tables. Otherwise, the network may be unreachable.
Specify other parameters as needed.

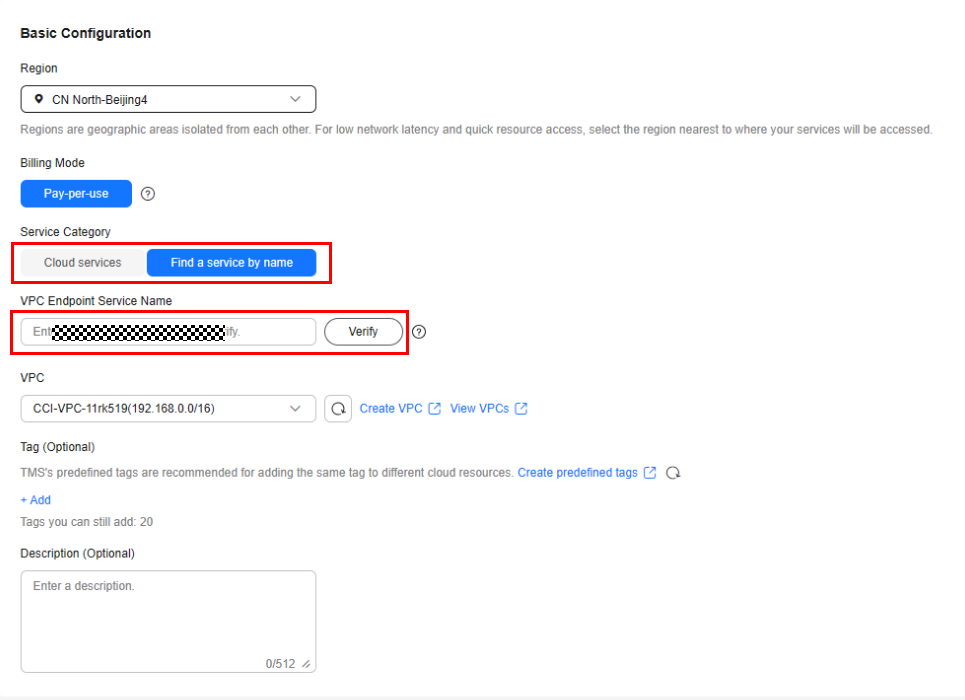

Figure 4 Buying a VPC endpoint for accessing OBSTable 5 VPC endpoint parameters Parameter
Example
Description
Region
CN-Hong Kong
Specifies the region where the VPC endpoint will be used to connect a VPC endpoint service.
Resources in different regions cannot communicate with each other over a private network. For lower latency and quicker access, select the region nearest to your on-premises data center.
Billing Mode
Pay-per-use
Specifies the billing mode of the VPC endpoint. VPC endpoints can be used or deleted at any time.
VPC endpoints support only pay-per-use billing based on the usage duration.
Service Category
Find a service by name
Select Find a service by name when you buy a VPC endpoint for accessing OBS.
VPC
-
Select the VPC configured in Step 2: Create a Namespace.
Subnet
-
Specifies the subnet where the VPC endpoint is to be deployed.
Route Table
-
This parameter is available only when you create a VPC endpoint for connecting to a gateway VPC endpoint service.
NOTE:This parameter is available only in the regions where the route table function is enabled.
You are advised to select all route tables. Otherwise, access to the VPC endpoint service of the gateway type may fail.
Select the route tables required for the VPC where the VPC endpoint is to be deployed.
For details about how to add a route, see Adding Routes to a Route Table in the Virtual Private Cloud User Guide.
Policy
-
Specifies the VPC endpoint policy.
VPC endpoint policies are a type of resource-based policies. You can configure a policy to control which principals can use the VPC endpoint to access VPC endpoint services.
Tag
example_key1
example_value1
Specifies the tag that is used to classify and identify the VPC endpoint.
The tag settings can be modified after the VPC endpoint is purchased
Description
-
Provides supplementary information about the VPC endpoint.
Table 6 Tag requirements for VPC endpoints Parameter
Requirement
Tag key
- Cannot be left blank.
- Must be unique for each resource.
- Can contain a maximum of 128 characters.
- Cannot start or end with a space or contain special characters =*<>\,|/
- A tag key can contain letters, digits, spaces, and any of the following characters: _.:=+-@. It cannot start or end with a space, or start with _sys_.
Tag value
- Can be left blank.
- Can contain a maximum of 255 characters.
- Cannot start or end with a space or contain special characters =*<>\,|/
- A tag value can contain letters, digits, spaces, and characters _.:/=+-@. It cannot start or end with a space.
- Confirm the settings and click Next.
- If the configuration is correct, click Submit.
- If any parameter is incorrect, click Previous to modify it as needed and then click Submit.
- On the VPC Endpoints page, click Buy VPC Endpoint.
- Click Back to VPC Endpoint List after the task is submitted.
- View the endpoint details by clicking each endpoint ID.
Step 4: Create a Pod
Before creating a pod, use VPC Endpoint to connect your namespace to the networks of other cloud services. For details, see Purchasing VPC Endpoints. After VPC endpoints are ready, you can perform the following operations to create a pod:
- Create a pod on the console.
- Log in to the CCI 2.0 console.
- In the navigation pane, choose Workloads. On the Pods tab, click Create from YAML.
- Specify basic information. The following is an example YAML file:
apiVersion: cci/v2 kind: Pod metadata: labels: app: webapp-2048 name: webapp-2048 namespace: webapp spec: containers: - image: {Image repository address}/cloud-develop/2048:latest # Uploaded image name: webapp-2048 ports: - containerPort: 80 protocol: TCP resources: limits: cpu: 500m memory: 1Gi requests: cpu: 500m memory: 1Gi dnsPolicy: Default
- Use ccictl to create a pod. Save the YAML file as pod.yaml and run the following command:
ccictl apply -f pod.yaml
Step 5: Access the Pod
- Create a Service for accessing the pod on the console.
- In the navigation pane, choose Services. On the displayed page, click Create from YAML on the right.
- Create a Service of the LoadBalancer type. The load balancer must have an EIP. The following is an example YAML file:
kind: Service apiVersion: cci/v2 metadata: name: service-2048 namespace: webapp annotations: kubernetes.io/elb.class: elb kubernetes.io/elb.id: <elb_id> # The load balancer must have an EIP. spec: ports: - name: service-port protocol: TCP port: 80 targetPort: 80 selector: app: webapp-2048 type: LoadBalancer
- In the navigation pane, choose Services. On the displayed page, click Create from YAML on the right.
- Use ccictl to create a Service. Save the preceding YAML file as service.yaml and run the following command:
ccictl apply -f service.yaml
After the pod and Service are created, you can enter http://<EIP-of-load-balancer>/2048/index.html in the address box of your browser to access your web application.
Step 6: Clear Resources
- On the CCI console, perform the following operations to clear resources:
- Log in to the CCI 2.0 console.
- In the navigation pane, choose Workloads. Then click the Pods tab.
- Locate the pod to be deleted and click Delete in the Operation column.
To delete the load balancer used by a Service, delete the Service on the CCI 2.0 console, and then delete the load balancer on the ELB console.
- Use ccictl to clear resources.
ccictl delete -f service.yaml ccictl delete -f pod.yaml ccictl delete namespace webapp
Feedback
Was this page helpful?
Provide feedbackThank you very much for your feedback. We will continue working to improve the documentation.See the reply and handling status in My Cloud VOC.
For any further questions, feel free to contact us through the chatbot.
Chatbot
