ccictl Configuration Guide

Downloading ccictl

Download ccictl of the required version from Table 1.

Installing and Configuring ccictl

A Linux OS is used as an example in the following operations.

1. Grant the execute permission on ccictl downloaded in Downloading ccictl and save it to the PATH directory.

   #chmod +x ./ccictl
   #mv ./ccictl $PATH

   In this command, $PATH indicates the PATH directory (for example, /usr/local/bin). Replace it with the actual value.

   You can run the following command to view the ccictl version:

   #ccictl version
   #Client Version: version.Info{GitVersion:"v0.0.2", GitCommit:"996a2efcd852473dde345ae2931833342cab1d96", BuildDate:"2025-03-24T00:32:05Z", GoVersion:"go1.19.6", Compiler:"gc", Platform:"linux/amd64"}

2. Configure IAM authentication information and persistently store it to the local host.
   1. Specify a CCI cluster.

      ccictl config set-cluster <$context-cluster-name> --server=https://<$cci-endpoint>

      • $context-cluster-name: cluster name. You can use any custom name.
      • $cci-endpoint: CCI endpoint. Endpoints vary depending on regions. For details, see Obtaining CCI Endpoints.

      Example:

      #ccictl config set-cluster cci-cluster --server=https://cci.cn-north-4.myhuaweicloud.com
      #Cluster "cci-cluster" set.

   2. Set the user credential used by ccictl.

      ccictl config set-credentials <$user> --auth-provider=iam --auth-provider-arg=iam-endpoint=https://<$iam-endpoint> --auth-provider-arg=cache="true" --auth-provider-arg=project-name=<$project-name> --auth-provider-arg=user-name=<$user-name> --auth-provider-arg=domain-name=<$domain-name> --auth-provider-arg=password=<$password>

      Or

      ccictl config set-credentials <$user> --auth-provider=iam --auth-provider-arg=iam-endpoint=https://<$iam-endpoint> --auth-provider-arg=cache="true" --auth-provider-arg=project-name=<$project-name> --auth-provider-arg=ak=<$ak> --auth-provider-arg=sk=<$sk>

      Table 2 Username and password

      Command Flag	Description
      domain-name	Tenant name, which is the account name.
      user-name	IAM username.
      password	Password of the account or IAM user.

      Table 3 AK/SK

      Command Flag	Description
      ak	For details about how to obtain the AK and SK, see Obtaining an AK/SK. AK is the access key in the file, and SK is the secret key in the file.
      sk

      Table 4 Common settings

      Command Flag	Description
      context-user-name	Username, which is the configured context username and can be specified.
      iam-endpoint	IAM endpoint. This parameter is mandatory. For details, see Regions and Endpoints.
      project-name	Project name. For details, see Obtain a Project ID from the Console.
      cache	Whether to cache the IAM token to the local host to improve the access performance. The default value is true. CAUTION: In an insecure environment, you are advised to disable this option.

      Example:

      #ccictl config set-credentials cci-user --auth-provider=iam --auth-provider-arg=iam-endpoint=https://iam.cn-north-4.myhuaweicloud.com --auth-provider-arg=cache="true" --auth-provider-arg=project-name=cn-north-4 --auth-provider-arg=ak=ak****** --auth-provider-arg=sk=sk******
      #User "cci-user" set.

   3. Set and use the context of ccictl.

      ccictl config set-context <$context-name> --cluster=<$context-cluster-name> --user=<$context-user-name>

   • $context-name: context name. You can use any custom name.
   • $context-cluster-name: cluster name configured in the preceding steps
   • $context-user-name: username configured in the preceding steps

   Example:

   #ccictl config set-context cci-context1 --cluster=cci-cluster --user=cci-user
   #Context "cci-context1" created.

   Context of using ccictl

   ccictl config use-context  <$context-name>

   Example:

   #ccictl config use-context cci-context1
   #Switched to context "cci-context1".

3. After the configuration is complete, you can run ccictl commands to perform operations on CCI resources.

   For example, run the ccictl get namespace command to view namespace resources.

   #ccictl get namespace
   #No resources found.

Configuring ccictl in an Insecure Environment

1. Install and configure ccictl.
2. Edit the config file and delete sensitive information.
   In a Linux OS, the config file is stored in $HOME/.kubev2/config by default.

   Table 5 Sensitive information

   Command Flag	Environment Value	Description
   --domain-name	DOMAIN_NAME	Tenant name
   --user-name	USER_NAME	Sub-user name
   --password	PASSWORD	User password
   --ak	ACCESS_KEY_ID	Access key ID
   --sk	SECRET_ACCESS_KEY	Secret access key
   --cache	CREDENTIAL_CACHE	Whether to cache tokens

3. Configure the environment variables corresponding to the deleted parameters. For example, configure AK, SK, and whether to cache tokens.

   #export ACCESS_KEY_ID=xxxxxxx
   #export SECRET_ACCESS_KEY=xxxxxxx
   #export CREDENTIAL_CACHE=false
   #ccictl get ns

   After the preceding commands are executed, information similar to the following is displayed:

   #No resources found.

Obtaining an AK/SK

AK: access key ID. It is a unique ID associated with an SK. AK is used together with SK to sign requests.

SK: secret access key. It is used together with an AK to sign requests. They can identify request senders and prevent requests from being modified.

1. Log in to the management console.
2. Hover over the username and choose My Credentials from the drop-down list.
3. Choose Access Keys from the navigation pane.
4. Click Create Access Key, and enter the verification code.
5. Click OK to generate an access key and download it.


   Keep the AK/SK file confidential to prevent information leakage.

Obtaining CCI Endpoints

An endpoint is the request address for calling an API. Endpoints vary with services and regions. An endpoint can be obtained from Regions and Endpoints.

Obtain a Project ID from the Console

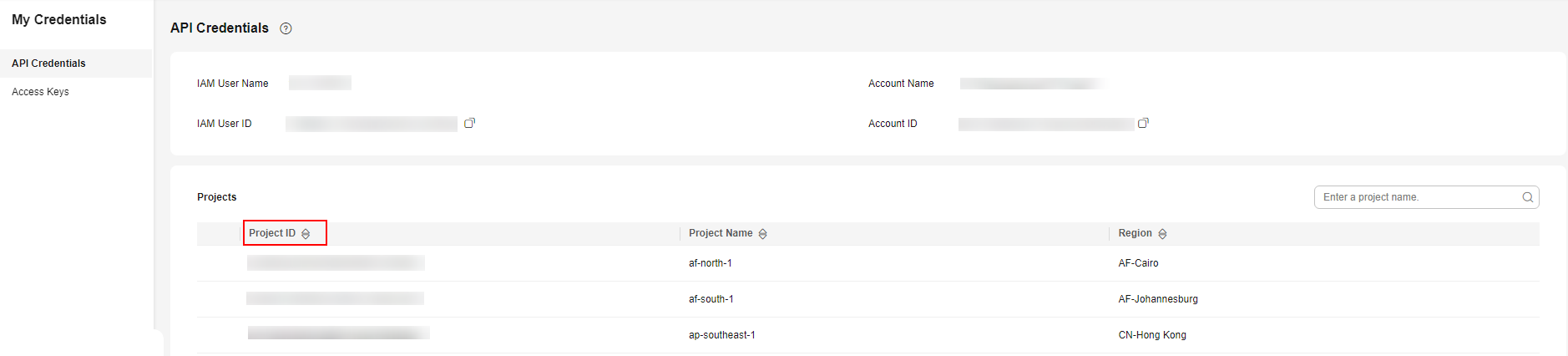

Figure 1 Viewing the project ID
