Using Logging to Record OBS Logs
After logging is enabled for a bucket, OBS automatically converts bucket logs into objects following the naming rules and writes the objects into a target bucket.
Scenarios
You can enable logging to facilitate analysis or audit. Access logs enable a bucket owner to analyze the property, type, or trend of requests to the bucket in depth. When the logging function of a bucket is enabled, OBS will log access requests for the bucket automatically, and write the generated log files to the specified bucket (target bucket).
You need to specify a bucket for storing log files when enabling logging for a bucket. Log files can be stored in any bucket in the region where the logged bucket resides, including the logged bucket itself. To better manage logs, you are advised to store log files in a bucket other than the logged bucket. If log files are stored in the logged bucket, OBS creates additional logs for writing log files to the bucket, which takes up extra storage space that will increase your costs and makes it more difficult for you to locate required logs.
- Uploading bucket logs to the target bucket incurs billable PUT requests. For details about the pricing, see Requests.
After logging is enabled, the log delivery user group will be automatically granted the permission to read the bucket ACL and write the bucket where logs are saved. If you manually disable such permissions, bucket logging will fail.
OBS can log bucket access requests for further request analysis or log audit.
Logs occupy the OBS storage that incurs costs, so OBS does not collect bucket access logs by default.

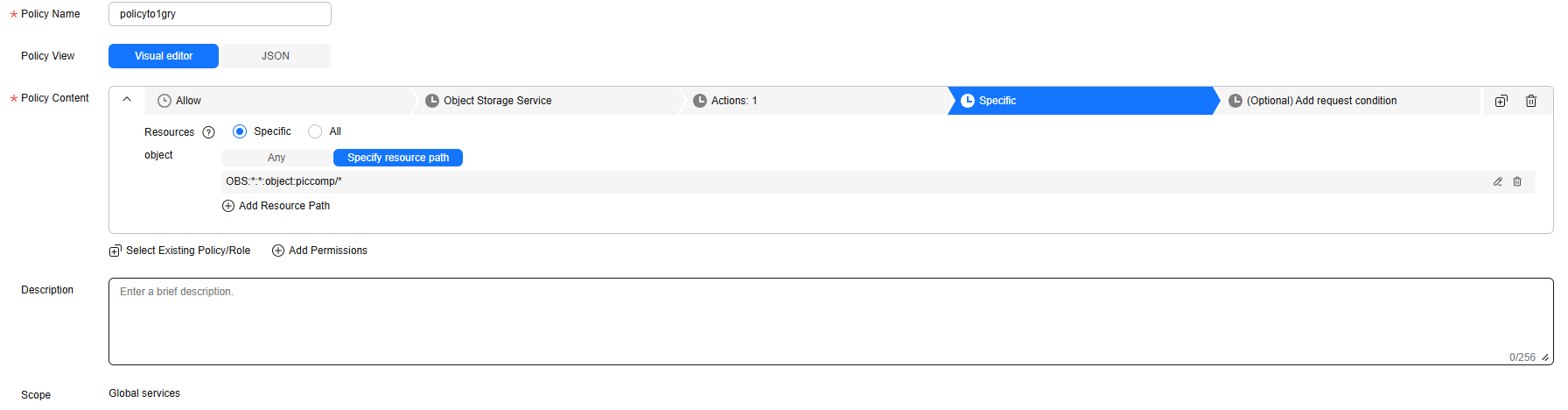

OBS creates log files and uploads them to a specified bucket. To perform these operations, OBS must be granted required permissions. Therefore, before configuring logging for a bucket, you need to create an IAM agency for OBS and add this agency when configuring logging for the bucket. By default, when configuring permissions for an agency, you only need to grant the agency the permission to upload log files (PutObject) to the bucket for storing log files. In the following example, mybucketlogs is the bucket. If the log storage bucket has server-side encryption enabled, the agency also requires the KMS Administrator permission for the region where the bucket is located.
{ "Version": "1.1", "Statement": [ { "Action": [ "obs:object:PutObject" ], "Resource": [ "OBS:*:*:object:mybucketlogs/*" ], "Effect": "Allow" } ] }

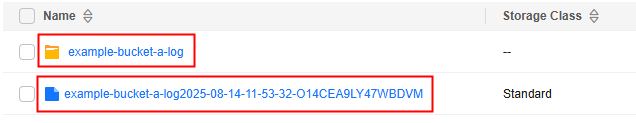

After logging is configured, you can view operation logs in the bucket that stores the logs in approximately fifteen minutes.
The following shows an example access log of the target bucket:
787f2f92b20943998a4fe2ab75eb09b8 bucket [13/Aug/2015:01:43:42 +0000] xx.xx.xx.xx 787f2f92b20943998a4fe2ab75eb09b8 281599BACAD9376ECE141B842B94535B REST.GET.BUCKET.LOCATION - "GET /bucket?location HTTP/1.1" 200 - 211 - 6 6 "-" "HttpClient" - -
The access log of each bucket contains the following information.
Name |
Example |
Description |
---|---|---|
BucketOwner |
787f2f92b20943998a4fe2ab75eb09b8 |
Account ID of the bucket owner |
Bucket |
bucket |
Name of the bucket |
Time |
[13/Aug/2015:01:43:42 +0000] |
Timestamp of the request (UTC) |
Remote IP |
xx.xx.xx.xx |
IP address from where the request is initiated |
Requester |
787f2f92b20943998a4fe2ab75eb09b8 |
Requester ID
|
RequestID |
281599BACAD9376ECE141B842B94535B |
Request ID |
Operation |
REST.GET.BUCKET.LOCATION |
Name of the operation See Table 2 for common operations and their description. |
Key |
- |
Object name |
Request-URI |
GET /bucket?location HTTP/1.1 |
URI of the request |
HTTPStatus |
200 |
Response code |
ErrorCode |
- |
Error code |
BytesSent |
211 |
Size of the HTTP response, expressed in bytes |
ObjectSize |
- |
Object size (bytes)
NOTE:
|
TotalTime |
6 |
Processing time on the server (ms) |
Turn-AroundTime |
6 |
Total time for processing the request (ms)
NOTE:
This parameter can also be written as TotalTime. |
Referer |
- |
Header field Referer of the request |
User-Agent |
HttpClient |
User-Agent header of the request |
VersionID |
- |
Version ID carried in the request |
STSLogUrn |
- |
Federated authentication and agency information |
StorageClass |
STANDARD_IA |
Current storage class of the object |
TargetStorageClass |
GLACIER |
Storage class that the object will be transited to |
DentryName |
12456/file.txt |
|
IAMUserID |
8f3b8c53d29244a780084f2b8c106c32 |
ID of an IAM user. When a request is initiated by an anonymous user, Anonymous is logged. |
Operation |
Description |
Operation |
Description |
---|---|---|---|
REST.GET.SERVICE |
Lists buckets. |
REST.GET.ENCRYPTION |
Obtains the bucket encryption configuration. |
REST.PUT.BUCKET |
Creates a bucket. |
REST.DELETE.ENCRYPTION |
Deletes the bucket encryption configuration. |
REST.HEAD.BUCKET |
Views the bucket information. |
REST.PUT.OTM_DIRECT_COLD_ACCESS |
Configures direct reading for Archive objects in a bucket. |
REST.GET.BUCKETVERSIONS |
Lists objects in a bucket. |
REST.GET.OTM_DIRECT_COLD_ACCESS |
Obtains the direct reading configuration of a bucket. |
REST.GET.BUCKET |
Obtains the bucket metadata. |
REST.DELETE.OTM_DIRECT_COLD_ACCESS |
Deletes the direct reading configuration of a bucket. |
REST.GET.BUCKET.LOCATION |
Obtains the bucket location. |
REST.PUT.BUCKET.WEBSITE |
Configures static website hosting for a bucket. |
REST.DELETE.BUCKET |
Deletes a bucket. |
REST.GET.BUCKET.WEBSITE |
Obtains the static website hosting configuration of a bucket. |
REST.PUT.POLICY |
Configures a bucket policy. |
REST.DEL.BUCKET.WEBSITE |
Deletes the static website hosting configuration of a bucket. |
REST.GET.POLICY |
Obtains a bucket policy. |
REST.PUT.BUCKET.CORS |
Configures CORS for a bucket. |
REST.DELETE.POLICY |
Deletes a bucket policy. |
REST.GET.BUCKET.CORS |
Obtains the CORS configuration of a bucket. |
REST.PUT.ACL |
Configures an ACL for a bucket or an object. |
REST.DEL.BUCKET.CORS |
Deletes the CORS configuration of a bucket. |
REST.GET.ACL |
Obtains a bucket ACL or an object ACL. |
REST.OPTIONS.BUCKET |
Checks bucket OPTIONS. |
REST.PUT.LOGGING_STATUS |
Configures logging for a bucket. |
REST.OPTIONS.OBJECT |
Checks object OPTIONS. |
REST.GET.LOGGING_STATUS |
Obtains the bucket logging configuration. |
REST.PUT.OBJECT |
Uploads an object with PUT. |
REST.PUT.BUCKET.LIFECYCLE |
Configures a bucket lifecycle rule. |
REST.POST.OBJECT |
Uploads an object with POST. |
REST.GET.LIFECYCLE |
Obtains the lifecycle configuration of a bucket. |
REST.COPY.OBJECT |
Copies an object. |
REST.DEL.LIFECYCLE |
Deletes the lifecycle configuration of a bucket. |
REST.GET.OBJECT |
Obtains the object content. |
REST.PUT.VERSIONING |
Configures versioning for a bucket. |
REST.HEAD.OBJECT |
Obtains the object metadata. |
REST.GET.VERSIONING |
Obtains the bucket versioning status. |
REST.DELETE.OBJECT |
Deletes an object. |
REST.GET.BUCKET.STORAGE.POLICY |
Configures the default storage class for a bucket. |
REST.TRANSITION.STORAGECLASS.OBJECT |
Changes the storage class of an object. |
REST.PUT.BUCKET.STORAGE.POLICY |
Obtains the default storage class of a bucket. |
OP_MULTIPLE_DELETEOBJECT |
Batch deletes objects. |
REST.PUT.REPLICATION |
Configures cross-region replication for a bucket. |
REST.POST.RESTORE |
Restores an Archive object. |
REST.DELETE.REPLICATION |
Deletes the cross-region replication configuration of a bucket. |
REST.APPEND.OBJECT |
Appends data to an object. |
REST.GET.REPLICATION |
Obtains the cross-region replication configuration of a bucket. |
REST.MODIFY.OBJECT.META |
Modifies object metadata. |
REST.PUT.TAGGING |
Configures tags for a bucket. |
REST.TRUNCATE.OBJECT |
Truncates an object. |
REST.GET.TAGGING |
Obtains bucket tags. |
REST.RENAME.OBJECT |
Renames an object. |
REST.DEL.TAGGING |
Deletes bucket tags. |
REST.GET.UPLOADS |
Lists the initiated multipart uploads in a bucket. |
REST.PUT.BUCKET_QUOTA |
Configures a storage quota for a bucket. |
REST.POST.UPLOADS |
Initiates a multipart upload. |
REST.GET.BUCKET.QUOTA |
Queries the bucket storage quota. |
REST.PUT.PART |
Uploads a part. |
REST.GET.BUCKET.STORAGEINFO |
Queries the information about the used space in a bucket. |
REST.COPY.PART |
Copies a part. |
REST.PUT.BUCKET.INVENTORY |
Configures inventories for a bucket. |
REST.GET.UPLOAD |
Lists uploaded parts. |
REST.GET.BUCKET.INVENTORY |
Obtains or lists bucket inventories. |
REST.POST.UPLOAD |
Assembles parts. |
REST.DELETE.BUCKET.INVENTORY |
Deletes bucket inventories. |
REST.DELETE.UPLOAD |
Aborts a multipart upload. |
REST.PUT.CUSTOMDOMAIN |
Configures a custom domain name for a bucket. |
REST.CLEAR.EXPIRE.UPLOAD |
Deletes expired segments. |
REST.GET.CUSTOMDOMAIN |
Obtains the custom domain name of a bucket. |
REST.DELETE.CUSTOMDOMAIN |
Deletes a custom domain name of a bucket. |
REST.PUT.ENCRYPTION |
Configures encryption for a bucket. |
- |
- |
Ways to Configure Logging for a Bucket
You can use OBS Console, APIs, or SDKs to configure logging for a bucket.
Related Operations
- Disable bucket logging.
If you no longer need to record logs, in the Logging dialog box, click Disable and then click OK. After logging is disabled, logs are not recorded, but existing logs in the target bucket will be retained.
- Configure an agency for uploading logs.
