Configuring a Cross-Region Backup Policy

Scenarios

TaurusDB can store backups in a different region from the DB instance for disaster recovery. If a DB instance in a region is faulty, you can use the backups in another region to restore data to a new DB instance.

After you enable cross-region backup, the backups are automatically stored in the region you specify. After cross-region backup is enabled, backups generated locally are not affected. Backups are stored both locally and remotely.

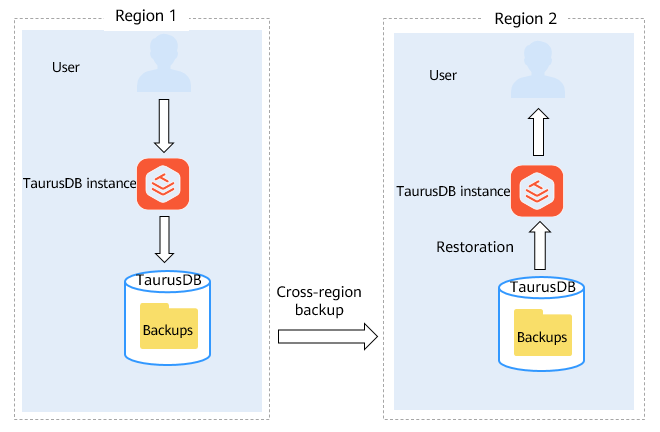

Figure 1 Cross-region backup

Precautions

  • To configure a cross-region backup policy, submit a service ticket to obtain permissions.
  • Cross-region backup can be enabled for up to 150 DB instances in a single region under a tenant. It is recommended that the data volume of a single DB instance be at most 2 TB. If the data volume is too large, the synchronization progress may be delayed.
  • The backup region needs to support OBS cross-region replication. For details about the supported regions, see Cross-Region Replication.
  • If your resource account is shared with other engines and cross-region backup policies are already configured for instances of those engines, the target region for your TaurusDB instance's cross-region backup policy must match the target region of an existing policy.

Supported Regions

Table 1 Supported regions

Instance Region

Backup Region

CN North-Beijing4

CN East-Shanghai1, CN North-Ulanqab1, CN Southwest-Guiyang1, and CN South-Guangzhou

CN East-Shanghai1

CN North-Beijing4, CN North-Ulanqab1, CN Southwest-Guiyang1, and CN South-Guangzhou

CN North-Ulanqab1

CN North-Beijing4, CN East-Shanghai1, CN Southwest-Guiyang1, and CN South-Guangzhou

CN Southwest-Guiyang1

CN North-Beijing4, CN East-Shanghai1, CN North-Ulanqab1, and CN South-Guangzhou

CN South-Guangzhou

CN North-Beijing4, CN East-Shanghai1, CN North-Ulanqab1, and CN Southwest-Guiyang1

Billing

Table 2 Billing

Specification Code

Pricing

gaussdb.mysql.crossreg.backup.space
  • Regions in China (excluding Hong Kong): $0.000157 USD/GB/hour
  • Hong Kong and regions outside China: $0.00022 USD/GB/hour

Configuring a Cross-Region Backup Policy

  1. Log in to the management console.
  2. Click in the upper left corner and select a region and project.
  3. Click in the upper left corner of the page and choose Databases > TaurusDB.
  4. On the Instances page, click the instance name.
  5. In the navigation pane, choose Backups. On the displayed page, click Configure Cross-Region Backup Policy.
  6. In the displayed dialog box, set required parameters.

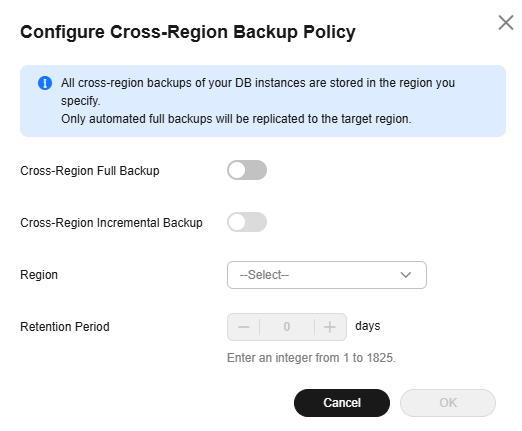

    Figure 2 Configuring a backup policy

    Table 3 Parameter description

    Parameter

    Description

    Cross-Region Full Backup

    If you enable this option, automated full backups of the DB instance are stored in the region you specify.

    Cross-Region Incremental Backup

    If you enable this option, incremental backups of the DB instance are stored in the region you specify.

    • To enable cross-region incremental backup, enable cross-region full backup first.
    • After cross-region incremental backup is enabled, you can restore an instance to a specified point in time only after the next automated full backup replication is complete. The specified point in time must be later than the time when the automated full backup is complete.

    Region

    Select the region for storing backups.

    Retention Period

    Cross-region backup files can be retained from 1 to 1,825 days.

  7. Click OK.
  8. On the Cross-Region Backups tab of the Backups page, manage cross-region backups. By default, all instances with cross-region backups are displayed.

    • To modify the cross-region backup policy, click Set Cross-Region Backup in the Operation column.
    • To view generated cross-region backups, click View Cross-Region Backup in the Operation column. If a DB instance fails, you can use the cross-region backups to restore data to a new DB instance.
      Both full backups and incremental backups can be restored to new DB instances. Incremental backups can be restored to a specified point in time.
      Figure 3 Full backups

      Figure 4 Incremental backups

      Figure 5 Restoring an incremental backup to a point in time

    • To view all cross-region backups, click View All Backups.

      To restore a backup, locate the backup and click Restore in the Operation. For details, see Restoring Data Across Regions.

    • To return to the instance list, click View Instances.

  1. Log in to the management console.
  2. Click in the upper left corner and select a region and project.
  3. Click in the upper left corner of the page and choose Databases > TaurusDB.
  4. In the upper left corner of the page, select the region where the original DB instance is located.
  5. Disable the cross-region backup policy using either of the following methods.

    Method 1:

    1. Choose Backups in the navigation pane and click the Cross-Region Backups tab.
    2. Locate the target DB instance and click Set Cross-Region Backup in the Operation column.
      Figure 6 Setting cross-region backup

    3. In the displayed dialog box, click next to Cross-Region Incremental Backup and Cross-Region Full Backup, respectively.
      Figure 7 Disabling cross-region backup

    4. Click OK.

    Method 2:

    1. On the Instances page, click the instance name.
    2. In the navigation pane, choose Backups.
    3. Click Configure Cross-Region Backup Policy.
    4. In the displayed dialog box, click next to Cross-Region Incremental Backup and Cross-Region Full Backup, respectively.
      Figure 8 Disabling cross-region backup

    5. Click OK.

Parent Topic: Creating an Automated Backup
