Provisioning Lite Server Resources (New Version)

ModelArts has enhanced the creation page to improve the efficiency of creating Lite Server resources. The updated page streamlines operations and enhances the GUI display.
Scenario
This section describes how to purchase Lite Server compute resources on the ModelArts console and how to prepare for the purchase.
You need to increase the resource quota, configure basic permissions, and set ModelArts agency authorization. To purchase the resources, you need to create an instance and pay for the order. Then, wait for 20 to 60 minutes. After the resource is created, you can configure an EIP for resource access and AI development.
Constraints
Currently, only the Yearly/Monthly billing mode is supported for ModelArts Lite Server.

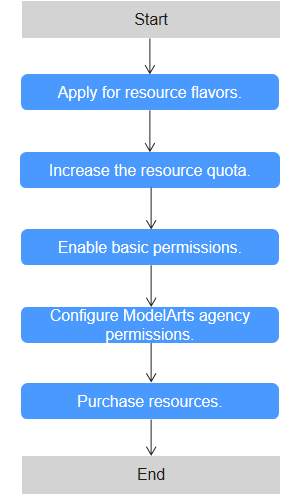

Enabling Resources

Phase |
Task |
---|---|
Preparations |
1. Apply for resource specifications. |
2. Increase the resource quota. |
|
3. Enable basic permissions. |
|
4. Configure an agency authorization for ModelArts. |
|
Purchasing Lite Server resources |
5. On the ModelArts console, purchase Lite Server resources. |
Step 1: Applying for Resource Specifications
Contact the customer manager to determine a Lite Server resource solution. Then, apply for the required resource specifications. Alternatively, submit a service ticket.
Step 2: Increasing the Resource Quota
The resources required by the server may exceed the default resources (such as ECS, EIP, SFS, memory, and CPUs) provided by cloud services. In this case, you need to increase the resource quota.
- Log in to the Huawei Cloud console.
- Hover over Resources from the top menu bar and choose My Quotas.
- Click Increase Quota in the upper right corner, fill in the materials, and submit a service ticket.
Increase the quota before purchasing and provisioning the resource, ensuring it exceeds the resource requirements. Otherwise, the resource will fail to be provisioned.
Step 3: Enabling Basic Permissions
Log in to the administrator account and grant the IAM user the required basic permissions, including ModelArts FullAccess, BMS FullAccess, ECS FullAccess, VPC FullAccess, VPC Administrator and VPCEndpoint Administrator. This allows the IAM user to use these cloud services.
- Log in to the IAM console.
- In the navigation pane on the left, choose User Groups and click Create User Group in the upper right corner.
- Enter a group name and click OK.
- On the User Groups page, locate the target user group and click Manage User in the Operation column, and add the user to the user group.
Figure 2 User group management
- Click the user group name to access its details page.
- In the Permissions tab, click Authorize.
Figure 3 Assigning permissions
- Search for ModelArts FullAccess in the search box and select it.

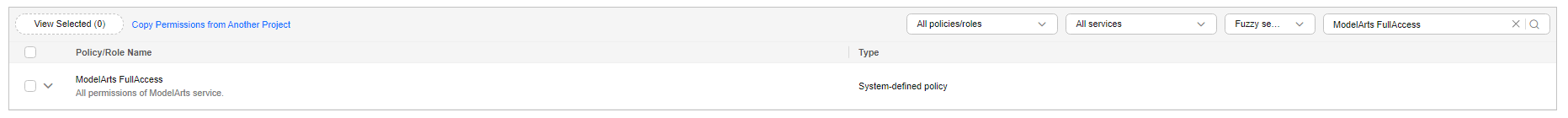

Figure 4 ModelArts FullAccess
Use the same method to select BMS FullAccess, ECS FullAccess, VPC FullAccess, VPC Administrator, and VPCEndpoint Administrator. Server Administrator and DNS Administrator are dependent policies and are automatically selected.
- Click Next and set Scope to All resources.
- Click OK.
Step 4 Creating an Agency Authorization on ModelArts
During task execution, ModelArts Lite Server must access other services. This includes pulling images from SWR when using containers. In such cases, ModelArts accesses other cloud services on behalf of you. To ensure security, ModelArts requires your authorization before accessing any cloud services, which is the agency process. Once authorized, you can run AI computing tasks on ModelArts.
- Creating an agency
Create an agency on ModelArts to authorize access to other cloud services. To do so, log in to the ModelArts console. In the navigation pane on the left, choose Permission Management under System Management. On the displayed page, click Add Authorization.
- Updating an agency
Update the permissions for your existing ModelArts agency.
- Log in to the ModelArts console. In the navigation pane on the left, choose Lite Servers under Resource Management. On the displayed page, check whether a message indicating missing authorization is displayed.
- Click View missing permissions to update the agency if needed. Set Added To to Existing authorization and click OK.

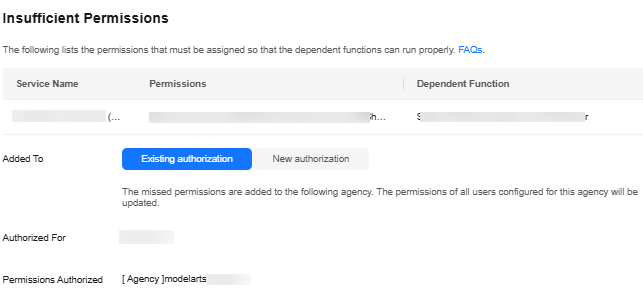

Figure 5 Adding authorization
Step 5: Purchasing Lite Server Resources
When you purchase Lite Servers, resources are created.
- Log in to the ModelArts console.
- In the navigation pane on the left, choose under Resource Management.
- Click Buy Lite Server in the upper right corner. Configure the parameters on the displayed page.
The purchase page offers two versions: New Version and Old Version. The parameter order shown below matches the layout on the New Version's purchase page. While the Old Version's purchase page displays parameters in a different order, their descriptions remain the same.
Figure 6 Basic configurations for purchasing Lite ServersTable 2 Parameters for basic configurations Parameter
Description
Node Type
- Single node: A physical or virtual server that provides independent basic compute, storage, and network resources
- Supernode: A converged node that provides a large-scale compute resource pool and supports flexible allocation and high-density deployment Supernodes are specially designed to support large-scale model inference tasks. These servers are usually equipped with multiple compute cards (such as Ascend NPUs) to provide powerful computing capabilities to meet heavy–load inference requirements. Supernode resources are available only in CN Southwest-Guiyang1 and CN East 2.
Resource Type
This parameter is available only when Node Type is set to Single node. Select BMS or ECS as required.
- BMS: A BMS features both the scalability of Elastic Cloud Servers (ECSs) and high performance of physical servers, providing dedicated servers on the cloud for you and your enterprise.
- ECS: ECS provides secure, scalable, on–demand compute resources, enabling you to flexibly deploy applications and workloads.
- Supernodes: A supernode is a high–performance server used for large–scale model inference tasks. These servers are usually equipped with multiple compute cards (such as Ascend NPUs) to provide powerful computing capabilities to meet heavy–load inference requirements. Supernodes are supported only in CN Southwest–Guiyang1 and CN East2.
Billing Mode
Select Yearly/Monthly.
Yearly/Monthly is a prepaid billing mode in which your subscription is billed based on the required duration. This mode is more cost–effective when the usage duration is predictable.
Pay–per–use billing is not supported.
Region
Select a region near you to ensure the lowest latency possible.
AZ
An AZ is a physical region where resources use independent power supplies and networks. AZs are physically isolated but interconnected through an internal network. When deploying resources, consider your applications' requirements on disaster recovery (DR) and network latency.
- For high DR capability, deploy resources in different AZs within the same region.
- For lower network latency, deploy resources in the same AZ.
When Node Type is set to Supernodes or Resouce Type is set to ECS, you can select a random AZ to display available node resources in each region. If Resource Type is set to BMS, random AZs are not supported.
For details about how to provision edge station resources, see Managing CloudPond NPU Resources for Lite Server.
Table 3 Parameters for configuring specifications Parameter
Description
CPU Architecture
CPU architecture of the resource type, which can be x86 or Arm.
- x86: Select this if GPU resources are used.
- Arm: Select this if NPU resources are used.
Select a CPU architecture and then select instance specifications as required. The flavors vary by region. The actual flavors are displayed on the console. Sold-out resources are displayed in gray and cannot be purchased.
When purchasing 48 supernodes, reserve a portion as standby nodes based on your service requirements. These standby nodes will automatically take over if a primary node fails.
NOTE:If no specifications are available, contact Huawei technical support.
Table 4 Parameters for configuring the OS Parameter
Description
- Public image
Public images are available for all users. All users can read the image by image ID.
ModelArts allows you to perform development and training directly without additional configuration as it provides multiple public images, supports multiple OSs, and has built–in AI drivers and software.
For details about the supported public images, see Mapping Between Compute Resources and Image Versions.
- Private image
Only the image creator can use the image. You can select a private image to save your time from repeatedly configuring servers.
Table 5 Parameters for configuring storage Parameter
Description
Storage
The storage configuration parameters apply to each single node. Actual storage configuration = Storage configuration of a single node x Number of purchased nodes.
Node System Disk Type
This parameter is displayed only when you select an instance flavor that supports mounting.
The node system disk stores the OS of a server, and is automatically created and initialized upon Lite Server creation.
Select a node system disk type and set the disk size. The system disk size ranges from 100 GiB to 1,024 GiB.
You can also expand the system disk capacity after the server is created.
The system disk is automatically mounted to each compute node.
(Optional) Node Data Disk Type
Click Add Data Disk to mount an EVS data disk to the Lite Server. Currently, local disks cannot be mounted.
You can select Node Data Disk Type and set Size and Quantity.
The data disk size ranges from 100 GiB to 32,768 GiB.
For BMSs and ECSs, there can be a maximum of 59 data disks. For supernodes, there can be a maximum of 8 data disks.
You can also expand the data disk capacity after the server is created.
The data disk is automatically mounted to each compute node.
Table 6 Parameters for configuring the network Parameter
Description
VPC
A Virtual Private Cloud (VPC) ensures the security, isolation, and network flexibility of server resources.
Choose the VPC associated with your server from the drop–down list. You are advised to choose the same VPC for all related cloud services to simplify network connections.
If no VPC is available in the drop–down list, click Create VPC on the right to create one. To create a VPC, you need to log in to the management console as the administrator, and plan the IP address segment based on site requirements.
Subnet
Select a subnet of the current VPC.
If no subnet is available in the drop–down list, click Create Subnet on the right to create one.
Security Group
A security group is a collection of access control rules for ECSs that have the same security requirements and that are mutually trusted within a VPC.
If no security group is available in the drop–down list, click Create Security Group on the right to create one.
IPv6
IPv6 is available when it is supported by the subnet, specifications, and image configured for the network.
Ensure that IPv6 has been enabled. To enable IPv6, see Creating a Subnet for an Existing VPC.
This parameter is only displayed for certain specifications and images.
RoCE Network
This parameter is available only when Node Type is set to Single node.
When GPUs or Ascend Snt9b and Snt9b23 of series A are used for distributed training, you need to configure the RoCE network to use the RoCE NICs on the hardware.
The parameter is only displayed if you have selected one specification that supports RoCE networks.
If you have not created a RoCE network, click Create RoCE.
If you have created a RoCE network, select it directly.
Supernode Network
This parameter is displayed only when Node Type is set to Supernodes. You can click Add Super Node Network on the right to create one.
Supernode networks are mandatory for distributed scenarios.
Table 7 Node management parameters Parameter
Description
Server Name
Server name, which can contain 1 to 64 characters. Only digit, letters, underscores (_), and hyphens (-) are allowed.
CAUTION:The server name in the order will not be changed. If you change the name after placing the order, the new name will not be synchronized to the order.
Login Mode
Key pair is recommended as it features higher security than Password. If you select Password, ensure that the password meets complexity requirements to prevent malicious attacks.
- Key pair
Use a key pair to log in to the Server node. You can select an existing key pair, or click Create Key Pair to create one.
If you use an existing key pair, ensure that you have saved the key file locally. Otherwise, logging in to the Server node will fail.
- Password
A username and its initial password are used for authentication and logging in to the Server node.
For Linux, use the initial password of user root. For Windows, use the initial password of user Administrator. The password must:
- Contain 8 to 26 characters.
- Contain at least three types of the following characters: uppercase letters, lowercase letters, digits, and special characters (!@$%^-_=+[{}]:,./?).
- Cannot be the same as the username or the username spelled backwards.
- Cannot contain root, administrator, or their reverse.
Enterprise Project
This parameter is only available if you have enabled the enterprise project function, or if your account is an enterprise account. To enable this function, contact your customer manager.
An enterprise project makes it easy to manage projects and groups of cloud resources and users. Use the default enterprise project or create one.
Select an enterprise project from the drop–down list. For details about enterprise projects, see Enterprise Management User Guide.
CAUTION:The enterprise project cannot be modified for a purchased server. Currently, the enterprise project information cannot be synchronized in the order.
Table 8 Parameters for advanced configurations Parameter
Description
Cloud Eye host monitoring
Once this function enabled, you can configure Cloud Eye host monitoring agency in one–click mode. Cloud Eye agency allows you to monitor various metrics of the server, including CPU, memory, network, disk, and process at an interval of 1 minute. For details, see Using Cloud Eye to Monitor NPU Resources of a Single Lite Server Node.
NodeTaskHub
The NodeTaskHub plug–in is preset for certain public images. This parameter is displayed when the corresponding image is selected.
Once enabled, the system automatically installs the NodeTaskHub plug–in for the task center to deliver Ascend software upgrade, pressure test, and fault diagnosis tasks. For details, see Managing Lite Server AI Plug-ins.
Custom Instance Data Injection
Use this function to configure Server nodes if you want to:
- Use scripts to simplify the Server node configuration.
- Use scripts to initialize OSs.
- Use existing scripts and upload them to the server when creating the Server node.
- Use scripts for other purposes.
Currently, As text and As file are supported. For details, see Injecting User Data into BMSs or Injecting User Data into ECSs.
Table 9 Parameters for purchase configurations Parameter
Description
Required Duration
Set the required duration and select auto–renewal as needed.
Quantity
You can purchase multiple instances simultaneously, with a value between 1 and 10.
Each instance generates a separate order, which must be paid for individually.
- View the configuration fee in the lower left corner of the page and click Buy Now. Then, pay for the order on the payment page.
The detailed fees will be displayed. You can click to view discount details if there is any. The configuration fee is the final discounted fee. To view the actual fee deduction, see the bill.
Each instance generates a separate order, which must be paid for individually.
- Once paid, the resource will be created in 20 to 60 minutes. Wait until the resource is created. If the resource fails to be created, see Handling Resource Purchase Failures.
If a container is used or shared by multiple users, you should restrict the container from accessing the OpenStack management address (169.254.169.254) to prevent host machine metadata acquisition. For details, see Forbidding Containers to Obtain Host Machine Metadata.
Handling Resource Purchase Failures
- Insufficient resources: Switch to the BMS or ECS page and check whether the specifications to be purchased are sold out. If so, there are no resources of this flavor. In this case, contact the customer manager to obtain resources and purchase again.
- Insufficient quota: Check if your account's resource quota (cores and RAM capacity) meets the requirements. If your quota is too low, you will need to increase it before proceeding. Apply for a quota adjustment before purchasing resources.
- Internal BMS or ECS error: Check whether there is an internal BMS or ECS error. If yes, submit a service ticket to BMS or ECS to locate and rectify the fault.
