Managing Lite Server AI Plug-ins

Scenario

NodeTaskHub is a plug-in that manages elastic nodes efficiently. It sends tasks and enables automated O&M for ModelArts Lite Server nodes. It supports high-frequency operations such as Ascend software upgrade, real-time detection, and fault diagnosis, reducing manual intervention risks and ensuring stable and efficient AI service processes.

The Lite Server task center provides you with multiple task templates for creating tasks. Task delivery depends on the NodeTaskHub plug-in installed on the Lite Server node. For some public images of the Lite Server, the NodeTaskHub plug-in is preset. You can choose to automatically install the plug-in when purchasing the Lite Server. If it is not installed, manually install it by referring to the following content.

Constraints

• Only Snt9b common nodes and Snt9b23 supernodes are supported.
• The node must be in the running state.
• The Docker service is required for the plug-in. Ensure that the Docker environment has been installed on the node. The Docker environment has been installed in the public OS image of Lite Server. However, if it is not installed in your custom image, perform operations in Install the Docker environment..
• The plug-in occupies port 25317 of the node.

Checking the Plug-in Installation

1. Log in to the ModelArts console.
2. In the navigation pane on the left, choose Lite Servers under Resource Management. On the displayed page, click the Plugins tab.

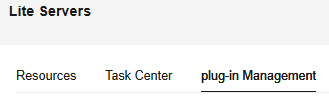

   Figure 1 Plugins


3. Check the plug-in installation status. If it is not installed, click Install in the Operation column and install the plug-in as prompted. Alternatively, manually install it by referring to Installing a Plug-in Manually.

Installing a Plug-in Manually

1. Log in to the ModelArts console.
2. In the navigation pane on the left, choose Add-ons. Search for the NodeTaskHub plug-in and click Install.
   Figure 2 Searching for the plug-in


3. Select the plug-in version as prompted and copy the one-click installation command to the Lite Server node to install NodeTaskHub.
   Figure 3 Installing a plug-in


4. After the plug-in is installed, return to the Plugins tab. The plug-in is in the Running state.

Related Operations

In the navigation pane on the left, choose Lite Servers under Resource Management. Click the Plugins tab. You can restart, uninstall, and upgrade plug-ins.

Follow-Up Operations

After the plug-in is installed, you can perform the following tasks in the task center of Lite Servers:

• Upgrading the Ascend Driver and Firmware Version on Lite Server
• Installing or Upgrading the Cloud Eye Agent Plugin on a Lite Server
• Lite Server Node Fault Diagnosis
• Fixing Lite Server Vulnerabilities
• One-Click Pressure Test for Lite Server Nodes
• Configuring the Parameter Plane Network of Lite Server Nodes
