Designing Physical Models

Considerations in Physical Model Design

• Physical models must ensure that the required functions are available and their performance is as good as expected.
• Physical models must ensure data consistency and quality.
• Few or no changes are made to the physical models when new services or functions are added.

Creating a Physical Model

1. On the DataArts Studio console, locate an instance and click Access. On the displayed page, locate a workspace and click DataArts Architecture.
   Figure 1 DataArts Architecture


2. On the DataArts Architecture page, choose Models > ER Modeling in the left navigation pane.
3. If no ER model is available, the Create Hierarchical Governance Model dialog box is displayed, prompting you to create models for the SDI and DWI layers. If there are physical models, click in the Physical Models area to create a physical model.


   According to the data governance methodology and the ER and dimensional modeling methods, four layers of data warehouse models are available by default:

   • ER modeling consists of the SDI and DWI layers. Physical models belong to one of the two layers.
     • SDI stands for Source Data Integration and is the source data layer. SDI is a simple implementation of source system data.
     • DWI stands for Data Warehouse Integration, also called the data consolidation layer. DWI integrates and cleans data from multiple source systems, and implements entity relationship modeling based on the three normal forms.
   • In dimensional modeling, DWR-layer models are created based on dimensions, and data is aggregated into DM-layer models.
     • Data Warehouse Report (DWR) is based on the multi-dimensional model and its data granularity is the same as that of the DWI layer.
     • Data Mart (DM) is where multiple types of data are summarized. DM is designed to display the summarized data.

   The administrator can rename the models of the four layers by clicking next to the model names. The model name can contain only letters, digits, and underscores (_), and must start with a letter.

   Figure 2 Creating a hierarchical governance model

   Figure 3 Creating a physical model


4. In the dialog box displayed, set the parameters and click OK.
   Figure 4 Configuring the physical model


   Table 1 Parameters for creating a physical model

   Parameter	Description
   *Name	Only letters, numbers, and underscores (_) are allowed.
   *Data Connection Type	Select a data connection type from the drop-down list box.
   Data Warehouse Layer	Select SDI or DWI. SDI stands for Source Data Integration and is the source data layer. SDI is a simple implementation of source system data. DWI stands for Data Warehouse Integration, also called the data consolidation layer. DWI integrates and cleans data from multiple source systems, and implements entity relationship modeling based on the three normal forms.

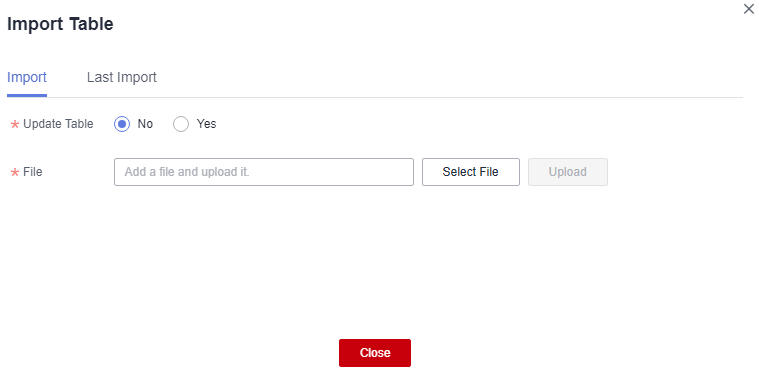

   Prefix	Only letters, numbers, and underscores (_) are allowed. Dimension codes must start with letters. NOTE: When you create, modify, or import a table to a physical model, the system checks whether a prefix is available. If no prefix is available, the verification fails. When you perform a reverse operation, the system also checks whether a prefix is available. If no prefix is available, the system automatically adds a prefix.
   Description	A description of the ER model. Up to 600 characters are supported.

Creating and Publishing a Table

After creating an ER model, you can create a business table in the model.

1. On the DataArts Architecture page, choose Models > ER Modeling in the left navigation pane.
2. Select the physical model for which you want to create a table, click the physical model to access the model management page, and click Create.
   Figure 5 Entry for creating a table


3. On the Create Table page, set the parameters as required.
   1. Set the basic parameters.
      Figure 6 Basic Settings tab page


      Table 2 Parameters on the Basic Settings tab page

      Parameter	Description
      *Subject	Select a subject from the drop-down list box.
      *Table Name	The name of the table to create. The value can contain only letters, digits, brackets, commas (,), and the following special characters: +-#_[]/. It must start with a letter.
      *Table Code	Name of the physical table converted from the logical entity. Table codes cannot start with numbers. Only letters, numbers, and the following special characters are allowed: _${}
      *Data Connection Type	N/A
      Data Connection	The name of the data connection. Select the required data connection. You are advised to use the same data connection for an ER model. If no data connection is available, access Management Center to create one. For details, see Managing Data Connections.
      Database	The name of the database. Select a database from the drop-down list box.
      Queue	DLI queue. This parameter is available only for DLI tables.
      Schema	Schema of DWS or PostgreSQL This parameter is available only for DWS and PostgreSQL tables.
      *Table Type	DLI models support the following table types: MANAGED: Data is stored in a DLI table. EXTERNAL: Data is stored in an OBS table. When Table Type is set to EXTERNAL, you must set OBS Path. The OBS path format is /bucket_name/filepath. DWS models support the following table types: DWS_ROW: Tables are stored to disk partitions by row. DWS_COLUMN: Tables are stored to disk partitions by column. DWS_VIEW: Tables are stored to disk partitions by view. The MRS Hive model supports HIVE_TABLE and HIVE_EXTERNAL_TABLE. The MRS Spark model supports HUDI_COW and HUDI_MOR. The PostgreSQL model supports only POSTGRESQL_TABLE. The MRS_CLICKHOUSE model supports only CLICKHOUSE_TABLE. The Oracle model supports only ORACLE_TABLE. The MySQL model supports only MYSQL_TABLE.
      Path	This parameter is available only when the data source is MRS Hive and table type is HIVE_EXTERNAL_TABLE. The path can contain only letters, digits, slashes (/), periods (.), hyphens (-), underscores (_), and colons (:).
      Compression Level	This parameter is available when the data connection type is DWS. The following compression levels are available for different table types: DWS_ROW: NO and YES DWS_COLUMN: NO, LOW, MIDDLE, and HIGH. DWS_VIEW: The compression level is not supported.
      Data Format	This parameter is available only for DLI tables. DLI models support the following table types: Parquet: DLI can read non-compressed data or Parquet data that is compressed using Snappy and GZIP. CSV: DLI can read non-compressed data or CSV data that is compressed using GZIP. ORC: DLI can read non-compressed data or ORC data that is compressed using Snappy. JSON: DLI can read non-compressed data or JSON data that is compressed using GZIP. Carbon: DLI can read non-compressed Carbon data. Avro: DLI can read non-compressed Avro data.
      Advanced Settings	Set custom items to describe the table. The custom items can be viewed in the table details. For example, if you want to identify the source of the table, you can add item source and set its value to the table source information. Then you can view the table source information in the table details.
      Tag	Tags are custom identifiers that help you classify and search for data assets. After adding a tag, you can search for related data assets in the DataArts Catalog module with ease. Click . In the dialog box displayed, select one or more existing tags, or enter a new tag name and press Enter. Then press OK. You can also go to the Tags page of the DataArts Catalog module to add a tag. Then, return to this page and select the newly added tag from the drop-down list box. For details, see Tags. If you want to modify the tag of a table in ER modeling, you must suspend the table first. After modifying the tag, you can publish the table again.
      Owner	You can enter an owner name or select an existing owner.
      *Description	A description of the table. It allows 1 to 200 characters.
      Associated Logical Entity	Select the logical entity to be associated with the table and the source model of the logical entity. You can also click the refresh button on the right. The system will automatically synchronize the source model with the same name as the physical table subject and the logical entity with the same name as the physical table. A logical entity can be associated with multiple physical tables.

   2. Click Add to add required fields on the Table Fields page.

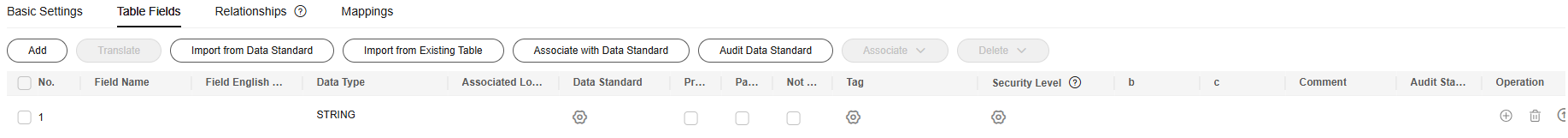

      Figure 7 Adding required table fields


      Table 3 Parameters on the Table Fields tab page

      Parameter	Description
      Name	The value can contain only letters, digits, brackets, commas (,), and the following special characters: +-#_[]/. It must start with a letter.
      Code	Only letters, numbers, and underscores (_) are allowed. A field code must start with a letter.
      Data Type	Field data type. If the required data type does not exist, you can add one. See Field Types.
      Associated Logical Attribute	If the table configuration has been associated with a logical entity, you can select a logical attribute from the drop-down list box to associate it with the table field.
      Data Standard	If you have created data standards, click to select one to associate with the field. If Create Data Quality Jobs is selected for Model Design Process on the Function Settings tab page in Configuration Center and a field is associated with a data standard, a quality job is automatically generated after a table is published. A quality rule is generated for each field associated with the data standard. The quality of the field is monitored based on the data standard. You can access the Quality Job page of DataArts Quality to view the job details. If no data standard is available, create one. See Creating Data Standards for details.
      Primary Key	If this parameter is selected, the field is a primary key. NOTE: If an MRS Spark connection is used to connect to MRS Hudi data sources, data can be written to the database only if fields have primary keys. Otherwise, table synchronization fails.
      Partition	If this parameter is selected, the field is a partition field.
      Not Null	Whether the parameter value can be left empty.
      Tag	Click to add a tag. In the dialog box displayed, select one or more existing tags. If no tag has been added, you can go to the Tags page of the DataArts Catalog module to add a tag. For details, see Tags. In the dialog box displayed, enter a new tag name and press Enter. Tag names can contain letters, numbers, and underscores (_), but cannot start with underscores (_).
      Security Level	You can click to add a security level for the logical entity attribute. If you cannot find the security level you want, click go to to go to the DataArts Security console and create a security level. You can disable this function on the Models tab page on the Configuration Center page.
      Description	A description of the field to add.

   3. (Optional) On the Relationships tab page, click Add to create a relationship.

      A relationship refers to the association between a parent and a child table (also called a primary and a secondary table). It describes how a table is associated with another table, or the impact of a table's behavior on another table. Relationships between tables in a data model are particularly important and must be accurately defined. Otherwise, the actual business rules cannot be accurately described in the data model, and data consistency is greatly damaged.

      For example, if the student ID attribute of a score table is the primary key for a student table, the relationship between the two tables designed according to the third normal form (3NF) is as follows:

      • Child table: score table
      • Child table field FK: student ID
      • Child to parent:
      • Parent table: student table
      • Parent table field PK: student ID
      • Parent to child:
      Figure 8 (Optional) Adding a relationship


      Table 4 Parameters on the Relations tab page

      Parameter	Description
      Name	Name of the relationship
      Child Table	Select a table from the drop-down list box. Click to set the current table as a child table. For example, if the student ID attribute of a score table is the primary key for a student table, the child table is the score table, and the corresponding parent table is the student table.
      Child Table Field FK	Foreign key of the child table. The field of the child table must be the foreign key of the parent table. For example, if the student ID attribute of a score table is the primary key for a student table, the child table field FK is the student ID in the score table.
      Child to Table	indicates that each piece of data in the child table corresponds to only one piece of data in the parent table. indicates that each piece of data in the child table corresponds to at most one piece of data in the parent table. indicates that one piece of data in the child table corresponds to multiple pieces of data in the parent table. indicates that each piece of data in the child table corresponds to at least one piece of data in the parent table.
      Parent to Child	indicates that each piece of data in the parent table corresponds to only one piece of data in the child table. indicates that each piece of data in the parent table corresponds to at most one piece of data in the child table. indicates that one piece of data in the parent table corresponds to multiple pieces of data in the child table. indicates that one piece of data in the parent table corresponds to at least one piece of data in the child table.
      Parent Table	Select the parent table corresponding to the selected child table. For example, if the student ID attribute of a score table is the primary key for a student table, the parent table is the student table, and the corresponding child table is the score table.
      Parent Table Field PK	Primary key of the parent table. The field of the parent table must be the primary key of the parent table. For example, if the student ID attribute of a score table is the primary key for a student table, the parent table field PK is the student ID in the student table.
      Role	You can customize a role name to identify the relationship.
      Operation	Click to delete a relationship. Click to edit the relationship.

   4. (Optional) On the Mappings tab page, click Create to create a mapping and design a data source based on the created mapping.
      • If the table field comes from different relationship models, you must create multiple mappings.

        Currently, table data can be obtained from ER models of different connection types. In each mapping, you only need to set the source field for the field that comes from the current mapping. Other fields do not need to be set.

        For example, if the data of the first five fields and the last five fields in the current table comes from two different models, create the following mappings:

        • map1: Create a table named table01 from ER model A. In the Field Mapping area, set the source fields of the first to fifth fields to the corresponding fields with the same meaning in table01. The last five fields do not need to be set.
        • map2: Create a table named table02 from ER model B. In the Field Mapping area, set the source fields of the sixth to tenth fields to the corresponding fields with the same meaning in table02. The first five fields do not need to be set.
      • If the field data in a table comes from multiple tables in the same ER model, you can create a mapping.

        In the source table of the mapping, you can set JOIN conditions for multiple tables, and then set source fields for the fields in the table. The selected source fields must have the same meanings as the fields in the table.

        For example, all fields in the current table come from ER model d1, the first, second, and third fields come from the vendor, payment_type, and rate tables respectively, and other fields come from the dwd_taxi_trip_data table.

        You can create a mapping, as shown in Figure 9. Join the dwd_taxi_trip_data table with the vendor, payment_type, and rate tables, and set the source fields in sequence in the field mapping.

      For details on the parameters for creating a mapping, see Table 5.

      Figure 9 Configuring a mapping


      Table 5 Parameters of mappings

      Parameter	Description
      *Mapping	Only letters, numbers, and underscores (_) are allowed.
      *Model	Select a created relationship model from the drop-down list box. If no relationship model has been created, create one. See Designing Physical Models.
      *Table	Select a table from which data is obtained. If data is obtained from multiple tables, click next to the table name to set the JOIN condition between the table and other tables. Select a JOIN mode. The JOIN mode includes left JOIN, right JOIN, inner JOIN, and outer JOIN from left to right. Set the JOIN condition in the JOIN field. Generally, select the fields with the same meaning in the source table and joined table. Click or to add or delete a JOIN condition. The relationship between JOIN conditions is AND. Click OK. If you want to delete a joined table after setting the JOIN condition, click next to the table name. Figure 10 Join Condition dialog box
      Field Mapping	Select a source field with the same meaning as the current mapping field. If a table field comes from multiple models, you must create multiple mappings. In each mapping, you only need to set the source field for the field that comes from the current mapping. Other fields do not need to be set.

      In the upper right corner of the Mappings area, click to delete a mapping or click to collapse the mapping area.

   5. (Optional) If the type of the new table is DWS_VIEW, click Create to create a view.
      Figure 11 Creating a view


      Table 6 Parameters

      Parameter	Description
      Mapping	Only letters, numbers, and underscores (_) are allowed.
      Table	Select a table from which data is obtained. If data is obtained from multiple tables, click next to the table name to set the JOIN condition between the table and other tables. Select a JOIN mode. The JOIN mode includes left JOIN, right JOIN, inner JOIN, and outer JOIN from left to right. Set the JOIN condition in the JOIN field. Generally, select the fields with the same meaning in the source table and joined table. Click or to add or delete a JOIN condition. The relationship between JOIN conditions is AND. Click OK. If you want to delete a joined table after setting the JOIN condition, click next to the table name. Figure 12 Join Settings dialog box
      Field Mapping	Select a source field with the same meaning as the current mapping field. If a table field comes from multiple models, you must create multiple mappings. In each mapping, you only need to set the source field for the field that comes from the current mapping. Other fields do not need to be set.

      In the upper right corner of the Mappings area, click to delete a mapping or click to collapse the mapping area.

4. Click Publish, select a reviewer, and click Submit.


   You can choose to publish the table to the production or development environment. By default, it is published to the production environment. If you do not choose an environment, the table cannot be published.

5. Wait for the reviewer to approve the application. After the application is approved, return to the ER Modeling page to view the table status and synchronization status.
   Publishing is an asynchronous operation. You can click to refresh the status. After table publishing application is approved, the system performs operations such as creating tables and synchronizing technical assets and business assets based on the configurations of Model Design Process on the Function Settings tab page in Configuration Center. The synchronization status is displayed in the Sync Status column of the table on the Information Architecture page.

   • If the synchronization is successful, the table is successfully published. Move the cursor to in the Sync Status column. If the message indicating "creation succeeded" is displayed, the table has been successfully created in the corresponding data source.
   • If one or more items fail to be synchronized, you can refresh the status. If the fault persists, choose More > View History and click the Publish Log tab to view logs.

     Troubleshoot the problem based on the logs. After the error is rectified, click Resynchronize on the History tab page to issue the synchronization command again. If the synchronization still fails, contact technical support for assistance.

   • If Synchronize logical assets is enabled and Physical Table Synchronize Logical Assets is disabled, when you move the cursor to the icon for synchronizing logical assets in Sync Status, Unsynchronized is displayed.


     You can choose to synchronize the table to the production or development environment. By default, it is synchronized to the production environment. If you do not choose an environment, the table cannot be synchronized.

Importing a Physical Table by Reversing a Database

By reversing databases, you can import one or more created database tables from other data sources into a physical table directory to turn them into physical tables.

1. On the DataArts Architecture console, choose ER Modeling in the navigation pane on the left. Click a physical table to access it.
2. Above the physical table list, click Reverse Database.
3. In the displayed dialog box, set required parameters and click OK.

   Table 7 Parameters for reversing the database

   Parameter	Description
   *Subject	Select a subject from the drop-down list.
   *Data Connection Type	The data connection types supported by the reverse database are displayed in the drop-down list box. Select the required data connection type.
   *Data Connection Name	Select a data connection. If you want to reverse a database from other data sources to a physical table directory, you must create a data connection in Management Center to connect to the data source. For details on how to create data connections, see Managing Data Connections.
   *Database	Select a database.
   *Schema	Select a value from the drop-down list box. This parameter is available only for DWS and PostgreSQL tables.
   Queue	DLI queue. This parameter is available only when Data Connection Type is set to DLI.
   Update Table	When Yes is selected, if the name of the reversed table is the same as that of an existing physical table, the existing physical table is updated.
   *Data Table	You can select All or Partial.

   Figure 13 Reverse Database dialog box


4. You can view the result on the Last Reverse tab page. If the reverse operation is successful, click Close. If the reverse operation fails, you can view the failure cause. After the fault is rectified, select the table again and click Reverse to retry.
   Figure 14 Last Reverse tab page
