Combination Chart

A combination chart integrates bar and line charts, supporting dual axes to display data of different magnitudes. If you need to simultaneously display sales volume (represented by a bar chart) and sales revenue (represented by a line chart) using a chart, the combination chart can clearly display this information through two different axes, even if the data magnitudes vary greatly. This allows you to easily observe the trend of sales volume and the fluctuations in sales revenue.

This section will show you how to add data and configure styles for combination charts.

Notes and Constraints

The dimension axis is determined by the dimensions of the data and only one dimension can be selected, which is mandatory.
The main value axis/metric is determined by the data metrics and can have up to one metric.
The secondary value axis/metric is also determined by the data metrics and can have up to one metric.
At least one metric must be selected for the main value axis/metric and the secondary value axis/metric.

Prerequisites

A project has been created by referring to Creating a Project.
A data source has been connected by referring to Creating a Data Source.
A dataset has been created by referring to Creating a Dataset.
A dashboard has been created by referring to Creating a Dashboard.

Procedure

In the tool bar on the top, click Add Chart and select Combination Chart to create a combination chart template.
Select a dataset in the Data area.
Set the parameters on the Field, Style, and Advanced tabs.
Click Update. The system automatically updates the chart.

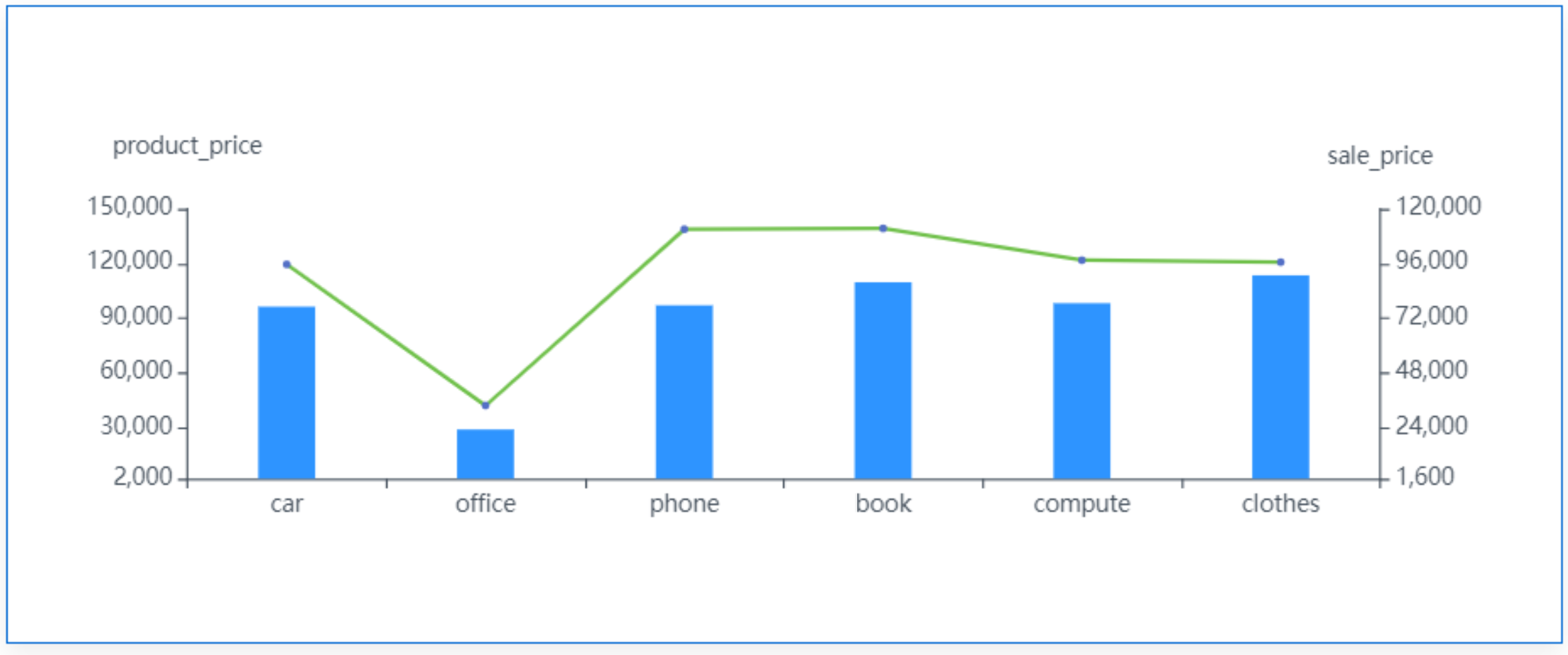

Figure 1 Combination chart
Click Save or Save and Publish in the upper right corner to save the dashboard.
In the displayed Dashboard dialog box, set Name and click Confirm.

Field

In the Data area on the right, double-click or drag the required dimension and metric fields to the Dimension and Measure areas on the Field tab.

Set a filter.

Drag dimension and metric fields to the Filter area.
Click next to a field in the Filter area.

In the displayed Set Filter dialog box, set the parameters and click OK.

**Table 1** Filter parameters
Type	Parameter	Description
String	Condition	Filter Mode: The options are Condition and Enumeration. Condition Type: The options are And condition and Or condition. Filter Condition: The options are Exact match, Contain, Start with, End with, Not match, Not contain, Null, and Not null.
String	Enumeration	Query Mode: The options are Single-select and multi-select. Filter Condition: The options are >, ≥, <, ≤, =, ≠, Null, and Not null.
Metric	Condition Type	The options are And condition and Or condition.
Metric	Filter Condition	The options are >, ≥, <, ≤, =, ≠, Null, and Not null. You can select Before aggregation and After aggregation for data. NOTE: If you select Before aggregation, data is filtered before aggregation. If you select After aggregation, data is filtered after aggregation. For aggregation concepts, see Creating a Dataset. You can click Create Filter Condition to set multiple filter criteria.
Date	Range value	Select a time range for filtering.
	Single value	Set a single time for filtering.
	Condition	You can select And condition or Or condition as the condition type and select filter condition like >, ≥, <, ≤, and =. You can click Create Filter Condition to set multiple filter criteria.

Set sorting.
1. Drag and drop required data fields from the Dimension and Metric (Indicator) areas under Data to the Sorting area.
2. Click next to a field in the Sorting area and select a sorting mode. The sorting modes are Ascending, Descending, and Custom.
3. To cancel sorting, click next to the sorting field.
Set the maximum number of query results.
Enter the maximum number of records that can be returned in the text box. The default value is 1000.
Set automatic refresh.
The auto refresh interval supports the following options: no refresh, 1 minute, 5 minutes, 15 minutes, and 30 minutes.

Style

For how to set the style of a combination chart, see Table 2, Table 3, Table 5, and Table 4.

**Table 2** Basic Settings
Parameter	Description
Card Title	Whether to display the card title. If selected, the card title is displayed in the upper left corner of the chart.
Text	Set the text size and click to select the text color.
Alignment	Set the alignment mode, which can be left alignment or center alignment.
Bottom Margin	Set the distance between the card title and the chart.
Divider	Whether to display the divider. You can set the size, color, and bottom margin of the divider.
Card Background	Whether to display the card background. Click to select a background color.
Status Icon	Whether to display the status icon. You can set the display mode and color of icons. The display modes include Always display and Hover display.
Hide Panel Operations	You can customize whether to display in the upper right corner of the chart.
Panel No Padding	You can customize whether to cancel card padding.

**Table 3** Chart style
Parameter	Description
Visualization Style	Set the color of the combination chart by choosing from the system's preset color options or creating your own custom color scheme. Additionally, you can set the chart display direction.
Line	Set the line type, style, and weight. Customize whether to display marker points. You can set the marker point type.
Bar	Set the bar width.
Tooltips	Set the display mode, background color, text size, and text color for the tooltip. Once enabled, a message will appear when you hover over the chart.

**Table 4** Coordinate axis
Parameter	Description
Show Double Y Axis	Set the tick quantity and value consistency for the left and right Y-axes.
X Axis	Customize whether to show the X-axis. You can set the axis type, line size, and line color. Customize whether to show the title and unit. You can set the axis title, unit, content, position, and text. Customize whether to show axis labels. You can set the display rules, text, and angle. Customize whether to show gridlines. You can set the grid line type, size, and color. Customize whether to show tick marks.
Left Y-Axis	If the checkbox is selected (), the numeric range can be automatically set. If unchecked, you can manually input maximum and minimum values to set the range. Other settings are consistent with the X-axis.
Right Y-Axis	Consistent with the left Y-axis.

**Table 5** Other parameters
Parameter	Description
Legend	Customize whether to show the legend. You can set Text, Position, and Alignment.
Label	Customize whether to show data labels. You can set the data label text size and color.
Series settings	Select a series from the drop-down list. You can set whether to display data labels for the series, as well as label text and position. You can set whether to display extremum values for the series.
Function Configuration	Set whether to display the thumbnail axis and thumbnail axis background data. Set how to handle null values.

Advanced

Linkage

Click the Advanced tab and click next to Linkage. The Chart Linkage Settings page is displayed. Set parameters. For details, see Linkage example.

**Table 6** Chart linkage settings
Parameter	Description
Fields to Bound	Select the fields to be bound first and then select the chart to be associated with them. You can select all charts on the dashboard.
Associated Charts	Set linked associated charts. You can select charts from the same dataset or different datasets. Follow bound field: When the bound field is set to A, the associated data tables filter data related to A. SQL placeholder: The bound field value corresponds to the value set for the SQL placeholder in the dataset.

Initialize Query for Associated Query Control: whether the associated query control supports query initialization. If the checkbox is selected (), the control supports query initialization. If the checkbox is not selected (), the control does not support query initialization.

If you select this option, when a chart is linked to a query control and the query control does not have a default query set, the chart's data configuration will be queried during chart initialization.
