Multi-Layered Map

Prerequisites

• A project has been created by referring to Creating a Project.
• A data source has been connected by referring to Creating a Data Source.
• A dataset has been created by referring to Creating a Dataset.

• A large screen has been created by referring to Creating a Large Screen.

Procedure

1. Click the Maps icon in the left navigation pane to switch to the map component page.
2. Click or drag a map component to the canvas.
3. In the data configuration area on the right, select a dataset.
4. Set parameters on the Field and Styles tabs.
5. Click Update. The system automatically updates the chart.

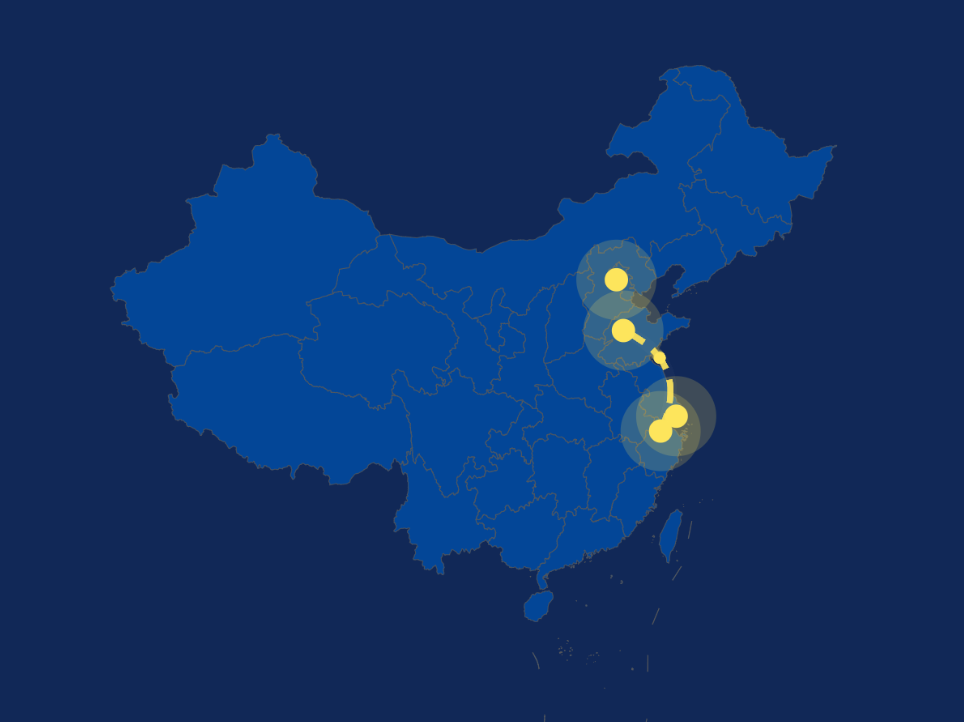

   Figure 1 Multi-layered map


Fields

1. In the Data area on the right, select a dataset, and double-click or drag required dimension and metric fields to the corresponding areas on the Fields tab.
2. Set a filter.
   1. Find the data field you need in the dimension and metric lists within the data column.
   2. Click next to the field you wish to filter and you will be directed to the filter settings page.
   3. Click OK.

      Table 1 Filter parameters

      Type	Parameter	Description
      string	Condition	Filter Mode: The options are Condition and Enumeration. Condition Type: The options are And condition and Or condition. Filter Condition: The options are Exact match, Contain, Start with, End with, Not match, Not contain, Null, and Not null.
      	Enumeration	Query Mode: The options are Single-select and multi-select. Filter Condition: The options are >, ≥, <, ≤, =, ≠, Null, and Not null.
      Metric	Condition Type	The options are And condition and Or condition.
      	Filter Condition	The options are >, ≥, <, ≤, =, ≠, Null, and Not null. You can select Before aggregation and After aggregation for data. NOTE: If you select Before aggregation, data is filtered before aggregation. If you select After aggregation, data is filtered after aggregation. For aggregation concepts, see Creating a Dataset. You can click Create Filter Condition to set multiple filter criteria.
      Date	Range value	Select a time range for filtering.
      	Single value	Set a single time for filtering.
      	Condition	You can select And condition or Or condition as the condition type and select filter condition like >, ≥, <, ≤, and =. You can click Create Filter Condition to set multiple filter criteria.

3. Set the maximum number of query results.

   Enter the maximum number of records that can be returned in the text box. The default value is 1000.

4. Set automatic refresh.

   The auto refresh interval supports the following options: no refresh, 1 minute, 5 minutes, 15 minutes, and 30 minutes.

5. After settings the fields, select Boundary Data Source in the style, and click Update. The system will automatically update the chart.
