Configuring SNI for an Nginx Ingress

1. Log in to the CCE console and click the cluster name to access the cluster console.
2. Choose Services & Ingresses in the navigation pane, click the Ingresses tab, and click Create Ingress in the upper right corner.
3. Configure ingress parameters.


   This example explains only key parameters for configuring SNI certificates. You can configure other parameters as needed. For details, see Creating an Nginx Ingress on the Console.

   Table 1 Key parameters

   Parameter	Description	Example Value
   Name	Your custom ingress name.	ingress-test
   Interconnect with Nginx	If enabled, created ingresses will interconnect with the NGINX Ingress controller.	Enabled
   Controller Name	The name of the NGINX Ingress controller installed in the cluster. The default value is nginx. You can install multiple NGINX Ingress controllers and customize their names as needed.	nginx
   TLS	Frontend Protocol: The options are HTTP and HTTPS. By default, NGINX Ingress Controller listens on ports 80 for HTTP and 443 for HTTPS. In this use case, select HTTPS. Certificate Source: the source of a certificate for encrypting and authenticating HTTPS data transmission. If you select TLS secret, you need to further specify the Server Certificate. Create an IngressTLS or kubernetes.io/tls secret for storing each certificate. For details, see Creating a Secret. If you select Default certificate, NGINX Ingress Controller will use its default certificate for encryption and authentication. You can override this default while installing NGINX Ingress Controller. Otherwise, the controller's built-in certificate will be used SNI: an extended protocol of TLS. SNI enables several TLS domain names to share one IP:port pair while using different security certificates for each domain name. With SNI enabled, the client can send the requested domain name during the TLS handshake. The load balancer uses the domain name from the TLS request to find the matching certificate. It returns that certificate if found. Otherwise, it provides the default server certificate. Both certificates are used for authorization.	Frontend Protocol: HTTPS Certificate Source: TLS secret Server Certificate: test SNI: Domain Name: example.com Certificate: example-test
   Forwarding Policy	Domain Name: the one to be accessed. If it is left blank, the ingress can be accessed through an IP address. Ensure that the domain name has been registered and licensed. Once a forwarding policy uses it, only that domain name will be accepted for access. Path Matching: If Default is selected, Prefix match will be used. You can also select Exact match as needed. Path: comes from a backend application for external access. It must work in the backend application. Otherwise, forwarding will not take effect. Destination Service: Select an existing Service. Only Services that meet the requirements are automatically displayed in the Service list. If no Service meets the requirements, create one by following the operations provided in Services Supported by Ingresses. Destination Service Port: Select the access port of the destination Service.	Domain Name: example.com Path Matching: Default Path: / Destination Service: nginx Destination Service Port: 80

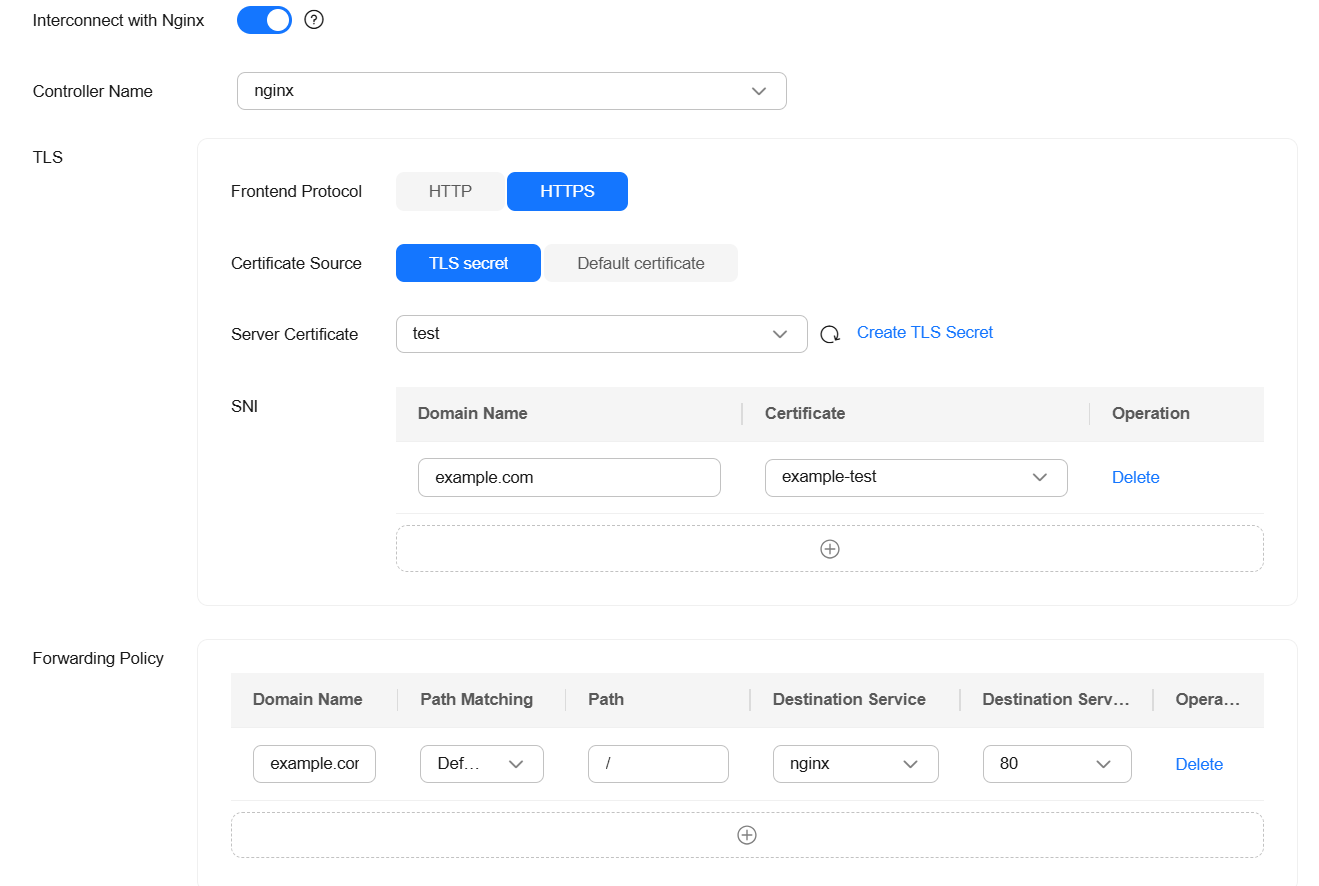

   Figure 1 Configuring SNI


4. Click OK.

The SNI certificate example-test is used as an example. The domain name must match the certificate exactly.

1. Use kubectl to access the cluster. For details, see Accessing a Cluster Using kubectl.
2. Create a YAML file named ingress-test.yaml. The file name can be customized.

   vi ingress-test.yaml

   An example YAML file of an ingress associated with an automatically created load balancer is as follows:

   For clusters of v1.23 or later:

   apiVersion: networking.k8s.io/v1
   kind: Ingress
   metadata:
     name: ingress-test
     namespace: default
   spec:
     tls:
     - secretName: test  # A server certificate must be specified.
     - hosts:
       - example.com  # The domain name specified in the SNI certificate
       secretName: example-test  # Replace it with your SNI certificate.
     rules:
       - host: example.com
         http:
           paths:
             - path: /
               backend:
                 service:
                   name: <your_service_name>  # Replace it with your target Service name.
                   port:
                     number: <your_service_port>  # Replace it with your target Service port.
               property:
                 ingress.beta.kubernetes.io/url-match-mode: STARTS_WITH
               pathType: ImplementationSpecific
     ingressClassName: nginx

   For clusters of v1.21 or earlier:

   apiVersion: networking.k8s.io/v1beta1
   kind: Ingress
   metadata:
     name: ingress-test
     annotations:
       kubernetes.io/ingress.class: nginx
   spec:
     tls:
     - secretName: test  # A server certificate must be specified.
     - hosts:
       - example.com  # The domain name specified in the SNI certificate
       secretName: example-test   # Replace it with your SNI certificate.
     rules:
     - host: example.com
       http:
         paths:
         - path: '/'
           backend:
             serviceName: <your_service_name>  # Replace it with your target Service name.
             servicePort: <your_service_port>  # Replace it with your target Service port.

3. Create an ingress.

   kubectl create -f ingress-test.yaml

   If information similar to the following is displayed, the ingress has been created:

   ingress/ingress-test created

4. Check the created ingress.

   kubectl get ingress

   If information similar to the following is displayed, the ingress is successfully created:

   NAME           CLASS  HOSTS          ADDRESS          PORTS   AGE
   ingress-test   cce    example.com    121.**.**.**     80,443  10s

5. Use HTTPS to access the ingress. ${ELB_IP} is the IP address accessed by the target ingress.

   curl -H "Host:example.com" -k https://${ELB_IP}:443

   If the ingress can be accessed, the certificate is correctly configured.
