ANRs
The ANR page displays the ANR information, including the total number of ANRs, device ANR rate, number of affected devices, number of affected versions, ANR trend, the five versions with the most ANRs, the five devices with the most ANRs, and ANR list.
- Log in to the management console.
- Click
on the left and choose Management & Governance > Application Performance Management.
- In the navigation pane on the left, choose App Monitoring > ANR. Select an application from the drop-down list in the upper left corner of the page. In the upper right corner of the page, select a time range. Default: Last 20 minutes.
Table 1 ANR parameters Parameter
Description
Total ANRs
Total number of ANRs.
Device ANR Rate
Device ANR rate = Number of the devices that encounter ANRs/Total number of devices
Affected Devices
Number of devices affected by ANRs.
Affected Versions
Number of versions affected by ANRs.
ANR Trend
The ANR trend graph displays the total number of ANRs and the number of affected devices. Move the cursor to the graph. The total number of ANRs and the number of affected devices will be displayed.
Parameter |
Description |
---|---|
Total ANRs |
Total number of ANRs. |
Affected Devices |
Number of devices affected by ANRs. |
The 5 Versions with the Most ANRs
A bar graph shows the 5 versions with the most ANRs. Move the cursor to a version in the graph. The total number of ANRs of the current version will be displayed.
Parameter |
Description |
---|---|
Total ANRs |
Total number of ANRs that a version encounters. |
The 5 Devices with the Most ANRs
A bar graph shows the 5 devices with the most ANRs. Move the cursor to a device in the graph. The total number of ANRs of the current device will be displayed.
Parameter |
Description |
---|---|
Total ANRs |
Total number of ANRs that a device encounters. |
ANR List
Parameter |
Description |
---|---|
ANR Summary |
ANR information summary. |
Type |
ANR type. |
ANRs |
Number of ANRs. |
Affected Devices |
Number of devices affected by ANRs. |
Affected Versions |
Number of versions affected by ANRs. |
First Occurred |
Time when the first ANR occurred. |
Last Occurred |
Time when the last ANR occurred. |
- In the search box in the upper left corner of the ANR list, enter a keyword about the ANR summary or type and click
to view the ANRs that meet the search criteria.
- Click
in the upper right corner of the ANR list and select the target metric data.
- By default, the ANR list is sorted by ANRs in descending order.
- Click Analyze in the Operation column in the row that contains the target ANR to view details. The details include the ANR trend, 5 versions with the most ANRs, 5 devices with the most ANRs, and ANR list.
- In the search box in the upper left corner of the ANR list, enter a keyword about the device model/ID or ANR type and click
to view the ANRs that meet the search criteria. Note that each keyword is case sensitive.
- Click
in the upper right corner of the ANR list and select the target metric data.
- By default, the ANR list is sorted by occurrence time in descending order.
- In the search box in the upper left corner of the ANR list, enter a keyword about the device model/ID or ANR type and click
- Click View Details in the Operation column in the row that contains the target device model/ID. The basic information and ANR stack are displayed.
Only iOS apps support stack analysis.

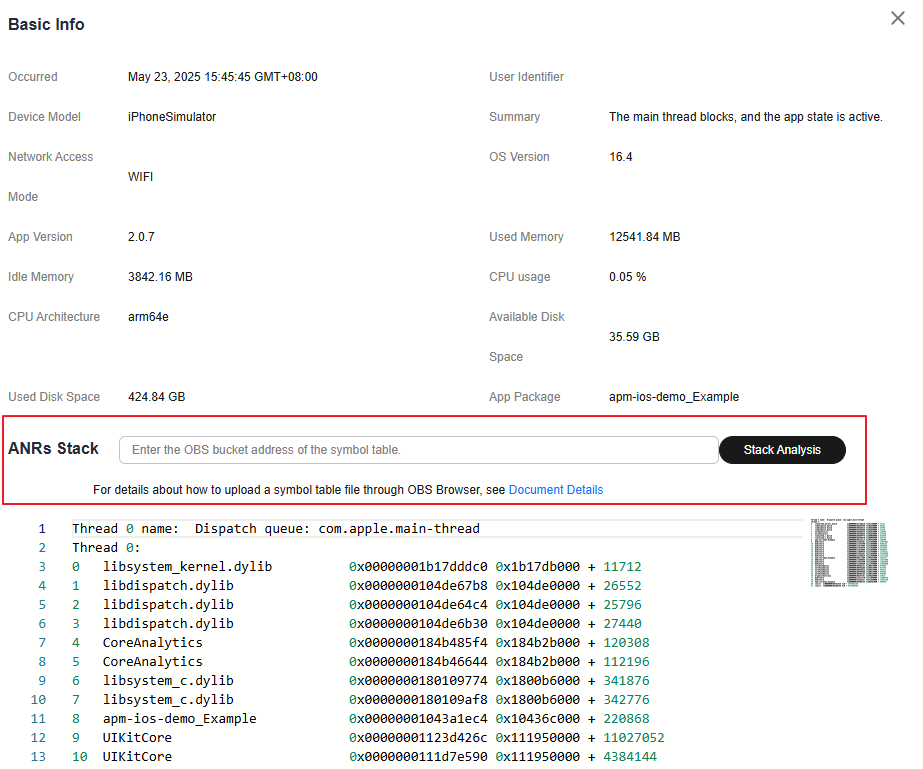

Figure 1 ANR - Stack analysis for iOS appsTable 6 Related parameters Parameter
Description
Occurred
Time when the ANR occurred.
User Identifier
Unique identifier of the user.
Device Model
Device model.
Summary
ANR information summary.
Network Access Mode
Network access mode of the app.
OS Version
OS version.
App Version
App version.
Used Memory
Used memory.
Idle Memory
Idle memory.
CPU Usage
CPU usage.
CPU Architecture
CPU architecture.
Available Disk Space
Available disk space.
Used Disk Space
Used disk space.
App Package
Name of the app package.
ANR Stack
ANR stack.
- Enter the OBS bucket address of the symbol table in the crash stack box. For details about how to upload the symbol table file, see Using OBS Console.
- Click Stack Analysis. The analysis result is displayed in the box.
