Deploying a Microservice Using Source Code

Scenarios

ServiceStage allows you to quickly deploy microservices in containers (such as CCE) or VMs (such as ECS), and supports source code deployment, JAR/WAR package deployment, and Docker image package deployment. In addition, ServiceStage allows you to deploy, upgrade, roll back, start, stop, and delete applications developed in different programming languages, such as Java, PHP, Node.js, and Python.

In this practice, backend components developed in Java and frontend components developed in Node.js are used.

User Story

The procedures for deploying a microservice are as follows:

1. Creating and Deploying a Backend Application Component
2. Setting the Access Mode of the edge-service Component
3. Creating and Deploying a Frontend Component
4. Confirming the Deployment Result
5. Setting the Access Mode
6. Accessing an Application

Creating and Deploying a Backend Application Component

You need to create and deploy four application components (weather, forecast, fusionweather, and edge-service), which correspond to the four software packages generated by the backend build jobs.

Setting the Access Mode of the edge-service Component

1. Click in the upper left corner to return to the Application Management page.
2. Click the application created in Creating an Application (for example, weathermap). The Overview page is displayed.
3. In the Component List area, locate the row that contains edge-service and click View Access Mode in the External Access Address column.
4. Click Add Service in the TCP/UDP Route Configuration area and set parameters by referring to the following table.

   Parameter	Description
   Service Name	Retain the default value.
   Access Mode	Select Public network access.
   Access Type	Select Elastic IP address.
   Service Affinity	Retain the default value.
   Protocol	Select TCP.
   Container Port	Enter 3010.
   Access Port	Select Automatically generated.

   Figure 3 Setting the access mode of the edge-service component


5. Click OK.

Creating and Deploying a Frontend Component

1. Click in the upper left corner to return to the Application Management page.
2. Click Create Component in the Operation column of the application created in Creating an Application (for example, weathermap).
3. In the Basic Information area, set the following mandatory parameters. Retain the default values for other parameters.

   Parameter	Description
   Component Name	Enter the frontend component name weathermapweb.
   Component Version	Click Generate. By default, the version number is generated based on the time when you click Generate. The format is yyyy.mmdd.hhmms, in which s is the ones digit of second in the timestamp. For example, if the timestamp is 2022.0803.104321, the version number is 2022.0803.10431.
   Environment	Select the environment created in Creating an Environment, for example, env-test.
   Application	Select the application created in Creating an Application, for example, weathermap.

4. In the Component Package area, set the following mandatory parameters. Retain the default values for other parameters.

   Parameter	Description
   Stack	Select Node.js.
   Source Code/Software Package	Select Source code repository and GitHub. Authorization: Select the authorization information created in Setting GitHub Repository Authorization. Username/Organization: Select the username used to log in to GitHub in Forking the Weather Forecast Source Code. Repository: Select the name of the weather forecast source code repository that has been forked to your GitHub account. For example, weathermap. Branch: Select master.

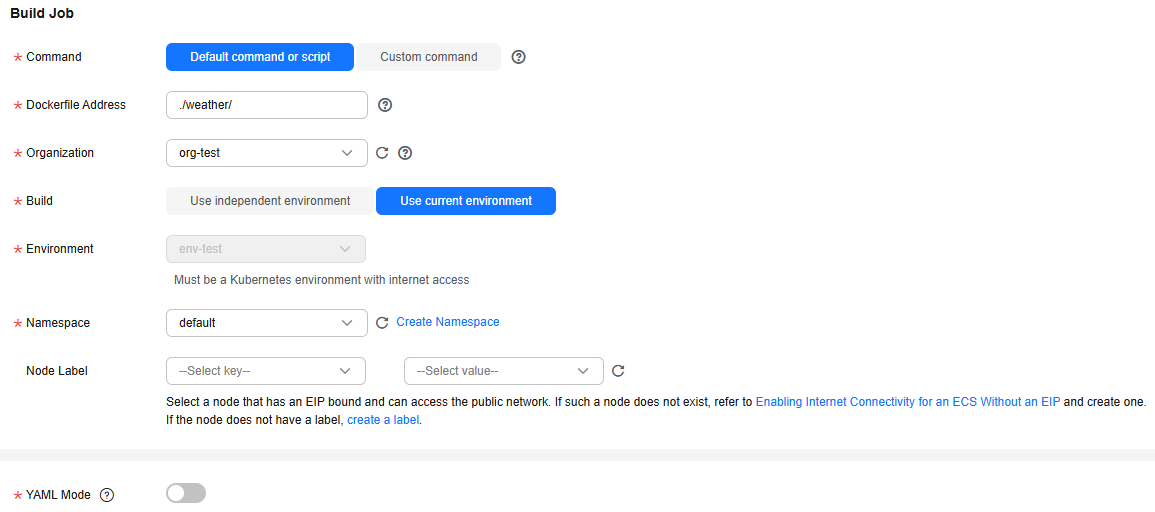

5. In the Build Job area, set mandatory build parameters.
   1. Command: Retain the default value.
   2. Dockerfile Address: Set this parameter by referring to the following table.

      Component Name	Dockerfile Address
      weathermapweb	./weathermapweb/

   3. Organization: Select the organization created in Creating an Organization.
   4. Environment: Select Use current environment.
   5. Retain the default values for other parameters.

6. Click Next.
7. In the Resources area, retain the default settings.
8. In the Access Mode area, retain the default settings.
9. In the Local Time area, retain the default settings.
10. Add environment variables.
    1. In the Advanced Settings area, expand Component Configuration.
    2. Click Add Environment Variable to configure environment variables.

       Type	Name	Variable/Variable Reference
       Add manually	SERVICE_ADDR	Access address generated in Setting the Access Mode of the edge-service Component.

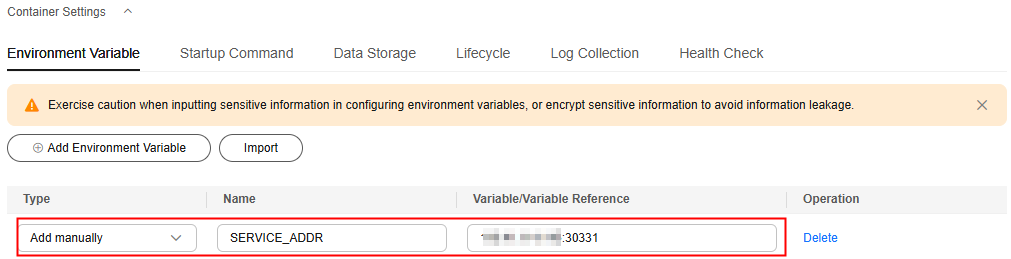

       Figure 4 Adding environment variables


11. Click Create and Deploy.

Confirming the Deployment Result

1. Click in the upper left corner to return to the Application Management page.
2. Choose Cloud Service Engine > Microservice Catalog.
3. Select the microservice engine where the microservice application is deployed from the Microservice Engine drop-down list.
4. On the Microservice List tab, select weathermap from the All applications drop-down list.

   If the number of instances of each microservice is the same as listed in the following table, the deployment is successful.

   Component Name	Instances
   weather	2
   forecast	1
   fusionweather	1
   edge-service	1

Setting the Access Mode

1. Choose Application Management.
2. Click the application created in Creating an Application (for example, weathermap). The Overview page is displayed.
3. In the Component List area, locate the row that contains weathermapweb and click View Access Mode in the External Access Address column.
4. Click Add Service in the TCP/UDP Route Configuration area and set parameters by referring to the following table.

   Parameter	Description
   Service Name	Retain the default value.
   Access Mode	Select Public network access.
   Access Type	Select Elastic IP address.
   Service Affinity	Retain the default value.
   Protocol	Select TCP.
   Container Port	Enter 3000.
   Access Port	Select Automatically generated.

   Figure 5 Setting the access mode


5. Click OK.
   Figure 6 Access address


Accessing an Application

1. Click in the upper left corner to return to the Application Management page.
2. Click the application created in Creating an Application (for example, weathermap). The Overview page is displayed.
3. In the Component List area, locate the row that contains weathermapweb and click View Access Mode in the External Access Address column.

   If the following page is displayed, the weather forecast microservice application is successfully deployed.

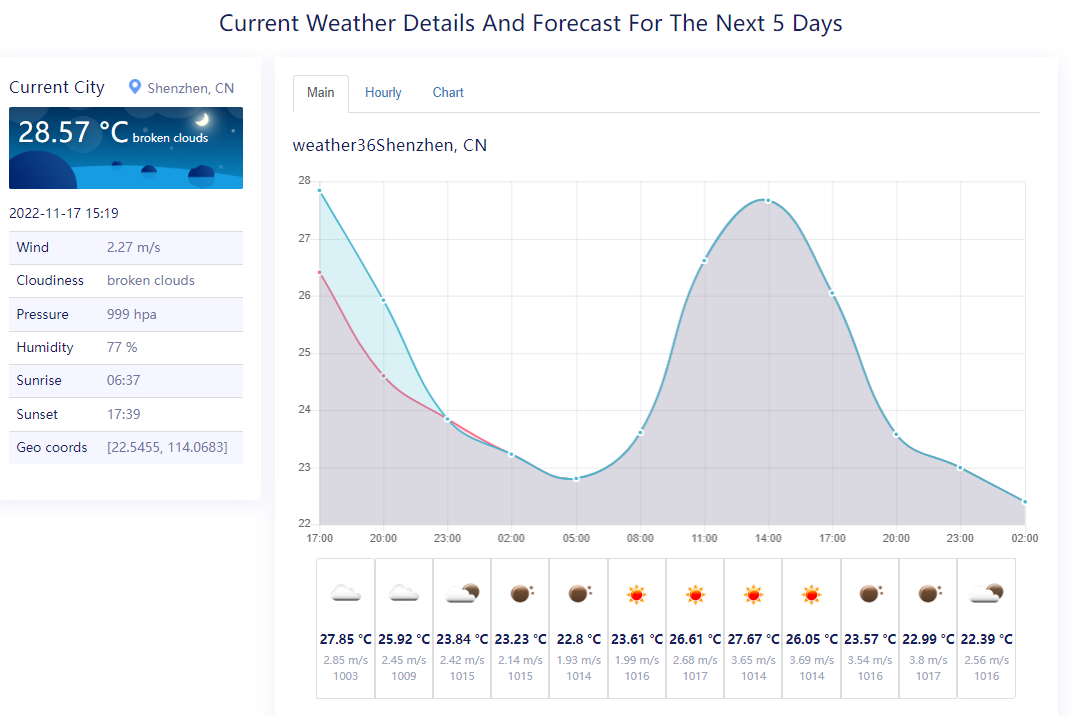

   Figure 7 Application deployed successfully



   • The data is real-time data.
   • When you access the application for the first time, it takes some time for the weather system to be ready. If the preceding page is not displayed, refresh the page.
