Creating an AHPA Policy

Features

AHPA monitors historical workload metrics and performs weekly modeling, making it particularly effective for workloads with clear periodic patterns.

After AHPA is enabled, it collects monitoring data for a specific workload over a period of one to eight weeks. It then analyzes and models the data using statistical principles. Then, AHPA uses historical monitoring data and future service trends to recommend the optimal number of pods for a workload every minute. This allows pods to be prepared in advance to handle anticipated increases in service volume, ensuring adequate resource availability.

AHPA can work with HPA and CronHPA to scale pods in complex scenarios.

AHPA allows you to change the maximum and minimum number of pods in an HPA policy based on the recommended result, or directly adjust the number of pods in a Deployment.

AHPA and CronHPA share the same approach for adjusting the maximum and minimum pod numbers specified in an HPA policy. For details, see Using CronHPA to Adjust the HPA Scaling Scope.

Prerequisites

• The CCE Advanced HPA add-on of v1.5.2 or later has been installed in the cluster. For details, see CCE Advanced HPA.
• The Cloud Native Cluster Monitoring add-on has been installed in the cluster, and the monitoring data is reported to AOM. For details, see Cloud Native Cluster Monitoring.

Notes and Constraints

• AHPA policies apply only to clusters of v1.23 or later.
• For clusters of v1.19.10 and later, if an HPA policy is used to scale out a workload with EVS volumes mounted, a new pod cannot be started because EVS disks cannot be attached.
• The specifications of the CCE Advanced HPA add-on are determined based on the total number of containers in the cluster and the number of scaling policies. Configure 500m CPU cores and 1000 MiB of memory for every 5000 containers, and 100m CPU cores and 500 MiB of memory for every 1000 scaling policies.

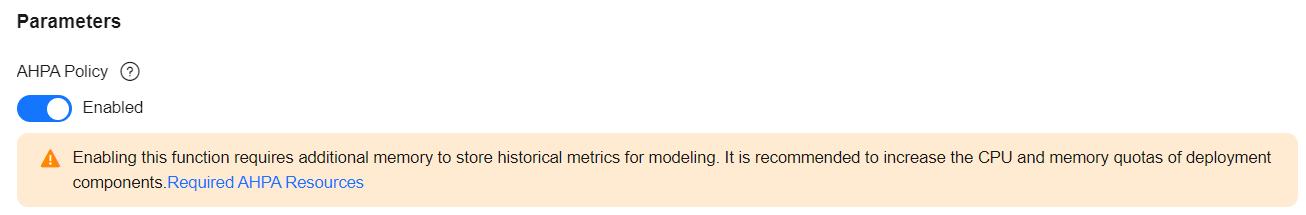

• AHPA needs extra memory as it analyzes and processes historical workload data. It is advised to allocate 100m CPU cores and 300 MiB of memory for every 100 AHPA policies.
• After an AHPA policy is created, the type of its associated workload cannot be changed.
• Either an AHPA policy or a CustomedHPA policy can be enabled.

Using AHPA

1. Use kubectl to access the cluster. For details, see Connecting to a Cluster Using kubectl.
2. Deploy a sample workload. If a workload already runs in the cluster, skip this step. It is advised to use a workload that has been monitored for over seven days, as AHPA requires a minimum of seven days of monitoring data.

   kubectl create -f hamster.yaml

   Example configuration of hamster.yaml:

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: hamster
   spec:
     selector:
       matchLabels:
         app: hamster
     replicas: 2
     template:
       metadata:
         labels:
           app: hamster
       spec:
         containers:
           - name: hamster
             image: registry.k8s.io/ubuntu-slim:0.1
             resources:
               requests:
                 cpu: 100m
                 memory: 50Mi
             command: ["/bin/sh"]
             args:
               - "-c"
               - "while true; do timeout 0.5s yes >/dev/null; sleep 0.5s; done"

3. Create an AHPA task.

   kubectl create -f hamster-ahpa.yaml

   Example configuration of hamster-vpa.yaml:

   apiVersion: autoscaling.cce.io/v1alpha1
   kind: AdvancedHorizontalPodAutoscaler
   metadata:
     name: hamster-ahpa
     namespace: default
   spec:
     scaleTargetRef:  # Associated workload, which can only be Deployment/HPA
       apiVersion: apps/v1
       kind: Deployment
       name: hamster
     minReplicas: 2  # Minimum number of pods
     maxReplicas: 10  # Maximum number of pods
     metrics:  # Metrics, whose format is the same as that of the community HPA
     - type: Resource  # Metric source type, which can only be Resource
       resource:
         name: cpu  # Metric source name, which can only be CPU or memory
         target:
           type: Utilization  # Metric source type, which can only be Utilization
           averageUtilization: 50
     predictConfig:
       predictWindowSeconds: 1800
       stabilizationWindowSeconds: 1800
       quantile: "0.97"
     effectiveTime:
     - '* * 11-22 ? * MON-FRI'  # Valid from 11:00 to 22:00, from Monday to Friday

   Table 1 Key AHPA parameters

   Parameter	Mandatory	Description
   scaleTargetRef	Yes	Target Deployment/HPA.
   metrics	Yes	Metrics for scaling, which can only be CPU or memory. Only one metric can be configured. Either CPU or memory can be configured.
   maxReplicas	Yes	Maximum number of pods, which ranges from 0 to 2147483647.
   minReplicas	Yes	Minimum number of pods, which ranges from 0 to 2147483647.
   predictConfig.predictWindowSeconds	Yes	Recommendation time window, which starts from the current time. The historical monitoring data within this time window will be used to calculate the recommended number of pods. The value can range from 1 to 3600.
   predictConfig.stabilizationWindowSeconds	No	Scale-in cooling duration. The value ranges from 0 to 3600.
   predictConfig.quantile	Yes	Prediction quantile, which indicates the probability that a service metric's actual value will be lower than the preset target value. A higher value indicates a more conservative estimate. The value ranges from 0 to 1. Two decimal places are supported. The default value is 0.99. The recommended value ranges from 0.90 to 0.99.
   effectiveTime	No	If multiple cron expressions are specified, AHPA will take effect on the combined set of these expressions. The default setting is always valid.

4. After AOM has collected at least seven days of monitoring data for the target workload, AHPA can create a model and suggest the appropriate number of pods. Wait for the recommended number of pods to be provided and run the following command to check AHPA resource details:

   kubectl get ahpa hamster-ahpa -oyaml

   The command output is as follows:

   apiVersion: autoscaling.cce.io/v1alpha1
   kind: AdvancedHorizontalPodAutoscaler
   metadata:
     creationTimestamp: "2024-10-07T13:11:58Z"
     generation: 2
     name: hamster-ahpa
     namespace: default
     resourceVersion: "15529454"
     uid: e5ffbb01-50b0-4485-8cf5-bc2be884b1ee
   spec:
     effectiveTime:
     - '* * 11-22 ? * MON-FRI'
     maxReplicas: 10
     metrics:
     - resource:
         name: cpu
         target:
           averageUtilization: 50
           type: Utilization
       type: Resource
     minReplicas: 2
     predictConfig:
       predictWindowSeconds: 1800
       quantile: "0.97"
       stabilizationWindowSeconds: 1800
     scaleTargetRef:
       apiVersion: apps/v1
       kind: Deployment
       name: hamster
   status:
     conditions:
     - lastTransitionTime: "2024-10-07T13:24:19Z"
       message: the AHPA's model is ready
       reason: ModelIsReady
       status: "True"
       type: ModelAvailable
     - lastTransitionTime: "2024-10-07T13:24:19Z"
       message: the AHPA was able to successfully calculate a replica count
       reason: SucceededRunPrediction
       status: "True"
       type: ScalingActive
     - lastTransitionTime: "2024-10-07T13:24:19Z"
       message: ths ahpa checkpoint is fresh
       reason: CheckpointIsFresh
       status: "True"
       type: CheckpointAvailable
     - lastTransitionTime: "2024-10-07T13:24:19Z"
       message: recommended size matches current size
       reason: ReadyForNewScale
       status: "True"
       type: AbleToScale
     - lastTransitionTime: "2024-10-07T13:24:19Z"
       message: the desired replica count is more than the maximum replica count
       reason: TooManyReplicas
       status: "True"
       type: ScalingLimited
     currentReplicas: 10
     desiredReplicas: 10
     lastScaleTime: "2024-10-07T13:24:19Z"
