Function Syntax

You are advised to use Go 1.x.

Syntax for creating a handler function in Go:

func Handler (payload []byte, ctx context.RuntimeContext)

• Handler: name of the function that FunctionGraph invokes to execute your code. The name must be consistent with that you define when creating a function, and must start with an uppercase letter.
• payload: event parameter defined for the function. The parameter is in JSON format.
• ctx: runtime information provided for executing the function. For details, see SDK APIs.

SDK APIs

• Context APIs

  The Go SDK provides multiple context APIs and a logging API. The download link of the Go SDK is provided in Table 1. Table 1 describes the context APIs provided by FunctionGraph.

  Table 1 Context methods

  Method	Description
  GetRequestID() string	Obtains a request ID.
  GetRemainingTimeInMilliSeconds()	Obtains the remaining running time of a function.
  GetAccessKey() string	Obtains the AK (valid for 24 hours) of an agency. If you use this method, you need to configure an agency for the function.
  GetSecretKey() string	Obtains the SK (valid for 24 hours) of an agency. If you use this method, you need to configure an agency for the function.
  GetUserData(key string) string	Uses keys to obtain the values passed by environment variables.
  GetFunctionName() string	Obtains the name of a function.
  GetRunningTimeInSeconds() int	Obtains the timeout of a function.
  GetVersion() string	Obtains the version of a function.
  GetMemorySize() int	Obtains the allocated memory.
  GetCPUNumber() int	Number of CPU millicores used by the function (1 core = 1000 millicores). The value of this field is proportional to that of MemorySize. By default, 100 CPU millicores are required for 128 MB memory. The number of CPU millicores is calculated as follows: Memory/128 x 100 + 200 (basic CPU millicores).
  GetProjectID() string	Obtains a project ID.
  GetPackage() string	Obtains a function group, that is, an app.
  GetToken() string	Obtains the token (valid for 24 hours) of an agency. If you use this method, you need to configure an agency for the function.
  GetLogger() context.RuntimeLogger	Obtains the logger method provided by the context. By default, information such as the time and request ID is output.



  Results returned by using the GetToken(), GetAccessKey(), and GetSecretKey() methods contain sensitive information. Exercise caution when using these methods.

Developing a Go Function

1. Create a Go project.
   1. Log in to a Linux server on which the Go 1.8.3 SDK and required running environment have been installed. (Currently, Ubuntu 14.04, Ubuntu 16.04, SUSE 11.3, SUSE 12.0, and SUSE 12.1 are supported.) Then create the /home/fssgo/src/go-runtime directory, and decompress the Go SDK under this directory. Specifically, run the following two commands:

      $ mkdir -p /home/fssgo/src/go-runtime

      $ unzip fss-go-sdk.zip -d /home/fssgo/src/go-runtime

   2. Create a function file under the /home/fssgo/src/go-runtime directory and implement the following interface:

      func Handler(payload []byte, ctx context.RuntimeContext) (interface{}, error)

      In this interface, payload is the body of a client request, and ctx is the runtime context object provided for executing a function. For more information about the methods, see the SDK APIs. The following uses test.go as an example.

      package main

      import (
          "fmt"
          "encoding/json"
          "go-runtime/go-api/context"
      )

      type Greeting struct {
          Name   string  `json:"name"`
      }

      // Handler function
      func Handler(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
          logger := ctx.GetLogger()

          var greeting Greeting
          err := json.Unmarshal(payload, &greeting)
          if err != nil {
              return "", fmt.Errorf("invalid request payload")
          }

          logger.Logf("hello %s.", greeting.Name)

          logger.Logf("RequestId: %s", ctx.GetRequestID())
          logger.Logf("FunctionName: %s", ctx.GetFunctionName())
          logger.Logf("Version: %s", ctx.GetVersion())
          return fmt.Sprintf("hello %s", greeting.Name), nil
      }



      1. If the error parameter returned by a function is not nil, the function execution fails.
      2. If the error parameter returned by a function is nil, FunctionGraph supports only the following types of values:

         nil: The HTTP response body is empty.

         []byte: The content in this byte array is the body of an HTTP response.

         string: The content in this string is the body of an HTTP response.

         Other: FunctionGraph returns a value for JSON encoding, and uses the encoded object as the body of an HTTP response. The Content-Type header of the HTTP response is set to application/json.

2. Compile and package the function code.

   After completing the function code, compile and package it as follows:

   1. Set environment variables GOROOT and GOPATH.

      $ export GOROOT=/usr/local/go (Assume that the Go SDK is installed under the /usr/local/go directory.)

      $ export PATH=$GOROOT/bin:$PATH

      $ export GOPATH=/home/fssgo

   2. Compile the function code.

      $ cd /home/fssgo/src/go-runtime

      $ go build --buildmode=plugin -o testplugin.so test.go

      After compilation, a file named testplugin.so is generated under the current directory.

   3. Package the file.

      $ zip fss_examples_go1.8.zip testplugin.so

      After the command is executed, a file named fss_examples_go1.8.zip is generated under the current directory.

3. Create a function.
   Log in to the FunctionGraph console, create a Go function, and upload the fss_examples_go1.8.zip file, as shown in Figure 1.

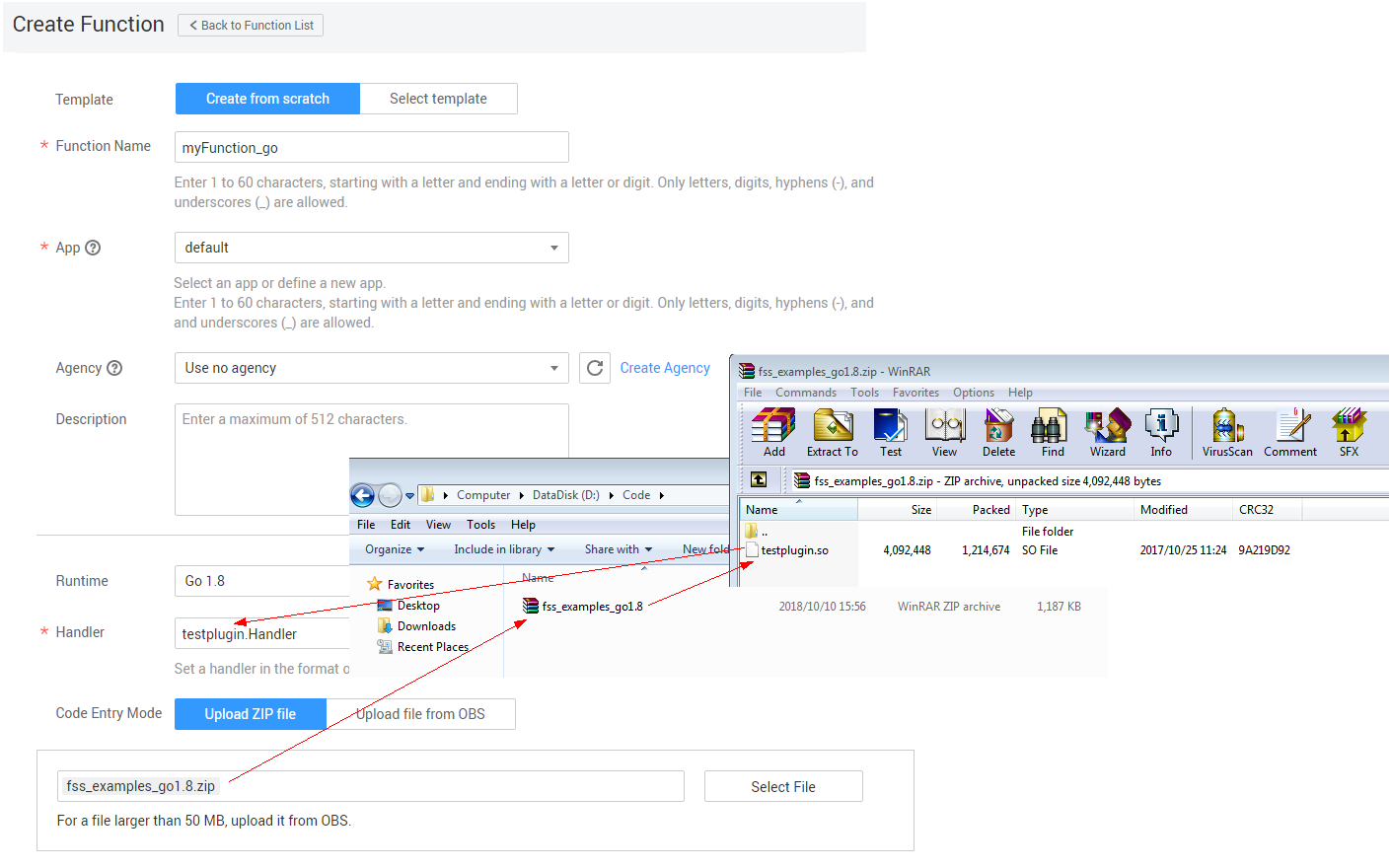

   Figure 1 Uploading the code package



   If you edit code in Go, package the compiled file into a ZIP file, and ensure that the name of the dynamic library file is consistent with the handler plugin name. For example, if the name of the dynamic library file is testplugin.so, set the handler plugin name to testplugin.Handler. The handler must be consistent with that defined in Step 1.

4. Test the function.
   1. Create a test event.

      On the function details page that is displayed, choose Select test event > Configure test event. Configure the test event information, as shown in Figure 2, and then click Save.

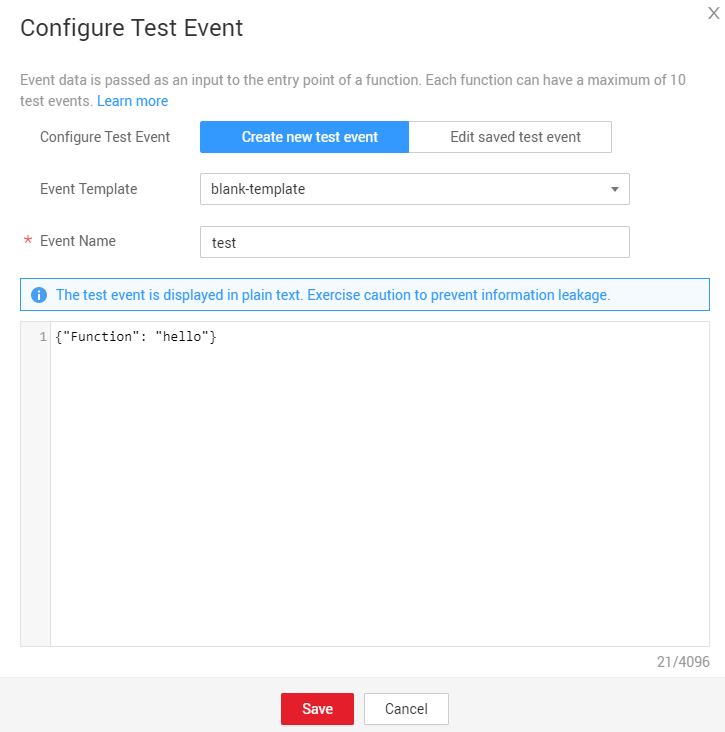

      Figure 2 Configuring a test event

   2. On the function details page, select the configured test event, and click Test.

5. View the function execution result.

   The function execution result consists of three parts: function output (returned by callback), summary, and logs (output by using the console.log or getLogger() method), as shown in Figure 3.

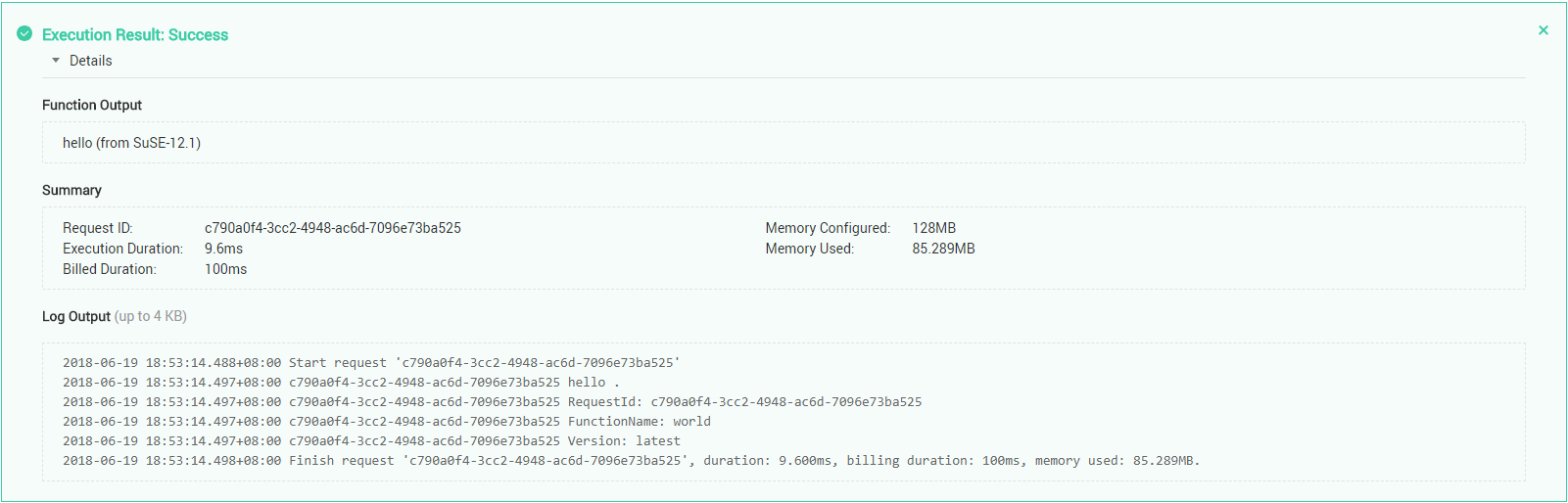

   Figure 3 Execution result


Execution Result

The execution result consists of the function output, summary, and log output.

{
    "errorMessage": "",
    "errorType":"",
}

Example of the function output when a function fails to be executed:

{
    "errorMessage": "Function plugin 'plugin' not found(stat ${RUNTIME_CODE_ROOT}/plugin.so: no such file or directory)",
    "errorType": "FunctionLoadError"
}

Example of the log output when a function fails to be executed:

2020-07-27 15:20:53.292+08:00 Start invoke request '51a44941-577b-4e1f-b2f6-2f2c3ca2f5f7', version: latest
2020-07-27 15:20:53.292+08:00 51a44941-577b-4e1f-b2f6-2f2c3ca2f5f7 Function plugin 'plugin' not found(stat ${RUNTIME_CODE_ROOT}/plugin.so: no such file or directory)
2020-07-27 15:20:53.293+08:00 Finish invoke request '51a44941-577b-4e1f-b2f6-2f2c3ca2f5f7'(invoke Failed), duration: 1.447ms, billing duration: 100ms, memory used: 58.723MB
