Function Syntax

Syntax for creating a handler function in Go:

func Handler (payload []byte, ctx context.RuntimeContext)

• Handler: name of the handler function.
• payload: event parameter defined for the function. The parameter is in JSON format.
• ctx: runtime information provided for executing the function. For details, see SDK APIs.

SDK APIs

The Go SDK provides event, context, and logging APIs. Go SDK

• Event APIs

  Event structure definitions are added to the Go SDK. Currently, CTS, Kafka, DIS, DDS, SMN, LTS, Timer, and APIG triggers are supported. The definitions make coding much simpler when triggers are required.

  1. APIG Trigger Field Description
     1. APIGTriggerEvent fields

        Table 1 APIGTriggerEvent fields

        Field Name	Description
        IsBase64Encoded	Whether the body of an event is encoded using Base64.
        HttpMethod	HTTP request method.
        Path	HTTP request path.
        Body	HTTP request body.
        PathParameters	All path parameters.
        RequestContext	API Gateway configurations (APIGRequestContext object).
        Headers	HTTP request header.
        QueryStringParameters	Query parameters.
        UserData	User data set in the APIG custom authorizer.

        Table 2 APIGRequestContext fields

        Field Name	Description
        ApiId	API ID.
        RequestId	API request ID.
        Stage	Name of the environment in which an API has been published.

     2. APIGTriggerResponse fields

        Table 3 APIGTriggerResponse fields

        Field Name	Description
        Body	Message body.
        Headers	HTTP response header to be returned.
        StatusCode	HTTP status code. Type: int.
        IsBase64Encoded	Whether the body has been encoded using Base64. Type: bool.



        APIGTriggerEvent provides the GetRawBody() method to obtain the body decoded using Base64. APIGTriggerResponse provides the SetBase64EncodedBody() method to set the body encoded using Base64.

  2. DIS Trigger Field Description

     Table 4 DISTriggerEvent fields

     Field Name	Description
     ShardID	Partition ID.
     Message	DIS message body (DISMessage structure).
     Tag	Function version.
     StreamName	Stream name.

     Table 5 DISMessage fields

     Field Name	Description
     NextPartitionCursor	Next partition cursor.
     Records	Message records (DISRecord structure).
     MillisBehindLatest	Reserved parameter.

     Table 6 DISRecord fields

     Field Name	Description
     PartitionKey	Data partition.
     Data	Data.
     SequenceNumber	Sequence number (ID of each record).

  3. Kafka Trigger Field Description

     Table 7 KAFKATriggerEvent fields

     Field Name	Description
     InstanceId	Instance ID.
     Records	Message records (Table 8).
     TriggerType	Trigger type (Kafka).
     Region	region
     EventTime	Time when an event occurred (seconds).
     EventVersion	Event version.

     Table 8 KAFKARecord parameters

     Field Name	Description
     Messages	DMS message body.
     TopicId	Topic ID.

  4. SMN Trigger Field Description

     Table 9 SMNTriggerEvent fields

     Field Name	Description
     Record	Message records (SMNRecord structure).

     Table 10 SMNRecord fields

     Field Name	Description
     EventVersion	Event version. (Currently, the version is 1.0.)
     EventSubscriptionUrn	Subscription Uniform Resource Name (URN).
     EventSource	Event source.
     Smn	Message body (SMNBody structure).

     Table 11 SMNBody fields

     Field Name	Description
     TopicUrn	Topic URN.
     TimeStamp	Message timestamp.
     MessageAtrributes	Message attribute set.
     Message	Message body.
     Type	Message format.
     MessageId	Message ID.
     Subject	Message topic.

  5. Timer Trigger Field Description

     Table 12 TimerTriggerEvent fields

     Field Name	Description
     Version	Version. (Currently, the version is v1.0.)
     Time	Current time.
     TriggerType	Trigger type (Timer).
     TriggerName	Trigger name.
     UserEvent	Additional information about the trigger.

  6. LTS Trigger Field Description

     Table 13 LTSTriggerEvent fields

     Field Name	Description
     Lts	LTS message (LTSBody structure).

     Table 14 LTSBody fields

     Field Name	Description
     Data	Original LTS message.



     LTSBody provides the GetRawData() function to return the message decoded using Base64.

  7. CTS Trigger Field Description

     Table 15 CTSTriggerEvent fields

     Field Name	Description
     CTS	CTS message body (Table 16).

     Table 16 CTS structure fields

     Field Name	Description
     Time	Time when a trace occurred.
     User	Information about the user who triggered the trace (Table 17).
     Request	Request content of the trace.
     Response	Response content of the trace.
     Code	Response code.
     ServiceType	Name of the service involved in the trace.
     ResourceType	Type of the resource involved in the trace.
     ResourceName	Name of the resource involved in the trace.
     ResourceId	ID of the resource involved in the trace.
     TraceName	Event name.
     TraceType	Trace type, for example, ConsoleAction.
     RecordTime	Time when CTS received the trace.
     TraceId	Trace ID.
     TraceStatus	Trace status.

     Table 17 User fields

     Field Name	Description
     Name	Username (an account can create multiple users).
     Id	User ID.
     Domain	Account information (Table 18)

     Table 18 Domain fields

     Field Name	Description
     Name	Account name.
     Id	Account ID.

     8. DDS Trigger Field Description

     Table 19 DDS event structure fields

     Field Name	Description
     Records	DDS record (Table 20).

     Table 20 DDS record body fields

     Field Name	Description
     EventName	Event name.
     EventSource	Event source.
     Region	region
     Dds	Document data.
     EventSourceId	Event source ID.



  1. When using an APIG trigger, set the first parameter of the handler function (for example, handler) to handler(APIGTriggerEvent event, Context context).
  2. The preceding TriggerEvent methods have corresponding set methods, which are recommended for local debugging. DIS and LTS triggers have getRawData() methods, but do not have setRawData() methods.
• Context APIs

  The context APIs are used to obtain the context, such as agency AK/SK, current request ID, allocated memory space, and number of CPUs, required for executing a function.

  Table 21 describes the context APIs provided by FunctionGraph.

  Table 21 Context methods

  Method	Description
  GetRequestID( )	Obtains a request ID.
  GetRemainingTimeInMilligetRunningTimeInSecondsSeconds ( )	Obtains the remaining running time of a function.
  GetAccessKey( )	Obtains the AK (valid for 24 hours) of an agency. If you use this method, you need to configure an agency for the function.
  GetSecretKey( )	Obtains the SK (valid for 24 hours) of an agency. If you use this method, you need to configure an agency for the function.
  GetUserData(string key)	Uses keys to obtain the values passed by environment variables.
  GetFunctionName( )	Obtains the name of a function.
  GetRunningTimeInSeconds ( )	Obtains the timeout of a function.
  GetVersion( )	Obtains the version of a function.
  GetMemorySize( )	Obtains the allocated memory.
  GetCPUNumber( )	Number of CPU millicores used by the function (1 core = 1000 millicores). The value of this field is proportional to that of MemorySize. By default, 100 CPU millicores are required for 128 MB memory. The number of CPU millicores is calculated as follows: Memory/128 x 100 + 200 (basic CPU millicores).
  GetProjectID( )	Obtains a project ID.
  GetPackage( )	Obtains a function group, that is, an app.
  GetToken( )	Obtains the token (valid for 24 hours) of an agency. If you use this method, you need to configure an agency for the function.
  GetLogger( )	Obtains the logger method provided by the context. By default, information such as the time and request ID is output.



  Results returned by using the GetToken(), GetAccessKey(), and GetSecretKey() methods contain sensitive information. Exercise caution when using these methods.

Developing a Go Function

Log in to the Linux server where the Go 1.x SDK has been installed. (Currently, Ubuntu 14.04, Ubuntu 16.04, SUSE 11.3, SUSE 12.0 and SUSE 12.1 are supported.)

• If the Go version (1.11.1 or later) supports go mod, perform the following steps to compile and package code:

1. Create a temporary directory, for example, /home/fssgo, decompress the Go SDK of FunctionGraph to the created directory, and enable the go module function.

   $ mkdir -p /home/fssgo

   $ unzip functiongraph-go-runtime-sdk-1.0.1.zip -d /home/fssgo

   $ export GO111MODULE="on"

2. Generate the go.mod file in the /home/fssgo directory. Assume that the module name is test:

   $ go mod init test

3. Edit the go.mod file in the /home/fssgo directory as required (that is, add the content marked in red).

   module test

   go 1.14

   require (
       huaweicloud.com/go-runtime v0.0.0-00010101000000-000000000000
   )

   replace (
       huaweicloud.com/go-runtime => ./go-runtime
   )

4. Create a function file under the /home/fssgo directory and implement the following interface:

   func Handler(payload []byte, ctx context.RuntimeContext) (interface{}, error)

   In this interface, payload is the body of a client request, and ctx is the runtime context object provided for executing a function. For more information about the methods, see Table 21. The following uses test.go as an example.

   package main

   import (
       "fmt"
       "huaweicloud.com/go-runtime/go-api/context"
       "huaweicloud.com/go-runtime/pkg/runtime"
       "huaweicloud.com/go-runtime/events/apig"
       "huaweicloud.com/go-runtime/events/cts"
       "huaweicloud.com/go-runtime/events/dds"
       "huaweicloud.com/go-runtime/events/dis"
       "huaweicloud.com/go-runtime/events/kafka"
       "huaweicloud.com/go-runtime/events/lts"
       "huaweicloud.com/go-runtime/events/smn"
       "huaweicloud.com/go-runtime/events/timer"
       "encoding/json"
   )

   func ApigTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var apigEvent apig.APIGTriggerEvent
       err := json.Unmarshal(payload, &apigEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", apigEvent.String())
       apigResp := apig.APIGTriggerResponse{
          Body: apigEvent.String(),
          Headers: map[string]string {
             "content-type": "application/json",
          },
          StatusCode: 200,
       }
       return apigResp, nil
   }

   func CtsTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var ctsEvent cts.CTSTriggerEvent
       err := json.Unmarshal(payload, &ctsEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", ctsEvent.String())
       return "ok", nil
   }

   func DdsTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var ddsEvent dds.DDSTriggerEvent
       err := json.Unmarshal(payload, &ddsEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", ddsEvent.String())
       return "ok", nil
   }

   func DisTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var disEvent dis.DISTriggerEvent
       err := json.Unmarshal(payload, &disEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", disEvent.String())
       return "ok", nil
   }

   func KafkaTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var kafkaEvent kafka.KAFKATriggerEvent
       err := json.Unmarshal(payload, &kafkaEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", kafkaEvent.String())
       return "ok", nil
   }

   func LtsTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var ltsEvent lts.LTSTriggerEvent
       err := json.Unmarshal(payload, &ltsEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", ltsEvent.String())
       return "ok", nil
   }

   func SmnTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var smnEvent smn.SMNTriggerEvent
       err := json.Unmarshal(payload, &smnEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", smnEvent.String())
       return "ok", nil
   }

   func TimerTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var timerEvent timer.TimerTriggerEvent
       err := json.Unmarshal(payload, &timerEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       return timerEvent.String(), nil
   }

   func main() {
       runtime.Register(ApigTest)
   }



   1. If the error parameter returned by a function is not nil, the function execution fails.
   2. If the error parameter returned by a function is nil, FunctionGraph supports only the following types of values:

      nil: The HTTP response body is empty.

      []byte: The content in this byte array is the body of an HTTP response.

      string: The content in this string is the body of an HTTP response.

      Other: FunctionGraph returns a value for JSON encoding, and uses the encoded object as the body of an HTTP response. The Content-Type header of the HTTP response is set to application/json.

   3. The preceding uses the APIG trigger as an example. For other trigger types, you need to modify the content of the main function. For example, change the CTS trigger to runtime.Register(CtsTest). Currently, only one entry can be registered.

5. Compile and package the function code.

   After completing the function code, compile and package it as follows:

   1. Compile the code.

      $ cd /home/fssgo

      $ go build -o handler test.go



      The handler can be customized, which is used as the function entry.

   2. Package the code.

      $ zip fss_examples_go1.x.zip handler

• If the Go version (earlier than 1.11.1) does not support go mod, perform the following steps to compile and package code:

1. Create a temporary directory, for example, /home/fssgo/src/huaweicloud.com, and decompress the Go SDK to the created directory.

   $ mkdir -p /home/fssgo/src/huaweicloud.com

   $ unzip functiongraph-go-runtime-sdk-1.0.1.zip -d /home/fssgo/src/huaweicloud.com

2. Create a function file under the /home/fssgo/src directory and implement the following interface:

   func Handler(payload []byte, ctx context.RuntimeContext) (interface{}, error)

   In this interface, payload is the body of a client request, and ctx is the runtime context object provided for executing a function. For more information about the methods, see the SDK APIs. The following uses test.go as an example.

   package main

   import (
       "fmt"
       "huaweicloud.com/go-runtime/go-api/context"
       "huaweicloud.com/go-runtime/pkg/runtime"
       "huaweicloud.com/go-runtime/events/apig"
       "huaweicloud.com/go-runtime/events/cts"
       "huaweicloud.com/go-runtime/events/dds"
       "huaweicloud.com/go-runtime/events/dis"
       "huaweicloud.com/go-runtime/events/kafka"
       "huaweicloud.com/go-runtime/events/lts"
       "huaweicloud.com/go-runtime/events/smn"
       "huaweicloud.com/go-runtime/events/timer"
       "encoding/json"
   )

   func ApigTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var apigEvent apig.APIGTriggerEvent
       err := json.Unmarshal(payload, &apigEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", apigEvent.String())
       apigResp := apig.APIGTriggerResponse{
          Body: apigEvent.String(),
          Headers: map[string]string {
             "content-type": "application/json",
          },
          StatusCode: 200,
       }
       return apigResp, nil
   }

   func CtsTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var ctsEvent cts.CTSTriggerEvent
       err := json.Unmarshal(payload, &ctsEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", ctsEvent.String())
       return "ok", nil
   }

   func DdsTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var ddsEvent dds.DDSTriggerEvent
       err := json.Unmarshal(payload, &ddsEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", ddsEvent.String())
       return "ok", nil
   }

   func DisTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var disEvent dis.DISTriggerEvent
       err := json.Unmarshal(payload, &disEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", disEvent.String())
       return "ok", nil
   }

   func KafkaTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var kafkaEvent kafka.KAFKATriggerEvent
       err := json.Unmarshal(payload, &kafkaEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", kafkaEvent.String())
       return "ok", nil
   }

   func LtsTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var ltsEvent lts.LTSTriggerEvent
       err := json.Unmarshal(payload, &ltsEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", ltsEvent.String())
       return "ok", nil
   }

   func SmnTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var smnEvent smn.SMNTriggerEvent
       err := json.Unmarshal(payload, &smnEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       ctx.GetLogger().Logf("payload:%s", smnEvent.String())
       return "ok", nil
   }

   func TimerTest(payload []byte, ctx context.RuntimeContext) (interface{}, error) {
       var timerEvent timer.TimerTriggerEvent
       err := json.Unmarshal(payload, &timerEvent)
       if err != nil {
          fmt.Println("Unmarshal failed")
          return "invalid data", err
       }
       return timerEvent.String(), nil
   }

   func main() {
       runtime.Register(ApigTest)
   }



   1. If the error parameter returned by a function is not nil, the function execution fails.
   2. If the error parameter returned by a function is nil, FunctionGraph supports only the following types of values:

      nil: The HTTP response body is empty.

      []byte: The content in this byte array is the body of an HTTP response.

      string: The content in this string is the body of an HTTP response.

      Other: FunctionGraph returns a value for JSON encoding, and uses the encoded object as the body of an HTTP response. The Content-Type header of the HTTP response is set to application/json.

   3. The preceding uses the APIG trigger as an example. For other trigger types, you need to modify the content of the main function. For example, change the CTS trigger to runtime.Register(CtsTest). Currently, only one entry can be registered.

3. Compile and package the function code.

   After completing the function code, compile and package it as follows:

   1. Set environment variables GOROOT and GOPATH.

      $ export GOROOT=/usr/local/go (Assume that the Go SDK is installed under the /usr/local/go directory.)

      $ export PATH=$GOROOT/bin:$PATH

      $ export GOPATH=/home/fssgo

   2. Compile the function code.

      $ cd /home/fssgo

      $ go build -o handler test.go



      The handler can be customized, which is used as the function entry.

   3. Package the code.

      $ zip fss_examples_go1.x.zip handler

   • Creating a function

     Log in to the FunctionGraph console, create a Go 1.x function, and upload the fss_examples_go1.x.zip file.

     Figure 1 Uploading the code package



   If you edit code in Go, package the compiled file into a ZIP file, and ensure that the name of the compiled file is consistent with the handler plugin name. For example, if the name of the binary file is handler, set the handler plugin name to handler. The handler must be consistent with that defined in 3.b.

   • Testing the function
     1. Create a test event.

        On the function details page that is displayed, choose Select test event > Configure test event. Configure the test event information, as shown in Figure 2, and then click Save.

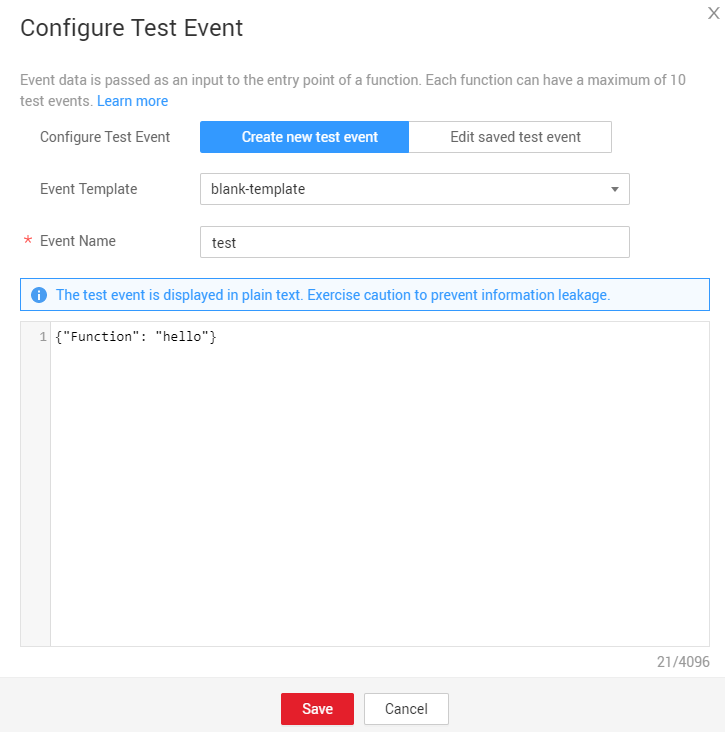

        Figure 2 Configuring a test event

     2. On the function details page, select the configured test event, and click Test.
   • Executing the function

     The function execution result consists of three parts: function output (returned by callback), summary, and logs (output by using the console.log or getLogger() method), as shown in Figure 3.

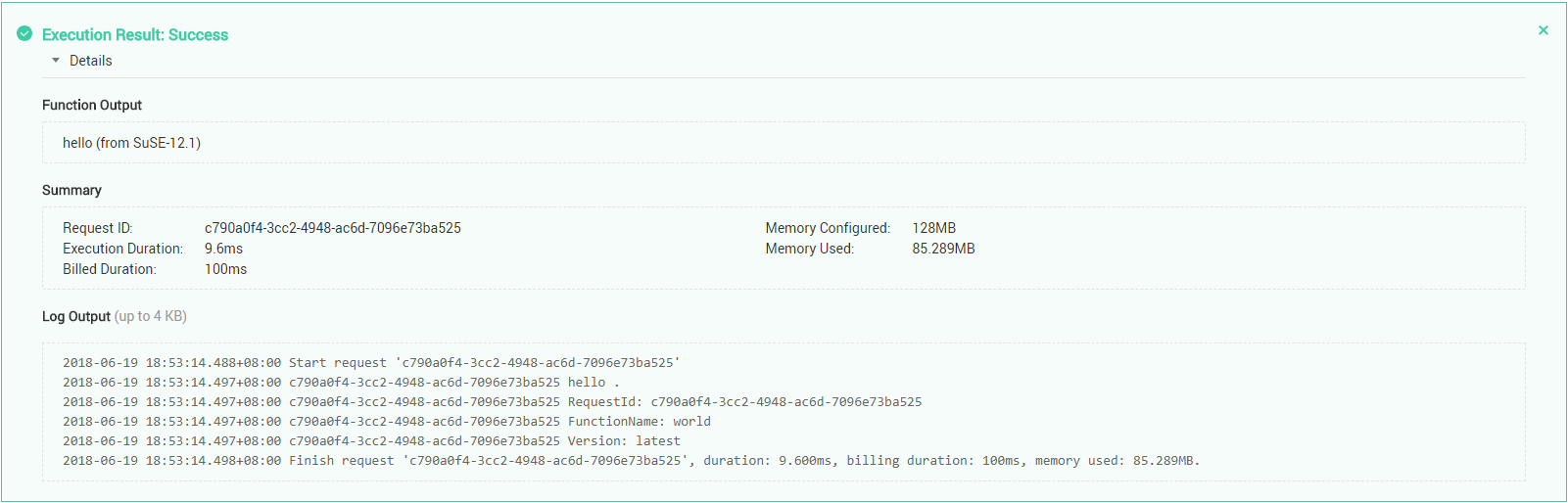

     Figure 3 Execution result


Execution Result

The execution result consists of the function output, summary, and log output.

{
    "errorMessage": "",
    "errorType":"",
}

Example of the function output when a function fails to be executed:

{   "errorMessage": "runtime error: invalid memory address or nil pointer dereference",
    "errorType": "panic",
    "stackTrace": [       "HandleRequest()",       "    go-runtime/main.go:15"   ]
}

Example of the log output when a function fails to be executed:

2020/08/12 09:17:07 GMT+08:00  Start invoke request 'e9d3c07f-583c-469b-866a-56a927576998', version: latest
2020/08/12 09:17:07 GMT+08:00  e9d3c07f-583c-469b-866a-56a927576998 payload:{"key": "value"}2020/08/12 09:17:07 GMT+08:00  Finish invoke request 'e9d3c07f-583c-469b-866a-56a927576998'(invoke Failed), duration: 39.413ms, billing duration: 100ms, memory used: 73.766MB
