LTS Logback SDK

The LTS Java SDK provides an extension plug-in compatible with logback. You can configure a Huawei Cloud appender in logback to report generated logs to LTS.

Transport Protocol

HTTPS

Prerequisites

  • You have registered a Huawei account and enabled Huawei Cloud services.
  • You have obtained the name of the region where LTS is deployed.
  • You have obtained the AK/SK of your HUAWEI ID.
  • You have obtained a project ID of your Huawei Cloud account. For details, see API Credentials.
  • You have obtained the IDs of the target log group and log stream in LTS.
  • You have installed the JDK. LTS Java SDK supports JDK 1.8 or later. You can run the java –version command to check the installed JDK version. If JDK is not installed, download the installation package from the Java official website and install it.
  • The SDK supports cross-cloud and local log reporting. This function is available only in regions CN North-Beijing4, CN East-Shanghai1, CN South-Guangzhou, and CN Southwest-Guiyang1.
  • logback.xml can be changed to logback-spring.xml (in Spring Boot framework), and the configuration in springProfile can be read.
  • The custom labels in logback.xml and logback-spring.xml can be read.
  • When logs are reported to LTS via the logback SDK, the time difference between the log reporting time you set and the current time must not exceed two days. Otherwise, the reported logs will be deleted by LTS.
  • You are advised to set the reporting interval to less than 1 minute (for example, 50 seconds). If the reporting interval is set to 1 minute or longer, the connection may fail because the SDK connection times out by default after 1 minute.

Installing the SDK

Add dependencies to the Maven project.

  1. To use Maven to build a project, add the Huawei external open-source repository as a mirror in the settings.xml file. Example:
    <mirror>
        <id>huaweicloud</id>
        <mirrorOf>*</mirrorOf>
        <url>https://repo.huaweicloud.com/repository/maven/</url>
    </mirror>
  2. Obtain the latest version of the LTS logback SDK dependencies from the Huawei external open-source repository.
  3. To use the LTS logback SDK in a Maven project, you only need to add the corresponding dependencies to the pom.xml file. The Maven project management tool automatically downloads the related JAR packages. Add the following content to <dependencies>.
    The latest version (1.1.3) is recommended. You can check the SDK version in step 2.
    <dependency>
         <groupId>io.github.huaweicloud</groupId>
         <artifactId>lts-sdk-common</artifactId>
         <version>version</version>
    <exclusions>
            <exclusion>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-simple</artifactId>
            </exclusion>
        </exclusions>
     </dependency>
     <dependency>
         <groupId>io.github.huaweicloud</groupId>
         <artifactId>lts-sdk-logback</artifactId>
         <version>version</version>
     </dependency>

Sample Code

  1. Edit LogbackSDKAppender in the logback.xml and logback-spring.xml files. Example:
    <configuration scan="true" debug="false">
       <appender name="LogInfoTest" class="com.huaweicloud.lts.appender.LogbackSDKAppender">
         <!--  Project ID of the Huawei Cloud account.  -->
         <projectId>xxxxxxxxxxxxxxxxxxxxxx</projectId>
         <!--  Huawei Cloud LTS log group ID.  -->
         <logGroupId>xxxxxxxxxxxxxxxxxxxxxx</logGroupId>
         <!--  Huawei Cloud LTS log stream ID.  -->
         <logStreamId>xxxxxxxxxxxxxxxxxxxxxx</logStreamId>
         <!--  AK of the Huawei Cloud account. Hard-coded or plaintext AK is risky. For security, encrypt your AK. Decrypt it only when necessary.  -->
         <accessKeyId>xxxxxxxxxxxxxxxxxxxxxx</accessKeyId>
         <!--  SK of the Huawei Cloud account. Hard-coded or plaintext SK is risky. For security, encrypt your SK. Decrypt it only when necessary.  -->
         <accessKeySecret>xxxxxxxxxxxxxxxxxxxxxx</accessKeySecret>
         <!--  Region where LTS is deployed.  -->
         <regionName>cn-nxxxxx</regionName>
         <encoder>
           <pattern>%d %-5level [%thread] [%customerParam] %logger{0}: %msg</pattern>
         </encoder>
         <!--  Maximum size of logs that can be cached by a single appender.  -->
         <totalSizeInBytes>104857600</totalSizeInBytes>
         <!--  Blocking time when the producer sends logs.  -->
         <maxBlockMs>0</maxBlockMs>
         <!--  Size of the thread pool for executing log sending tasks.  -->
         <ioThreadCount>8</ioThreadCount>
         <!--  Maximum size of logs sent by the producer in a batch.  -->
         <batchSizeThresholdInBytes>524288</batchSizeThresholdInBytes>
         <!--  Maximum number of logs sent by the producer in a batch.  -->
         <batchCountThreshold>4096</batchCountThreshold>
         <!--  Waiting time for the producer to send logs in a batch.  -->
         <lingerMs>2000</lingerMs>
         <!--  Number of retries after the producer fails to send logs.  -->
         <retries>5</retries>
         <!--  Backoff time for the first retry.  -->
         <baseRetryBackoffMs>500</baseRetryBackoffMs>
         <!--  Maximum backoff time for retry.  -->
         <maxRetryBackoffMs>500</maxRetryBackoffMs>
         <!-- true: Logs can be reported across clouds. false (default): Logs can be reported only from Huawei Cloud ECSs. -->
         <enableLocalTest>false</enableLocalTest>
         <!-- If a log exceeds 1 MB, the log is split into two parts: 1 MB is retained and the excess part is discarded. -->
         <!-- <giveUpExtraLongSingleLog>true</giveUpExtraLongSingleLog>-->
         <!-- Whether logs are reported using log group and log stream names. -->
         <!-- <logGroupStreamByName>false</logGroupStreamByName>-->
       </appender>
       <logger name="com.huawei.test.logback.info" level="INFO">
         <appender-ref ref="LogInfoTest"/>
       </logger>
     </configuration>
  2. Logs are generated during code compilation. Example:
    package com.huawei.test.logback.info;

     import org.slf4j.Logger;
     import org.slf4j.LoggerFactory;

     public class TestLogBackAppenderInfo {

         private static final Logger LOGGER = LoggerFactory.getLogger(TestLogBackAppenderInfo.class);

         public void run() throws InterruptedException {
             LOGGER.info("test~logback~~~info");
         }

     }

Producer Performance Baseline

If one of the following performance baseline values is exceeded, log reporting may be abnormal.

ECS configurations:

  • Instance flavor: General computing-plus c7.xlarge.2
  • CPU: 4 vCPUs
  • Memory: 8 GB
  • Assured bandwidth: 100 Mbit/s
  • OS: Huawei Cloud EulerOS release 2.0
  • JVM: OpenJDK 64-Bit Server VM (build 17.0.7+7, mixed mode)

Test procedure (for a single producer):

  • totalSizeInBytes: 104857600
  • maxBlockMs: 0
  • batchSizeThresholdInBytes: 1048576
  • batchCountThreshold: 40960
  • lingerMs: 2000
  • ioThreadCount: specific to test cases
  • Initial/Maximum heap size of the JVM: 1 GB
  • Total number of sent logs: 100,000,000
  • Total size of sent logs: about 50 GB

After the parameters are set based on the baseline values, use a Huawei Cloud ECS as the log reporting environment and report logs via the Huawei Cloud intranet service entry.

Example test results of the SDK reporting performance baseline:

  • Reported logs: In this test, each log is about 550 bytes. To simulate random data, the test uses random strings as log data.
  • Performance baseline:
    Table 1 Performance baseline

    I/O Threads

    Data Throughput

    Data Throughput Rate

    CPU Usage

    2

    8.4 MB/s

    17,000 logs/s

    15%

    4

    15.3 MB/s

    30,000 logs/s

    29%

    6

    21.5 MB/s

    42,000 logs/s

    36%

Summary:

  • Most of the CPU time is spent on object serialization and compression, and CPU usage increases as throughput rises. However, in a typical daily environment, the average data traffic of a single ECS is 100 KB/s, resulting in negligible CPU consumption.
  • Increasing the number of I/O threads significantly improves throughput, especially when the number of I/O threads is less than the number of available processors.
  • Increasing the totalSizeInBytes value has minimal impact on the throughput but can increase CPU usage. You are advised to use the default value.
  • If the reported logs exceed the capacity of a single producer:
    1. To ensure steady SDK log reporting, you are advised to separate logs into multiple log streams and use multiple producers to distribute the traffic.
    2. If maxBlockMs is set to 0, the SDK will be in a non-blocking state, which will trigger the protection mechanism to automatically downgrade. As a result, some logs may be discarded.
    3. If maxBlockMs is set to a value greater than 0, the SDK will be in a blocked state with a blocking duration of maxBlockMs, potentially blocking the SDK's log sending.

Parameters

  • Configure the following Appender parameters.
    Table 2 Appender parameters

    Parameter

    Description

    Type

    Mandatory

    Default Value

    projectId

    Project ID of the Huawei Cloud account.

    String

    Yes

    -

    accessKeyId

    AK of the Huawei Cloud account. Hard-coded or plaintext AK is risky. For security, encrypt your AK. Decrypt it only when necessary.

    String

    Yes

    -

    accessKeySecret

    SK of the Huawei Cloud account. Hard-coded or plaintext SK is risky. For security, encrypt your SK. Decrypt it only when necessary.

    String

    Yes

    -

    regionName

    Region where LTS is deployed.

    String

    Yes

    -

    logGroupId

    LTS log group ID.

    String

    Yes

    -

    logStreamId

    LTS log stream ID.

    String

    Yes

    -

    appName

    Log label field appName.

    String

    No

    -

    pathFile

    Log label field pathFile.

    String

    No

    -

    totalSizeInBytes

    Maximum size of logs that can be cached in a producer instance.

    int

    No

    104857600 (indicates 100 MB.)

    maxBlockMs

    Maximum blocking time (in milliseconds) that the caller will wait on the send method when the producer's available space is insufficient. The default value is 60,000 ms. The recommended value is 0 ms.

    • If maxBlockMs is set to a value greater than or equal to 0, the blocking time is enforced. If the memory space is still insufficient after the blocking time expires, an error will be reported and the logs will be discarded.
    • If maxBlockMs is set to -1, the blocking continues until the logs are successfully sent to LTS and the logs will not be discarded.

    long

    No

    60,000 ms

    ioThreadCount

    Size of the thread pool for executing log sending tasks.

    int

    No

    Number of idle CPUs on the customer's host. The value must be greater than 1.

    batchSizeThresholdInBytes

    Once the size of logs cached in a ProducerBatch reaches or exceeds the batchSizeThresholdInBytes value, they are sent to LTS.

    int

    No

    524288 (indicates 0.5 MB.)

    batchCountThreshold

    Once the number of logs cached in a ProducerBatch reaches or exceeds the batchCountThreshold value, they are sent to LTS.

    int

    No

    4096

    lingerMs

    Duration from the time when a ProducerBatch is created to the time when the logs can be sent.

    int

    No

    2s

    retries

    Number of allowed retry attempts for a ProducerBatch when the first attempt to send the logs cached in the ProducerBatch fails. The recommended value is 5. If the value of retries is less than or equal to 0, the ProducerBatch will be added to the failure queue after the first sending attempt fails.

    int

    No

    10

    baseRetryBackoffMs

    Backoff time for the first retry attempt.

    long

    No

    0.1s

    maxRetryBackoffMs

    Maximum backoff time for retry attempts.

    long

    No

    50s

    giveUpExtraLongSingleLog

    If a log exceeds 1 MB, the log is split into two parts: 1 MB is retained and the excess part is discarded.

    Boolean

    No

    false

    enableLocalTest

    Whether to enable cross-cloud log reporting. (This function is used only for development and commissioning. The reporting performance is not guaranteed.)

    • If this parameter is set to true, cross-cloud log reporting is enabled and users access LTS through the public network. This function is available only in regions CN North-Beijing4, CN East-Shanghai1, CN South-Guangzhou, and CN Southwest-Guiyang1.
    • If this parameter is set to false, cross-cloud log reporting is disabled and users access LTS through hosts in the current Huawei Cloud region.

    Boolean

    No

    false

    logGroupStreamByName

    Whether to report logs based on log group or log stream names. This function is supported only by SDK 1.1.0 or later. If the value is true, logs are reported by log group name and log stream name. Set logGroupId to the log group name and logStreamId to the log stream name.

    Boolean

    No

    false

    proxyIp

    User-defined IP address and port number for log reporting.

    String

    No

    -

  • For a Spring Boot project, you can replace logback.xml with logback-spring.xml, the configuration in springProfile can be read, and the log collection environment between development and test environments can be seamlessly switched.

    Instructions:

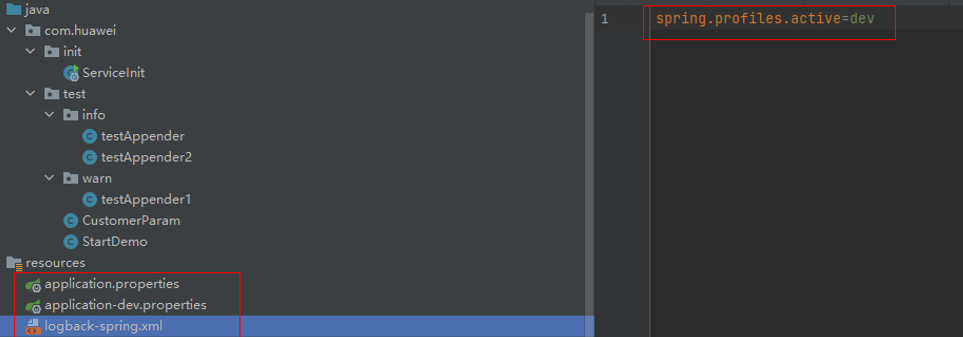

    1. You can specify the configuration items used in application.properties of the Spring Boot project.

    2. Configurations in logback-spring.xml:
          <springProfile name="dev">
              <root level="INFO">
                  <appender-ref ref="customerAppender"/>
              </root>
          </springProfile>

  • To enable custom labels in logback.xml or logback-spring.xml and print their values in logs, follow these steps:
    1. Inherit the ClassicConverter class and override the convert method. This method returns the custom label's value.
      public class CustomerParam extends ClassicConverter {
          @Override
          public String convert(ILoggingEvent iLoggingEvent) {
              return "Custom label value";
          }
      }
    2. Reference the ClassicConverter class in the logback.xml or logback-spring.xml file and use % to define a label name. You can then use the label.
      <conversionRule conversionWord="customerParam" converterClass="com.huawei.test.logback.CustomerParam"/>

          <appender name="customer" class="com.huawei.appender.LogbackSDKAppender">
              <encoder>
                  <pattern>%d %-5level [%thread] [%customerParam] %logger{0}: %msg</pattern>
              </encoder>
          </appender>

Obtaining Parameters

  • Read the region table.
    Table 3 Regions

    Region Name

    Region

    CN North-Beijing2

    cn-north-2

    CN North-Beijing4

    cn-north-4

    CN North-Beijing1

    cn-north-1

    CN East-Shanghai2

    cn-east-2

    CN East-Shanghai1

    cn-east-3

    CN South-Guangzhou

    cn-south-1

    CN South-Shenzhen

    cn-south-2

    CN Southwest-Guiyang1

    cn-southwest-2

    AP-Singapore

    ap-southeast-3

  • To obtain a log group's ID, choose Log Management in the navigation pane of the LTS console and hover over the target log group's name.
  • To obtain a log stream's ID, click next to the corresponding log group and hover over the target log stream's name.
