Configuring Workspace Permission Sets

Prerequisites

• A DWS connection, DLI connection, MRS Hive connection, and MRS Ranger connection have been created in Management Center based on Creating a DataArts Studio Data Connection.
• Permissions have been configured for the dlg_agency based on Authorizing dlg_agency.
• User information has been synchronized from IAM to the data source based on Synchronizing IAM Users to the Data Source.
• Metadata of tables has been collected in DataArts Catalog through a metadata collection task if you want to view the metadata of databases, tables, and fields in data connections during permission configuration.

Constraints

• Only the DAYU Administrator, Tenant Administrator, or security administrator can create, modify, or synchronize workspace permission sets. The permission set administrator can synchronize workspace permission sets. Other common users cannot perform these operations.
• Workspace permission sets can only be used to define permissions for MRS Hive, DLI, and GaussDB(DWS).
• After a workspace permission set is configured, permission management does not take effect immediately. Instead, you need to synchronize the workspace permission set to the data source for permission management to take effect.
  Because workspace permission sets are mainly used to determine the permissions of workspaces rather than manage permissions, generally workspace permission sets do not need to be synchronized. You are advised to configure roles based on Configuring Roles to manage permissions. If you need to synchronize workspace permission sets, pay attention to the following restrictions:

  • During authorization, the name of the object to be authorized (database, table, or column name) can contain only digits, letters, underscores (_), hyphens (-), and wildcards (*).
  • During DLI permission set synchronization, the custom policies created in IAM are associated with users or user groups. A maximum of 200 custom policies can be created in IAM. Before synchronization, ensure that the quotas are sufficient.
  • During permission synchronization, you need to configure required permissions for the dlg_agency. For details, see Authorizing dlg_agency.
• The current data permission control uses the allowlist mechanism, which adds operation conditions to the users to be authorized without affecting the permissions the users already have. If you only want to make the permissions granted by the data permission control take effect, you need to revoke the original permissions of the users to be authorized. For details, see Data Permission Management.

• Deleted workspace permission sets are moved to the recycle bin. You can restore them within 30 days. After 30 days, they will be deleted permanently. For details, see Managing the Recycle Bin.

• During script execution and job testing in DataArts Factory, the MRS or GaussDB(DWS) data source uses the account of the data connection for authentication by default. Therefore, permission management still does not take effect during data development. You need to enable fine-grained authentication so that the current user is used for authentication during script execution and job testing in DataArts Factory. In this way, different users have different data permissions, and permission management for roles and permission sets takes effect.

Creating a Workspace Permission Set

1. On the DataArts Studio console, locate a workspace and click DataArts Security.
2. In the left navigation pane, choose Workspace Permission Sets.
3. On the displayed page, click Create.
   Figure 1 Creating a workspace permission set


4. Configure parameters based on Table 1 and click OK.

   Table 1 Parameters for creating a workspace permission set

   Parameter	Description
   *Name	Permission set name, which is unique in the instance. You should include the meaning of the permission set and avoid meaningless descriptions in the name so that the permission set can be quickly identified.
   *Administrator	Select one or two administrators of the user or user group type. The administrators are the owners of the permission set and can configure the permissions in the permission set. The administrators can perform the following operations: Permission configuration: Assign data source permissions to the workspace permission set. User configuration: Assign permissions in the workspace permission set to users, user groups, or workspace roles. Permission set creation: Create permission sets and roles based on the workspace permission set. The created permission sets do not contain more permissions than the workspace permission set.
   Description	Information to make the workspace permission set easier to be identified

   Figure 2 Creating a workspace permission set


Configuring the Workspace Permission Set

1. On the DataArts Studio console, locate a workspace and click DataArts Security.
2. In the left navigation pane, choose Workspace Permission Sets.
3. Locate a workspace permission set and click its name to go to the details page.
   Figure 3 Going to the workspace permission set details page


4. In the Basic Information area, you can view the name, ID, and administrator of the workspace permission set. For details, see Figure 4.
   Figure 4 Basic information about the workspace permission set


5. On the Permission Configuration tab page, By data is selected by default. You can select By permissions. The configured permissions are the same for By data and By permissions, and the only difference lies in how the permissions are displayed. You are advised to select By permissions for batch authorization.
   • By data: The system allows you to configure permissions for data. Currently, only MRS data sources are supported.
     Figure 5 Configuring permissions on the By data page


     When configuring permissions, you can select Entire DB, Entire table, or Entire column, and select the corresponding levels in the data source information to perform a batch authorization. You can also click Authorization in the Operation column of a data record in the expanded navigation pane to authorize access to the data.

     Fast mode and Show data this role has no permission to are supported. If Fast mode is enabled, metadata of databases, tables, and columns is obtained from DataArts Catalog. Otherwise, metadata is obtained from the data source. If metadata has been collected, you are advised to enable Fast mode.



     • Note that the permissions of databases, tables, and columns are managed by layer. For example, a user who has been granted database permissions does not have the permissions of tables and columns. Table and column permissions must be granted separately.

       For example, if you enter a table name or an asterisk (*) as a wildcard during database authorization, you are authorizing the table. If you enter a column name or an asterisk (*) as a wildcard character, you are authorizing the column.

     • During authorization, the name of the object to be authorized (database, table, or column name) can contain only digits, letters, underscores (_), hyphens (-), and wildcards (*).

     Figure 6 Authorization on the By data page


   • By permissions: The system allows you to configure permissions.
     To configure permissions, click Add and select data levels in sequence. You cannot select multiple objects at the same level (such as database, table, and column) for batch authorization. Permission Type cannot be set to DENY.



     • Note that the permissions of databases, tables, and columns are managed by layer. For example, a user who has been granted database permissions does not have the permissions of tables and columns. Table and column permissions must be granted separately.

       For example, if you enter a table name or an asterisk (*) as a wildcard during database authorization, you are authorizing the table. If you enter a column name or an asterisk (*) as a wildcard character, you are authorizing the column.

     • During authorization, the name of the object to be authorized (database, table, or column name) can contain only digits, letters, underscores (_), hyphens (-), and wildcards (*).
     • When you select HIVE for Data Source Type, you can change Database to URL to authorize an OBS path in the storage-compute decoupling scenario. In this scenario, the following URL permissions are required for using Hive:
       • write: creating a database
       • read: creating a table, writing data, and deleting a table
     After configuring permissions, you can edit, synchronize, or delete them.

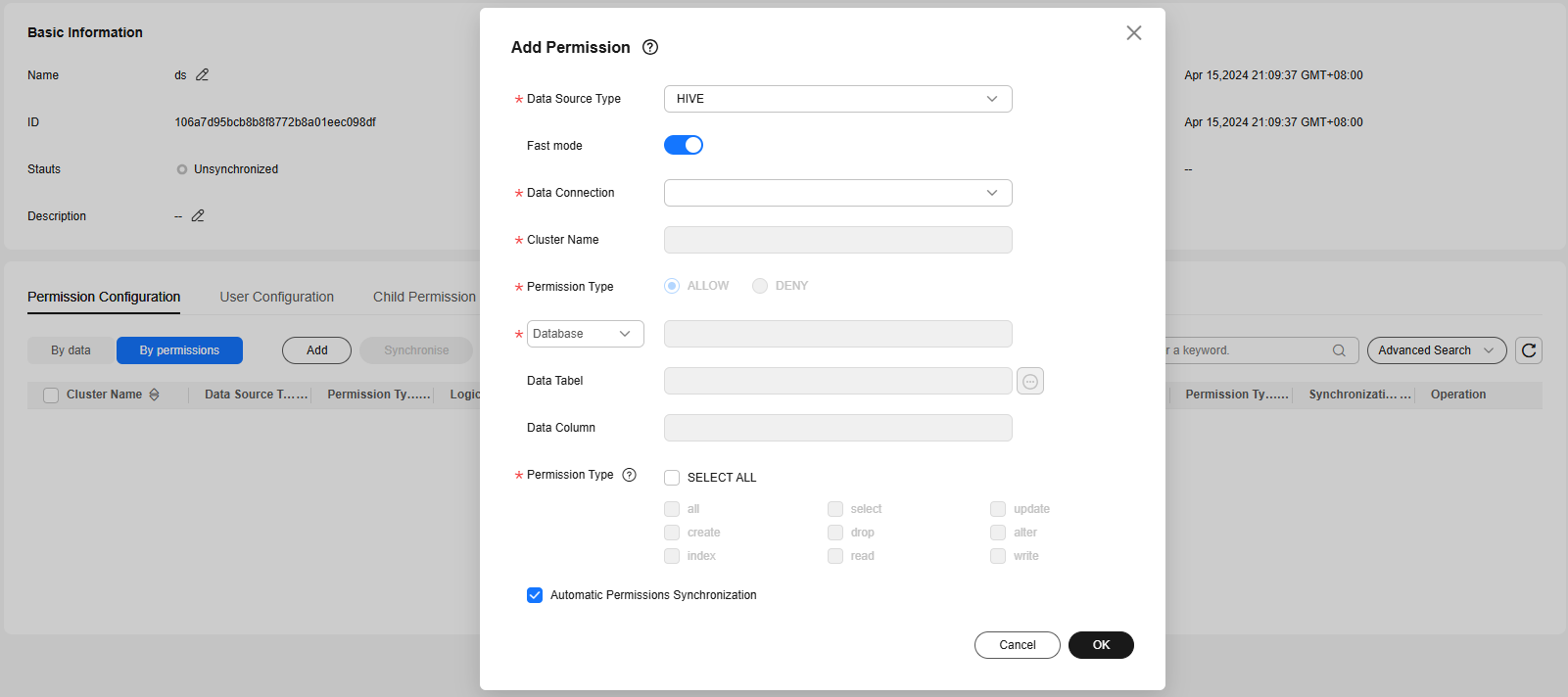

     Figure 7 Configuring permissions on the By permissions page


6. User Configuration: On the permission set details page, click the User Configuration tab.
   On this page, you can associate the permissions configured on the Permission Configuration page with users. Click Add and select User or User group (Workspace role is unavailable currently) to add users to the permission set. You can select users or user groups that have been added to the workspace.

   Figure 8 User Configuration


7. Child Permission Sets: On the permission set details page, click the Child Permission Sets tab.
   On this page, you can view the child permission sets of the current permission set.

   Figure 9 View child permission sets


8. Log: On the permission set details page, click the Log tab.
   On this page, you can view the log details if permission synchronization fails. The system deletes logs generated 30 days ago at 00:00 every day.

   Figure 10 Viewing logs


9. After the permission set is configured, permission management does not take effect immediately. You need to manually synchronize permissions to the data source for permission management to take effect. For details, see Synchronizing Permission Sets.

   Because workspace permission sets are mainly used to determine the permissions of workspaces rather than manage permissions, generally workspace permission sets do not need to be synchronized. You are advised to configure roles based on Configuring Roles to manage permissions.

Related Operations

• Synchronizing workspace permission sets: Workspace permission sets take effect only after they are manually synchronized to the data source. Because workspace permission sets are mainly used to determine the permissions of workspaces rather than manage permissions, generally workspace permission sets do not need to be synchronized. You are advised to configure roles based on Configuring Roles to manage permissions.

  To synchronize a workspace permission set, click Synchronize in the Operation column of the permission set on the Workspace Permission Sets page. To synchronize multiple permission sets, select them and click Synchronize above the list.

• Editing a workspace permission set: On the Workspace Permission Sets page, click Edit in the Operation column of a permission set. You can change the name, administrator, and description of the permission set.
• Deleting workspace permission sets: On the Workspace Permission Sets page, click Delete in the Operation column of a permission set. In the displayed dialog box, confirm the permission set to delete and click Yes. To delete multiple permission sets, select them and click Delete above the list.
  Workspace permission sets for which permissions, users, or child permission sets have been configured cannot be deleted. To delete such workspace permission sets, delete the configurations first.



  Deleted workspace permission sets are moved to the recycle bin. You can restore them within 30 days. After 30 days, they will be deleted permanently. For details, see Managing the Recycle Bin.
