Creating a Security Group
Scenarios
A security group consists of inbound and outbound rules. You can add security group rules to allow or deny the traffic to reach and leave the instances (such as ECSs) in the security group.
When creating an instance (for example, an ECS), you must associate it with a security group. If no security group has been created yet, a default security group will be created and associated with the instance. You can also create a security group and add inbound and outbound rules to allow specific traffic. For more information about security groups and rules, see Security Groups and Security Group Rules.
Security Group Templates
Template |
Direction |
Protocol/Port/Type |
Source/Destination |
Description |
Application Scenario |
---|---|---|---|---|---|
General-purpose web server |
Inbound |
TCP: 22 (IPv4) |
0.0.0.0/0 |
Allows all IPv4 addresses to access ECSs in the security group over port 22 (SSH) for remotely logging in to Linux ECSs. |
|
TCP: 3389 (IPv4) |
0.0.0.0/0 |
Allows all IPv4 addresses to access ECSs in the security group over port 3389 (RDP) for remotely logging in to Windows ECSs. |
|||
TCP: 80 (IPv4) |
0.0.0.0/0 |
Allows all IPv4 addresses to access ECSs in the security group over port 80 (HTTP) for visiting websites. |
|||
TCP: 443 (IPv4) |
0.0.0.0/0 |
Allows all IPv4 addresses to access ECSs in the security group over port 443 (HTTPS) for visiting websites. |
|||
ICMP: All (IPv4) |
0.0.0.0/0 |
Allows all IPv4 addresses to access ECSs in the security group over any port for using the ping command to test ECS connectivity. |
|||
All (IPv4) All (IPv6) |
sg-xxx |
Allows ECSs in the security group to communicate with each other. |
|||
Outbound |
All (IPv4) All (IPv6) |
0.0.0.0/0 ::/0 |
Allows access from ECSs in the security group to any IP address over any port. |
||
All ports open |
Inbound |
All (IPv4) All (IPv6) |
sg-xxx |
Allows ECSs in the security group to communicate with each other. |
Opening all ECS ports in a security group poses security risks. |
All (IPv4) All (IPv6) |
0.0.0.0/0 ::/0 |
Allows all IP addresses to access ECSs in the security group over any port. |
|||
Outbound |
All (IPv4) All (IPv6) |
0.0.0.0/0 ::/0 |
Allows access from ECSs in the security group to any IP address over any port. |
||
Fast-add rule |
Inbound |
All (IPv4) All (IPv6) |
sg-xxx |
Allows ECSs in the security group to communicate with each other. |
You can select protocols and ports that the inbound rule will apply to. If you do not select any protocols and ports, no protocols and ports will be opened. After the security group is created, add required rules by referring to Adding a Security Group Rule. |
Custom port and protocol |
0.0.0.0/0 |
Allows all IP addresses to access ECSs in a security group over specified ports (TCP or ICMP) for different purposes. |
|||
Outbound |
All (IPv4) All (IPv6) |
0.0.0.0/0 ::/0 |
Allows access from ECSs in the security group to any IP address over any port. |
Procedure
- Go to the security group list page.
- In the upper right corner, click Create Security Group.
The Create Security Group page is displayed.
- Configure the parameters as prompted.

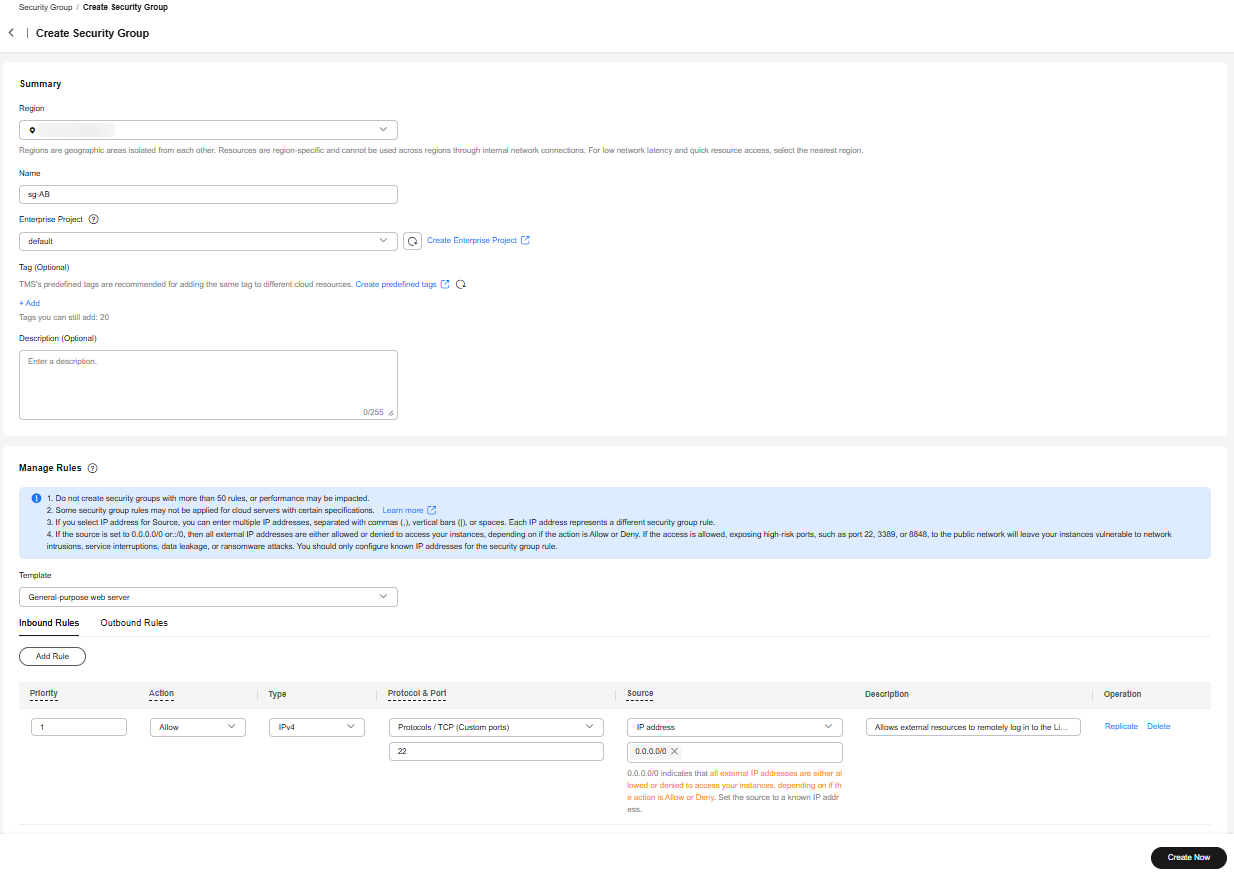

Figure 1 Create Security Group
Table 2 Parameter description Parameter
Description
Example Value
Name
Mandatory
Enter the security group name.
The security group name can contain a maximum of 64 characters, which may consist of letters, digits, underscores (_), hyphens (-), and periods (.). The name cannot contain spaces.
NOTE:You can change the security group name after a security group is created. It is recommended that you give each security group a different name.
sg-AB
Enterprise Project
Mandatory
When creating a security group, you can add the security group to an enabled enterprise project.
An enterprise project facilitates project-level management and grouping of cloud resources and users. The name of the default project is default.
For details about creating and managing enterprise projects, see the Enterprise Management User Guide.
default
Template
Mandatory
The system provides several security group templates for you to create a security group. A security group template has preconfigured inbound and outbound rules. You can select a template based on your service requirements.
Table 1 describes the security group templates.
General-purpose web server
Description
Optional
Supplementary information about the security group. This parameter is optional.
The security group description can contain a maximum of 255 characters and cannot contain angle brackets (< or >).
N/A
- Confirm the inbound and outbound rules of the template and click OK.
Related Operations
- After a security group is created, if its rules cannot meet your service requirements, you can add new rules to the security group or modify original rules. For details, see Adding a Security Group Rule.
- Each ECS must be associated with at least one security group. You can add an ECS to multiple security groups based on service requirements. For details, see Adding an Instance to or Removing an Instance from a Security Group.
