Kafka (Open-Source) Trigger

Notes and Constraints

• Currently, open-source Kafka triggers are available only in the following regions: CN North-Beijing4, CN East-Shanghai1, CN-Hong Kong, AP-Bangkok, AP-Singapore, and LA-Santiago You can check whether the trigger type is supported on the console.
• The valid payload size of a request body is 6 MB when a Kafka trigger is used.
• In cases of Kafka data processing failure, the Kafka trigger will discard records that are larger than 6 MB.

Prerequisites

• You have created a function.
• You have enabled the VPC access for the function and configured the subnet permissions for the Kafka security group. For details, see Configuring Networks. The network configuration must be the same as that of the ECS where Kafka is deployed, including the VPC and subnet.

Creating an Open-Source Kafka Trigger

1. Log in to the FunctionGraph console. In the navigation pane, choose Functions > Function List.
2. Click the function to be configured to go to the function details page.
3. Choose Configuration > Triggers and click Create Trigger.

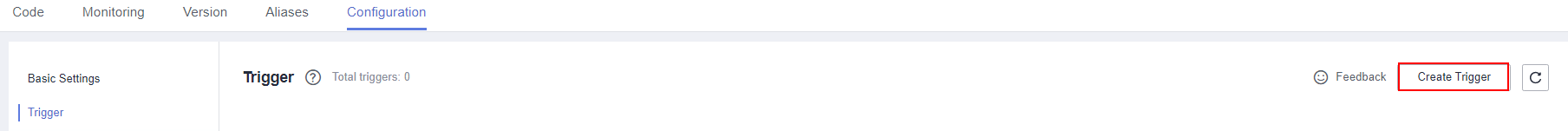

   Figure 1 Creating a trigger


4. Configure the following parameters.

   Table 1 Parameters of an open-source Kafka trigger

   Parameter	Description	Example Value
   Trigger Type	Mandatory. Select Kafka (Open-Source).	Kafka (Open-Source)
   Connection Address	Mandatory. Addresses of brokers running Kafka. Separate the addresses with commas (,).	100.85.125.151:9094,100.95.145.47:9094
   Topic	Mandatory. Enter the created topic.	topic-1
   Batch Size	Mandatory. Enter the maximum number of data records that can be processed by a function at a time. The value ranges from 1 to 10000.	100

5. Click OK.

Enabling a Kafka Trigger

By default, open-source Kafka triggers are disabled. To use such a trigger, click Enable on the Trigger page.

If the trigger fails to be started, submit a service ticket to contact technical support.

Configuring a Kafka Event to Trigger the Function

1. Return to the FunctionGraph console. In the navigation pane, choose Functions > Function List.
2. Click the function to be configured to go to the function details page.
3. On the function details page, select a version.
4. On the Code tab page, click Test. The Configure Test Event dialog box is displayed.
5. Set the parameters described in Table 2 and click Save.

   Table 2 Test event information

   Parameter	Description
   Configure Test Event	You can choose to create a test event or edit an existing one. Use the default option Create new test event.
   Event Templates	Select Kafka (Open-Source) to use the built-in Kafka event template.
   Event Name	The event name can contain 1 to 25 characters and must start with a letter and end with a letter or digit. Only letters, digits, underscores (_), and hyphens (-) are allowed. For example, kafka-123test.
   Event data	The system automatically loads the built-in Kafka event template, which is used in this example without modifications.

6. Click Test. The function test result is displayed.

Helpful Links

Manage function triggers through APIs. For details, see Function Trigger APIs.
