Configuring Timeout for a LoadBalancer Service

Notes and Constraints

Using the CCE Console

1. Log in to the CCE console and click the cluster name to access the cluster console.
2. In the navigation pane, choose Services & Ingresses. In the upper right corner, click Create Service.
3. Configure Service parameters. In this example, only mandatory parameters required for configuring timeout are listed. For details about how to configure other parameters, see Using the Console.
   • Service Name: Specify a Service name, which can be the same as the workload name.
   • Service Type: Select LoadBalancer.
   • Selector: Add a label and click Confirm. The Service will use this label to select pods. You can also click Reference Workload Label to use the label of an existing workload. In the dialog box that is displayed, select a workload and click OK.
   • Load Balancer: Select a load balancer type and creation mode.
     • A load balancer can be dedicated or shared.
     • This section uses an existing load balancer as an example. For details about the parameters for automatically creating a load balancer, see Table 1.
   • Ports
     • Protocol: protocol that the load balancer complies. Timeout cannot be configured for a UDP-compliant shared load balancer.
     • Service Port: port used by the Service. The port number ranges from 1 to 65535.
     • Container Port: listener port of the workload. For example, Nginx uses port 80 by default.
     • Frontend Protocol: Select a protocol for the listener. If HTTP/HTTPS is not enabled, only the idle timeout can be configured.
   • Listener
     • Advanced Options: Select a proper option.

       Configuration	Description	Restrictions
       Idle Timeout	Timeout for an idle client connection. If there are no requests reaching the load balancer during the timeout duration, the load balancer will disconnect the connection from the client and establish a new connection when there is a new request.	This configuration is not supported if the port of a shared load balancer uses UDP.
       Request Timeout	Timeout for waiting for a request from a client. There are two cases: If the client fails to send a request header to the load balancer during the timeout duration, the request will be interrupted. If the interval between two consecutive request bodies reaching the load balancer is greater than the timeout duration, the connection will be disconnected.	This parameter is available only after HTTP/HTTPS is enabled on ports.
       Response Timeout	Timeout for waiting for a response from a backend server. After a request is forwarded to the backend server, if the backend server does not respond during the timeout duration, the load balancer will stop waiting and return HTTP 504 Gateway Timeout.	This parameter is available only after HTTP/HTTPS is enabled on ports.

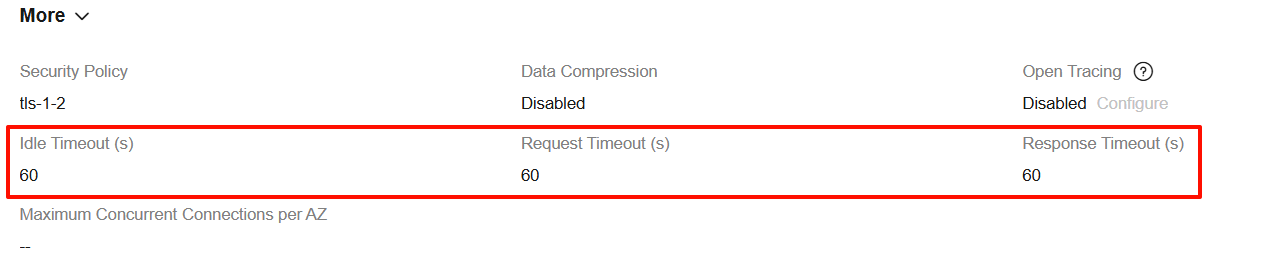

   Figure 1 Configuring timeout


4. Click OK.

Using kubectl

apiVersion: v1
kind: Service
metadata:
  annotations:
    kubernetes.io/elb.id: <your_elb_id>    # In this example, an existing dedicated load balancer is used. Replace its ID with the ID of your dedicated load balancer.
    kubernetes.io/elb.class: performance  # Load balancer type
    kubernetes.io/elb.protocol-port: http:80 # The HTTP port 80 is used.
    kubernetes.io/elb.keepalive_timeout: '300'  # Timeout setting for client connections
    kubernetes.io/elb.client_timeout: '60'      # Timeout for waiting for a request from a client
    kubernetes.io/elb.member_timeout: '60'      # Timeout for waiting for a response from a backend server
  name: nginx
spec:
  ports:
  - name: service0
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: nginx
  type: LoadBalancer
