Collecting and Uploading NPU Logs

Scenario

When an NPU is faulty, collect NPU log information by referring to this section. The logs generated in this exercise are saved on the node and automatically uploaded to the OBS bucket provided by technical support. Logs are used only for fault locating and analysis. You need to provide the AK/SK for authorization and authentication.

Constraints

Currently, this function is available only in CN Southwest-Guiyang1, CN Ulanqab1, CN East 2, CN East-Shanghai1, CN North-Beijing4, and CN South-Guangzhou.

Supported models: 300IDuo, Snt9B, and Snt9B23

Procedure

1. Obtain the AK/SK, which are used for script configuration, as well as authentication and authorization.

   If an AK/SK pair is already available, skip this step. Find the downloaded AK/SK file, which is usually named credentials.csv.

   The file contains the username, AK, and SK.

   Figure 1 credential.csv

   To generate an AK/SK pair, follow these steps:

   1. Log in to the Huawei Cloud console.
   2. Hover the cursor over the username in the upper right corner and choose My Credentials from the drop-down list.
   3. In the navigation pane on the left, choose Access Keys.
   4. Click Create Access Key.
   5. Download the key and keep it secure.

2. Prepare the tenant ID and IAM ID for OBS bucket configuration.

   Send the prepared information to technical support, who will configure an OBS bucket policy based on your information. You can upload the collected logs to the corresponding OBS bucket.

   After the configuration, the OBS directory obs_dir is provided for you to configure subsequent scripts.

   Figure 2 Tenant and IAM accounts


3. Collect the logs and upload the script.
   Modify the NpuLogCollection parameter in the script below. Replace ak, sk, and obs_dir with the values obtained in the previous steps. For the 300IDuo model, set is_300_iduo to True. Upload the script to the node whose NPU logs need to be collected.

   import json
   import os
   import sys
   import hashlib
   import hmac
   import binascii
   import subprocess
   import re
   from datetime import datetime

   class NpuLogCollection(object):
       NPU_LOG_PATH = "/var/log/npu_log_collect"
       SUPPORT_REGIONS = ['cn-southwest-2', 'cn-north-9', 'cn-east-4', 'cn-east-3', 'cn-north-4', 'cn-south-1']
       OPENSTACK_METADATA = "http://169.254.169.254/openstack/latest/meta_data.json"
       OBS_BUCKET_PREFIX = "npu-log-"

       def __init__(self, ak, sk, obs_dir, is_300_iduo=False):
           self.ak = ak
           self.sk = sk
           self.obs_dir = obs_dir
           self.is_300_iduo = is_300_iduo
           self.region_id = self.get_region_id()
           self.card_ids, self.chip_count = self.get_card_ids()

       def get_region_id(self):
           meta_data = os.popen("curl {}".format(self.OPENSTACK_METADATA))
           json_meta_data = json.loads(meta_data.read())
           meta_data.close()
           region_id = json_meta_data["region_id"]
           if region_id not in self.SUPPORT_REGIONS:
               print("current region {} is not support.".format(region_id))
               raise Exception('region exception')
           return region_id

       def gen_collect_npu_log_shell(self):
           # 300IDUO does not support
           hccn_tool_log_shell = "echo {npu_network_info}\n" \
                                 "for i in {npu_card_ids}; do hccn_tool -i $i -net_health -g >> {npu_log_path}/npu-smi_net-health.log ;done\n" \
                                 "for i in {npu_card_ids}; do hccn_tool -i $i -link -g >> {npu_log_path}/npu-smi_link.log ;done\n" \
                                 "for i in {npu_card_ids}; do hccn_tool -i $i -tls -g |grep switch >> {npu_log_path}/npu-smi_switch.log;done\n" \
                                 "for i in {npu_card_ids}; do hccn_tool -i $i -optical -g | grep prese >> {npu_log_path}/npu-smi_present.log ;done\n" \
                                 "for i in {npu_card_ids}; do hccn_tool -i $i -link_stat -g >> {npu_log_path}/npu_link_history.log ;done\n" \
                                 "for i in {npu_card_ids}; do hccn_tool -i $i -ip -g >> {npu_log_path}/npu_roce_ip_info.log ;done\n" \
                                 "for i in {npu_card_ids}; do hccn_tool -i $i -lldp -g >> {npu_log_path}/npu_nic_switch_info.log ;done\n" \
               .format(npu_log_path=self.NPU_LOG_PATH,
                       npu_card_ids=self.card_ids,
                       npu_network_info="collect npu network info")

           collect_npu_log_shell = "# !/bin/sh\n" \
                                   "step=1\n" \
                                   "rm -rf {npu_log_path}\n" \
                                   "mkdir -p {npu_log_path}\n" \
                                   "echo {echo_npu_driver_info}\n" \
                                   "npu-smi info > {npu_log_path}/npu-smi_info.log\n" \
                                   "cat /usr/local/Ascend/driver/version.info > {npu_log_path}/npu-smi_driver-version.log\n" \
                                   "/usr/local/Ascend/driver/tools/upgrade-tool --device_index -1 --component -1 --version > {npu_log_path}/npu-smi_firmware-version.log\n" \
                                   "for i in {npu_card_ids}; do for ((j=0;j<{chip_count};j++)); do npu-smi info -t health -i $i -c $j; done >> {npu_log_path}/npu-smi_health-code.log;done;\n" \
                                   "for i in {npu_card_ids}; do npu-smi info -t board -i $i >> {npu_log_path}/npu-smi_board.log; done;\n" \
                                   "echo {echo_npu_ecc_info}\n" \
                                   "for i in {npu_card_ids};do npu-smi info -t ecc -i $i >> {npu_log_path}/npu-smi_ecc.log; done;\n" \
                                   "lspci | grep acce > {npu_log_path}/Device-info.log\n" \
                                   "echo {echo_npu_device_log}\n" \
                                   "cd {npu_log_path} && msnpureport -f > /dev/null\n" \
                                   "tar -czvPf {npu_log_path}/log_messages.tar.gz /var/log/message*  > /dev/null\n" \
                                   "tar -czvPf {npu_log_path}/ascend_install.tar.gz /var/log/ascend_seclog/*  > /dev/null\n" \
                                   "echo {echo_npu_tools_log}\n" \
                                   "tar -czvPf {npu_log_path}/ascend_toollog.tar.gz /var/log/nputools_LOG_*  > /dev/null\n" \
               .format(npu_log_path=self.NPU_LOG_PATH,
                       npu_card_ids=self.card_ids,
                       chip_count=self.chip_count,
                       echo_npu_driver_info="collect npu driver info.",
                       echo_npu_ecc_info="collect npu ecc info.",
                       echo_npu_device_log="collect npu device log.",
                       echo_npu_tools_log="collect npu tools log.")
           if self.is_300_iduo:
               return collect_npu_log_shell
           return collect_npu_log_shell + hccn_tool_log_shell

       def collect_npu_log(self):
           print("begin to collect npu log")
           os.system(self.gen_collect_npu_log_shell())
           date_collect = datetime.now().strftime('%Y%m%d%H%M%S')
           instance_ip_obj = os.popen("curl http://169.254.169.254/latest/meta-data/local-ipv4")
           instance_ip = instance_ip_obj.read()
           instance_ip_obj.close()
           log_tar = "%s-npu-log-%s.tar.gz" % (instance_ip, date_collect)
           os.system("tar -czvPf %s %s > /dev/null" % (log_tar, self.NPU_LOG_PATH))
           print("success to collect npu log with {}".format(log_tar))
           return log_tar

       def upload_log_to_obs(self, log_tar):
           obs_bucket = "{}{}".format(self.OBS_BUCKET_PREFIX, self.region_id)
           print("begin to upload {} to obs bucket {}".format(log_tar, obs_bucket))
           obs_url = "https://%s.obs.%s.myhuaweicloud.com/%s/%s" % (obs_bucket, self.region_id, self.obs_dir, log_tar)
           date = datetime.utcnow().strftime('%a, %d %b %Y %H:%M:%S GMT')
           canonicalized_headers = "x-obs-acl:public-read"
           obs_sign = self.gen_obs_sign(date, canonicalized_headers, obs_bucket, log_tar)

           auth = "OBS " + self.ak + ":" + obs_sign
           header_date = '\"' + "Date:" + date + '\"'
           header_auth = '\"' + "Authorization:" + auth + '\"'
           header_obs_acl = '\"' + canonicalized_headers + '\"'

           cmd = "curl -X PUT -T " + log_tar + " -w %{http_code} " + obs_url + " -H " + header_date + " -H " + header_auth + " -H " + header_obs_acl
           result = subprocess.run(cmd, shell=True, capture_output=True, text=True)
           http_code = result.stdout.strip()
           if result.returncode == 0 and http_code == "200":
               print("success to upload {} to obs bucket {}".format(log_tar, obs_bucket))
           else:
               print("failed to upload {} to obs bucket {}".format(log_tar, obs_bucket))
               print(result)

       #  calculate obs auth sign
       def gen_obs_sign(self, date, canonicalized_headers, obs_bucket, log_tar):
           http_method = "PUT"
           canonicalized_resource = "/%s/%s/%s" % (obs_bucket, self.obs_dir, log_tar)
           IS_PYTHON2 = sys.version_info.major == 2 or sys.version < '3'
           canonical_string = http_method + "\n" + "\n" + "\n" + date + "\n" + canonicalized_headers + "\n" + canonicalized_resource
           if IS_PYTHON2:
               hashed = hmac.new(self.sk, canonical_string, hashlib.sha1)
               obs_sign = binascii.b2a_base64(hashed.digest())[:-1]
           else:
               hashed = hmac.new(self.sk.encode('UTF-8'), canonical_string.encode('UTF-8'), hashlib.sha1)
               obs_sign = binascii.b2a_base64(hashed.digest())[:-1].decode('UTF-8')
           return obs_sign

       # get NPU Id and Chip count
       def get_card_ids(self):
           card_ids = []
           cmd = "npu-smi info -l"
           result = subprocess.run(cmd, shell=True, capture_output=True, text=True)
           if result.returncode != 0:
               print("failed to execute commond[{}]".format(cmd))
               return ""
           match = re.search(r'Chip Count\s*:\s*(\d+)', result.stdout)
           # default chip count is 1, 300IDUO or 910C is 2
           chip_count = 1
           if match and int(match.group(1)) > 0:
               chip_count=int(match.group(1))

           # filter NPU ID Regex
           pattern = re.compile(r'NPU ID(.*?): (.*?)\n', re.DOTALL)
           matches = pattern.findall(result.stdout)
           for match in matches:
               if len(match) != 2:
                   continue
               id = int(match[1])
               # if drop card
               if id < 0:
                   print("Card may not be found, NPU ID: {}".format(id))
                   continue
               card_ids.append(id)
           print("success to get card id {}, Chip Count {}".format(card_ids, chip_count))
           return " ".join(str(x) for x in card_ids), chip_count

       def execute(self):
           if self.obs_dir == "":
               print("the obs_dir is null, please enter a correct dir")
           else:
               log_tar = self.collect_npu_log()
               self.upload_log_to_obs(log_tar)


   if __name__ == '__main__':
       npu_log_collection = NpuLogCollection(ak='ak',
                                             sk='sk',
                                             obs_dir='obs_dir',
                                             is_300_iduo=False)
       npu_log_collection.execute()

4. Run the script to collect logs.

   Run the script on the node. If the following information is displayed, logs are collected and uploaded to OBS.

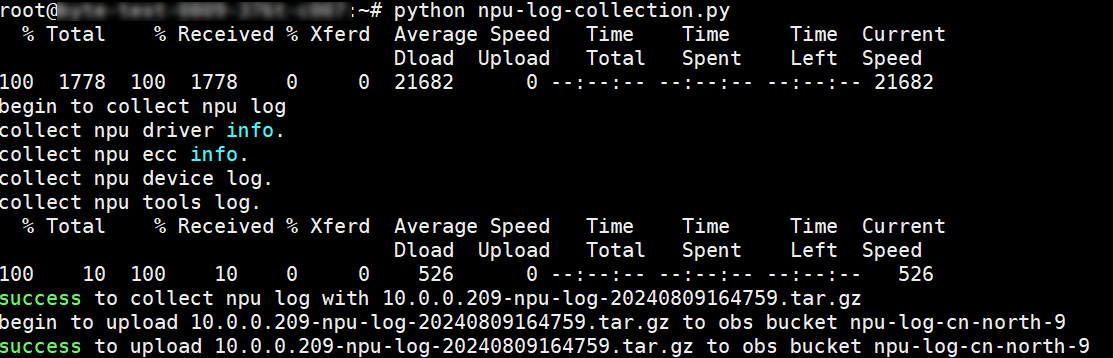

   Figure 3 Log uploaded

5. View the uploaded log package in the directory where the script is stored.
   Figure 4 Viewing the result
