Creating a View

View

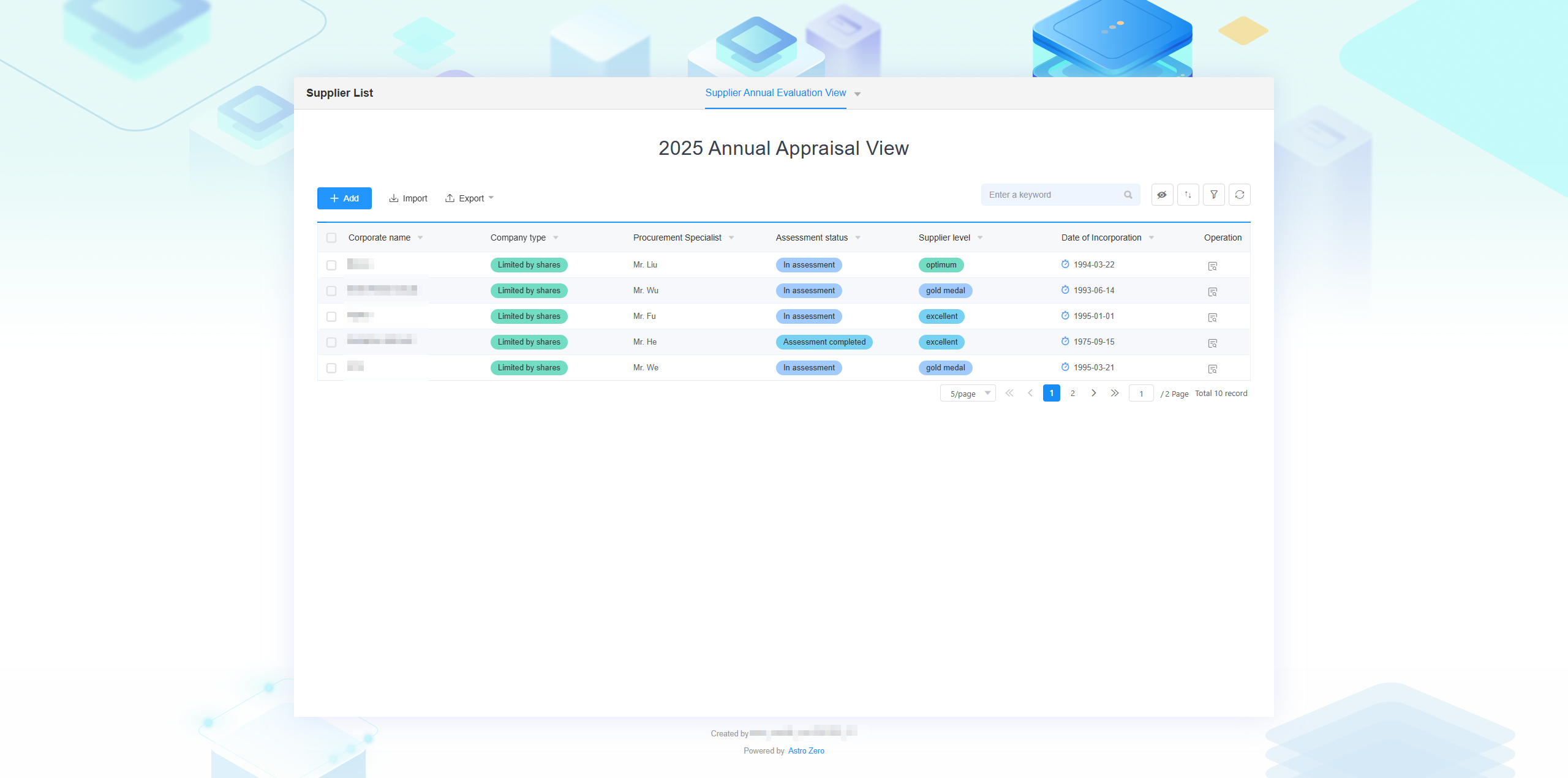

A view is a page displaying service data in different scenarios. It shows different target data based on user roles or service scenarios. By default, each form on Huawei Cloud Astro Zero no-code platform has a table view named All where all data is displayed. A form can contain multiple views. All views of the same form share the same set of data. Data modification is synchronized to all views where the data is located.

Figure 1 Relationships between applications, forms, and views

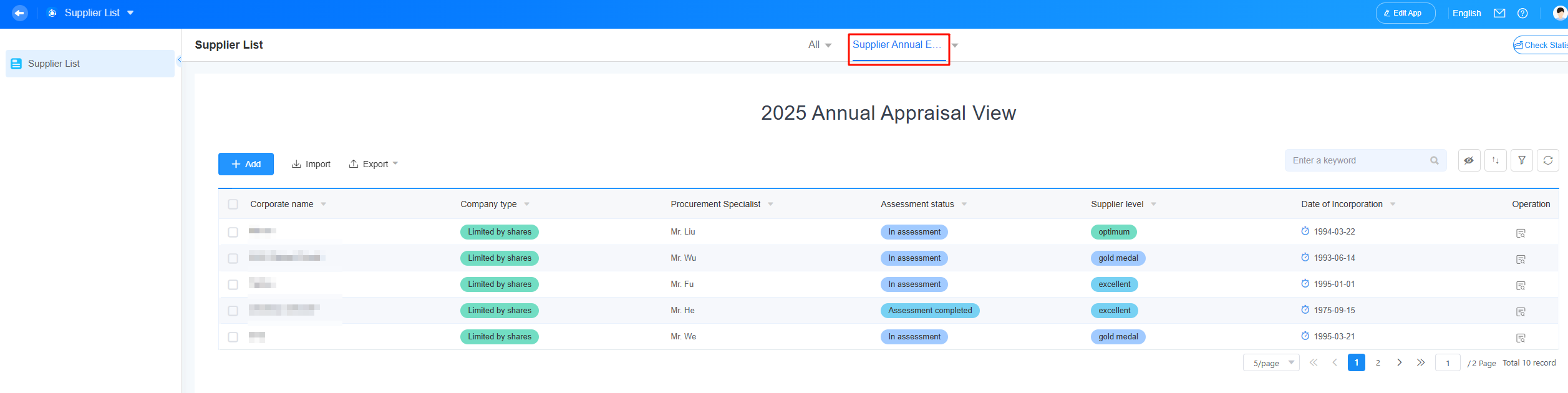

For example, a food ordering application creates a view for each department based on the food ordering situation, for example, a view of food ordering data can be created for department A, department B, and department C respectively. In the view (view editing), filter the information of each department to help food orderer manage orders.

Creating a Personal View

1. Log in to the no-code application workbench by referring to Logging In to the No-Code Workbench.
2. In the All area, hover your cursor to the ... in the upper right corner of an application and click Edit.
3. Click + on the right of an existing view and choose Table View > Personal View, as shown in Figure 2.

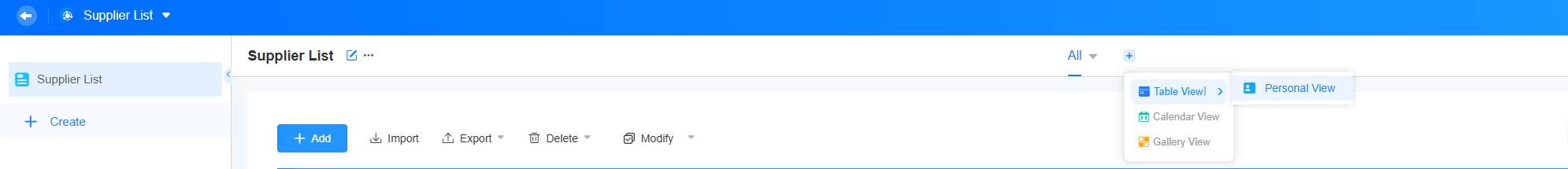

   Figure 2 Creating a view


4. In the upper left corner of the displayed page, set the view name.

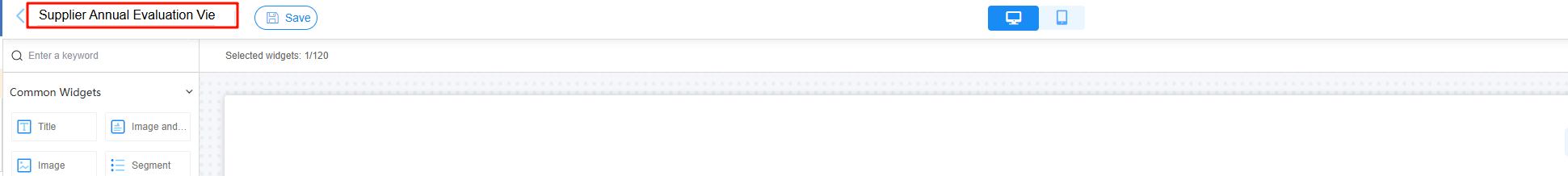

   Figure 3 Setting the view name


5. In the upper part of the middle area, select a terminal view type. Currently, PC and mobile terminals are supported.
6. Drag widgets from the common widgets area to the middle area as required and set widget properties. For details about how to configure widget properties, see No-Code Widgets.
   Figure 4 Dragging a widget


7. In the right pane, click Data Scope and set the data filter criteria, sorting fields, or hidden fields.

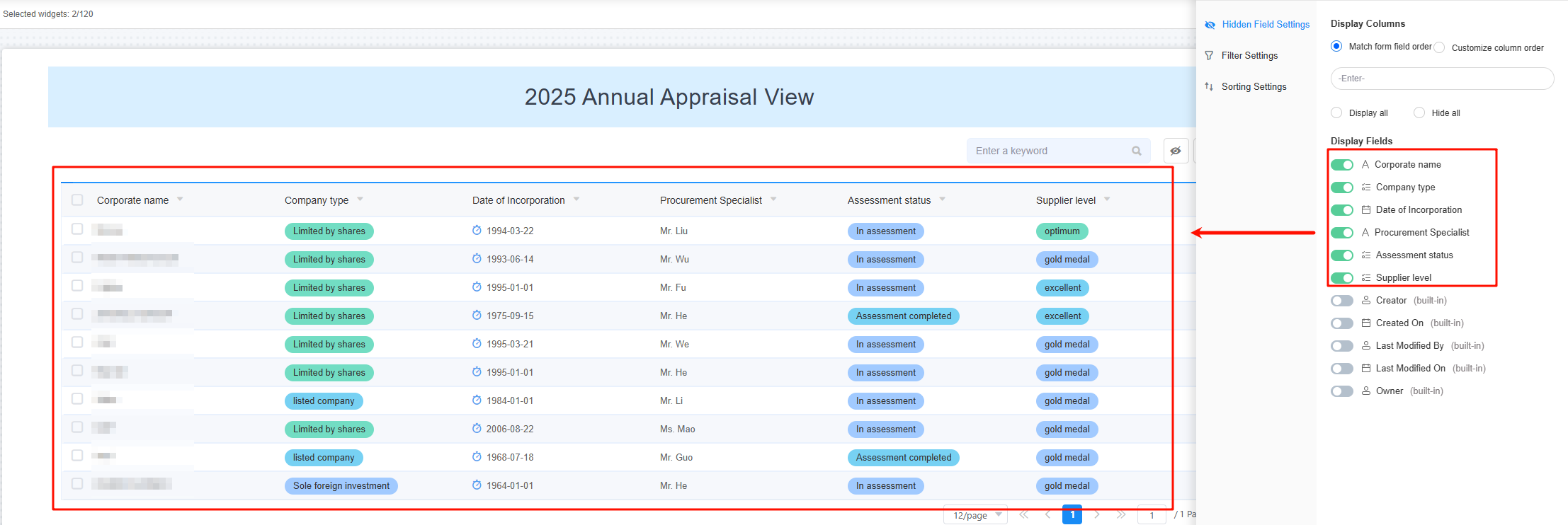

   Figure 5 Setting the data scope

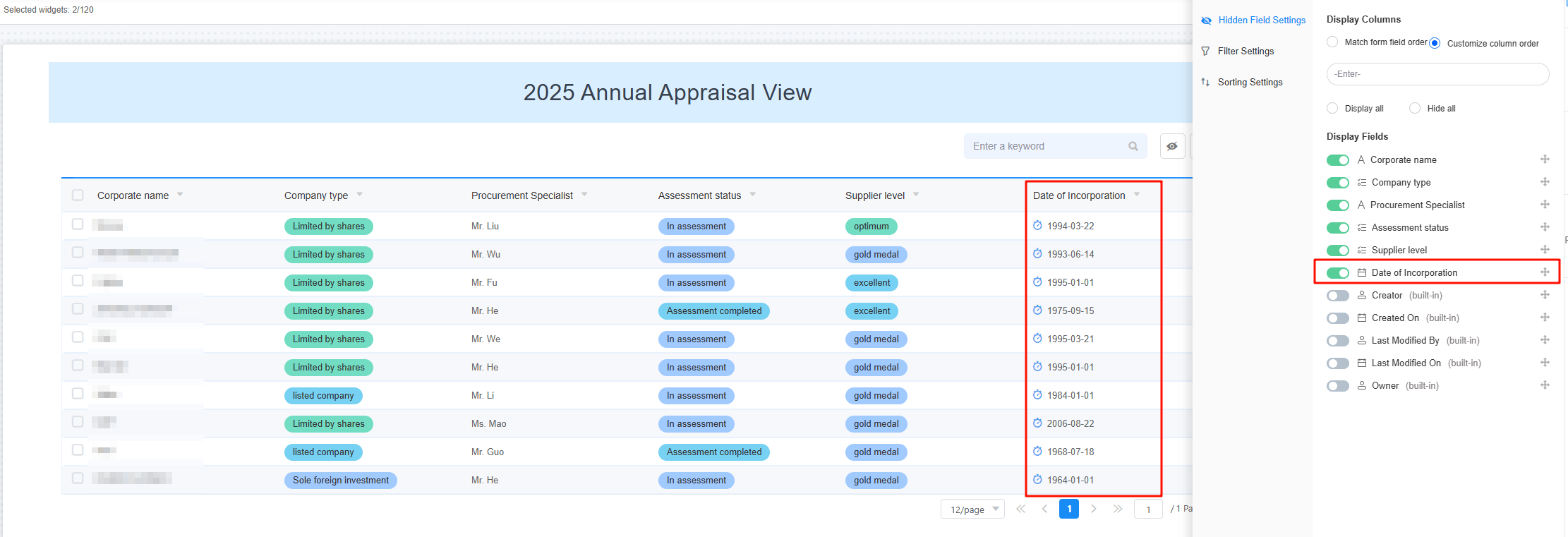

   • Hidden Field Settings: You can select Display all or Hide all, or specify fields to be displayed. If there are too many fields, you can search for fields to hide or show them.

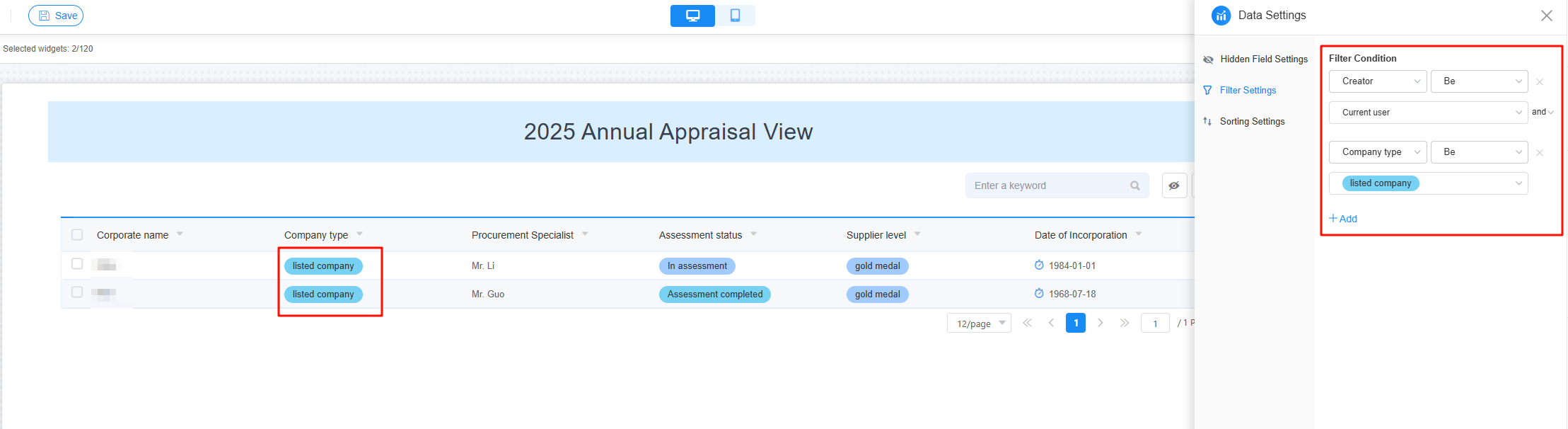

   • Filter Settings: Add criteria to filter the displayed data.

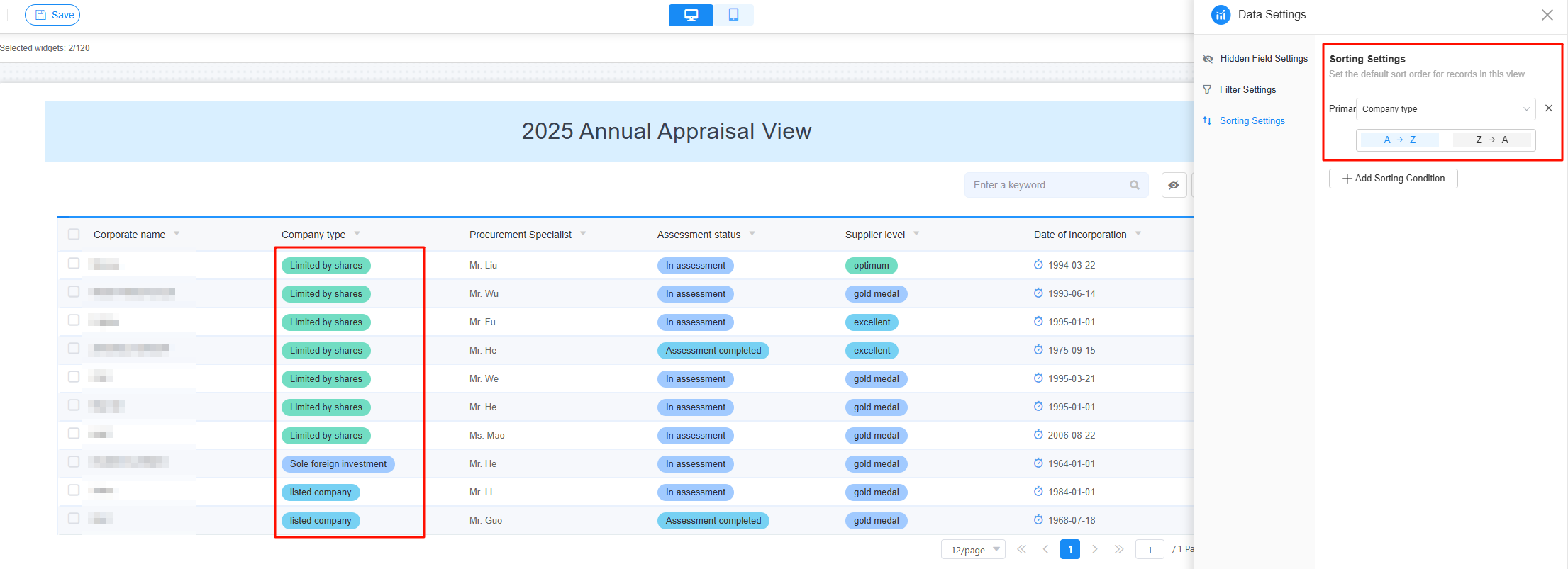

   • Sorting Settings: Add criteria to set the default sort order for records in this view.

8. Click Display Settings on the right of the page and configure view display properties.

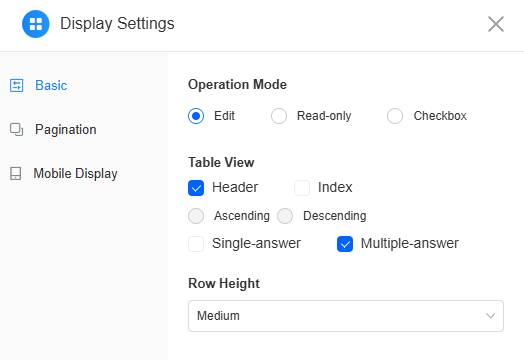

   Figure 6 Display settings

   • Basic
     • Operation Mode: Set the operation mode for the table.
       • Edit: Create, export, or delete data.
       • Read-only: Table data can only be read in this view.
       • Checkbox: Select any rows of data.
     • Table View: Set the table display.
       • Header: Whether to display the table header.
       • Index: Whether to display row numbers. If selected, row numbers appear in the first column of the table and continue across pages. The sequence numbers can be sorted either in ascending or descending order.
       • Single select: If selected, a radio button appears to the left of each row, allowing you to choose only one row of data.
       • Multiple-select: If selected, a checkbox appears before each row, allowing you to select multiple rows of data.
     • Row Height: Set the row height as required.
   • Pagination
     • Whether to display data on multiple pages. By default, pagination is enabled.
     • Style: Set the page style. The simple and complete styles are supported.
     • Default number of records on each page: number of records on each page.

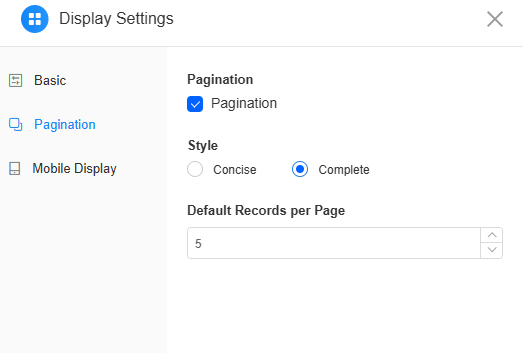

       Figure 7 Number of records on each page

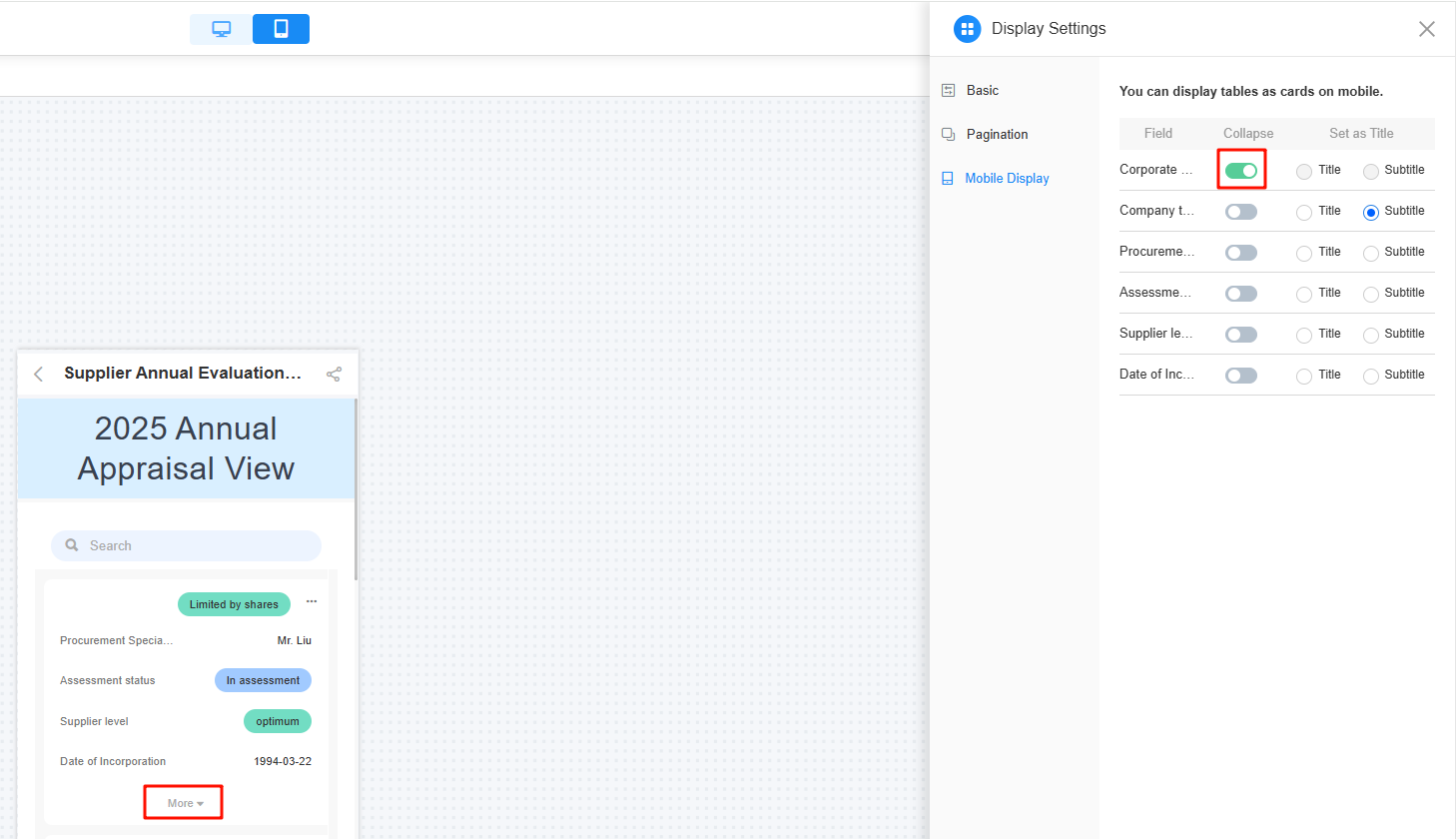

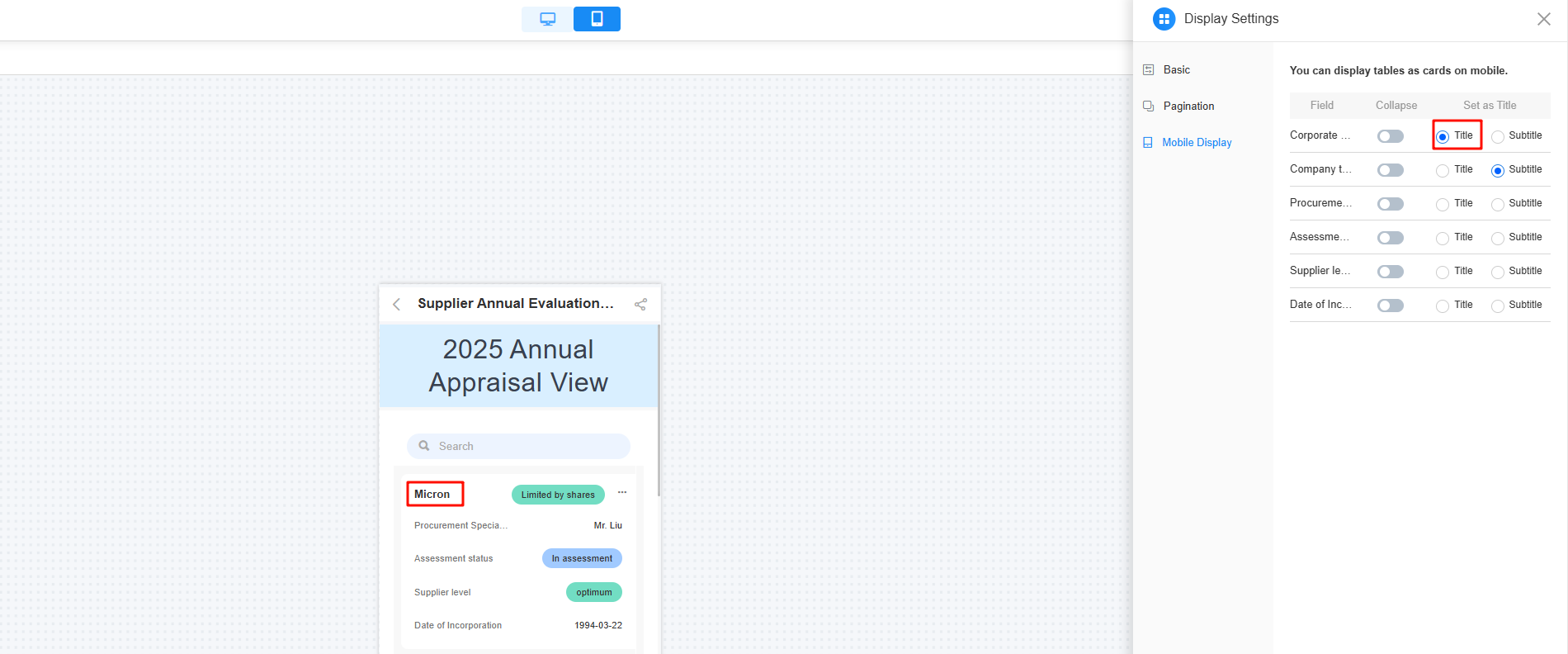

     • Mobile Display: On mobile devices, tables are shown in card format.

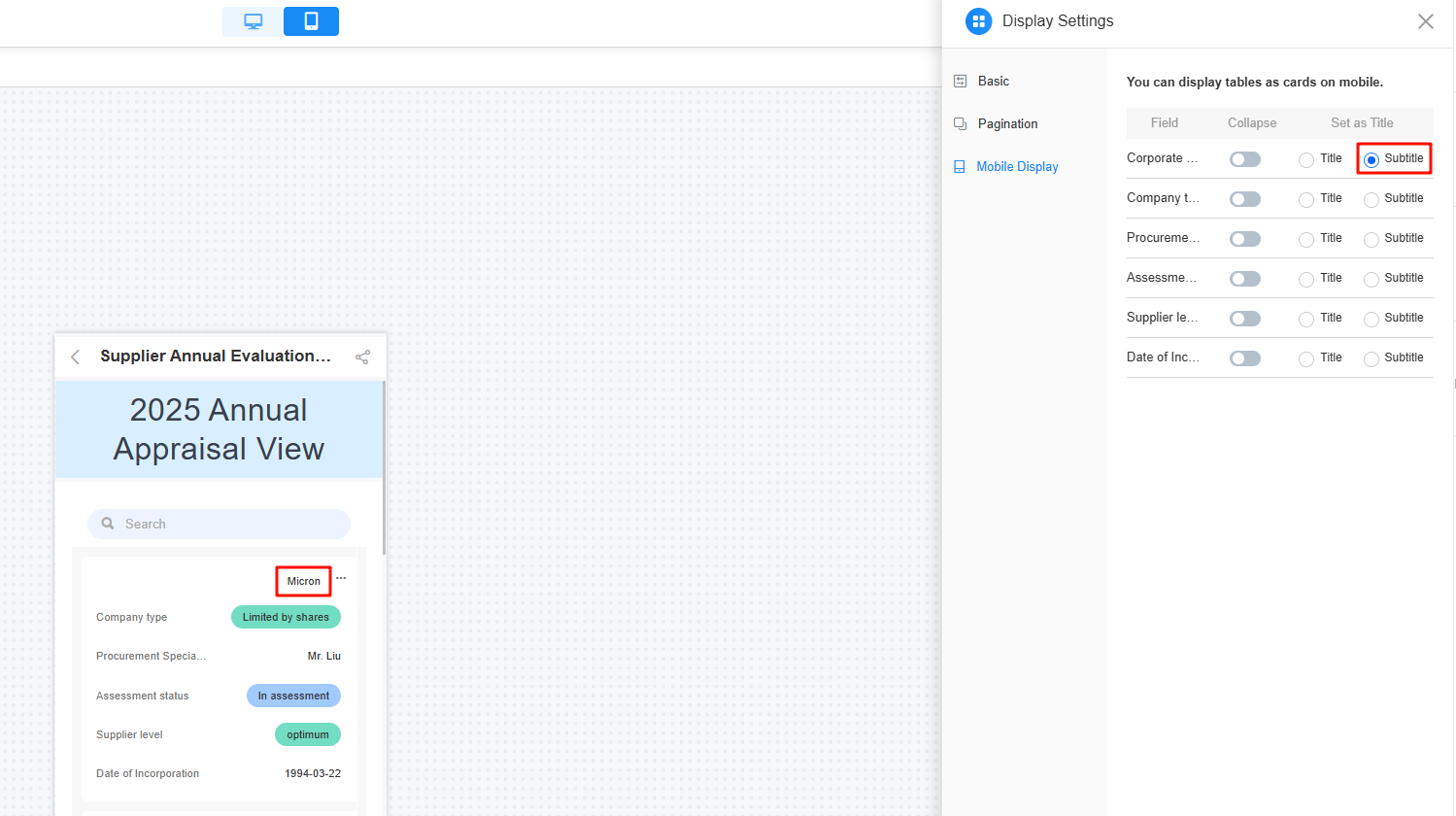

       Select the mobile view in the upper middle of the page, complete the related settings, and then preview the view, as shown in Figure 8.

       Figure 8 Mobile view

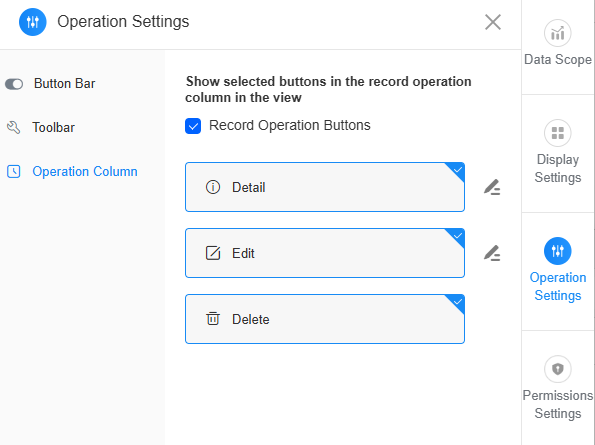

9. In the right of the page, click Operation Settings to set the properties related to operations on the view.

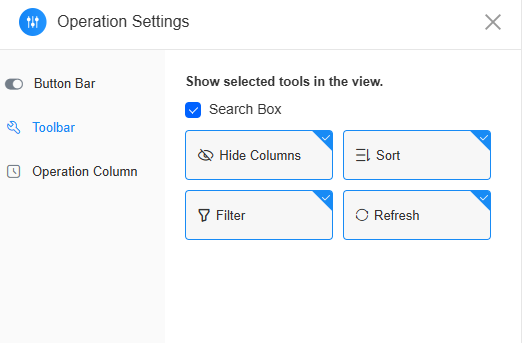

   Figure 9 Operation settings

   • Button Bar: You can select buttons to be displayed in the view. Some buttons are displayed when a record is selected. Click to select the page to be displayed.
   • Toolbar: Set the tools to be displayed in the view. If you enable search box, the search box appears on the view page.

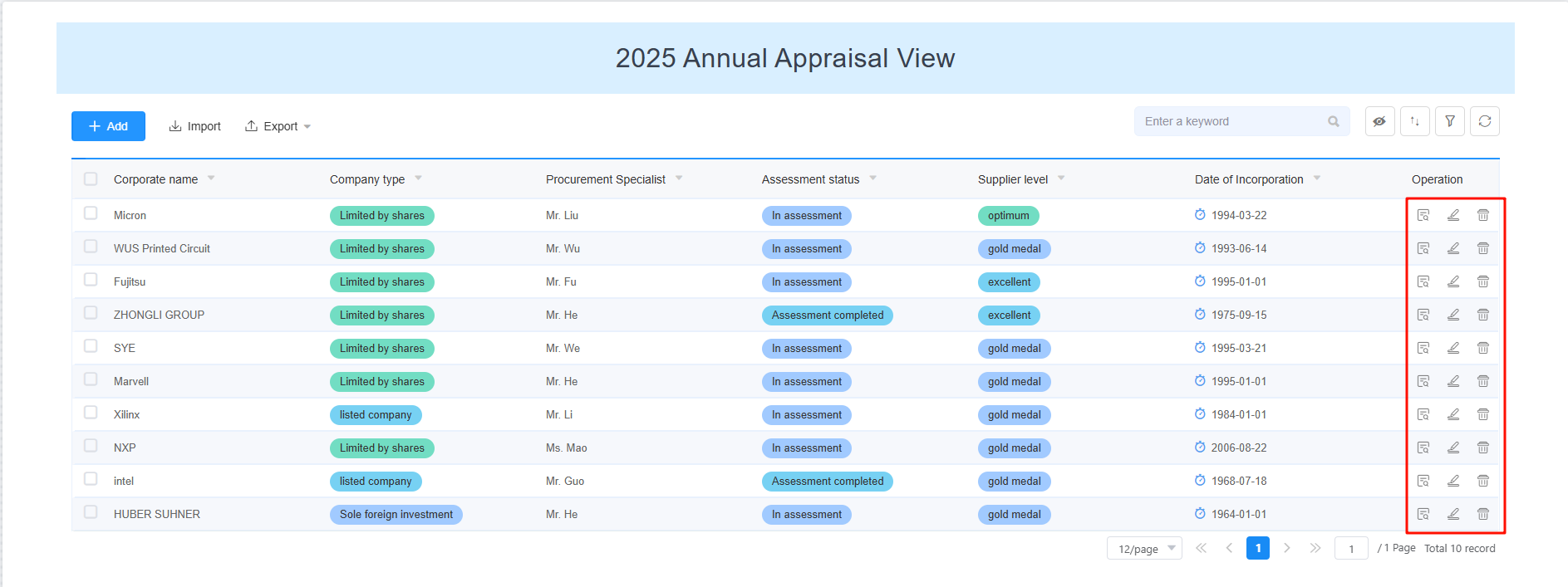

   • Operation Column: Display the operation buttons for records in the view. If the option of enabling record operation buttons is not selected, the operation column will not be displayed. Click to select the page to be displayed.

10. Click Permission Settings on the right of the page to assign the permissions to view the current form page. You can assign the permissions to all roles or some roles.

    For details about how to create a role and set more application permissions, see Setting Application Security.

11. Click Save in the upper left of the page to save the view.
