Searching and Analyzing Logs

LTS enables you to search and analyze logs simultaneously using a statement that includes a pipe character (|). The syntax consists of three parts: a statement for searching unstructured and semi-structured data, a pipe character (|), and a statement for analyzing structured data, for example, * and msg:"hello world" | SELECT avg(value).

Log Search and Analysis

On the LTS console, choose Log Management in the navigation pane.
In the log group list, click on the left of a log group name.
In the log stream list, click the name of the target log stream.

Figure 1 Log search tab page
On the Log Search tab page, view the structuring fields and index fields under Quick Analysis. You can click next to a field to view the metric information. For details, see Creating a Quick Analysis Task.

Figure 2 Structuring fields
When you search through a large amount of log data on the Log Search tab page, LTS automatically initiates an iterative search.
- During an iterative log search, you cannot enter any information in the search box. To pause the iterative search, click Pause. To resume the search, click Continue. You are advised not to initiate a new search task before the current iterative search is complete.
- For iterative searches that take a long time, you can narrow down the time range or add filters to reduce the number of iterative searches.
On the Charts tab page, select a time range in the upper right corner to view raw logs and statistical charts. Enter a search statement and a SQL analysis statement, separated by the pipe character (|), in the search box. For details, see SQL Functions.

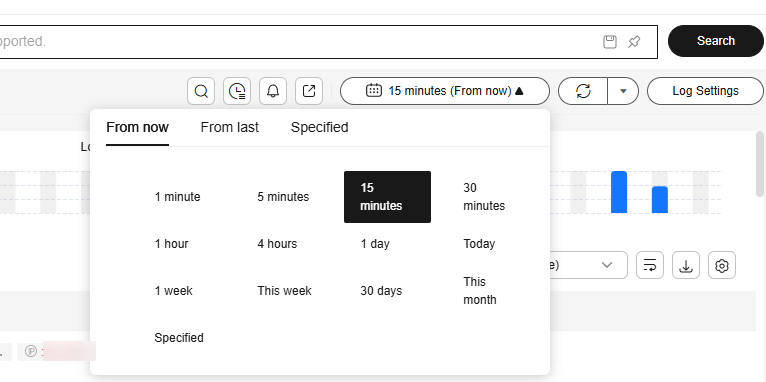

Figure 3 Time range

There are three types of time range: relative time from now, relative time from last, and specified time. Select a time range as required.
- From now: queries log data generated in a time range that ends with the current time, such as the previous 1, 5, or 15 minutes. For example, if the current time is 19:20:31 and 1 hour is selected as the relative time from now, the charts on the dashboard display the log data that is generated from 18:20:31 to 19:20:31.
- From last: queries log data generated in a time range that ends with the current time, such as the previous 1 or 15 minutes. For example, if the current time is 19:20:31 and 1 hour is selected as the relative time from last, the charts on the dashboard display the log data that is generated from 18:00:00 to 19:00:00.
- Specified: queries log data that is generated in a specified time range.
Set the layout of log data, including whether to display fields or display fields in a simple view.
1. Select Edit layouts from the layout drop-down list to access the layout setting page. The list also contains options such as the default layout, pure layout, and default container log layout, for you to set whether to display fields.

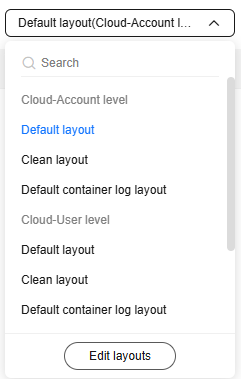

  Figure 4 Editing layouts
  - Cloud: This mode is applicable to users who have the write permission. Layout information is stored on the cloud. You can set the layout configuration at the account or user level.
  - Local Cache: This mode is applicable to users who have only the read permission. Layout information is cached in the local browser.
2. On the displayed Layout page, click + under Layout List to create a custom layout, name it, and configure how fields are displayed in this layout.

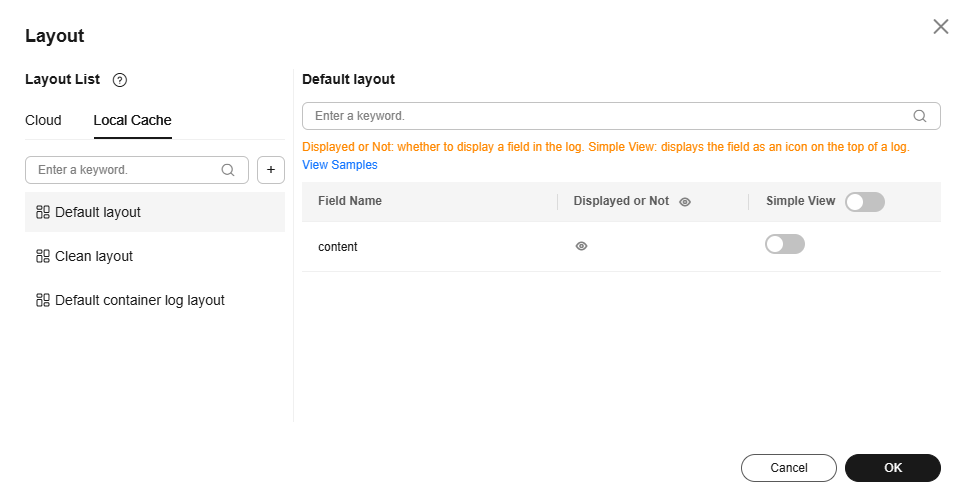

  Figure 5 Layout settings

  You can perform the following operations on a new layout:
  - Edit: Click to edit the layout's display name.
  - Copy: Hover the cursor over , select Copy To Local Cache, Copy To Cloud-Account level, or Copy To Cloud-User level, and click OK.
  - Delete: Click and then Yes to delete the layout.

    Deleted layouts cannot be restored. Exercise caution when performing this operation.
3. After the setting is complete, click OK. The new custom layout is displayed in the drop-down list.
On the Log Search tab page, configure the column display settings.
1. Choose List to display logs in a list, hover the cursor over , and click Set Columns. On the displayed page, set the columns to be displayed.
2. By default, the display of the time column and content column is enabled. All visible field names are listed under Displayed Columns. You can set aliases for fields. Properly configured aliases can make your logs easier to read and maintain, improving query efficiency. Click OK.
3. You can display or hide fields as described in Creating a Quick Analysis Task or 7.

Interactive Mode

Before using the interactive mode function, ensure that logs are properly reported and structured, and indexing have been configured. For details, see Using ICAgent to Collect Host Logs and Configuring Log Indexing.

If you have not configured ICAgent structuring parsing when configuring log ingestion to LTS, you can configure ICAgent or cloud configuring parsing for the target log stream separately. ICAgent structuring parsing is recommended. For details, see Configuring ICAgent Structuring Parsing.

The interactive search and analysis function generates simple analysis statements, allowing you to set search criteria and specify query filter rules on the LTS console to filter log events. For more functions or nested queries, enter SQL statements manually. For details, see SQL Functions.

Click Interactive Search in front of the search box. On the displayed page, you can set log search and analysis.

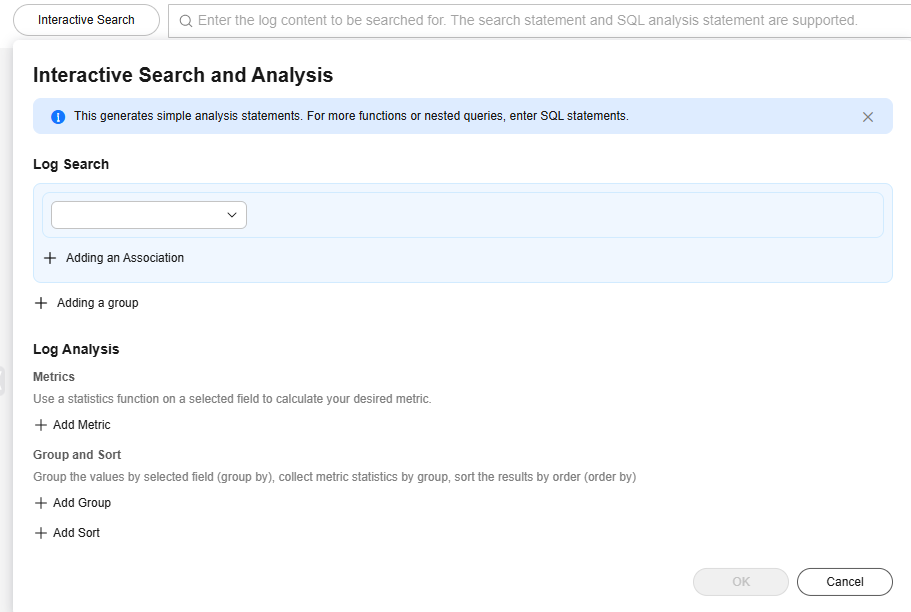

Figure 6 Interactive mode
Select the log search field and criteria from the drop-down list under Log Search. The corresponding values of the field will be displayed in the search box. Add associations or groups to customize your search mode.
- The drop-down list displays index fields, structuring fields, and system reserved fields.
- And indicates that all conditions must be met.
- Or indicates that only one of the conditions needs to be met.
For example, you can select fields such as content, hostId, and pathFile and set different conditions. Then you can preview the search statement at any time and modify the search conditions with ease.
Set analysis rules under Log Analysis.
1. Click Add Metric and select a statistics function for a selected field to calculate your desired metric.
2. Add Group: Group the values by selected field (group by), collect metric statistics by group, and sort the results by order (order by).
  Click Add Group and Add Sort to set the group information and sorting of the fields.
You can set search criteria as required and preview search statements and modify the search criteria at any time. After the setting is complete, click OK. You can then view the analysis result on the Charts tab page. For details, see Visualizing Logs in Statistical Charts.

Common Log Search Operations

These operations include sharing logs and refreshing logs. For details, see Table 1.

**Table 1** Common operations
Operation	Description
Creating a quick search	Click to create a quick search.
Viewing dashboards	Click to view the dashboards you created.
Adding alarm rules	Click and create an alarm rule on the displayed page.
Sharing logs	Click to copy the link of the current log search page to share the logs that you have searched.
Refreshing logs	You can click to refresh logs in two modes: manual refresh and automatic refresh. Manual refresh: Select Refresh Now from the drop-down list. Automatic refresh: Select an interval from the drop-down list to automatically refresh logs. The interval can be 15 seconds, 30 seconds, 1 minute, or 5 minutes.
Copying logs	Click to copy the log content.
Viewing context of a log	Click to view the log context. You can select Simple View to view the log context. You can also download the context.
More operations	Click to access the log details page of the time segment and view more log information. On the Extended Fields tab page, view field names and values. You can also click buttons in the Operation column to add a field to or exclude a field from a query, set whether a field exists or does not exist, or set whether a field is hidden. On the JSON Format tab page, view the JSON format of logs. On the Context Logs tab page, you can set the number of lines to be queried and filtered fields. You can also download logs and enable the summary mode.
Unfold/Fold	Click to display all the log content. This unfold button is enabled by default. Click to fold the log content.
Downloading logs	NOTE: This function is available only to whitelisted users. To enable it, submit a service ticket. Ensure that raw logs have been uploaded to the current log stream. Otherwise, an empty file will be downloaded. Click . On the displayed page, click Direct Download or Transfer and Download (this option is available only after one-off transfer is enabled). Direct Download: Download log files to the local PC. Up to 20 million logs can be downloaded at a time for a whitelisted user. A non-whitelisted user can download up to 5,000 logs at a time. Select .csv or .txt from the drop-down list and click Download to export logs to the local PC. Whitelisted users can download a maximum of 20 million logs at a time. The log files are downloaded to a temporary OBS bucket via a background task, and LTS will charge you for the resulting log transfer volume. For details about the transfer fee, see LTS Pricing Details. Transfer and Download (available only to whitelisted users): Download log files through OBS transfer tasks. Up to 20 million logs can be downloaded at a time. Click Transfer to access the Configure Log Transfer page. For details, see Transferring Logs to OBS. After logs are transferred, LTS charges you based on the actual log transfer volume. For details about the transfer fee, see LTS Pricing Details. Hover your cursor over and click View Download History. On the displayed page, copy log download links and view, download, and delete log download records.
Hiding/Expanding all	Click to set the number of lines displayed in the log content. Click to hide the log content.
JSON	Move the cursor over , click JSON, and set JSON formatting. Formatting is enabled by default. The default number of expanded levels is 2. If a log contains multiple backslashes, the first backslash will be lost when the log is displayed in JSON format because it will be processed as an escape character during JSON parsing. Formatting enabled: Set the default number of expanded levels. Maximum value: 10. Formatting disabled: JSON logs will not be formatted for display.
Collapse configuration	Move the cursor over , click Log Collapse, and set the maximum characters to display in a log. If the number of characters in a log exceeds the maximum, the extra characters will be hidden. Click Expand to view all. Logs are collapsed by default, with a default character limit of 400.
Log time display	Move the cursor over and click Log Time Display. On the page that is displayed, set whether to display milliseconds and whether to display the time zone. Milliseconds are displayed by default.
Invisible fields ()	This list displays the invisible fields configured in the layout settings. The button is unavailable for log streams without layout settings configured. If the log content is CONFIG_FILE and layout settings are not configured, the default invisible fields include appName, clusterId, clusterName, containerName, hostIPv6, NameSpace, podName, and serviceID.

Helpful Links

You can use the log alarm function of LTS to set alarm rules to notify you of exceptions in the ingested logs. For details, see Configuring Log Alarm Rules.
If you have any questions during log search, see Log Search and Analysis in the FAQ.
For best practices of log search and analysis, see Log Search and Analysis in the Best Practices.
1. You can analyze ingested WAF logs on the LTS console. For details, see Analyzing Huawei Cloud WAF Logs on LTS.
2. You can embed the log query page of LTS into your system. For details, see Embedding the LTS Log Query Page into a User-built System.
