Expanding a Graph

Graph expanding increases the maximum number of concurrent read-only requests that can be processed, without changing the graph size.

• Currently, 10,000-edge and 10-billion-edge graphs cannot be expanded.
• Graphs cannot be resized after expansion. If you want to resize and expand the graph, resize the graph before you expand it.

The procedure is as follows:

1. Log in to the management console.
2. In the navigation pane, choose Graph Management. On the displayed page, locate the target graph and choose More > Expand in the Operation column.

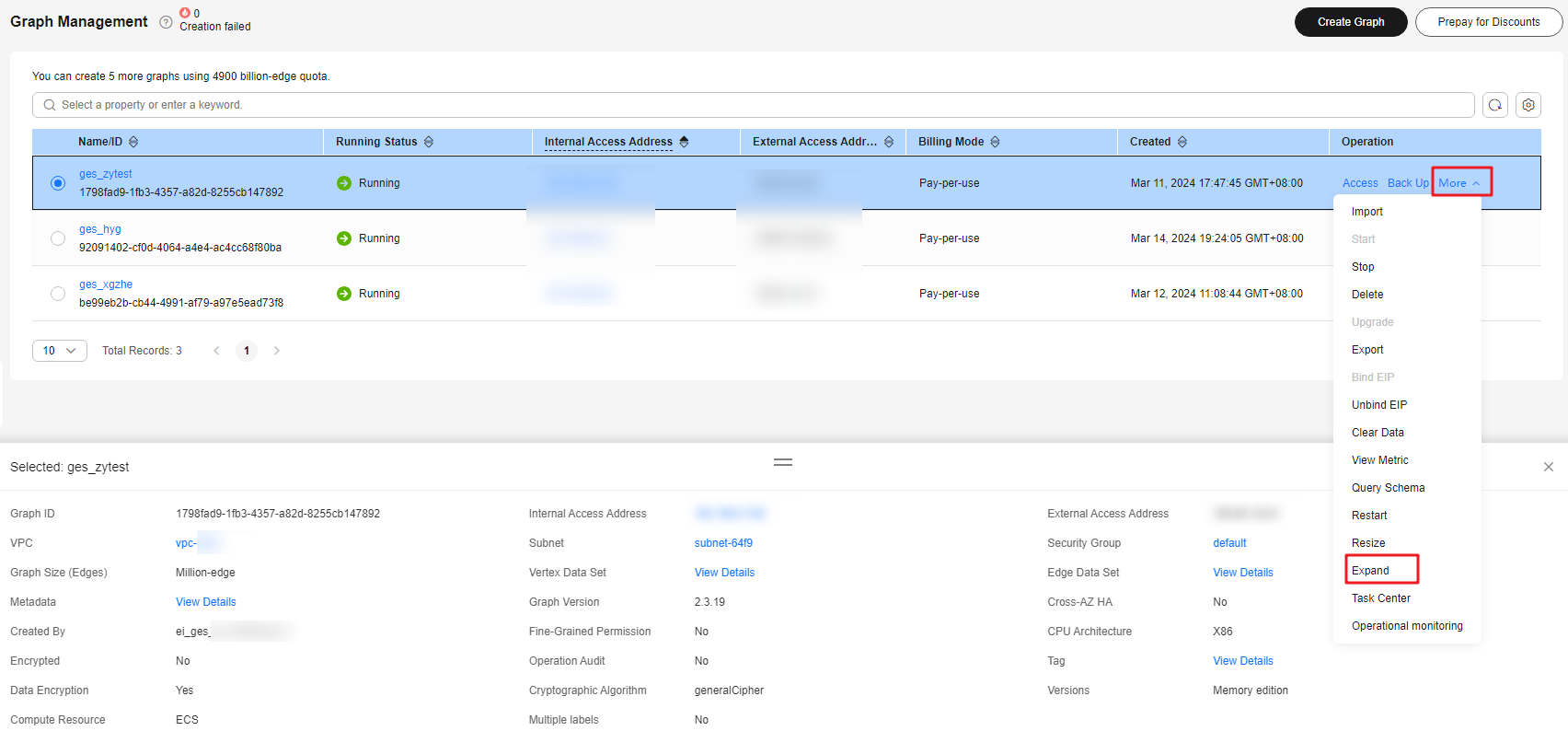

   Figure 1 Expanding a graph



   Only a running graph can be expanded.

3. In the displayed dialog box, set the number of nodes to be added.

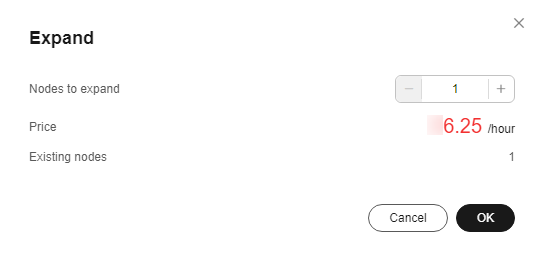

   Figure 2 Select the number of nodes to expand


4. Click OK. The graph status changes to Expanding. Wait several minutes, the status will become Running after the expansion is successful.
