Binding and Unbinding an EIP

Binding an EIP

To access GES over the Internet, you can bind an Elastic IP Address (EIP) to your instance.

The procedure is as follows:

  1. Log in to the GES management console.
  2. In the navigation tree on the left, select Graph Management.
  3. Locate the target graph in the graph list and choose More > Bind EIP in the Operation column.
  4. On the displayed Bind EIP page, select an available EIP.

    If no EIP is available, click Create EIP to create one. Then, click to refresh the list and select the created EIP.

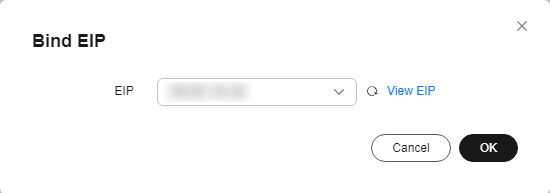

    Figure 1 Binding an EIP

  5. Click OK.

Unbinding an EIP

If you do not need to use the EIP, you can unbind the EIP to release network resources.

The procedure is as follows:

  1. Log in to the GES management console.
  2. In the navigation tree on the left, select Graph Management.
  3. Locate the target graph in the graph list and choose More > Unbind EIP in the Operation column.
  4. In the displayed dialog box, click Yes.
