Updated on 2025-08-14 GMT+08:00
Exporting Graph Data to OBS
You can export graph data to a custom OBS directory.

- Graph data of memory edition 1.0.3 or later can be exported.
- Graph data of database edition 2.3.14 or later can be exported.
The procedure is as follows:
- Log in to the GES management console. In the navigation pane on the left, choose Graph Management.
- In the graph list, locate your desired graph, click More in the Operation column, and select Export.

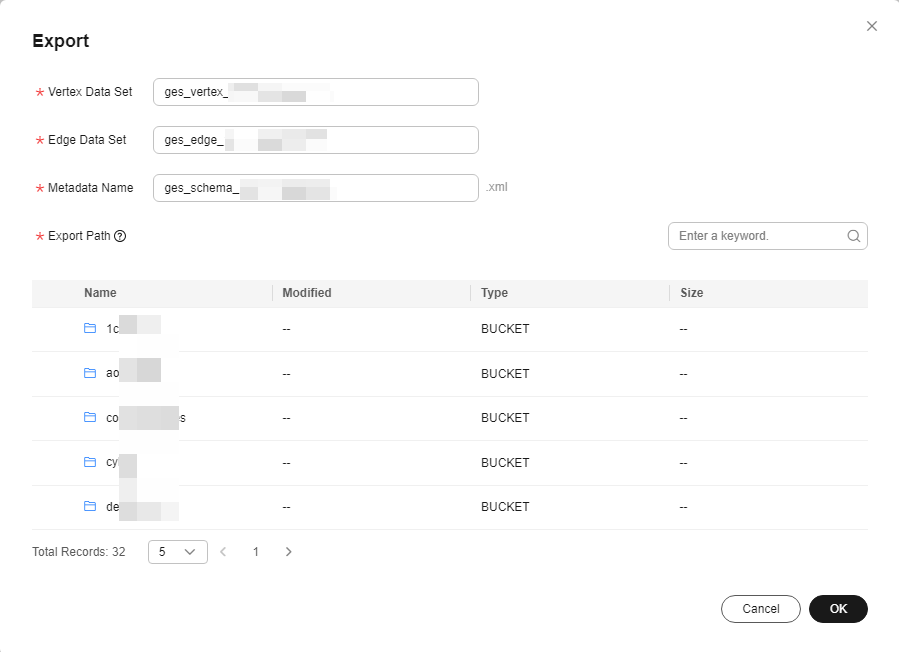

Figure 1 Exporting a graph
- In the lower part of the page that is displayed, select a storage path. (For a graph of the database edition, you also need to select the graph name.)
- Click OK. The graph status changes to Exporting. Wait several minutes, the status will become Running after the export is successful.
You can check whether the data is exported successfully in the selected OBS path.
Parent topic: Managing Created Graphs
