Help Center/ GaussDB/ User Guide/ Database Migration/ Using DRS to Migrate Data from MySQL Database to GaussDB

Using DRS to Migrate Data from MySQL Database to GaussDB

Updated on 2025-01-09 GMT+08:00

Scenarios

This section describes how to use DRS to migrate data from an on-premises MySQL database to Huawei Cloud GaussDB in real time. Full+incremental synchronization can ensure that data is always in sync between the source MySQL database and the destination GaussDB instance.

Step 1: Create a VPC and Security Group

Step 2: Create a GaussDB Instance

Step 3: Construct Data Before Migration

Step 4: Migrating the Database

Step 5: Verify Data After Migration

Problems to Resolve

  • Enterprise workloads have been growing and evolving fast, and traditional databases lack the scalability needed to keep up. Enterprises need distributed databases.
  • Building a traditional database means purchasing and installing servers, systems, databases, and other software. The O&M is expensive and difficult.
  • Traditional databases have poor performance when it comes to handling complex queries.
  • It is hard for traditional databases to smoothly synchronize data with no downtime.

Prerequisites

  • You have registered with Huawei Cloud and completed account authentication.
  • Your account balance is greater than or equal to $0 USD.
  • In a testing scenario, you have set up an on-premises MySQL database.
  • You have obtained the IP address, port number, username, and password of the MySQL database to be migrated.

Service Architecture

How Data Migration Works

The data migration process is completed using full and incremental synchronization, which includes the following operations:

  1. In the full synchronization phase, schemas, including tables, primary keys, and unique keys, are synchronized first.
  2. After schemas are synchronized, incremental data extraction is started to ensure that the incremental data generated during full data synchronization is completely extracted to the DRS instance.
  3. A full migration task is started.
  4. An incremental synchronization is automatically started after the full migration is complete. The replay starts from the position where the full synchronization starts.
  5. A comparison task is started after the incremental replay is complete to check the data consistency. Real-time comparison is supported.
  6. Workloads synchronization is started if the data is consistent between the source and destination databases.
Figure 1 Migration principle

Resource Planning

The resource planning in this section is just an example. You need to adjust it as needed.

Table 1 Resource planning

Category

Item

Planned Value

Remarks

VPC

VPC name

vpc-src-172

Specify a name that is easy to identify.

Region

Test region

To achieve lower network latency, select the region nearest to you.

AZ

AZ 3

-

Subnet CIDR block

172.16.0.0/16

Select a subnet with sufficient network resources.

Subnet name

subnet-src-172

Specify a name that is easy to identify.

On-premises MySQL database

Database version

5.7.38

-

Database user

test_info

Specify a database user. The user must at least have the following privileges: SELECT, LOCK TABLES, REPLICATION SLAVE, and REPLICATION CLIENT.

GaussDB

Instance name

Auto-drs-gaussdbv5-tar-1

Specify a name that is easy to identify.

Database version

GaussDB V2.0-8.103 Enterprise edition

-

Instance type

Distributed (3 CNs, 3 DN shards, and 3 replicas)

In this example, a distributed instance will be created.

Deployment model

Independent

-

Transaction consistency

Strong consistency

-

Shards

3

-

Coordinator nodes

3

-

Storage type

Ultra-high I/O

-

AZ

AZ 2

In this example, a single AZ is select. You are advised to select multiple AZs to improve instance availability in actual use.

Instance Specifications

Dedicated (1:8); 8 vCPUs | 64 GB

Small specifications are selected for this test instance. You are advised to configure specifications based on service requirements in actual use.

Storage space

480 GB

A small storage space is selected for this test instance. You are advised to configure the storage space based on service requirements in actual use.

Disk encryption

Disable

In this example, disk encryption is disabled. Enabling disk encryption improves the security of data, but may slightly affect the database read/write performance.

Logging in to the database through DAS

Database engine

GaussDB

-

Database source

GaussDB

Select the GaussDB instance created in this example.

Database name

postgres

-

Username

root

-

Password

-

Enter the password of the root user of the GaussDB instance created in this example.

DRS migration task

Migration task name

DRS-test-info

Specify a name that is easy to identify.

Destination database name

test_database_info

Specify a name that is easy to identify. The name must be compatible with the MySQL database name.

Source database engine

MySQL

-

Destination database engine

GaussDB

-

Network type

Public network

In this example, a public network is used.

Step 1: Create a VPC and Security Group

Create a VPC and security group for the GaussDB instance.

  1. Log in to the Huawei Cloud console.
  2. Click in the upper left corner and select a region.
  3. Click the service list icon on the left and choose Networking > Virtual Private Cloud. The VPC console is displayed.
  4. Click Create VPC.
    Figure 2 Basic information

    Figure 3 Setting a subnet

  5. Configure parameters as needed and click Create Now.
  6. Return to the VPC list and check whether the VPC is created.

    If the VPC status becomes available, the VPC has been created.

  1. Log in to the Huawei Cloud console.
  2. Click in the upper left corner and select a region.
  3. Click the service list icon on the left and choose Networking > Virtual Private Cloud.

    The VPC console is displayed.

  4. In the navigation pane, choose Access Control > Security Groups.
  5. Click Create Security Group.
  6. Specify a security group name and other information.
    Figure 4 Basic information

  7. Click the Inbound Rules tab and then click Add Rule.

  8. Configure an inbound rule, add the IP address of the source database, and click OK.
    Figure 5 Configuring an inbound rule

  9. Configure parameters as needed and click Create Now.
  1. Log in to the Huawei Cloud console.
  2. Click in the upper left corner and select a region.
  3. Click the service list icon on the left and choose Networking > Virtual Private Cloud. The VPC console is displayed.
  4. Click Create VPC.
    Figure 2 Basic information

    Figure 3 Setting a subnet

  5. Configure parameters as needed and click Create Now.
  6. Return to the VPC list and check whether the VPC is created.

    If the VPC status becomes available, the VPC has been created.

  1. Log in to the Huawei Cloud console.
  2. Click in the upper left corner and select a region.
  3. Click the service list icon on the left and choose Networking > Virtual Private Cloud.

    The VPC console is displayed.

  4. In the navigation pane, choose Access Control > Security Groups.
  5. Click Create Security Group.
  6. Specify a security group name and other information.
    Figure 4 Basic information

  7. Click the Inbound Rules tab and then click Add Rule.

  8. Configure an inbound rule, add the IP address of the source database, and click OK.
    Figure 5 Configuring an inbound rule

  9. Configure parameters as needed and click Create Now.

Step 2: Create a GaussDB Instance

Create a GaussDB instance as the destination database of the migration task.

  1. Log in to the Huawei Cloud console.
  2. Click in the upper left corner and select a region.
  3. Click the service list icon on the left and choose Databases > GaussDB.
  4. In the navigation pane on the left, choose GaussDB > Instances.
  5. Click Buy DB Instance.
  6. On the page shown in Figure 6, configure basic information about the instance, including the instance name, billing mode, edition type, DB engine version, instance type, transaction consistency, number of shards, number of coordinator nodes, and deployment AZ.
    Figure 6 Basic information

  7. Select the instance specifications and storage space.
    Figure 7 Instance specifications

  8. Select the VPC created in Creating a VPC and security group created in Creating a Security Group for the instance and configure the database port.
    Figure 8 Selecting a VPC and security group

  9. Configure the password and other information.

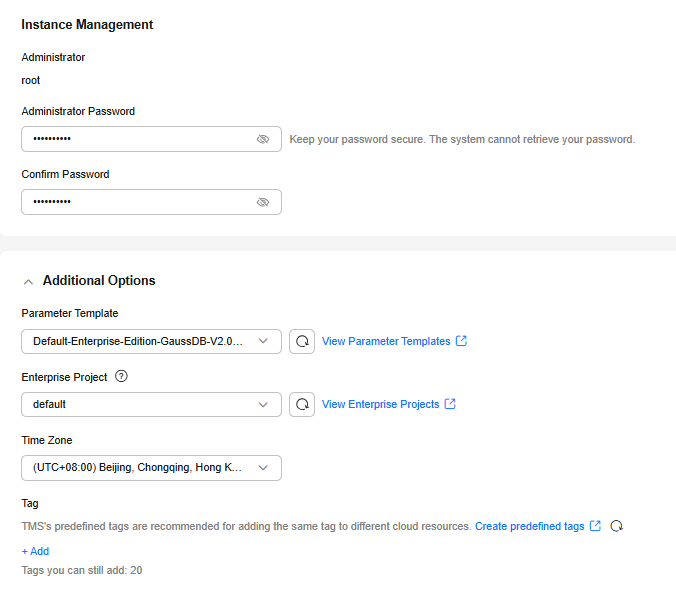

    Figure 9 Configuring the password and other information

  10. Click Next, confirm the information, and click Submit.
  11. Go to the instance list.

    If status of the instance becomes Available, the instance has been created.

Step 3: Construct Data Before Migration

Before the migration, prepare some data types in the source database for verification after the migration is complete. The end-to-end test data in this section is for reference only.

For details about the data types supported by DRS, see MySQL->GaussDB.

Perform the following steps to construct data in the source database:

  1. Use a database connection tool to connect to the source MySQL database based on its IP address.
  2. Construct data in the source database based on data types supported by DRS.
    1. Create a test user.

      create user test_info identified by xxx;

      test_info indicates the user created for the migration, and xxx indicates the password of the user.

    2. Create a database named test_info under the user.

      CREATE DATABASE test_info;

    3. Create a table in the test_info database.

      CREATE TABLE `test_info`.`test_table` (

      `id` int NOT NULL,

      `c1` char(10) DEFAULT NULL,

      `c2` varchar(10) DEFAULT NULL,

      `c3` binary(10) DEFAULT NULL,

      `c4` varbinary(10) DEFAULT NULL,

      `c5` tinyblob,

      `c6` mediumblob,

      `c7` longblob,

      `c8` tinytext,

      `c9` text,

      `c10` mediumtext,

      `c11` longtext,

      `c12` enum('1','2','3') DEFAULT NULL,

      `c13` set('1','2','3') DEFAULT NULL,

      `c14` tinyint DEFAULT NULL,

      `c15` smallint DEFAULT NULL,

      `c16` mediumint DEFAULT NULL,

      `c17` bigint DEFAULT NULL,

      `c18` float DEFAULT NULL,

      `c19` double DEFAULT NULL,

      `c20` date DEFAULT NULL,

      `c21` datetime DEFAULT NULL,

      `c22` timestamp,

      `c23` time DEFAULT NULL,

      `c24` year DEFAULT NULL,

      `c25` bit(10) DEFAULT NULL,

      `c26` json DEFAULT NULL,

      `c27` decimal(10,0) DEFAULT NULL,

      `c28` decimal(10,0) DEFAULT NULL,

      PRIMARY KEY (`id`)

      );

    4. Assign privileges to the user.

      GRANT SELECT,LOCK TABLES ON <database>.<table> to test_info;

      GRANT REPLICATION SLAVE,REPLICATION CLIENT ON *.* to test_info;

      In the preceding commands, test_info indicates the user created for this migration task, <database> indicates the name of the database to be synchronized, and <table> indicates the name of the table to be synchronized. Replace them as required.

    5. Insert two rows of data into the table.

      insert into test_info.test_table values (1,'a','b','111','111','tinyblob','mediumblob','longblob','tinytext','text','mediumtext','longtext','1','3',1,2,3,4,1.123,1.1234,'2024-03-08','2024-03-08 08:00:00','2024-03-08 08:00:00','08:00:00','2024','1010','{"a":"b"}',1.23,1.234);

      insert into test_info.test_table values (2,'a','b','111','111','tinyblob','mediumblob','longblob','tinytext','text','mediumtext','longtext','1','3',1,2,3,4,1.123,1.1234,'2024-03-08','2024-03-08 08:00:00','2024-03-08 08:00:00','08:00:00','2024','1010','{"a":"b"}',1.23,1.234);

  3. Create a database in the destination GaussDB instance.
    1. Log in to the management console.
    2. Click in the upper left corner and select a region.
    3. Click the service list icon on the left and choose Databases > Data Admin Service.
    4. In the navigation pane on the left, choose Development Tool to go to the login list page.
    5. Click Add Login.
    6. On the displayed page, select the DB engine and source database, enter the login username, password, and description (optional), and enable Show Executed SQL Statements.
    1. Click Test Connection to check whether the connection is successful.

      If a message is displayed indicating the connection is successful, continue with the operation. If a message is displayed indicating the connection failed and the failure cause is provided, make modifications according to the error message.

    2. Click OK.
    3. Locate the added record and click Log In in the Operation column.
      Figure 10 Logging in to an instance

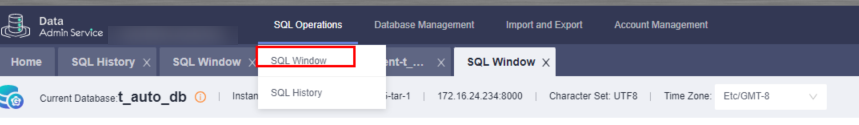

    4. Choose SQL Operations > SQL Window on the top menu bar.

    5. Run the following statement to create a database compatible with MySQL:
      test_database_info indicates the database name. Replace it as required.
      CREATE DATABASE test_database_info DBCOMPATIBILITY 'mysql';

Step 4: Migrating the Database

Create a DRS instance and synchronize data from the test_info database in the on-premises MySQL database to the test_database_info database in the GaussDB instance.

Performing a Pre-migration Check

Before creating a migration task, check the migration conditions to ensure smooth migration.

Before the migration, you need to obtain the notes on migration to the cloud.

Creating a Migration Task

  1. Log in to the management console.
  2. Click in the upper left corner and select a region.

    Select the region where the destination instance is deployed.

  3. Click the service list icon on the left and choose Databases > Data Replication Service.
  4. In the navigation pane on the left, choose Data Synchronization Management. On the displayed page, click Create Synchronization Task.

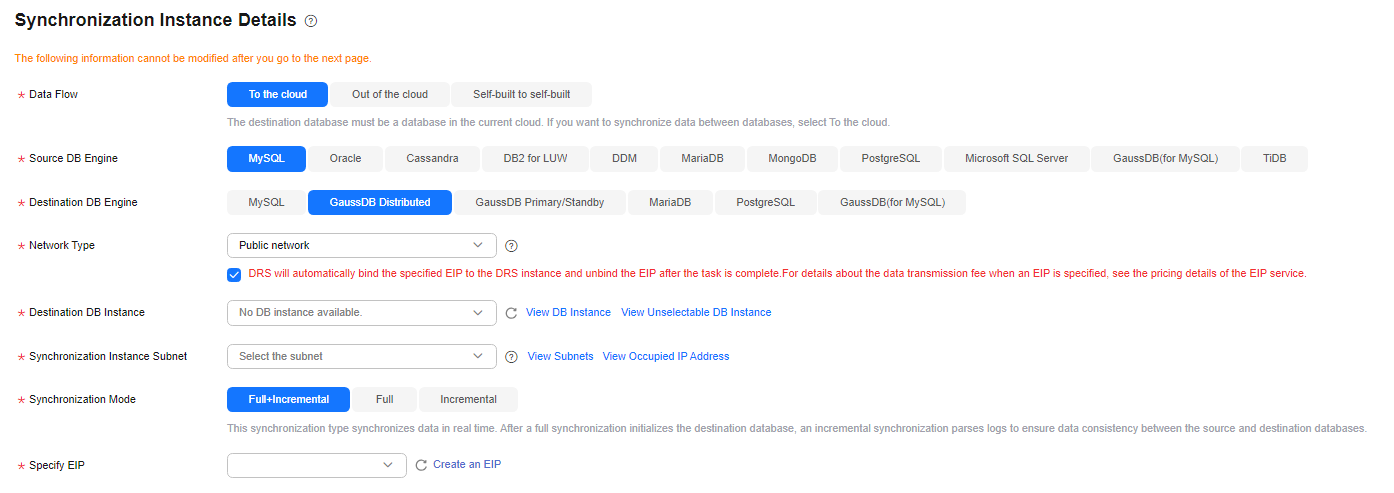

  5. Configure synchronization instance information.
    1. Select a region, billing mode, and project, and enter a task name.

    2. Specify Data Flow, Source DB Engine, Destination DB Engine, Network Type, DRS Task Type, Destination DB Instance, Synchronization Instance Subnet (optional), Synchronization Mode, Specifications, AZ, and Tags (optional).

    3. Click Create Now.
  6. Configure the source and destination database information.
    1. Enter the IP address, port number, username, and password of the source database.

      Click Test Connection.

    2. Enter the username and password of the destination database.

      Click Test Connection.

    3. Click Next. In the displayed box, read the message carefully and click Agree.

  7. Configure the synchronization task.
    1. Select the object type for full synchronization. If the table structure to be synchronized has not been created in the destination database, select Table structure (the table structure contains primary keys and unique keys) for Synchronization Object Type. Otherwise, deselect Table structure. Select Index for Synchronization Object Type as needed.

    2. Specify Incremental Conflict Policy. This option determines how the system reacts when there is a data conflict (for example, duplicate primary or unique keys) between the source and destination databases.
      • Ignore: The system will ignore the conflicting data in the source database and continue the subsequent synchronization process. If you select Ignore, data in the source database may be inconsistent with that in the destination database.
      • Report error: The synchronization task will be stopped and fail. You can view the details in synchronization logs.
      • Overwrite: Conflicting data in the destination database will be overwritten.

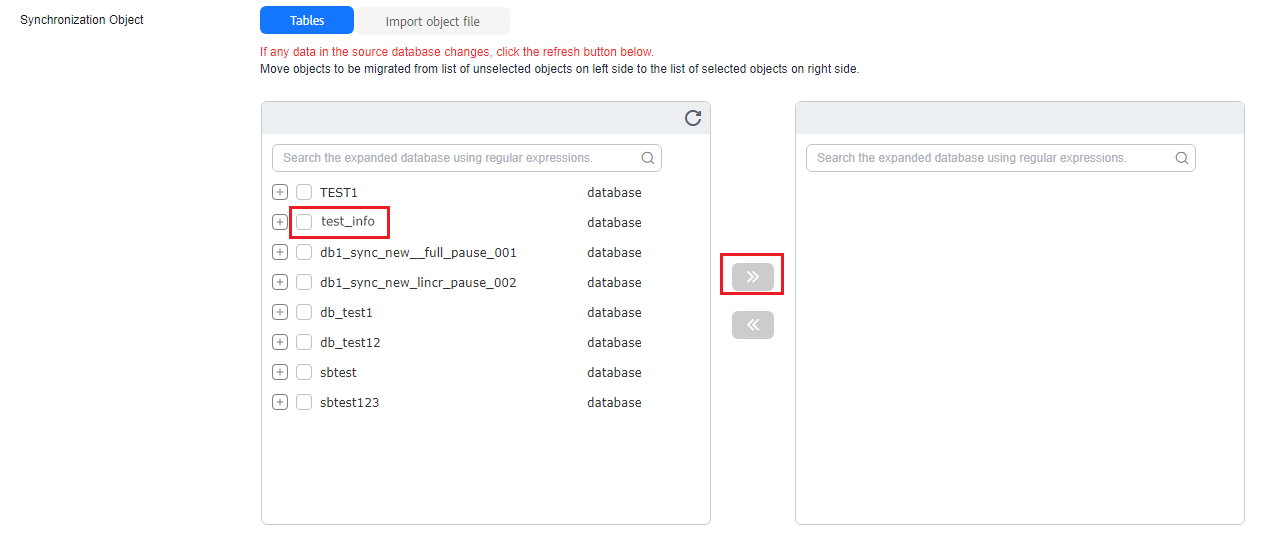

    3. Select the databases and tables of the source database to be migrated. In this example, select the test_table table from the test_info database.

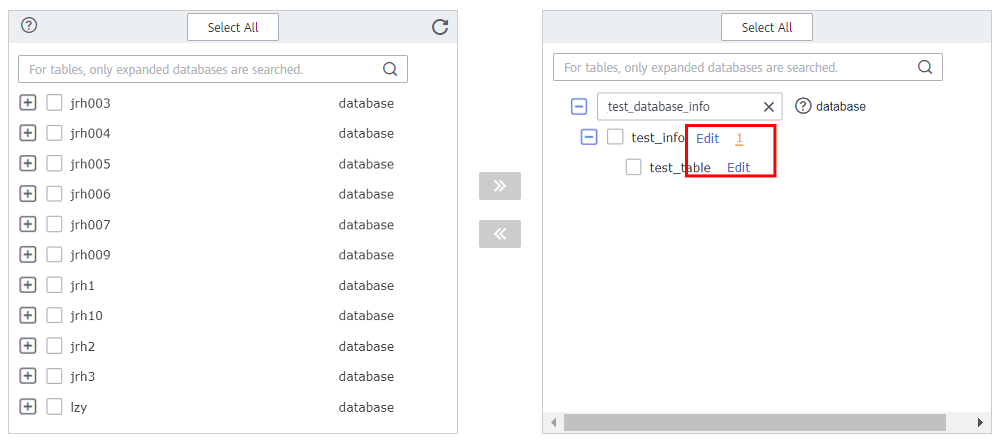

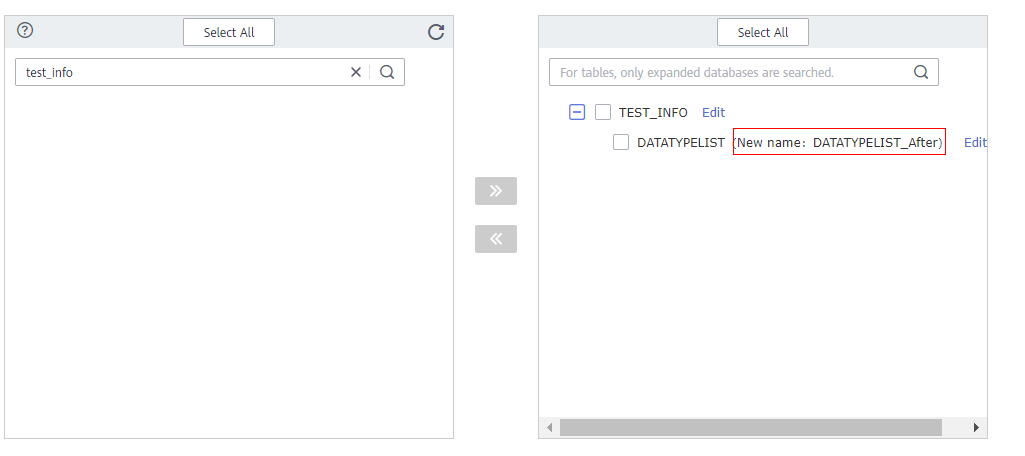

    4. Locate the database and table, respectively, and click Edit to change the database name and table name as needed.

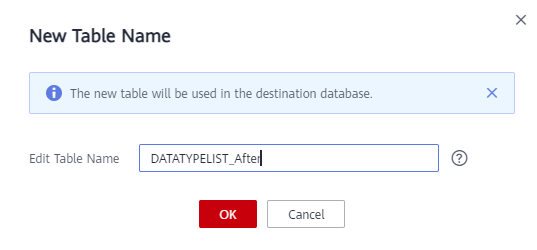

    5. On the displayed dialog box, enter a new name, for example, DATATYPELIST_After.

      The name cannot include special characters. Otherwise, an error will be reported during SQL statement execution after the migration.

    6. Confirm the settings and click Next.

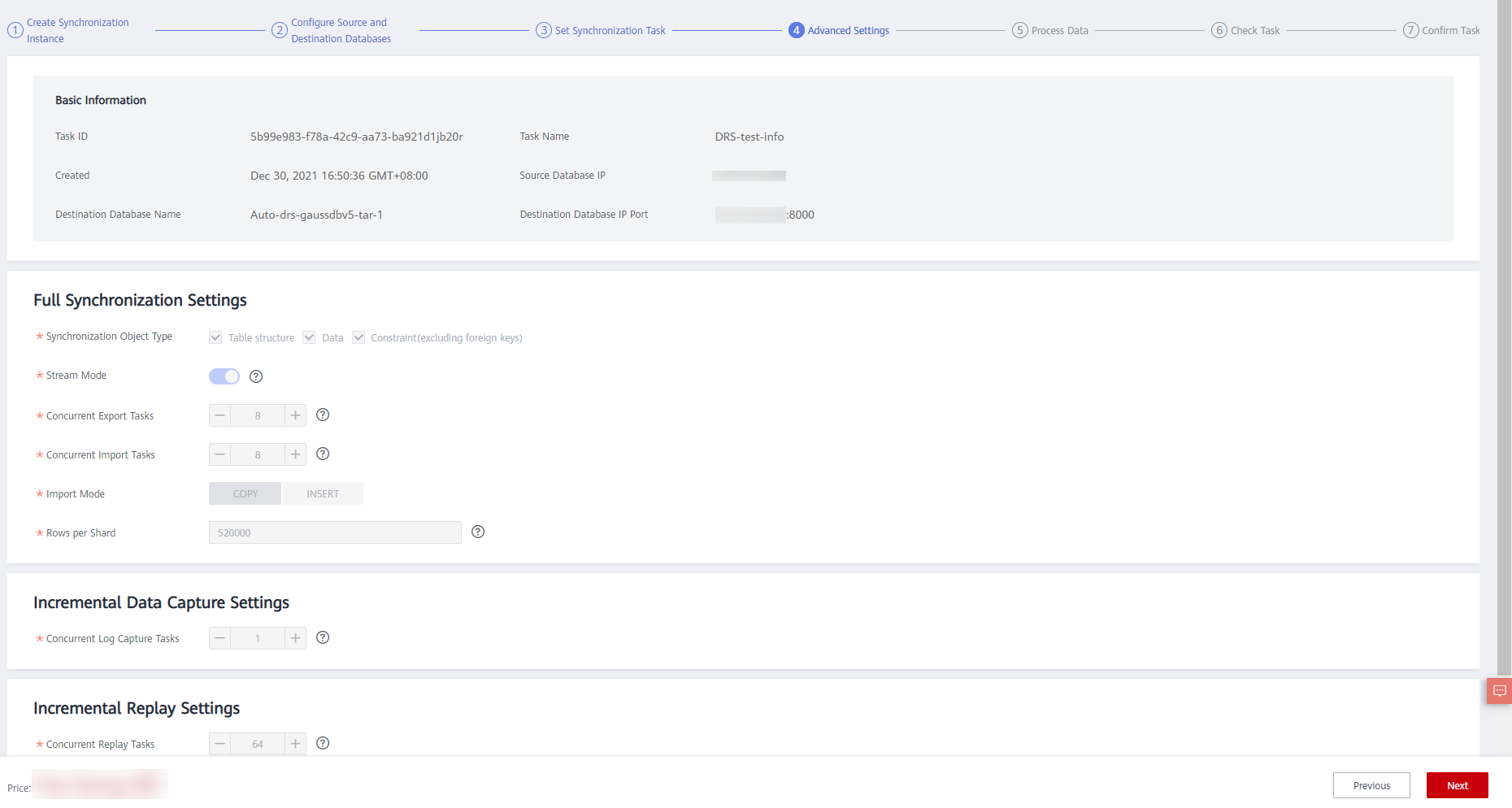

  8. Confirm advanced settings.

    The information on the Advanced Settings page is for confirmation only and cannot be modified. After confirming the information, click Next.

  9. Process data.
    On this page, you can process the table to be migrated. For example, you can select the column to be migrated and change its name. In this example, change the column name c1 to new-line.
    1. Click Edit next to the table to be processed.

    2. Edit the c1 column.

    3. Enter the new name new-line and click Confirm.
    4. Click Next.

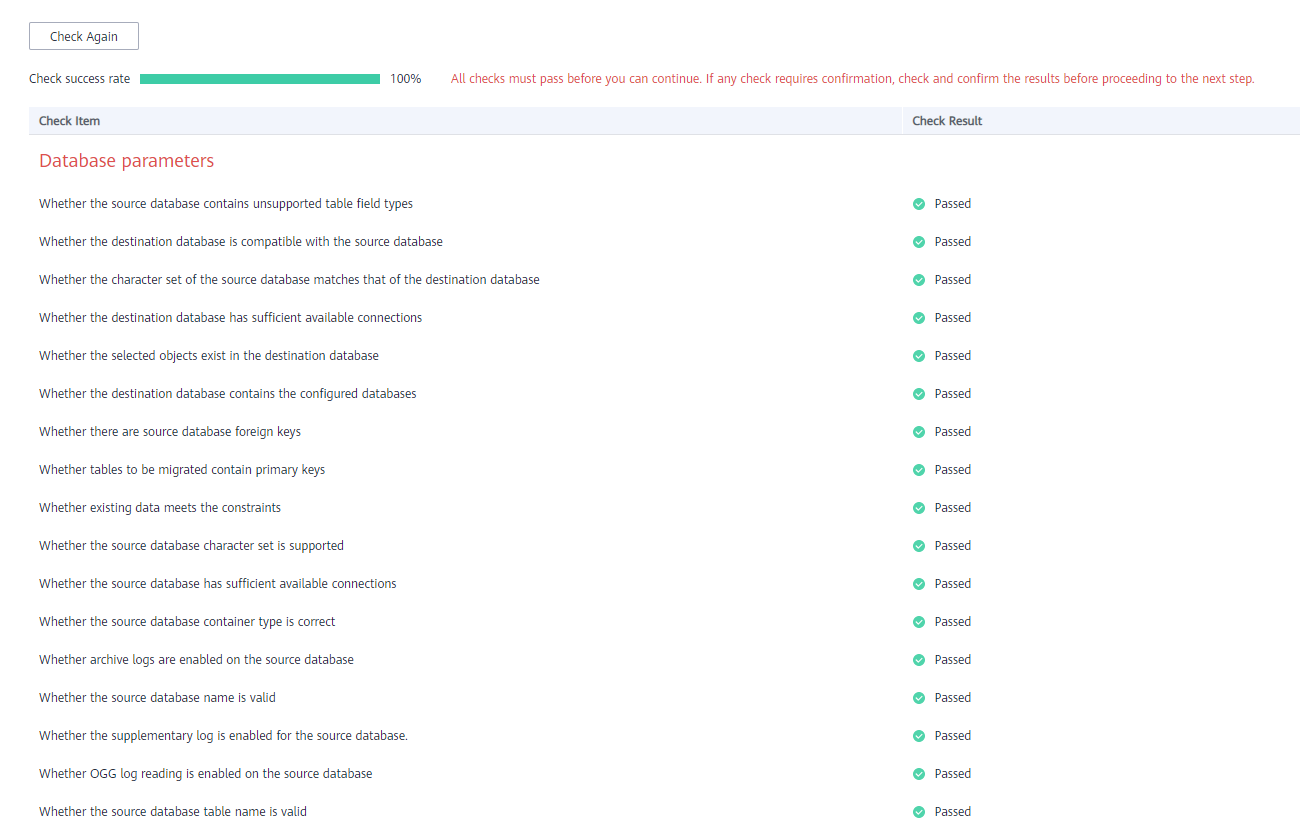

  10. Perform a pre-check.
    1. After all settings are complete, perform a pre-check to ensure that the migration is successful.
    2. If any check item fails, review the cause and rectify the fault. Then, click Check Again.

    3. After all check items pass the pre-check, click Next.

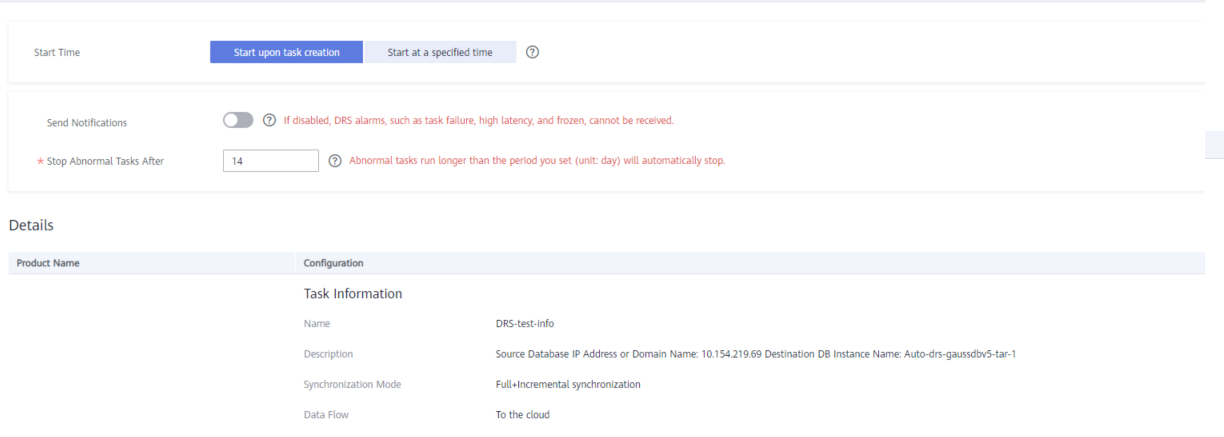

  11. Confirm the task.
    1. Check that all configured information is correct.

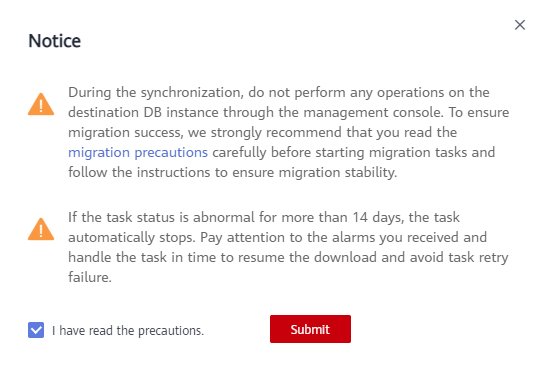

    2. Click Submit. In the display box, select I have read the precautions.
    3. Click Submit.

  12. After the task is submitted, view and manage it.

    After the task is created, return to the task list to view the status of the created task.

Step 5: Verify Data After Migration

When the task status changes to Incremental, the full synchronization is complete. You can log in to GaussDB and view the data migration result.

  1. Wait until the migration task status becomes Incremental.

  2. Click the task name to go to the Basic Information page.
  3. Verify data consistency.
    1. Choose Synchronization Comparison > Object-Level Comparison to view the database and table migration results.

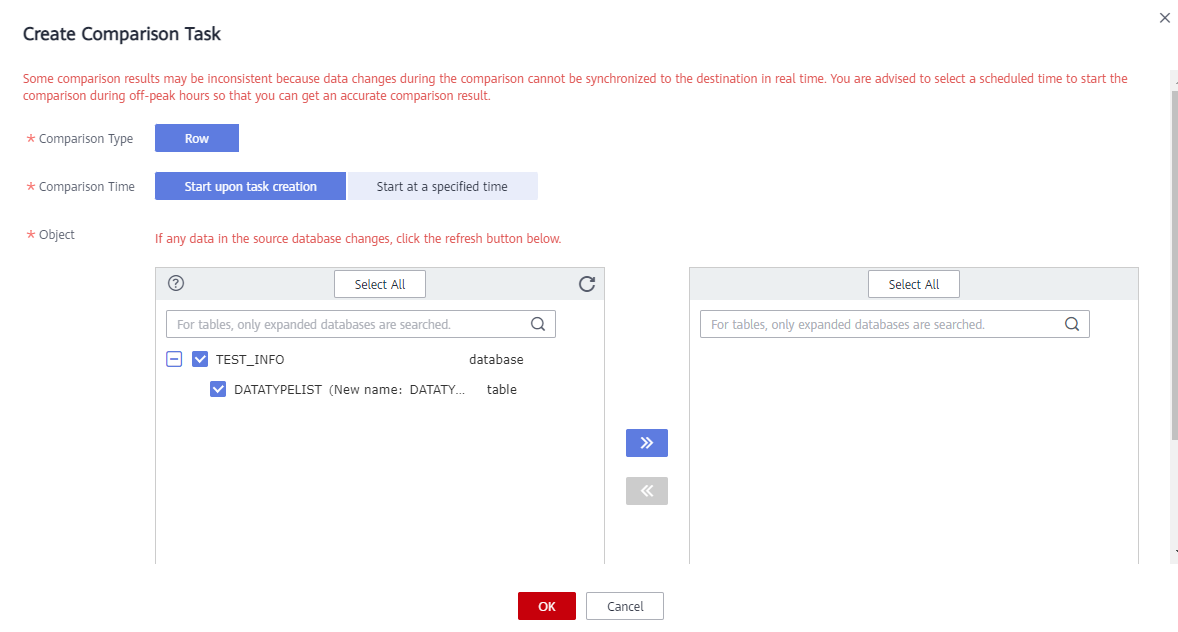

    2. Choose Synchronization Comparison > Data-Level Comparison, click Create Comparison Task, and view the migration results of the rows in the table.

  4. Connect to the test_database_info database in GaussDB using DAS.

    For details about how to connect to an instance through DAS, see Adding DB Instance Login Information.

  5. Run the following statement to query the full synchronization result:
    SELECT * FROM test_info.datatypelist_after;

    After the schema in the MySQL database is migrated, it will be used as the schema in GaussDB. Therefore, it is required to add the schema in the query statement for exact query.

    The query result shows that all data types in the table were successfully synchronized and the data is correct.

  6. Verify incremental synchronization.
    In full+incremental synchronization, after the full synchronization is complete, the data that is written to the source database after the task is created can still be synchronized to the destination database until the task is stopped. The following describes how to synchronize incremental data from the source database to the destination database:
    1. Use a database connection tool to connect to the source MySQL database based on its IP address.
    2. Run the following statement to insert a data record into the source database:

      Insert a data record whose ID is 3.

      insert into test_info.test_table values (3,'a','b','111','111','tinyblob','mediumblob','longblob','tinytext','text','mediumtext','longtext','1','3',1,2,3,4,1.123,1.1234,'2024-03-08','2024-03-08 08:00:00','2024-03-08 08:00:00','08:00:00','2024','1010','{"a":"b"}',1.23,1.234);
    3. Run the following statement in the destination database to query the result:
      SELECT * FROM test_info.datatypelist_after;

      The query result shows that new data in the source database has been synchronized to the destination database in real time.

  7. Stop the migration task.
    After data is completely migrated to the destination database, stop the synchronization task.
    1. Locate the task and click Stop in the Operation column.
    2. In the display box, click Yes.

We use cookies to improve our site and your experience. By continuing to browse our site you accept our cookie policy. Find out more

Feedback

Feedback

Feedback

0/500

Selected Content

Submit selected content with the feedback
