Changing the M Compatibility Port

Scenarios

GaussDB allows you to use the templatem template to create an M-compatible database. You can enable, disable, or change the M compatibility port on the console for better compatibility.

Constraints

• M-compatible databases can be created only for instances of version 8.102 or later.
• Only one M-compatible database can be created for a primary/standby instance, and database- and table-level backup and restoration are not supported.
• The M compatibility port cannot be changed for GaussDB instances that contain a database named templatem.
• By default, instances upgraded from an earlier version to 8.102 do not have the templatem template. When you change the M compatibility port for an instance, the system checks for the template and creates one if there is not.
• This operation is not allowed for DR instances. To enable the M compatibility port for a DR instance, delete its DR relationship first.
• Enabling the M compatibility port will reboot the DB instance, during which services are interrupted. Perform this operation during off-peak hours.
• The port must have been enabled in the inbound rule of the security group.

Procedure

1. Log in to the management console.
2. Click in the upper left corner and select a region and project.



3. Click in the upper left corner of the page and choose Databases > GaussDB.
4. On the Instances page, click the name of the target instance to go to the Basic Information page.
5. In the Connection Information area, click in the Port to M Compatibility field.

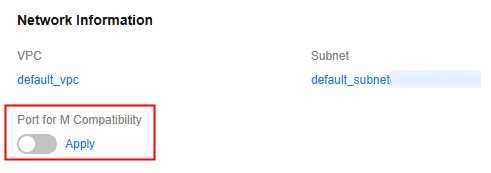

   Figure 1 Setting the M compatibility port


6. In the displayed dialog box, set the M compatibility port, enter confirm, select the confirmation check box, and click OK.
   • The port ranges from 1024 to 39989, but the following ports that are reserved for system use cannot be used: 2378 to 2380, 2400, 4999 to 5001, 5100, 5500, 5999 to 6001, 6009, 6010, 6500, 8015, 8097, 8098, 8181, 9090, 9100, 9180, 9187, 9200, 12016, 12017, 20049, 20050, 21731, 21732, 32122 to 32126, and 39001
   • The port cannot be a number in the range [Database port, Database port + 10].

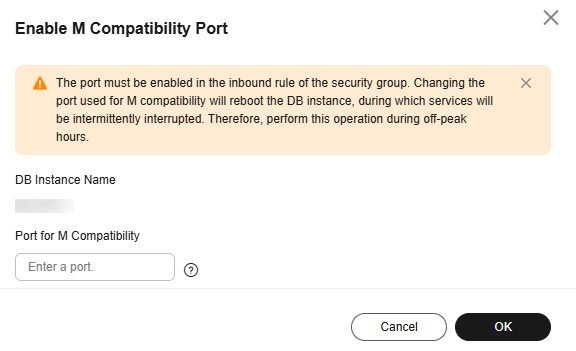

   Figure 2 Enabling M compatibility port
