Scaling Up Storage Space
Scenarios
As more data is added, you may start to run out of space. If the kernel system detects that the disk usage exceeds 85%, the instance is set to read-only and no data can be written to the DB instance. (85% is the default threshold. You can set the cms:datastorage_threshold_value_check parameter for an instance to change the usage threshold.) This section describes how to scale up the storage space of a DB instance. Services will not be interrupted during storage scale-up.
Precautions
- Within the maximum allowed range, usage cannot exceed 85% of the total storage space after scaling.
- If any node becomes faulty, contact the O&M engineers for troubleshooting before the scale-up.
- The storage space must be a multiple of (Number of shards x 4 GB).
- Each shard can hold up to 24 TB, so 24 TB of storage can be added for each shard added.
- The storage of BMS-based instances using local disks cannot be scaled up.
- If a DB instance is unavailable because the storage space is used up, you can scale up the storage space.
Constraints
- You can scale up storage space only when your account balance is greater than or equal to $0 USD.
- The maximum allowed storage for a single shard is 24 TB by default. There is no limit on the number of scale-ups.
- During storage scale-up, the DB instance is in the Scaling up state and backup services are not affected.
- Reboot is not required during storage scale-up.
- Do not reboot or delete the instance whose storage is being scaled up.
- Storage space can only be scaled up, not down.
Procedure
- Log in to the management console.
- Click in the upper left corner and select a region and project.
- Click in the upper left corner of the page and choose .
- On the Instances page, locate the instance you want to scale up and click More > Scale Storage Space in the Operation column.
Alternatively, click the instance name to go to the Basic Information page. In the Storage/Backup Space area, click Scale.
Figure 1 Scaling up storage
- On the displayed page, specify the new storage space and click Next.

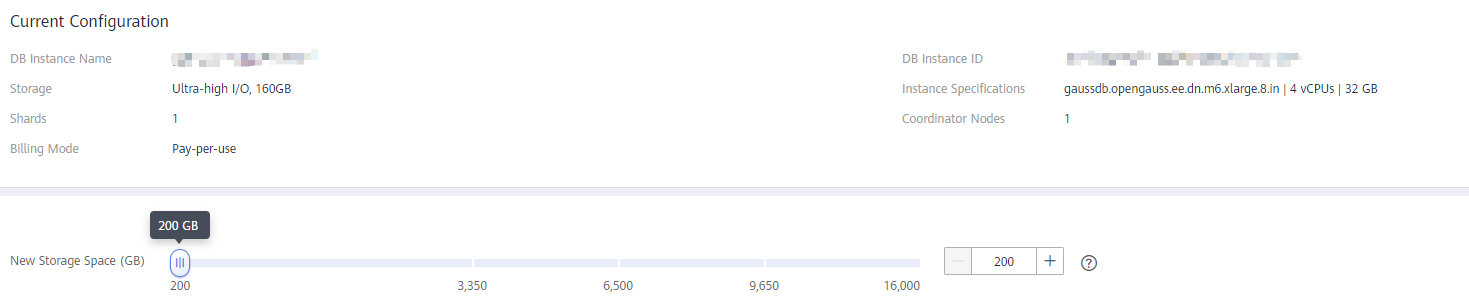

Figure 2 Setting the space size
When you scale up storage space, ensure that the usage of the new storage space is less than 85%. Once the storage usage of a DB instance reaches 85% or higher, the instance cannot process write operations and becomes read-only.
- Confirm settings.
- If you need to modify your settings, click Previous.
- If the settings are correct, click Submit.
- View the storage scale-up results.
During the scale-up, the status of the instance on the Instances page is Scaling up. This process may take 3 to 5 minutes. Once the scale-up is complete, click the instance name to go the Basic Information page and you can see the new storage space.
