Upgrading and Rolling Back a Workload

1. Log in to the CCE console.
2. Click the cluster name to go to the cluster console, choose Workloads in the navigation pane, and then click Create Workload in the upper right corner.
3. In Advanced Settings, click Upgrade, and configure the parameters. The common parameters for rolling upgrades and replace upgrades serve similar purposes, though their implementations differ.

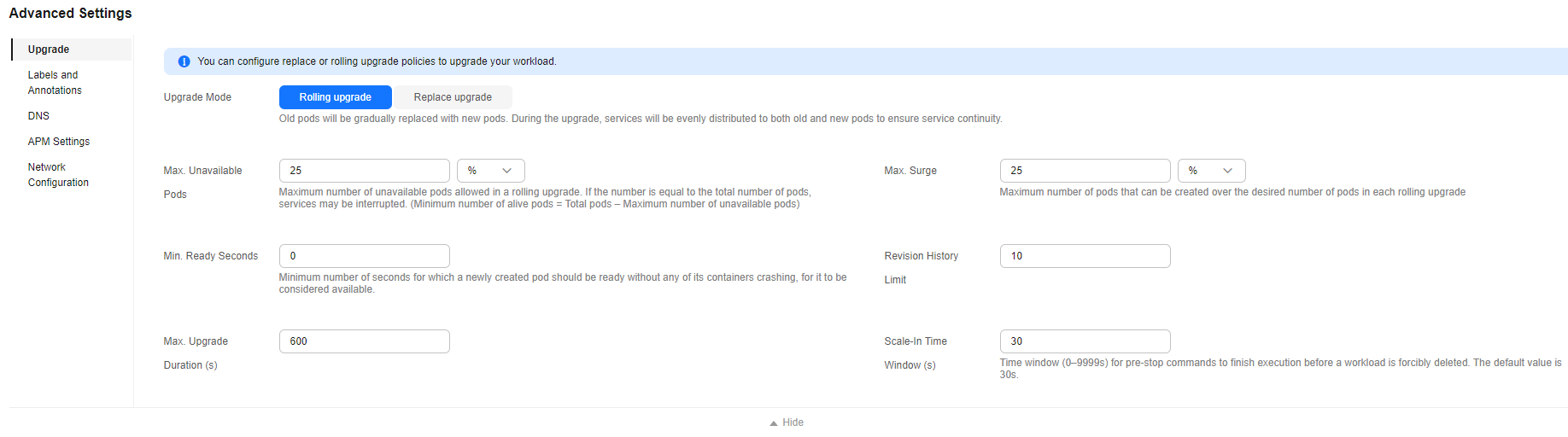

   Figure 1 Configuring a workload upgrade policy


   Table 1 Parameters for configuring a workload upgrade policy

   Parameter	Description	Constraints
   Max. Unavailable Pods (maxUnavailable)	The maximum number or percentage of pods that can be unavailable during a rolling upgrade. This also sets the limit for how many running pods can be below the expected number. The default value is 25%. During an upgrade, the percentage is converted into an absolute number and rounded down. For example, if spec.replicas is set to 2, no pods (2 × 0.25 = 0.5, rounded down to 0) can be unavailable. Therefore, during an upgrade, there will always be at least two pods running (2 desired – 0 unavailable). Each old pod is deleted only after a new one is created, ensuring that at least two pods are always running until all pods are updated.	This parameter is only available for Deployments.
   Max. Surge (maxSurge)	The maximum number or percentage of pods that can exist above the desired number of pods during a rolling upgrade. This parameter determines the maximum number of new pods that can be created at a time to replace old pods. The default value is 25%. During an upgrade, the percentage is converted into an absolute number and rounded up. For example, if spec.replicas is set to 2, a maximum of one pod (2 x 0.25 = 0.5, rounded up to 1) can be created at a time by default. Therefore, during an upgrade, up to 3 pods can exist (2 desired + 1 surge).	This parameter is only available for Deployments.
   Min. Ready Seconds (minReadySeconds)	The minimum duration a new pod must remain in the ready state before it is marked as available. This ensures a stable observation period, preventing unstable pods from joining the service too early and thereby improving the stability and reliability of the deployment.	-
   Revision History Limit (revisionHistoryLimit)	The maximum number of old ReplicaSets retained for rollback. These consume etcd resources and appear in kubectl get rs output. Each Deployment's historical configurations are stored in its corresponding ReplicaSet. Deleting an old ReplicaSet makes it impossible to roll back the Deployment to that version. By default, CCE retains the latest 10 old ReplicaSets.	-
   Max. Upgrade Duration (progressDeadlineSeconds)	The maximum time, in seconds, that a Deployment can take to make progress before it is considered to be failing. If specifying this parameter, ensure its value is greater than minReadySeconds. During a rolling upgrade, if a Deployment does not make progress within the time specified by progressDeadlineSeconds, it is marked with the following conditions: Type=Progressing, Status=False, and Reason=ProgressDeadlineExceeded. The above information indicates that the Deployment upgrade has failed. CCE records the failure event but does not automatically roll back the Deployment to a previous version. The rollback must be manually performed or triggered through an external mechanism.	This parameter is only available for Deployments.
   Scale-In Time Window (terminationGracePeriodSeconds)	The maximum time kubelet waits for containers in a pod to exit gracefully when the pod is deleted. The default is 30 seconds. Containers should exit within this period. Otherwise, they will be forcibly terminated with SIGKILL.	-

4. Configure other parameters and click Create Workload. The workload status will change to Running later.

The following uses a Deployment as an example to describe how to configure a workload upgrade policy using kubectl.

1. Use kubectl to access the cluster. For details, see Accessing a Cluster Using kubectl.
2. Create a file named nginx-deployment.yaml. nginx-deployment.yaml is an example file name. You can rename it as needed.

   vi nginx-deployment.yaml

   Below is an example of the file. For details about the Deployment configuration, see the Kubernetes official documentation.

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: nginx
     namespace: default
   spec:
     replicas: 2
     selector:
       matchLabels:
         app: nginx
     template:
       metadata:
         labels:
           app: nginx
       spec:
         containers:
         - image: nginx:latest
           imagePullPolicy: Always
           name: nginx
           resources:
             requests:
               cpu: 250m
               memory: 512Mi
             limits:
               cpu: 250m
               memory: 512Mi
         imagePullSecrets:
         - name: default-secret
         terminationGracePeriodSeconds: 30
     strategy:
       type: RollingUpdate # This is a rolling upgrade. Recreate indicates a replace upgrade.
       rollingUpdate: # Rolling upgrade parameters
         maxUnavailable: 25%
         maxSurge: 25%
     minReadySeconds: 0
     revisionHistoryLimit: 10
     progressDeadlineSeconds: 600

   Table 2 Parameters for configuring a workload upgrade policy

   Parameter	Description	Constraints
   maxUnavailable	The maximum number or percentage of pods that can be unavailable during a rolling upgrade. This also sets the limit for how many running pods can be below the expected number. The default value is 25%. During an upgrade, the percentage is converted into an absolute number and rounded down. For example, if spec.replicas is set to 2, no pods (2 × 0.25 = 0.5, rounded down to 0) can be unavailable. Therefore, during an upgrade, there will always be at least two pods running (2 desired – 0 unavailable). Each old pod is deleted only after a new one is created, ensuring that at least two pods are always running until all pods are updated.	This parameter is only available for rolling upgrades.
   maxSurge	The maximum number or percentage of pods that can exist above the desired number of pods during a rolling upgrade. This parameter determines the maximum number of new pods that can be created at a time to replace old pods. The default value is 25%. During an upgrade, the percentage is converted into an absolute number and rounded up. For example, if spec.replicas is set to 2, a maximum of one pod (2 x 0.25 = 0.5, rounded up to 1) can be created at a time by default. Therefore, during an upgrade, up to 3 pods can exist (2 desired + 1 surge).	This parameter is only available for rolling upgrades.
   minReadySeconds	The minimum duration a new pod must remain in the ready state before it is marked as available. This ensures a stable observation period, preventing unstable pods from joining the service too early and thereby improving the stability and reliability of the deployment.	-
   revisionHistoryLimit	The maximum number of old ReplicaSets retained for rollback. These consume etcd resources and appear in kubectl get rs output. Each Deployment's historical configurations are stored in its corresponding ReplicaSet. Deleting an old ReplicaSet makes it impossible to roll back the Deployment to that version. By default, CCE retains the latest 10 old ReplicaSets.	-
   progressDeadlineSeconds	The maximum time, in seconds, that a Deployment can take to make progress before it is considered to be failing. If specifying this parameter, ensure its value is greater than minReadySeconds. During a rolling upgrade, if a Deployment does not make progress within the time specified by progressDeadlineSeconds, it is marked with the following conditions: Type=Progressing, Status=False, and Reason=ProgressDeadlineExceeded. The above information indicates that the Deployment upgrade has failed. CCE records the failure event but does not automatically roll back the Deployment to a previous version. The rollback must be manually performed or triggered through an external mechanism.	-
   terminationGracePeriodSeconds	The maximum time kubelet waits for containers in a pod to exit gracefully when the pod is deleted. The default is 30 seconds. Containers should exit within this period. Otherwise, they will be forcibly terminated with SIGKILL.	-

3. Create the Deployment.

   kubectl create -f nginx-deployment.yaml

   If information similar to the following is displayed, the Deployment is being created:

   deployment.apps/nginx created

4. Check the Deployment status.

   kubectl get deployment

   If information similar to the following is displayed, the Deployment has been created:

   NAME           READY     UP-TO-DATE   AVAILABLE   AGE
   nginx          2/2       2            2           4m5s

5. Change the image used by the Deployment to nginx:alpine.

   kubectl edit deploy nginx

   Modify the image in spec.containers.image, save the modification, and exit.

6. Check the replicas of the Deployment.

   kubectl get rs

   Information similar to the following is displayed:

   NAME               DESIRED   CURRENT   READY     AGE
   nginx-6f9f58dffd   2         2         2         1m    # New-version ReplicaSet (activated)
   nginx-7f98958cdf   0         0         0         48m   # Old-version ReplicaSet (deactivated)

   During the upgrade, spec.replicas is set to 2 and both maxSurge and maxUnavailable set to 25%, the number of pods changes as follows:

   • maxSurge = 1 (2 × 25% = 0.5, rounded up) -> One extra pod can be added at most.
   • maxUnavailable = 0 (2 × 25% = 0.5, rounded down) -> Unavailable pods are not allowed.

   This means that during the upgrade, up to three pods can exist in total, with two always available for services. CCE creates new pods, checks their readiness, and deletes old pods one by one until all pods are upgraded.

7. Wait until the upgrade is complete and then check the pod statuses.

   kubectl get pods

   In the command output, if the status of all pods is Running, the Deployment has been upgraded.

   NAME                     READY     STATUS    RESTARTS   AGE
   nginx-6f9f58dffd-tdmqk   1/1       Running   0          1m
   nginx-6f9f58dffd-tesqr   1/1       Running   0          1m

1. Log in to the CCE console.
2. Click the cluster name to go to the cluster console, choose Workloads in the navigation pane, and select the workload type on the right.
3. Locate the target workload and choose More > Roll Back in the Operation column.
   Figure 2 Rolling back a workload


Run the following command to roll back the target workload:

kubectl rollout undo deployment nginx

If information similar to the following is displayed, the workload has been rolled back:

deployment.apps/nginx rolled back
