Adding a Foundation Model Diagram Element for a Flow
Function of the Foundation Model Diagram Element
The foundation model diagram element is used to connect to an external foundation model. For example, you can call a custom foundation model diagram element to connect to a custom foundation model.
Prerequisites
- You have obtained the API address and key needed to access the external foundation model.
- The external foundation model's request and response formats must adhere to the OpenAI standard; otherwise, errors might arise during streaming calls and response rendering.
- You have created a foundation model connector by referring to Using a Connector to Call a Foundation Model.
Using the Foundation Model Diagram Element
- In Connector > Foundation Model, drag the custom foundation model diagram element to the canvas.
- Click the custom foundation model diagram element and click
to set basic information.
Table 1 Parameters Parameter
Description
Label
Label of the diagram element, which is displayed on the flow design page. The system automatically assigns a value in a specific customsequence number format, with the sequence number starting at 0 for each type of diagram element.
Name
Diagram element name, which must be unique in the current flow. The naming requirements are as follows:
- Value: 1–80 characters.
- Start with a letter and can contain letters, digits, and underscores (_). It cannot end with an underscore (_).
Description
Description of the diagram element.
Value: 1–255 characters.
Connector
Select a connector from the drop-down list.
- Click
and set the parameters of the custom foundation model connector.

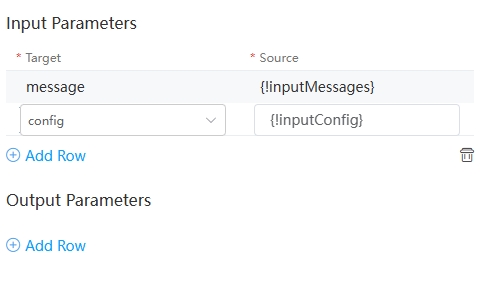

Figure 1 Configuring the custom foundation model connector diagram elementTable 2 Parameters for configuring the custom foundation model connector Parameter
Description
Input Parameters
Input parameters for calling the foundation model connector. Click Add Row to add a record.
- When Target is set to message, configure the dialog array variable transferred to the foundation model in Source. For example, inputMessage can be transferred.
[ { "role": "user", "content": "Who are you?" } ]
- When Target is set to config, configure the parameter dictionary transferred to the foundation model in Source. For example, inputConfig can be transferred.
{ "temperature": 0.8, "top_p": 1.0, "presence_penalty": 0.0 }
- When Target is set to message, configure the dialog array variable transferred to the foundation model in Source. For example, inputMessage can be transferred.
