EXPLAIN PLAN

Updated on 2022-07-29 GMT+08:00

Function

You can run the EXPLAIN PLAN statement to save the information about an execution plan to the PLAN_TABLE table. Different from the EXPLAIN statement, EXPLAIN PLAN only stores plan information and does not print it on the screen.

Syntax

1
2
3
EXPLAIN PLAN
[ SET STATEMENT_ID = string ]
FOR statement ;

Parameter Description

  • PLAN

    Stores plan information in PLAN_TABLE. If the storing is successful, EXPLAIN SUCCESS is returned.

  • STATEMENT_ID
    Tags a query. The tag information will be stored in PLAN_TABLE.
    NOTE:

    If the EXPLAIN PLAN statement does not contain SET STATEMENT_ID, the value of STATEMENT_ID is empty by default. In addition, the value of STATEMENT_ID cannot exceed 30 bytes. Otherwise, an error will be reported.

Precautions

  • EXPLAIN PLAN cannot be executed on DNs.
  • Plan information cannot be collected for SQL statements that failed to be executed.
  • Data in PLAN_TABLE is in a session-level life cycle. Sessions are isolated from users and thereby users can view data of only the current session and current user.
  • PLAN_TABLE cannot be joined with GDS foreign tables.
  • For a query that cannot be pushed down, object information cannot be collected and only such information as REMOTE_QUERY and CTE can be collected. For details, see Example 2.

Example 1

You can perform the following steps to collect execution plans of SQL statements by running EXPLAIN PLAN:

  1. Run the EXPLAN PLAN statement.

    NOTE:

    After the EXPLAIN PLAN statement is executed, plan information is automatically stored in PLAN_TABLE. INSERT, UPDATE, and ANALYZE cannot be performed on PLAN_TABLE.

    For details about PLAN_TABLE, see the PLAN_TABLE system view.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    explain plan set statement_id='TPCH-Q4' for
    select
    o_orderpriority,
    count(*) as order_count
    from
    orders
    where
    o_orderdate >= '1993-07-01'::date
    and o_orderdate < '1993-07-01'::date + interval '3 month'
    and exists (
    select
    *
    from
    lineitem
    where
    l_orderkey = o_orderkey
    and l_commitdate < l_receiptdate
    )
    group by
    o_orderpriority
    order by
    o_orderpriority;

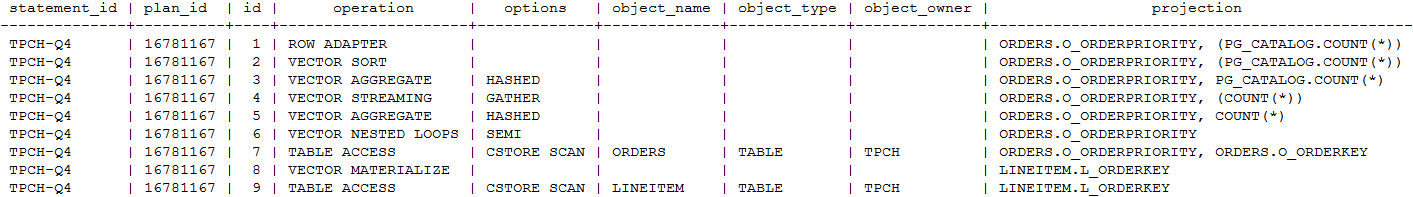

  2. Query PLAN_TABLE.

    SELECT * FROM PLAN_TABLE;

  3. Delete data from PLAN_TABLE.

    1
    DELETE FROM PLAN_TABLE WHERE xxx;


Example 2

For a query that cannot be pushed down, only such information as REMOTE_QUERY and CTE can be collected from PLAN_TABLE after EXPLAIN PLAN is executed.

Scenario 1: The optimizer generates a plan for pushing down statements. In this case, only REMOTE_QUERY can be collected.
1
2
3
4
5
  explain plan set statement_id = 'test remote query' for
  select
  current_user
  from
  customer;

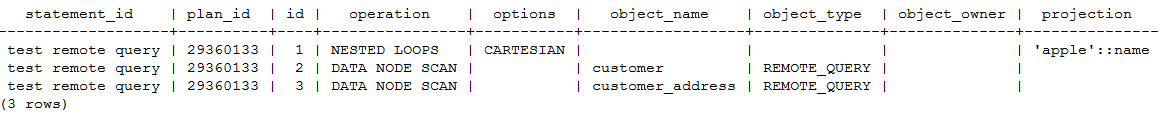

Query PLAN_TABLE.
1
SELECT * FROM PLAN_TABLE;
