Interactions

Procedure

1. Log in to the MetaStudio console.

2. Choose Workbench in the left navigation pane. Click Create under Livestreaming.
3. On the page displayed, click Interactions, as shown in Figure 1.

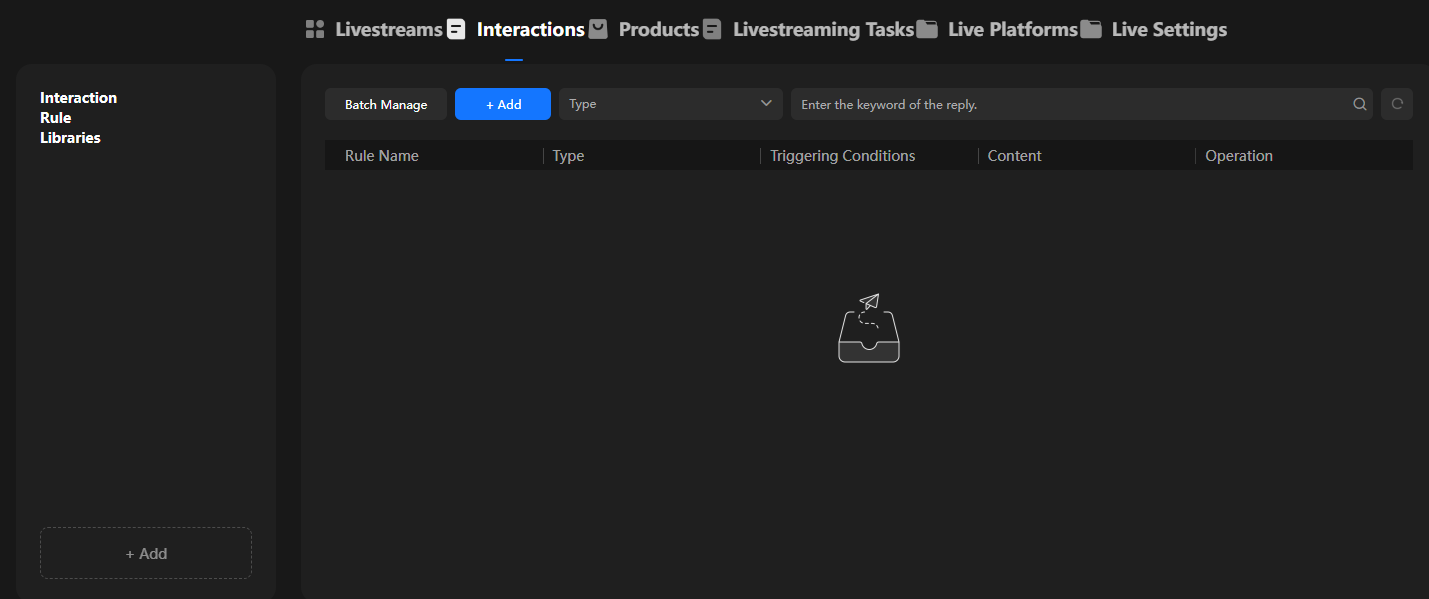

   Figure 1 Interactions


4. In the Interaction Rule Libraries area on the left, click Add in the lower part. A horizontal line will be displayed, as shown in Figure 3.
   Enter an interaction rule library name. You can perform the following operations on a library:

   • Click on the right of the interaction rule library and select Rename from the drop-down list box to rename the library.
   • Click on the right of the interaction rule library and select Copy from the drop-down list box to generate a new library.
   • Click on the right of the interaction rule library and select Delete from the drop-down list box to delete the library.

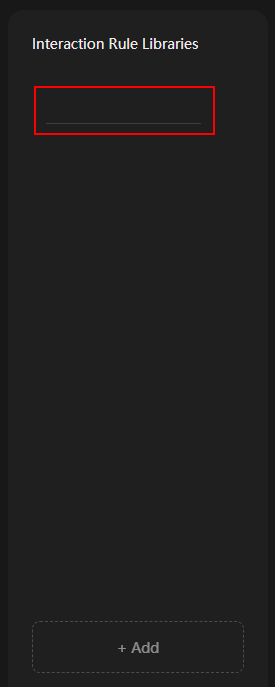

   Figure 2 Interaction rule libraries

   Figure 3 Interaction rule libraries


5. Select an interaction rule library on the left and click Add. The Add Interaction Rule dialog box is displayed, as shown in Figure 4.
   You can add an interaction rule to the interaction rule library. See Table 1.

   Figure 4 Adding an interaction rule


   Table 1 Parameters for adding an interaction rule

   Parameter	Description
   Type	Interaction type. Options: On-screen Comments Joining Live Rooms Likes Gifts
   Interaction Name (Optional)	Name of an interaction rule.
   Triggering Mode	Enter trigger keywords and separate them with vertical bars (|), for example, link|model|discount. When a keyword is identified in a comment, the preset reply of this keyword will be automatically read.
   Reply Mode	Select Streamer or Co-streamer. The reply content can be set in the following ways: Text: Set the reply as text. A maximum of five replies can be added. After a livestream starts, the replies are matched in sequence based on the number of triggering times. Only one reply will be read each time. Example: For details about the link, model, and discount of the product, see the description in the upper part of the page. Audio: Upload an audio file in MP4, WAV, or M4A format from the PC. When the rule is triggered, the audio file is used for reply.
   Additional Material (Optional)	Upload an image or video from the local PC. When a reply related to the uploaded material is read in the live room, the image or video uploaded here will be displayed in the live video.

6. Click Save. An interaction rule has been added.

   You can add more interaction rules to the interaction rule library or add more interaction rule libraries as needed.

   You can perform the following operations on an interaction rule:

   • Click Edit in the Operation column on the right of an interaction rule. In the Edit Interaction Rule dialog box displayed, edit the interaction rule.
   • Click Copy in the Operation column on the right of an interaction rule to copy the rule and generate a new one.
   • Click Delete in the Operation column on the right of an interaction rule to delete the rule.
