Help Center/ GaussDB(DWS)/ User Guide/ Migrating Service Data to a GaussDB(DWS) Cluster/ Data Source Management/ Managing OBS Data Sources

Managing OBS Data Sources

Updated on 2025-03-03 GMT+08:00

View PDF

GaussDB(DWS) allows you to access data on OBS by using an agency. You can create a GaussDB(DWS) agency, grant the OBS OperateAccess or OBS Administrator permission to the agency, and bind the agency to an OBS data source you created. In this way, you can access data on OBS by using OBS foreign tables.

NOTE:

This feature is supported only in 8.2.0 or later.
For the OBS data source of a cluster, only one of the creation, modification, and deletion operations can be performed at a time.

Creating an OBS Agency

Scenario

Before creating an OBS data source, create an agency that grants GaussDB(DWS) the OBS OperateAccess or OBS Administrator permission.

Procedure

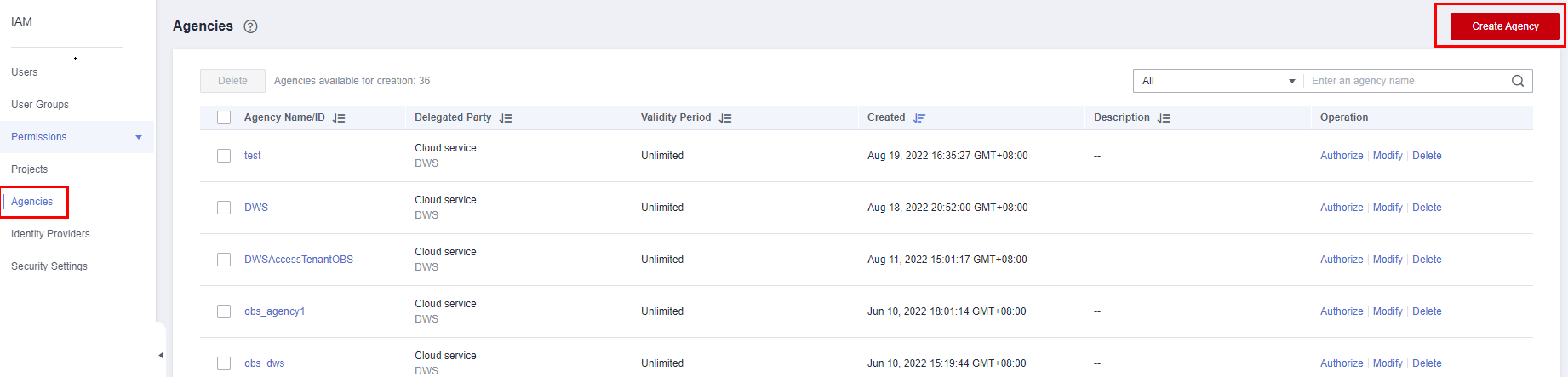

Click your account in the upper right corner of the page and choose Identity and Access Management.
In the navigation pane on the left, choose Agency. In the upper right corner, click Create Agency.
Select Cloud Service and set Cloud Service to DWS.
Click Next to grant the OBS OperateAccess or OBS Administrator permission to the agency.
Click Next. Select All resources or specific resources, confirm the information, and click Submit.

Creating an OBS Data Source

Prerequisites

An agency has been created to grant GaussDB(DWS) the OBS OperateAccess permission.

Procedure

On the GaussDB(DWS) console, choose Dedicated Clusters > Clusters.
In the cluster list, click the name of a cluster. On the page that is displayed, choose Data Sources > OBS Data Source.

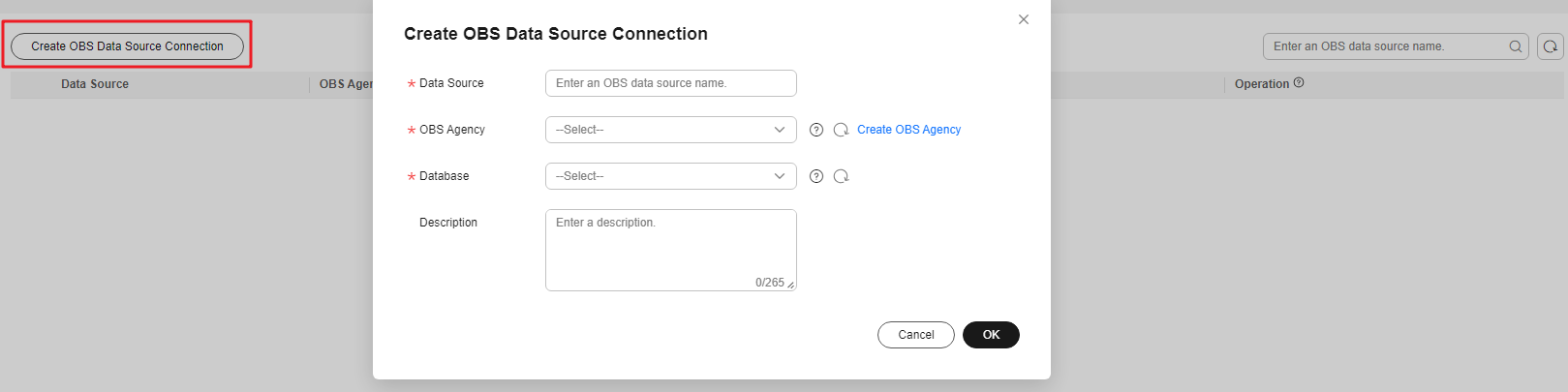

Click Create OBS Cluster Connection and configure parameters.

Click to enlarge

**Table 1** OBS data source connection parameters
Parameter	Description
Data Source Name	Name of the OBS data source connection to be created. You can assign a personalized value to this parameter. The data source name is used as the server name specified in the statement for creating an OBS foreign table.
OBS Agency	Agency with the OBS OperateAccess permission to be granted to GaussDB(DWS)
Database	Database where the OBS data source connection is to be created
Description	Description about the OBS data source connection

Confirm the settings and click OK. The creation takes about 10 seconds.

Updating the OBS Data Source Configuration

Scenario

After an OBS data source connection is created, GaussDB(DWS) periodically updates the temporary agency information used by the data source. If the automatic update fails for 24 hours, the data source connection will be unavailable. To solve this problem, manually update the information on the console.

Procedure

On the GaussDB(DWS) console, choose Dedicated Clusters > Clusters.
In the cluster list, click the name of a cluster. On the page that is displayed, choose Data Sources > OBS Data Source.
In the Operation column of an OBS data source, click Update Configuration.
Confirm the settings and click OK. The update takes about 10 seconds.

Changing the OBS Data Source Agency

Scenario

You can change the agency bound to the OBS data source.

Procedure

On the GaussDB(DWS) console, choose Dedicated Clusters > Clusters.
In the cluster list, click the name of a cluster. On the page that is displayed, choose Data Sources > OBS Data Source.
In the Operation column of a data source, click Manage Agency. In the dialog box that is displayed, select a new agency.
Confirm the settings and click OK. The change takes about 10 seconds.

Deleting an OBS Data Source

On the GaussDB(DWS) console, choose Dedicated Clusters > Clusters.
In the cluster list, click the name of a cluster. On the page that is displayed, choose Data Sources > OBS Data Source.
In the Operation column of an OBS data source, click Delete.
Confirm the settings and click OK. The deletion takes about 10 seconds.

Using an OBS Data Source

GaussDB(DWS) uses foreign tables to access data on OBS. The SERVER parameters specified for accesses with and without an agency are different.

If you access OBS without an agency, the SERVER provided on the console contains parameters access_key and secret_access_key, which are the AK and SK of the OBS access protocol, respectively.

If you access OBS with an agency, the SERVER provided on the console contains the access_key, secret_access_key, and security_token parameters, which are the temporary AK, temporary SK, and the SecurityToken value of the temporary security credential in IAM, respectively.

After the OBS agency and OBS data source are created, you can obtain the SERVER information on the console. Assume that the OBS data source name is obs_server. The way users create and use foreign tables with an agency is the same as the way they do without an agency. For how to use the OBS data source, see Importing Data from OBS.

The following example shows how common user jim reads data from OBS through a foreign table.

Repeat the preceding steps to create an OBS data source named obs_server.

Connect to the database as system administrator dbadmin, create a common user, and grant the common user the permission to use OBS servers and OBS foreign tables. Replace {Password} with the actual password and obs_server with the actual OBS data source name.


         CREATE USER jim PASSWORD '{Password}';
ALTER USER jim USEFT;
GRANT USAGE ON FOREIGN SERVER obs_server TO jim;

Connect to the database as common user jim and create an OBS foreign table customer_address that does not contain partition columns.

In the following command, replace obs_server with the name of the created OBS data source. Replace /user/obs/region_orc11_64stripe1/ with the actual OBS directory for storing data files. user indicates the OBS bucket name.




          CREATE FOREIGN TABLE customer_address
(
    ca_address_sk             integer               not null,
    ca_address_id             char(16)              not null,
    ca_street_number          char(10)                      ,
    ca_street_name            varchar(60)                   ,
    ca_street_type            char(15)                      ,
    ca_suite_number           char(10)                      ,
    ca_city                   varchar(60)                   ,
    ca_county                 varchar(30)                   ,
    ca_state                  char(2)                       ,
    ca_zip                    char(10)                      ,
    ca_country                varchar(20)                   ,
    ca_gmt_offset             decimal(36,33)                  ,
    ca_location_type          char(20)
)
SERVER obs_server OPTIONS (
    FOLDERNAME '/user/obs/region_orc11_64stripe1/',
    FORMAT 'ORC',
    ENCODING 'utf8',
    TOTALROWS  '20'
)
DISTRIBUTE BY roundrobin;






Query data stored in OBS by using a foreign table.


         SELECT COUNT(*) FROM customer_address;
count
-------
20
(1row)

Parent topic: Data Source Management

Previous topic: Updating the MRS Data Source Configuration

Next topic: Managing LakeFormation Data Sources
