Configuring a Job for Synchronizing Data from SQL Server to GaussDB(DWS)

Supported Source and Destination Database Versions

**Table 1** Supported database versions
Source Database	Destination Database
SQL Server database (Enterprise Edition 2016, 2017, 2019, and 2022; Standard Edition 2016 SP2 and later, 2017, 2019, and 2022)	GaussDB(DWS) cluster of version 8.1.3, 8.2.0, or a later version, except GaussDB(DWS) 3.0

Database Account Permissions

Before you use DataArts Migration for data synchronization, ensure that the source and destination database accounts meet the requirements in the following table. The required account permissions vary depending on the synchronization task type.

**Table 2** Database account permissions
Type	Required Permissions
Source database connection account	sysadmin or view server state permissions, and db_datareader or db_owner permissions of the database to be synchronized Enable CDC for a database and a table. Enable CDC for a database. USE YourDatabaseName; EXEC sys.sp_cdc_enable_db; -- Check whether CDC is enabled for a database. SELECT is_cdc_enabled, name FROM sys.databases WHERE name = 'YourDatabaseName' Enable CDC for a table. EXEC sys.sp_cdc_enable_table @source_schema = N'dbo', -- Schema @source_name = N'YourTable',-- Table name @role_name = NULL,-- (Optional) CDC access role name @supports_net_changes = 0; -- Check whether CDC is enabled for the table. SELECT name,is_tracked_by_cdc FROM sys.tables WHERE name = 'YourTable'; The following permissions for the SQL Server must be granted to the user configured in the data connection: Grant the CONNECT and VIEW DATABASE STATE permissions to the user. USE YourDatabaseName; GRANT CONNECT, VIEW DATABASE STATE TO [YourUserName]; Grant the SELECT permissions on the CDC schema to the user. USE YourDatabaseName; GRANT SELECT ON SCHEMA::[cdc] TO [YourUserName]; Grant the SELECT permissions on the table to the user. USE YourDatabaseName; GRANT SELECT ON OBJECT::[YourSchema].[YourTable] TO [YourUserName];
Destination database connection account	The account must have the following permissions for each table in the destination database: INSERT, SELECT, UPDATE, DELETE, CONNECT, and CREATE.

You are advised to create independent database accounts for DataArts Migration task connections to prevent task failures caused by password modification.
After changing the account passwords for the source or destination databases, modify the connection information in Management Center as soon as possible to prevent automatic retries after a task failure. Automatic retries will lock the database accounts.

Supported Synchronization Objects

The following table lists the objects that can be synchronized using different links in DataArts Migration.

**Table 3** Synchronization objects
Type	Note
Synchronization objects	DML operations INSERT, UPDATE, and DELETE can be synchronized. DDL operations cannot be synchronized. Only primary key tables can be synchronized. Transparent Data Encryption (TDE) encrypted databases in the source instance cannot be synchronized. Column encryption is not supported. Auto-increment columns cannot be synchronized. Table structures, common indexes, constraints (primary key, null, and non-null), and comments cannot be synchronized during automatic table creation.

Important Notes

In addition to the constraints on supported data sources and versions, connection account permissions, and synchronization objects, you also need to pay attention to the notes in the following table.

**Table 4** Important notes
Type	Restriction
Database	The names of the destination databases, tables, and fields can only contain digits, letters, and underscores (_). Field names must start with a letter or an underscore (). You are advised to use common characters in names. If Force Protocol Encryption is set to Yes for the source database, Trust Server Certificate also must be set to Yes. Figure 1 Client configuration
Usage	General: During real-time synchronization, the IP addresses, ports, accounts, and passwords cannot be changed. Full synchronization phase: During task startup and full data synchronization, do not perform DDL operations on the source database. Otherwise, the task may fail. Incremental synchronization phase: DML operations INSERT, UPDATE, and DELETE can be synchronized. DDL operations performed on the source database will not be synchronized to the destination database. The IMAGE, TEXT, and NTEXT big data types cannot be deleted. Tables in a job cannot be modified during synchronization. Troubleshooting: If any problem occurs during task creation, startup, full synchronization, incremental synchronization, or completion, rectify the fault by referring to .
Other	Tables in the source database can contain more or less columns than those in the destination database. However, task failures may occur in the following scenarios: Assume that extra columns in the destination database cannot be null and have no default values. If newly inserted data records are synchronized from the source database to the destination database, the extra columns will become null, which does not meet the requirements of the destination database and will cause the task to fail. Assume that extra columns in the destination database must be fixed at a default value and have a unique constraint. If newly inserted data records are synchronized from the source database to the destination database, the extra columns will contain default values. That does not meet the requirements of the destination database. Do not perform primary/standby switchover on the source database. Otherwise, the synchronization task will fail. Source Microsoft SQL Server databases using TLS 1.0 or TLS 1.1 cannot be synchronized. To enable synchronization of such databases, you are advised to upgrade the protocol used by the databases to TLS 1.2 or later. The block_size value of the destination database must be greater than that of the source database. During automatic table creation, the length of the char, varchar, and nvarchar characters in the source database is automatically increased by byte in the destination GaussDB(DWS) database.

Procedure

This section uses real-time synchronization from Microsoft SQL Server to GaussDB(DWS) as an example to describe how to configure a real-time data migration job. Before that, ensure that you have read the instructions described in Check Before Use and completed all the preparations.

Create a real-time migration job by following the instructions in Creating a Real-Time Migration Job and go to the job configuration page.
Select the data connection type. Select SQLServer for Source and DWS for Destination.

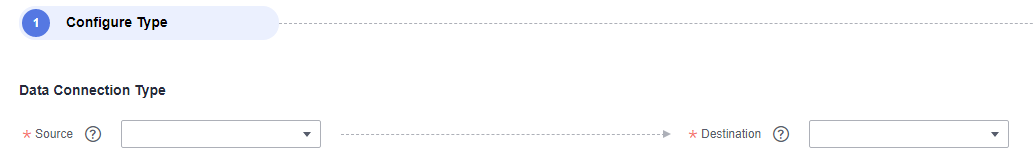

Figure 2 Selecting the data connection type
Select a job type. The default migration type is Real-time. The migration scenario is Entire DB.

Figure 3 Setting the migration job type

For details about synchronization scenarios, see Synchronized Scenarios.
Configure network resources. Select the created SQL Server and GaussDB(DWS) data connections and the migration resource group for which the network connection has been configured.

Figure 4 Selecting data connections and a migration resource group

If no data connection is available, click Create to go to the Manage Data Connections page of the Management Center console and click Create Data Connection to create a connection. For details, see Configuring DataArts Studio Data Connection Parameters.
Configure source parameters.

Select the SQL Server databases and tables to be migrated.

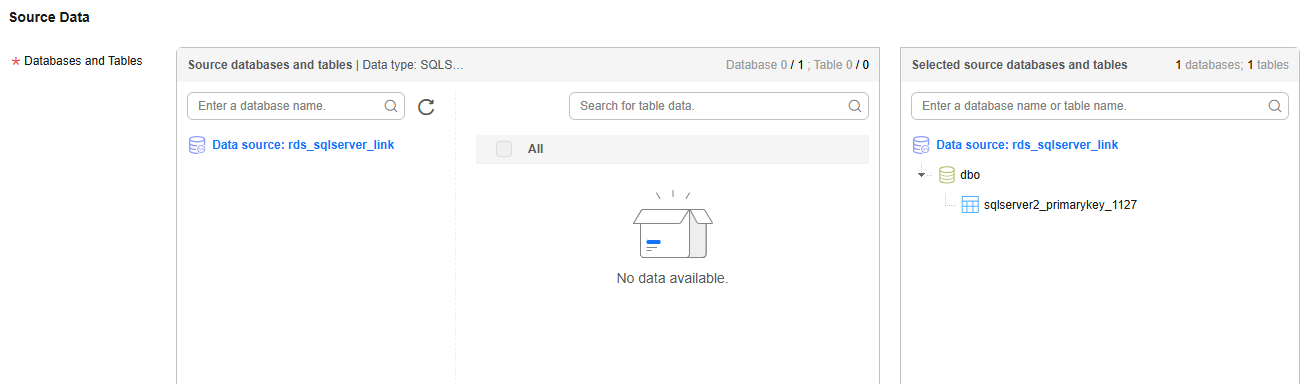

Figure 5 Selecting databases and tables

Both databases and tables can be customized. You can select one database and one table, or multiple databases and tables.

Configure destination parameters.

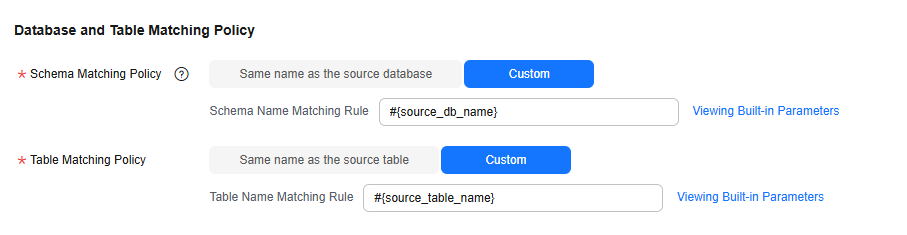

Set Database and Table Matching Policy.

For details about the matching policy between source and destination databases and tables in each synchronization scenario, see the following table.

**Table 5** Database and table matching policy
Synchronization Scenario	Configuration Method
Entire DB	Schema Matching Policy Same name as the source database: Data will be synchronized to the GaussDB(DWS) schema with the same name as the source SQL Server database. Custom: Data will be synchronized to the GaussDB(DWS) schema you specify. Table Matching Policy Same name as the source table: Data will be synchronized to the GaussDB(DWS) table with the same name as the source SQL Server table. Custom: Data will be synchronized to the GaussDB(DWS) table you specify. Figure 6 Database and table matching policy in the entire database migration scenario NOTE: When you customize a matching policy, you can use built-in variables #{source_db_name} and #{source_table_name} to identify the source database name and table name. The table matching policy must contain #{source_table_name}.

Configure GaussDB(DWS) parameters.

For details, see the following table.

Figure 7 GaussDB(DWS) parameters
Click to enlarge

**Table 6** GaussDB(DWS) parameters
Parameter	Default Value	Unit	Description
Write Mode	UPSERT	N/A	UPSERT MODE: batch update COPY MODE: DWS-dedicated high-performance batch import
Maximum Data Volume for Batch Write	50000	Count	Number of data records written to GaussDB(DWS) in a batch. You can adjust the value based on the table data size and job memory usage.
Scheduled Batch Write Interval	3	Second	Interval at which data is written to GaussDB(DWS)
Advanced Settings	N/A	N/A	Some advanced functions can be configured using parameters. For details, see GaussDB(DWS) advanced parameters.

**Table 7** GaussDB(DWS) advanced parameters
Parameter	Type	Default Value	Unit	Description
sink.buffer-flush.max-size	int	512	MB	Maximum number of bytes in each batch of data written to GaussDB(DWS). You can adjust the value based on the memory and data size configured for the job.
sink.keyby.enable	boolean	true	N/A	Whether to enable data distribution. If this function is enabled in multi-concurrency scenarios, data can be distributed to different processes based on specific rules and written to the destination, which improves the write performance.
sink.keyby.mode	string	table	N/A	Data distribution mode. The following modes are available: pk: Data is distributed by primary key value. table: Data is distributed by table name. NOTE: In multi-concurrency scenarios, if DDL is enabled, data can be distributed only by table name. Otherwise, data may be inconsistent. If there is no DDL, you can select pk, which improves the write performance in multi-concurrency scenarios.
sink.field.name.case-sensitive	boolean	true	N/A	Whether to enable case sensitivity for data synchronization. If this function is enabled, the database names, table names, and field names are case sensitive during data synchronization.
sink.verify.column-number	boolean	false	N/A	Whether to verify the number of data columns. By default, the link synchronizes data in the same-name mapping mode. The system does not check whether all columns are synchronized. If this function is enabled and the number of columns at the source is different from that at the destination, the system determines that data is inconsistent. As a result, the job is abnormal.
sink.server.timezone	string	Local time zone	N/A	Session time zone specified for connecting to the destination database. The standard time zone format is supported, for example, UTC+08:00.
logical.delete.enabled	boolean	false	N/A	Whether to enable logical deletion
logical.delete.column	string	logical_is_deleted	N/A	Name of the logical deletion column. The default value is logical_is_deleted. You can customize the value.

Refresh and check the mapping between the source and destination tables. In addition, you can modify table attributes, add additional fields, and use the automatic table creation capability to create tables in the destination GaussDB(DWS) database.

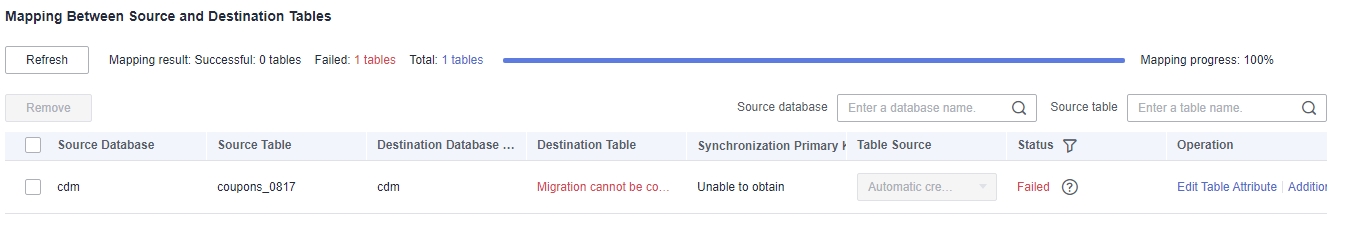

Figure 8 Mapping between source and destination tables
Click to enlarge

Edit additional fields: Click Additional Field in the Operation column to add custom fields to the destination GaussDB(DWS) table. For a new table, you can add additional fields to the existing fields in the source table. You can customize the field name, select the field type, and enter the field value.

Field Name: name of the new field in the destination GaussDB(DWS) table
Field Type: type of the new field in the destination GaussDB(DWS) table

Field Value: Value source of the new field in the destination GaussDB(DWS) table

**Table 8** Additional field value obtaining mode
Type	Example
Constant	Digits, letters, and special characters are supported. Color emoticons may cause a job submission failure.

Automatic table creation: Click Auto Table Creation to automatically create tables in the destination database based on the configured mapping policy. After the tables are created, Existing table is displayed for them.
Figure 9 Automatic table creation
- DataArts Migration supports only automatic table creation. You need to manually create databases and schemas at the destination before using this function.
- For details about the field type mapping for automatic table creation, see Field Type Mapping.

Configure task parameters.

**Table 9** Task parameters
Parameter	Description	Default Value
Execution Memory	Memory allocated for job execution, which automatically changes with the number of CPU cores	8GB
CPU Cores	Value range: 2 to 32 For each CPU core added, 4 GB execution memory and one concurrency are automatically added.	2
Maximum Concurrent Requests	Maximum number of jobs that can be concurrently executed. This parameter does not need to be configured and automatically changes with the number of CPU cores.	1
Adding custom attributes	You can add custom attributes to modify some job parameters and enable some advanced functions. For details, see Job Performance Optimization.	N/A

Submit and run the job.

After configuring the job, click Submit in the upper left corner to submit the job.

Figure 10 Submitting the job
Click to enlarge

After submitting the job, click Start on the job development page. In the displayed dialog box, set required parameters and click OK.

Figure 11 Starting the job
Click to enlarge

**Table 10** Parameters for starting the job
Parameter	Description
Synchronous Mode	Incremental Synchronization: Incremental data synchronization starts from a specified time point. Full and incremental synchronization: All data is synchronized first, and then incremental data is synchronized in real time.
Time	This parameter must be set for incremental synchronization, and it specifies the start time of incremental synchronization. NOTE: If you set a time that is earlier than the earliest CDC log time, the latest log time is used.

Monitor the job.

On the job development page, click Monitor to go to the Job Monitoring page. You can view the status and log of the job, and configure alarm rules for the job. For details, see Real-Time Migration Job O&M.

Figure 12 Monitoring the job
