Packages

Packages are schema objects that group logically related PL/SQL types, variables, functions and procedures. In Oracle, each package consists of two parts: package specification and package body. The package specification may contain variables and REF CURSOR in variables. The package REF CURSORs are identified and migrated in the referred places. The functions and procedures in the package body are migrated into individual functions and procedures. The types and variables in the package body are migrated to each of the functions and procedures.

If the schema names of the package specification and package body do not match, then the tool will log a schema name mismatch error to the DSCError.log file.

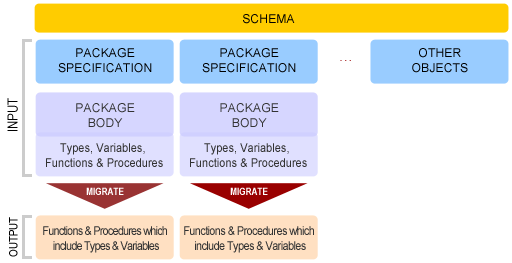

Figure 1 Migration of PL/SQL packages
Input - PL/SQL Packages (Package specifications and body)
CREATE or REPLACE PACKAGE BODY pkg_get_empdet
IS
 PROCEDURE get_ename(eno in number,ename out varchar2)
 IS
 BEGIN
  SELECT ename || ',' || last_name
   INTO ename
     FROM emp
     WHERE empno = eno;

  END  get_ename;

  FUNCTION get_sal(eno in number) return number
  IS
  lsalary number;
  BEGIN
   SELECT salary
    INTO lsalary
       FROM emp
       WHERE empno = eno;
    RETURN lsalary;

   END get_sal;
  END  pkg_get_empdet;
 /

Output (The output contains separate functions and procedures for each of the functions and procedures in the package body of the input)

CREATE
     or REPLACE PROCEDURE
pkg_get_empdet.get_ename ( eno in number ,ename out varchar2 ) IS
     BEGIN

SELECT

ename || ',' || last_name INTO ename
          FROM

emp
          WHERE

empno = eno ;
          END ;
          /

CREATE
     or REPLACE FUNCTION
pkg_get_empdet.get_sal ( eno in number )
    return number IS lsalary number ;
BEGIN

SELECT

salary INTO lsalary

FROM

emp

WHERE

empno = eno ;

RETURN lsalary ;
          END ;
          /
Input - PL/SQL Packages
CREATE OR replace VIEW vw_emp_name AS
          Select pkg_get_empdet.get_sal(emp.empno) as empsal from emp;

Output

CREATE
OR replace VIEW vw_emp_name AS (SELECT

pkg_get_empdet.get_sal (emp.empno) AS empsal
     FROM
          emp)
;

output:
set
package_name_list = 'func' ;
CREATE
OR REPLACE FUNCTION func1 ( i1 INT )
RETURN INT As TYPE r_rthpagat_list IS RECORD ( /* Record
information about cross-border RMB */
business parameters ( rthpagat ) rthpagat_REQUESTID
RMTS_REMITTANCE_PARAM.REQUESTID%TYPE ,rthpagat_PARAMTNAME
RMTS_REMITTANCE_PARAM.PARAMTNAME%TYPE ,rthpagat_PARAMNUM
RMTS_REMITTANCE_PARAM.PARAMNUM%TYPE ,rthpagat_PARAMSTAT
RMTS_REMITTANCE_PARAM.PARAMSTAT%TYPE ,rthpagat_REQTELLERNO RMTS_REMITTANCE_PARAM.REQTELLERNO%TYPE
,rthpagat_REQUESTTIME RMTS_REMITTANCE_PARAM.REQUESTTIME%TYPE
,rthpagat_HOSTERRNO RMTS_REMITTANCE_PARAM.HOSTERRNO%TYPE ,rthpagat_HOSTERRMSG
RMTS_REMITTANCE_PARAM.HOSTERRMSG%TYPE ,rthpagat_GATBANK
RMTS_REMITTANCE_PARAM.VALUE1%TYPE ,rthpagat_GATEEBANK
RMTS_REMITTANCE_PARAM.VALUE2%TYPE ,rthpagat_TELLER
RMTS_REMITTANCE_PARAM.VALUE3%TYPE ,rthpagat_DATE
RMTS_REMITTANCE_PARAM.VALUE4%TYPE ,rthpagat_BM_GATBANK
RMTS_REMITTANCE_PARAM.VALUE5%TYPE ,rthpagat_BM_GATEEBANK
RMTS_REMITTANCE_PARAM.VALUE6%TYPE ,rthpagat_BM_LMTEL
RMTS_REMITTANCE_PARAM.VALUE7%TYPE ,rthpagat_BM_LMDAT
RMTS_REMITTANCE_PARAM.VALUE8%TYPE ) ;
v1 r_rthpagat_list ;
BEGIN
          END ;
          /
          reset
package_name_list ;

Input -Function/Procedure With No Parameter

In case a procedure or function does not have any parameter or argument, put () after procedure or function name while calling the same procedure or function.
CREATE OR REPLACE PACKAGE BODY SAD.bas_lookup_misc_pkg IS

  g_pkg_name CONSTANT VARCHAR2(30) := 'bas_lookup_misc_pkg';
  g_func_name VARCHAR2(30);


  FUNCTION func_name
  RETURN VARCHAR2
   IS
    l_func_name VARCHAR2(100);
  BEGIN
    l_func_name := g_pkg_name || '.' || g_func_name;
    RETURN l_func_name;
  END func_name;
  ------------------------------------------------------------------------------
  PROCEDURE insert_fnd_data_change_logs(pi_table_name               IN VARCHAR2,
                                        pi_table_key_columns        IN VARCHAR2,
                                        pi_table_key_values         IN VARCHAR2,
                                        pi_column_name              IN VARCHAR2,
                                        pi_column_change_from_value IN VARCHAR2,
                                        pi_column_change_to_value   IN VARCHAR2,
                                        pi_op_code                  IN NUMBER,
                                        pi_description              IN VARCHAR2,
                                        po_error_msg                OUT VARCHAR2)
  IS

  BEGIN
    g_func_name := 'insert_fnd_data_change_logs_t';

  EXCEPTION
    WHEN OTHERS THEN
      po_error_msg := 'Others Exception raise in ' || func_name || ',' || SQLERRM;

  END insert_fnd_data_change_logs;
 END SAD.bas_lookup_misc_pkg;
/

Output

CREATE
     OR REPLACE FUNCTION SAD.bas_lookup_misc_pkg#func_name
     RETURN VARCHAR2
  PACKAGE
  IS
  l_func_name VARCHAR2 ( 100 ) ;
     MIG_PV_VAL_DUMMY_G_PKG_NAME VARCHAR2 ( 30 ) := MIG_ORA_EXT.MIG_FN_GET_PKG_VARIABLE ( 'SAD' ,'bas_lookup_misc_pkg' ,'g_pkg_name' ) ::VARCHAR2 ( 30 ) ;
     MIG_PV_VAL_DUMMY_G_FUNC_NAME VARCHAR2 ( 30 ) := MIG_ORA_EXT.MIG_FN_GET_PKG_VARIABLE ( 'SAD' ,'bas_lookup_misc_pkg' ,'g_func_name' ) ::VARCHAR2 ( 30 ) ;

BEGIN
     l_func_name := MIG_PV_VAL_DUMMY_G_PKG_NAME || '.' || MIG_PV_VAL_DUMMY_G_FUNC_NAME ;

 MIG_ORA_EXT.MIG_FN_SET_PKG_VARIABLE ( 'SAD','bas_lookup_misc_pkg','g_pkg_name',MIG_PV_VAL_DUMMY_G_PKG_NAME ) ;
 MIG_ORA_EXT.MIG_FN_SET_PKG_VARIABLE ( 'SAD','bas_lookup_misc_pkg','g_func_name',MIG_PV_VAL_DUMMY_G_FUNC_NAME ) ;

     RETURN l_func_name ;


END ;

-------------------------------------------------------------------------------------------------
CREATE
     OR REPLACE PROCEDURE SAD.bas_lookup_misc_pkg#insert_fnd_data_change_logs ( pi_table_name IN VARCHAR2
     ,pi_table_key_columns IN VARCHAR2
     ,pi_table_key_values IN VARCHAR2
     ,pi_column_name IN VARCHAR2
     ,pi_column_change_from_value IN VARCHAR2
     ,pi_column_change_to_value IN VARCHAR2
     ,pi_op_code IN NUMBER
     ,pi_description IN VARCHAR2
     ,po_error_msg OUT VARCHAR2 )
  PACKAGE
  IS

     MIG_PV_VAL_DUMMY_G_FUNC_NAME VARCHAR2 ( 30 ) := MIG_ORA_EXT.MIG_FN_GET_PKG_VARIABLE ( 'SAD' ,'bas_lookup_misc_pkg' ,'g_func_name' ) ::VARCHAR2 ( 30 ) ;

BEGIN
     MIG_PV_VAL_DUMMY_G_FUNC_NAME := 'insert_fnd_data_change_logs_t' ;

  MIG_ORA_EXT.MIG_FN_SET_PKG_VARIABLE ( 'SAD','bas_lookup_misc_pkg','g_pkg_name',MIG_PV_VAL_DUMMY_G_PKG_NAME ) ;
  MIG_ORA_EXT.MIG_FN_SET_PKG_VARIABLE ( 'SAD','bas_lookup_misc_pkg','g_func_name',MIG_PV_VAL_DUMMY_G_FUNC_NAME ) ;


          EXCEPTION
               WHEN OTHERS THEN
               po_error_msg := 'Others Exception raise in ' || SAD.bas_lookup_misc_pkg#func_name() || ',' || SQLERRM ;

END ;
/

Input - Package Body with no procedure and functions

In case package body does not have any logic,for example, procedures and functions, DSC needs to remove all code from the same package. The output is basically blank.

CREATE OR REPLACE PACKAGE BODY SAD.bas_subtype_pkg IS
BEGIN
  NULL;
END bas_subtype_pkg;
/

Input - SUBTYPE

With the SUBTYPE statement, PL/SQL allows you to define your own subtypes or aliases of predefined datatypes, sometimes referred to as abstract datatypes.

CREATE OR REPLACE PACKAGE "SAD"."BAS_SUBTYPE_PKG" IS
SUBTYPE CURRENCY IS BAS_PRICE_LIST_T.CURRENCY%TYPE;
END bas_subtype_pkg;
/
CREATE OR REPLACE PACKAGE BODY "SAD"."BAS_SUBTYPE_PKG" IS
BEGIN
  NULL;
END bas_subtype_pkg;
/
--********************************************************************
CREATE OR REPLACE PACKAGE BODY SAD.bas_lookup_misc_pkg IS
  FUNCTION get_currency(pi_price_type IN NUMBER) RETURN VARCHAR2 IS
    v_currency bas_subtype_pkg.currency;
  BEGIN
    g_func_name := 'get_currency';
    FOR rec_currency IN (SELECT currency FROM sad_price_type_v WHERE price_type_code = pi_price_type)
    LOOP
      v_currency := rec_currency.currency;
    END LOOP;
    RETURN v_currency;
  END get_currency;
 END SAD.bas_lookup_misc_pkg;
 /

Output

"SAD"."BAS_SUBTYPE_PKG" package will be blank after migration.
--**********************************************************

 CREATE OR REPLACE FUNCTION SAD.bas_lookup_misc_pk#get_currency(pi_price_type IN NUMBER) RETURN VARCHAR2 IS
    v_currency BAS_PRICE_LIST_T.CURRENCY%TYPE;
  BEGIN
    g_func_name := 'get_currency';
    FOR rec_currency IN (SELECT currency FROM sad_price_type_v WHERE price_type_code = pi_price_type)
    LOOP
      v_currency := rec_currency.currency;
    END LOOP;
    RETURN v_currency;
  END ;
 /

As the SUBTYPE not supported in GaussDB, the SUBTYPE variable used needs to be replaced with the actualy type.

Input - sys.dbms_job

The DBMS_JOB package schedules and manages jobs in the job queue.

CREATE OR replace PACKAGE BODY "SAD"."EIP_HTM_INTEGRATION_PKG"
IS
  PROCEDURE Greate_import_instruction_job
  IS
    v_jobid NUMBER;
  BEGIN
      IF
bas_lookup_misc_pkg.Exits_run_job('eip_htm_integration_pkg.import_instruction_job') = 'N' THEN
  sys.dbms_job.Submit(job => v_jobid,
                                                      what => 'begin
                                                                            eip_htm_integration_pkg.import_instruction_job;
                                                                          end;',
                                                      next_date => SYSDATE);

  COMMIT;
END IF;
---
END greate_import_instruction_job;
END eip_htm_integration_pkg;

Output

CREATE OR replace PROCEDURE
sad.Eip_htm_integration_pkg#greate_import_instruction_job
IS
  v_jobid NUMBER;
BEGIN
    IF Bas_lookup_misc_pkg#exits_run_job (
          'eip_htm_integration_pkg.import_instruction_job') = 'N' THEN
     dbms_job.Submit(job => v_jobid,
                                                      what => 'begin
                                                                            eip_htm_integration_pkg.import_instruction_job;
                                                                          end;',
                                                      next_date => SYSDATE);
      /*  COMMIT;  */
      NULL;
    END IF;
---
END;

Remove the SYS schema while calling the package.

Input - Procedure/Function variable

The NULL constraint is not supported on variable declaration by Gauss, so it is recomended to comment the NULL keyword.

CREATE OR REPLACE PACKAGE BODY SAD.sad_lookup_contract_pkg IS
 FUNCTION CONTRACT_DISTRIBUTE_STATUS_S2(PI_CONTRACT_NUMBER IN VARCHAR2)
    RETURN VARCHAR2 IS
    L_CONTRACT_DISTRIBUTE_STATUS VARCHAR2(10)  NULL;

  BEGIN
       IF CUR_CONTRACT.CONTRACT_STATUS = 0 THEN
        L_CONTRACT_DISTRIBUTE_STATUS := 'Cancel';
      ELSE
        L_CONTRACT_DISTRIBUTE_STATUS := 'Active';
      END IF;

    RETURN L_CONTRACT_DISTRIBUTE_STATUS;

  EXCEPTION
    WHEN OTHERS THEN
      L_CONTRACT_DISTRIBUTE_STATUS := NULL;

  END CONTRACT_DISTRIBUTE_STATUS_S2;
END sad_lookup_contract_pkg;
/

Output

CREATE OR replace FUNCTION sad_lookup_contract_pkg.Contract_distribute_status_s2 ( pi_contract_number IN VARCHAR2 )
  RETURN VARCHAR2
IS
  l_contract_distribute_statusvarchar2 ( 10 )
  /* NULL */
  ;
BEGIN
  IF cur_contract.contract_status = 0 THEN
    l_contract_distribute_status := 'Cancel' ;
  ELSE
    l_contract_distribute_status := 'Active' ;
  END IF ;
  RETURN l_contract_distribute_status ;
EXCEPTION
WHEN OTHERS THEN
  l_contract_distribute_status := NULL ;
END ;/

Input - Configuration parameter addPackageNameList = true

Hint to access objects from specific schema by system.

CREATE OR REPLACE PACKAGE BODY IC_STAGE.PKG_REVN_ARPU
AS
-----------
-----------
END PKG_REVN_ARPU;
/

Output

SET  package_name_list = 'PKG_REVN_ARPU' ;
--------------
--------------
reset package_name_list ;

Input - Configuration parameter addPackageNameList = false

Hint to access objects from specific schema by system.

CREATE OR REPLACE PACKAGE BODY IC_STAGE.PKG_REVN_ARPU
AS
-----------
-----------
END PKG_REVN_ARPU;
/

Output

SET SEARCH_PATH=PKG_REVN_ARPU,PUBLIC;

Input -PACKAGE

Hint that procedure and functions belongs to a package.

CREATE OR REPLACE PACKAGE BODY SAD.sad_lookup_contract_pkg
IS
 FUNCTION CONTRACT_DISTRIBUTE_STATUS_S2(PI_CONTRACT_NUMBER IN VARCHAR2)
    RETURN VARCHAR2 IS
    L_CONTRACT_DISTRIBUTE_STATUS VARCHAR2(10) ;

  BEGIN
       IF CUR_CONTRACT.CONTRACT_STATUS = 0 THEN
        L_CONTRACT_DISTRIBUTE_STATUS := 'Cancel';
      ELSE
        L_CONTRACT_DISTRIBUTE_STATUS := 'Active';
      END IF;

    RETURN L_CONTRACT_DISTRIBUTE_STATUS;

  EXCEPTION
    WHEN OTHERS THEN
      L_CONTRACT_DISTRIBUTE_STATUS := NULL;

  END CONTRACT_DISTRIBUTE_STATUS_S2;
END sad_lookup_contract_pkg;
/

Output

CREATE OR replace FUNCTION sad_lookup_contract_pkg.Contract_distribute_status_s2 ( pi_contract_number IN VARCHAR2 )
  RETURN VARCHAR2
PACKAGE
IS
  l_contract_distribute_statusvarchar2 ( 10 ) ;
BEGIN
  IF cur_contract.contract_status = 0 THEN
    l_contract_distribute_status := 'Cancel' ;
  ELSE
    l_contract_distribute_status := 'Active' ;
  END IF ;
  RETURN l_contract_distribute_status ;
EXCEPTION
WHEN OTHERS THEN
  l_contract_distribute_status := NULL ;
END ;
/

You need to put the PACKAGE keyword while creating any procedure and function in front of the IS/AS statement.

Input -Nested Procedure

Creating a procedure inside a procedure is known as a nested procedure. The nested procedure is private and belongs to the parent procedure.

CREATE OR REPLACE PROCEDURE refresh_sw_product_amount(pi_stage_id IN NUMBER)
  IS

    v_product_amount          sad_sw_product_amount_t.product_amount%TYPE;
 FUNCTION get_sw_no
 RETURN VARCHAR2
  IS
      v_xh       NUMBER;
    BEGIN
      BEGIN
        SELECT nvl(to_number(substrb(MAX(sw_no), 3, 4)), 0)
          INTO v_xh
          FROM sad.sad_sw_product_amount_t
         WHERE pi_stage_id = pi_stage_id;
      EXCEPTION WHEN OTHERS THEN
        v_xh := 0;
      END;

      RETURN 'SW' || lpad(to_char(v_xh + 1), 4, '0') || 'Y';
    END get_sw_no;

    BEGIN

      FOR rec_pu IN (SELECT t.*, sh.header_id
                       FROM asms.ht_stages t, asms.ht, sad.sad_distribution_headers_t sh
                      WHERE t.hth = ht.hth
                        AND sh.contract_number = t.hth
                        AND sh.stage_id = t.stage_id
                        AND ht.sw_track_flag = 'Y'
                        AND to_char(t.category_id) IN
                                    (SELECT code
                                       FROM asms.asms_lookup_values
                                      WHERE type_code = 'CATEGORY_ID_EQUIPMENT'
                                        AND enabled_flag = 'Y')
                        AND nvl(t.status, '-1') <> '0'
                        AND t.stage_id = pi_stage_id)

      LOOP
        SELECT nvl(SUM(nvl(product_amount, 0)), 0)
          INTO v_product_amount
          FROM sad.sad_products_t sp
         WHERE sp.header_id = rec_pu.header_id
           AND sp.sw_flag = 'Y';


      END LOOP;

END refresh_sw_product_amount;

Output

CREATE OR REPLACE FUNCTION get_sw_no(pi_stage_id IN NUMBER)
 RETURN VARCHAR2 IS
      v_xh       NUMBER;
    BEGIN
      BEGIN
        SELECT nvl(to_number(substrb(MAX(sw_no), 3, 4)), 0)
          INTO v_xh
          FROM sad.sad_sw_product_amount_t
         WHERE pi_stage_id = pi_stage_id;
      EXCEPTION WHEN OTHERS THEN
        v_xh := 0;
      END;

      RETURN 'SW' || lpad(to_char(v_xh + 1), 4, '0') || 'Y';
END ;
/

 --*****************************************************************************
 CREATE OR REPLACE PROCEDURE refresh_sw_product_amount(pi_stage_id IN NUMBER)
 IS

    v_product_amount          sad_sw_product_amount_t.product_amount%TYPE;

    BEGIN

      FOR rec_pu IN (SELECT t.*, sh.header_id
                       FROM asms.ht_stages t, asms.ht, sad.sad_distribution_headers_t sh
                      WHERE t.hth = ht.hth
                        AND sh.contract_number = t.hth
                        AND sh.stage_id = t.stage_id
                        AND ht.sw_track_flag = 'Y'
                        AND to_char(t.category_id) IN
                                    (SELECT code
                                       FROM asms.asms_lookup_values
                                      WHERE type_code = 'CATEGORY_ID_EQUIPMENT'
                                        AND enabled_flag = 'Y')
                        AND nvl(t.status, '-1') <> '0'
                        AND t.stage_id = pi_stage_id)

      LOOP
        SELECT nvl(SUM(nvl(product_amount, 0)), 0)
          INTO v_product_amount
          FROM sad.sad_products_t sp
         WHERE sp.header_id = rec_pu.header_id
           AND sp.sw_flag = 'Y';


      END LOOP;

END;
/

When nested procedures/functions are implemented, the package variables in all procedures/functions must be processed.

After migrating sub-procedures/functions, migrate the parent procedure/function.

if pkgSchemaNaming = false

if pkgSchemaNaming is set to false, PL RECORD migration should not have package name in the type name as its schema.

Input

CREATE OR REPLACE PACKAGE BODY SAD.sad_dml_product_pkg IS

 PROCEDURE save_sad_product_line_amount(pi_stage_id            IN NUMBER,
             pi_product_line_code   IN VARCHAR2,
             po_error_msg           OUT VARCHAR2) IS

   TYPE t_line IS RECORD(
  product_line   VARCHAR2(30),
  product_amount NUMBER);
   TYPE tab_line IS TABLE OF t_line INDEX BY BINARY_INTEGER;
   rec_line             tab_line;
   v_product_line_arr   VARCHAR2(5000);
   v_product_line       VARCHAR2(30) ;
   v_count              INTEGER;
   v_start              INTEGER;
   v_pos                INTEGER;

 BEGIN
   v_count      := 0;
   v_start      := 1;

    v_product_line_arr := pi_product_line_code;
  LOOP
    v_pos := instr(v_product_line_arr, ',', v_start);
    IF v_pos <= 0
    THEN
   EXIT;
    END IF;
    v_product_line := substr(v_product_line_arr, v_start, v_pos - 1);
    v_count := v_count + 1;
    rec_line(v_count).product_line := v_product_line;
    rec_line(v_count).product_amount := 0;
    v_product_line_arr := substr(v_product_line_arr, v_pos + 1, length(v_product_line_arr));

  END LOOP;

   FOR v_count IN 1 .. rec_line.count
   LOOP
  UPDATE sad_product_line_amount_t spl
     SET spl.product_line_amount = rec_line(v_count).product_amount
   WHERE spl.stage_id = pi_stage_id
     AND spl.product_line_code = rec_line(v_count).product_line;
  IF SQL%NOTFOUND
  THEN
    INSERT INTO sad_product_line_amount_t
        (stage_id, product_line_code, product_line_amount)
    VALUES (pi_stage_id, rec_line(v_count).product_line, rec_line(v_count).product_amount);
  END IF;
   END LOOP;

 EXCEPTION
   WHEN OTHERS THEN
  po_error_msg := 'Others Exception raise in ' || func_name || ',' || SQLERRM;
 END save_sad_product_line_amount;

END sad_dml_product_pkg;
/

Output

CREATE  TYPE SAD.sad_dml_product_pkg#t_line AS
 ( product_line VARCHAR2 ( 30 )
    , product_amount NUMBER ) ;

CREATE OR REPLACE PROCEDURE SAD.sad_dml_product_pkg#save_sad_product_line_amount
 ( pi_stage_id IN NUMBER
    , pi_product_line_code IN VARCHAR2
    , po_error_msg OUT VARCHAR2 )
PACKAGE
IS
 TYPE tab_line IS VARRAY ( 10240 ) OF SAD.sad_dml_product_pkg#t_line ;
     rec_line tab_line ;
     v_product_line_arr VARCHAR2 ( 5000 ) ;
     v_product_line VARCHAR2 ( 30 ) ;
     v_count INTEGER ;
     v_start INTEGER ;
     v_pos INTEGER ;
BEGIN
     v_count := 0 ;
     v_start := 1 ;
     v_product_line_arr := pi_product_line_code ;

     LOOP
         v_pos := instr( v_product_line_arr ,',' ,v_start ) ;

   IF v_pos <= 0 THEN
       EXIT ;
   END IF ;

   v_product_line := SUBSTR( v_product_line_arr ,v_start ,v_pos - 1 ) ;
   v_count := v_count + 1 ;
   rec_line ( v_count ).product_line := v_product_line ;
   rec_line ( v_count ).product_amount := 0 ;
   v_product_line_arr := SUBSTR( v_product_line_arr ,v_pos + 1 ,length( v_product_line_arr ) ) ;

     END LOOP ;

     FOR v_count IN 1.. rec_line.count
  LOOP
          UPDATE sad_product_line_amount_t spl
             SET spl.product_line_amount = rec_line ( v_count ).product_amount
           WHERE spl.stage_id = pi_stage_id
             AND spl.product_line_code = rec_line ( v_count ).product_line ;

   IF SQL%NOTFOUND THEN
   INSERT INTO sad_product_line_amount_t
       ( stage_id, product_line_code, product_line_amount )
   VALUES ( pi_stage_id, rec_line ( v_count ).product_line
       , rec_line ( v_count ).product_amount ) ;

   END IF ;

     END LOOP ;

EXCEPTION
    WHEN OTHERS THEN
        po_error_msg := 'Others Exception raise in ' || func_name || ',' || SQLERRM ;

END ;
/
