EXPLAIN PLAN

Function

You can run the EXPLAIN PLAN statement to save the information about an execution plan to the PLAN_TABLE table. Different from the EXPLAIN statement, EXPLAIN PLAN only stores plan information and does not print it on the screen.

Syntax

1
2
3

EXPLAIN PLAN
[ SET STATEMENT_ID = string ]
FOR statement ;

Parameter Description

• PLAN

  Stores plan information in PLAN_TABLE. If the storing is successful, EXPLAIN SUCCESS is returned.

• STATEMENT_ID
  Tags a query. The tag information will be stored in PLAN_TABLE.



  If the EXPLAIN PLAN statement does not contain SET STATEMENT_ID, the value of STATEMENT_ID is empty by default. In addition, the value of STATEMENT_ID cannot exceed 30 bytes. Otherwise, an error will be reported.

Precautions

• EXPLAIN PLAN cannot be executed on DNs.
• Plan information cannot be collected for SQL statements that failed to be executed.
• Data in PLAN_TABLE is in a session-level life cycle. Sessions are isolated from users and thereby users can view data of only the current session and current user.
• PLAN_TABLE cannot be joined with GDS foreign tables.
• For a query that cannot be pushed down, object information cannot be collected and only such information as REMOTE_QUERY and CTE can be collected. For details, see Example 2.

Example 1

You can perform the following steps to collect execution plans of SQL statements by running EXPLAIN PLAN:

1. Import TPC-H sample data.
2. Run the EXPLAN PLAN statement.


   After the EXPLAIN PLAN statement is executed, plan information is automatically stored in PLAN_TABLE. INSERT, UPDATE, and ANALYZE cannot be performed on PLAN_TABLE.

   For details about PLAN_TABLE, see the PLAN_TABLE system view.

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

   explain plan set statement_id='TPCH-Q4' for select o_orderpriority, count(*) as order_count from orders where o_orderdate >= '1993-07-01'::date and o_orderdate < '1993-07-01'::date + interval '3 month' and exists ( select * from lineitem where l_orderkey = o_orderkey and l_commitdate < l_receiptdate ) group by o_orderpriority order by o_orderpriority;

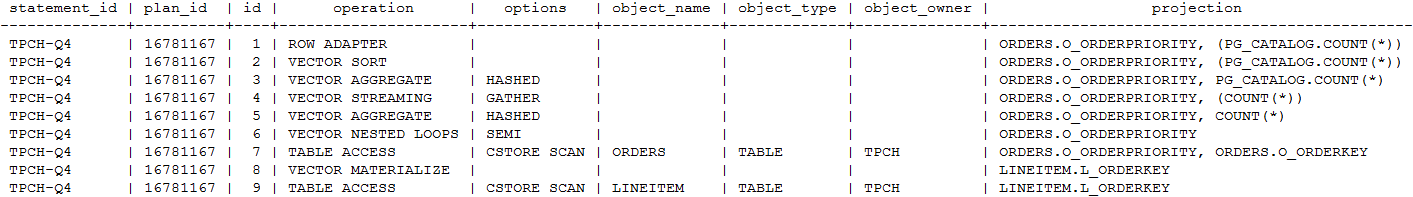

3. Query PLAN_TABLE.

   1	SELECT * FROM PLAN_TABLE;



4. Delete data from PLAN_TABLE.

   1	DELETE FROM PLAN_TABLE WHERE xxx;

Example 2

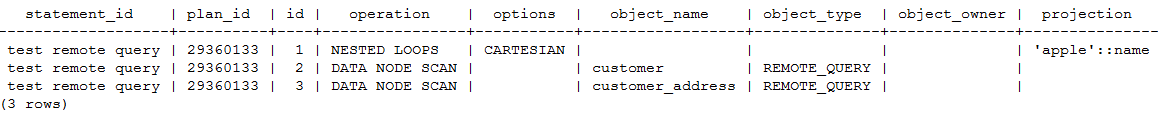

For a query that cannot be pushed down, only such information as REMOTE_QUERY and CTE can be collected from PLAN_TABLE after EXPLAIN PLAN is executed.

1
2
3
4
5

  explain plan set statement_id = 'test remote query' for
  select
  current_user
  from
  customer;

1

SELECT * FROM PLAN_TABLE;
