Submitting a Coordinator Periodic Scheduling Job

Scenario

This section describes how to submit a job of the periodic scheduling type on the Hue web UI.

Prerequisites

Required workflow jobs have been configured before the coordinator task is submitted.

Procedure

  1. Access the Hue web UI. For details, see Accessing the Hue Web UI.
  2. In the navigation tree on the left, click and choose Schedule to open the Coordinator editor.
  3. On the job editing page, click My Schedule to change the job name.

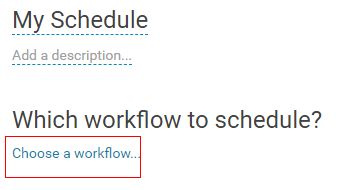

  4. Click Choose a Workflow... to select the workflow to be orchestrated.

  5. Select a workflow, set the job execution frequency as prompted, and click in the upper right corner to save the workflow job.

    Because the time zone is changed, the difference between the time and the local time may be several hours.

  6. Click in the upper right corner of the editor, set the start value and end value of the time range for executing the scheduled job, and click Submit to submit the job.

    Because the time zone is changed, the difference between the time and the local time may be several hours.
